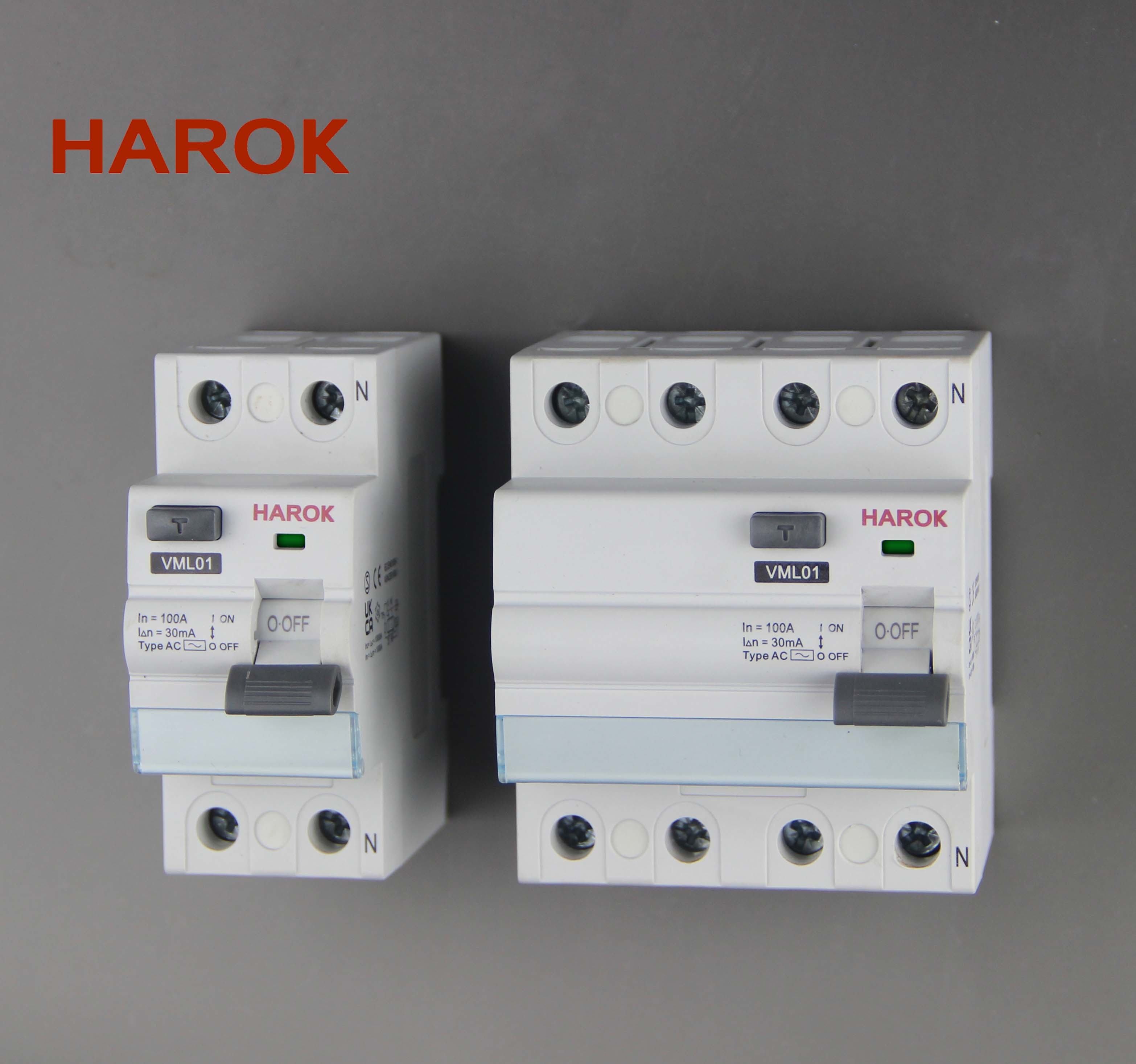

VML01 Residual Current Device(RCD) Type A Type AC Type ASi with Inmetro Certificate
1. General
1.1 Function
Control electric circuits.
Protect people against indirect contacts and additional protection against direct contacts.
Protect installations against fire hazard due to insulation faults.
Residual current circuit breakers are used in housing, tertiary sector and industry.
1.2 Selection
Detectable wave form
AC class
Tripping is ensured for slowly increasing sinusoidal AC residual currents
A class
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly.
ASi Type - Full type A features + Si: Super immused (High immunity to unwanted tripping)
Tripping is ensured not only for sinusoidal AC residual currents but also for pulsed DC residual currents whether applied suddenly or increasing slowly. S, G/SI type with filters against spurious tripping caused by harmonics and transient surges. With the impact of 8/20us surge 3000A, this high immunity RCCB will still be in stable status.
Note: Our ASi type includes G/KV function and Si function.
1.3 Approvals and certificates
We certify that the RCCB has been tested for the following routine tests as per IS: 12640 (Part 1):2016 and found to be complying
with the requirements.
1. Verification of the operating characteristic as per Seq. - D0 CL9.9
2. Verification of the operation of the test device at the limits of rated voltage as per Seq. - D1 CL9.16
3. High Voltage Test as per D.3 of Annex D
4. Test for standard values of break time and non- actuating time as per CL 5.3.12 (table -1)
Tripping sensitivity
10mA - precision instrument leakage protection and bathroom use.
30mA - additional protection against direct contact.
100mA - co-ordinated with the earth system according to the formula I△n < 50/R, to provide protection against indirect contacts;
300mA/500mA - protection against indirect contacts, as well as fire hazard.
Tripping time
Instantaneous
It ensures instantaneous tripping(without time-delay).
Short time delay ASi
(High Immunity/ Avoid nuisance tripping &blinding)
It ensures any tripping at least 10ms.
Selective
It ensures total discrimination with a non selective RCD placed downstream.
RCD | Residual Current Device
2. Technical parameters
| Standard | IEC/EN 61008-1 AS/NZS61008.1 | |
| Electrical features | Model No. | VML01 |
| Poles | 2P, 4P | |
| Rated current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A | |
| Rated Sensitivity I△n | 10mA(2P/4P 16A,25A.32A/40A), 30mA, 100mA, 300mA | |
| Rated voltage Ue | 2P: 240V 4P: 415V | |
| Insulation voltage Ui | 415V | |
| Rated frequency | 50/60 Hz | |
| Rated residual making and breaking capacity I△m | 1500A | |
| Short-circuit current Inc=I△c | 6000A, 10000A | |
| Type (wave form of the earth leakage sensed) | AC, A, ASi, S | |
| break time under I△n | ≤0.1s(Normal type), 10ms~300ms(ASi type). 150ms~500ms(S type) | |
| Rated impulse withstand voltage(1.2/50) Uimp | 4kV | |
| Dielectric test voltage at ind. Freq. for 1 min | 2.5 | |
| Pollution degree | 2 | |
| Mechanical features | Electrical life | ≥2000 |
| Mechanical life | ≥2000 | |
| Fault current indicator | Yes | |
| Terminal protection degree | IP20 | |
Ambient temperature (with daily average≤35℃) | -25℃ to 50℃ | |
| Storage temperate | -30℃ to 70℃ | |
| Installation | Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable | 25-35 mm² | |
| 18-3/18-2 AWG | ||
| Terminal size top/bottom for busbar | 10/16 mm² | |
| 18-8/18-5 AWG | ||
| Tightening torque | 2.5 N·m | |
| 22 In-Ibs. | ||
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device | |
| Connection | From top and bottom |
3. Outline and installation dimensions (mm)
Residual Current Device (RCD) is a device designed to protect people and buildings from electrical shock and fire caused by an overload or short circuit. With a rated operating temperature of -25℃ to +40℃, protection class of IP20, rated residual operating time of 0.1s, and rated insulation voltage of 500V, this RCD provides superior safety and performance. It is the perfect choice for anyone looking for a reliable and durable RCD for their electrical system.
Product Name: Residual Current Device
Rated Residual Operating Current: 30mA, 100mA, 300mA
Rated Impulse Withstand Voltage: 4kV
Protection Class: IP20
Rated Current: 16A, 25A, 32A, 40A, 63A, 80A, 100A
Rated Voltage: 240/415V AC
Residual Current Device Type AC, A, ASi
Residual Current Device Certificates: Inmetro, ISI, CE, NF, UKCA, SEMKO
Residual Current Device (RCD) is an essential device that provides protection from electric shock, fire, and other electrical hazards. The HAROK VML01 RCD is certified to meet the highest international standards with certifications from Inmetro, NF, SEMKO, VDE, KEMA, ISI, and CE. It has a rated impulse withstand voltage of 4kV, a rated insulation voltage of 500V, a rated residual operating current of 30mA-300mA, and a rated residual operating time of 0.1s. Produced by HAROK, the VML01 RCD offers superior quality and reliability for a wide range of applications.
The HAROK VML01 RCD is an ideal solution for industrial, commercial, and residential applications. It is suitable for use in residential homes, office buildings, and industrial facilities where it can provide protection against electrical shock. It is also suitable for use in medical facilities, laboratories, and other sensitive environments where it can provide protection from electrical hazards. The device is capable of detecting and interrupting small leakage currents, providing protection against shock, fire, and other electrical hazards.
The HAROK VML01 RCD is a compact and reliable device with a minimum order quantity of 1000, and a supply ability of 100,000 PCS per month. It is packaged in a paper carton and has a delivery time of 4-6 weeks after payment. With its superior quality and reliability, the HAROK VML01 RCD is the ideal solution for protecting against electric shock, fire, and other electrical hazards.
| Parameter | Value |
|---|---|
| Rated Impact Endurance Voltage | 2kV |
| Rated Residual Operating Current | 30mA, 100mA, 300mA |
| Rated Humidity | ≤95%RH |
| Rated Residual Operating Time | 0.1s |
| Rated Voltage | 230V AC |
| Rated Operating Temperature | -25℃~+40℃ |
| Rated Short-Circuit Capacity | 10kA |
| Product Name | Residual Current Device |
| Certificate | CE, ISI, NF, SEMKO, VDE, KEMA, Inmetro |
| Residual Current Device Inmetro | Type AC, Type A, Type ASi |
