| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Certification | NF, SEMKO, VDE, KEMA, ISI, CE, INMETRO |
| Model Number | VKL11 |
| Minimum Order Quantity | 1000 |
| Packaging Details | PAPER CARTON |
| Delivery Time | 4-6 weeks after payment |
| Supply Ability | 100,000 PCS PER MONTH |
| Certificate | CE, ISI, NF, SEMKO, VDE, KEMA, INMETRO | Rated Residual Non-Operating Time | 5s |
|---|---|---|---|
| Rated Impact Endurance Voltage | 2kV | Rated Residual Non-Operating Current | 30mA, 100mA, 300mA |
| Rated Impulse Withstand Voltage | 4kV | Rated Frequency | 50/60Hz |
| Rated Short-Circuit Capacity | 10kA | Rated Current | 16A, 20A, 25A, 32A, 40A, 63A, 80A, 100A |
| High Light | ISI mark Residual Current Device,residual current device 100A 30MA,2kV Residual Current Device | ||

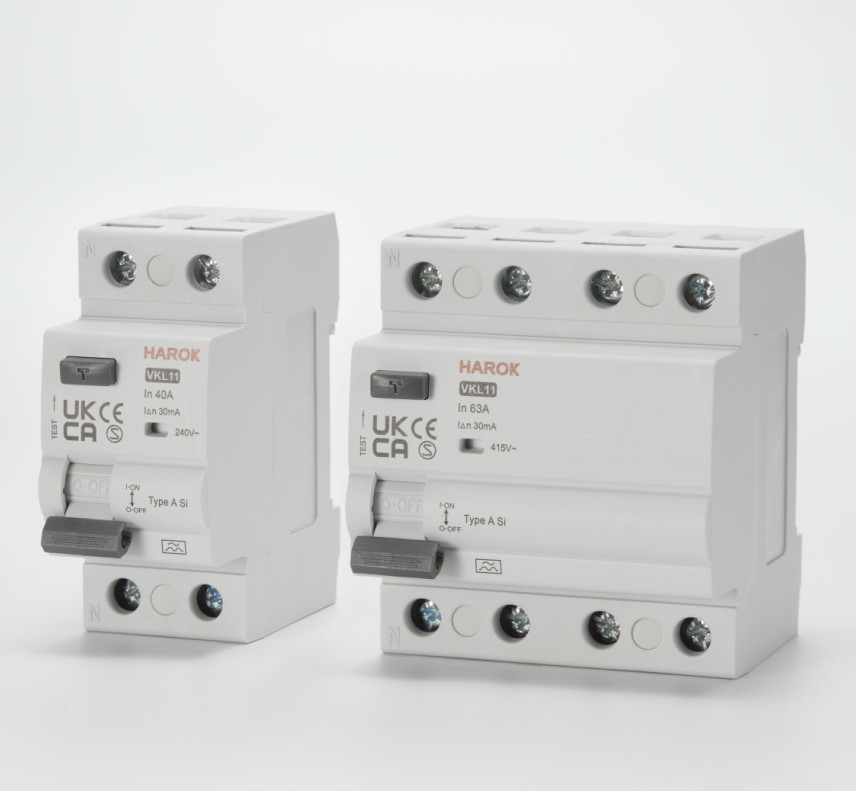

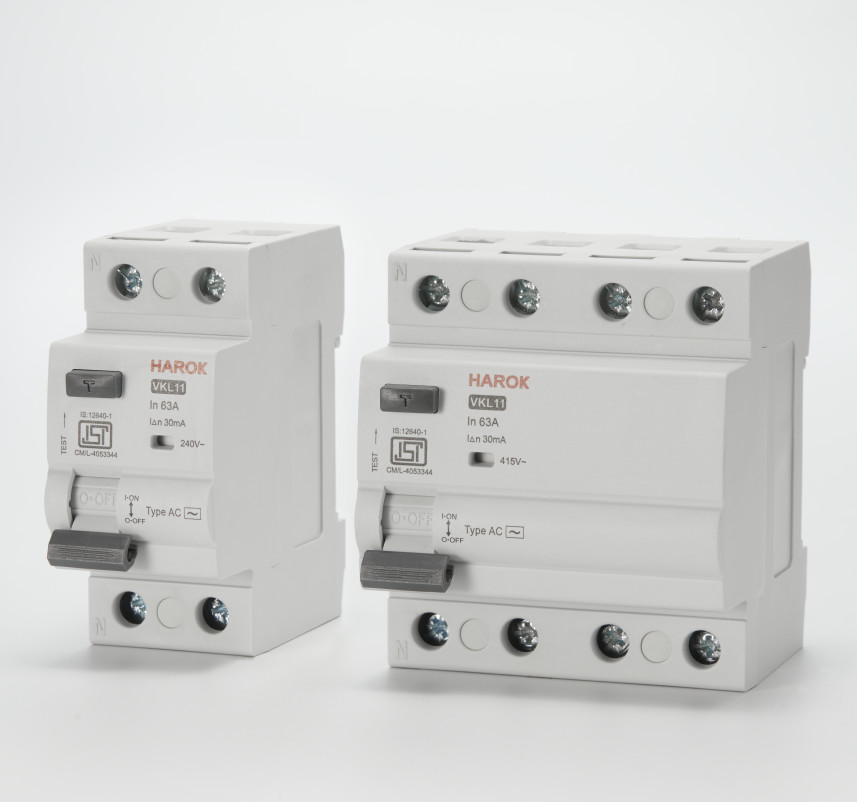

VKL11 Residual Current Device (RCD) ISI mark
1. General
1.1 Function
Control electric circuits.
Protect people against indirect contacts and additional protection against direct contacts.
Protect installations against fire hazard due to insulation faults.
Residual current circuit breakers are used in housing, tertiary sector and industry.
1.2 Selection
Detectable wave form
| RCD Type | Suitable for electrical networks with | ||
|---|---|---|---|
| Pulsated DC current | Harmonics | Switching surges | |
| AC CLASS | No | No | No |
| A CLASS | Yes | No | No |
| S, ASi CLASS | Yes | Yes | Yes |
A Class RCD may not work satisfactorily in electrical network distributed by harmonics & switching transients and may give nuisance triping.
AC class
Tripping is ensured for slowly increasing sinusoidal AC residual currents
A class
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly.
ASi Type - Full type A features + Si: Super immused (High immunity to unwanted tripping)
Tripping is ensured not only for sinusoidal AC residual currents but also for pulsed DC residual currents whether applied suddenly or increasing slowly. S, G/SI type with filters against spurious tripping caused by harmonics and transient surges. With the impact of 8/20us surge 3000A, this high immunity RCCB will still be in stable status.
Note: Our ASi type includes G/KV function and Si function.
1.3 Approvals and certificates
We certify that the RCCB has been tested for the following routine tests as per IS: 12640 (Part 1):2016 and found to be complying
with the requirements.
1. Verification of the operating characteristic as per Seq. - D0 CL9.9
2. Verification of the operation of the test device at the limits of rated voltage as per Seq. - D1 CL9.16
3. High Voltage Test as per D.3 of Annex D
4. Test for standard values of break time and non- actuating time as per CL 5.3.12 (table -1)
Tripping sensitivity
10mA - precision instrument leakage protection and bathroom use.
30mA - additional protection against direct contact.
100mA - co-ordinated with the earth system according to the formula I△n < 50/R, to provide protection against indirect contacts;
300mA/500mA - protection against indirect contacts, as well as fire hazard.
Tripping time
Instantaneous
It ensures instantaneous tripping(without time-delay).
Short time delay ASi
(High Immunity/ Avoid nuisance tripping &blinding)
It ensures any tripping at least 10ms.
Selective
It ensures total discrimination with a non selective RCD placed downstream.
RCD | Residual Current Device
2. Technical parameters
| Standard | IEC/EN 61008-1 AS/NZS61008.1 | |
| Electrical features | Model No. | VKL11 |
| Poles | 2P, 4P | |
| Rated current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A | |
| Rated Sensitivity I△n | 10mA(2P/4P 16A,25A.32A/40A), 30mA, 100mA, 300mA | |
| Rated voltage Ue | 2P: 240V 4P: 415V | |
| Insulation voltage Ui | 415V | |
| Rated frequency | 50/60 Hz | |
| Rated residual making and breaking capacity I△m | 1500A | |
| Short-circuit current Inc=I△c | 6000A, 10000A | |
| Type (wave form of the earth leakage sensed) | AC, A, ASi, S | |
| break time under I△n | ≤0.1s(Normal type), 10ms~300ms(ASi type). 150ms~500ms(S type) | |
| Rated impulse withstand voltage(1.2/50) Uimp | 4kV | |
| Dielectric test voltage at ind. Freq. for 1 min | 2.5 | |
| Pollution degree | 2 | |
| Mechanical features | Electrical life | ≥2000 |
| Mechanical life | ≥2000 | |
| Fault current indicator | Yes | |
| Terminal protection degree | IP20 | |
Ambient temperature (with daily average≤35℃) | -25℃ to 50℃ | |
| Storage temperate | -30℃ to 70℃ | |
| Installation | Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable | 25-35 mm² | |
| 18-3/18-2 AWG | ||
| Terminal size top/bottom for busbar | 10/16 mm² | |
| 18-8/18-5 AWG | ||
| Tightening torque | 2.5 N·m | |
| 22 In-Ibs. | ||
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device | |
| Connection | From top and bottom |
3. Outline and installation dimensions (mm)
Residual Current Device (RCD) is a reliable protection device for domestic and industrial applications. It is certified by the Brazilian Institute of Metrology, Quality and Technology (Inmetro) and is designed to protect people and equipment against electric shock. The RCD features a protection class of IP20, rated voltage of 240/415V AC, rated residual operating current of 30mA to 300mA and rated frequency of 50/60Hz. It provides a high level of safety in accordance with the safety standards and provides a safe and reliable protection from electrical shock. It is designed to detect any fault currents and cut off the power supply in time to prevent any potential electric shock or damage to the equipment.
Product Name: Residual Current Device
Protection Class: IP20
Rated Current: 30mA, 100mA, 300mA
Rated Voltage: 240/415V AC
Certificate: CE, ISI, NF, SEMKO, VDE, KEMA, INMETRO
Rated Humidity: ≤95%RH
Type: Type AC, Type A, Type ASi
HAROK VKL11 Residual Current Device is a product that has been certified with Inmetro, NF, SEMKO, VDE, KEMA, ISI, INMETRO and CE. It has a rated current of 16A to 100A, as well as a rated residual operating current of 30mA, 100mA, 300mA and a rated voltage of 240/415V AC. The RCD is available in Type A, AC, ASi, and comes with a minimum order quantity of 1000. It is packed in paper carton and can be delivered within 4-6 weeks after payment. HAROK VKL11 Residual Current Device is reliable and has a supply ability of 100,000 PCS per month.
| Product Name | Technical Parameters |
|---|---|
| Residual Current Device |
|
HAROK's Residual Current Device VKL11 is a reliable device that provides protection against indirect contact. It is certified by NF, SEMKO, VDE, KEMA, ISI, and CE, and is recognized for its safety and quality. It has a minimum order quantity of 1000, and is packaged in a paper carton. Delivery time is 4-6 weeks after payment, and a supply ability of 100,000 pieces per month.
Brand Name: HAROK
Model Number: VKL11
Place of Origin: CHINA
Certificate: CE, ISI, NF, SEMKO, VDE, KEMA
Rated Voltage: 240/415V AC
Rated Residual Operating Time: 0.1s
Protection Class: IP20
Residual current device (RCD) must be packaged with a sturdy box and with adequate cushioning material to protect it against shocks, vibration, dust, and moisture during transportation.
The following instructions must be followed when shipping RCD:
Ensure that the RCD is securely fastened in the box.
Ensure that the box is properly sealed to prevent water or foreign particles from entering.
Attach a label to the box indicating the contents and destination.
Ensure that the box is clearly marked with the words “Fragile” and “Handle with Care”.
Ensure that the box is properly labelled with the correct address and contact information.
Ensure that the package is shipped via a reliable carrier.
