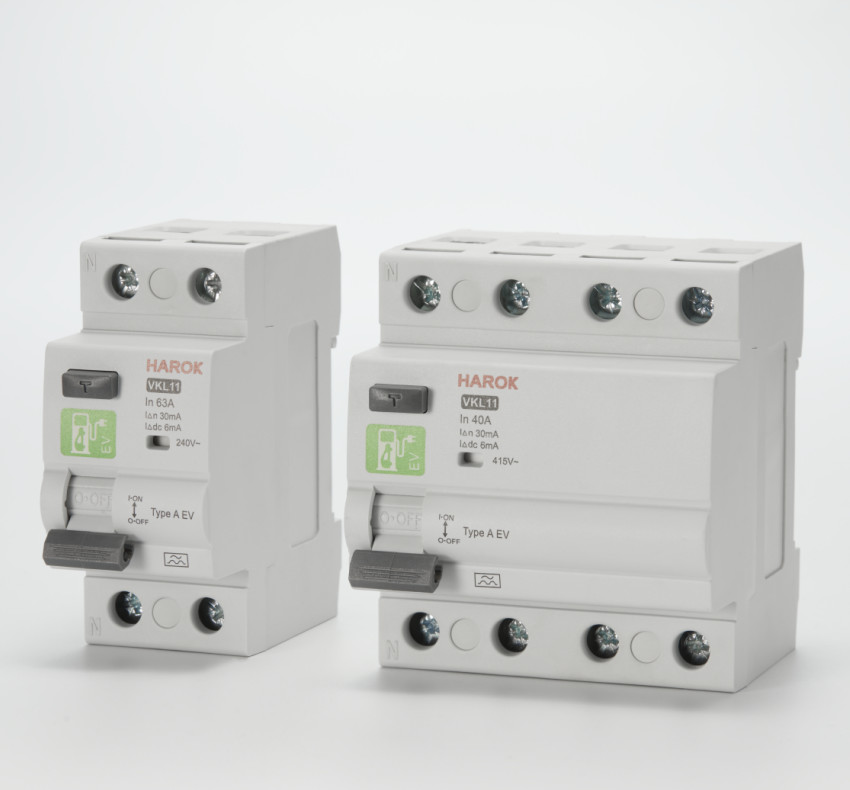

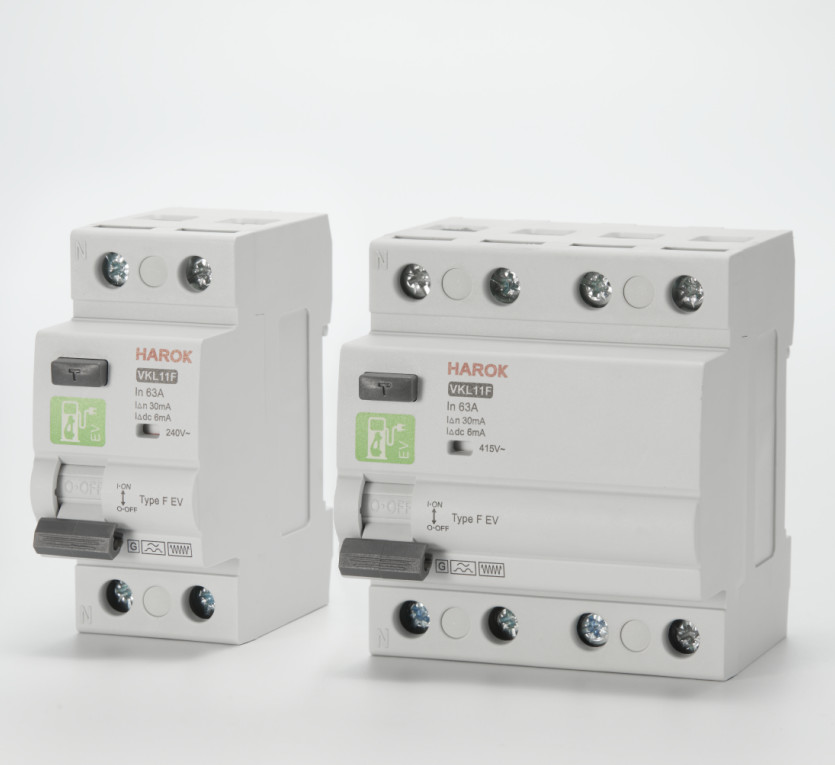

VKL11 Residual Current Device (RCD) type EV
1. General
1.1 Function
Residual Current Device VKL11 TYPE A EV (RCD TYPE A EV) is the Type EV RCCB which has been developed specifically for EV charging systems and can detect AC and DC residual currents in accordance with the requirements of EN61008-1 and IEC62955(RDC-PD:Residual Direct Current Protective Device )
VKL11 Type A EV RDC-PD/RCD is designed specifically for use in Mode 3 charging applications.
1.2 Selection
Detectable wave form AC class
Tripping is ensured for slowly increasing sinusoidal AC
residual currents
A class
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly.
Smooth DC 6mA
smooth DC residual currents (switch-off at max 6 mA)
1.3 Approvals and certificates :UKCA,CE
Tripping sensitivity
30mA - 50Hz sinusoidal AC ; Pulsating DC
Smooth DC ≥ 6 mA (RDC-PD)
Tripping time
Instantaneous
It ensures instantaneous tripping(without time-delay).
RCD | Residual Current Device
2. Technical parameters
| Standard | IEC/EN 61008-1,IEC 62955 | |
| Electrical features | Model No. | VKL11 A EV |
| Poles | 2P, 4P | |
| Rated current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A | |
| Rated Sensitivity I△n | 10mA(2P/4P 16A-40A), 30mA, 100mA, 300mA | |
| DC tripping threshold | 6mA | |
| Rated voltage Ue | 2P: 240V 4P: 415V | |
| Insulation voltage Ui | 500V | |
| Rated frequency | 50/60 Hz | |
Rated residual making and breaking capacity I△m | 500A (In=16A, 25A, 32A, 40A) | |
| 630A(In=63A), 800A(In=80A), 1000A(In=100A) | ||
| Short-circuit current Inc=I△c | 6000A, 10000A | |
| Type (wave form of the earth leakage sensed) | AC, A Smooth DC 6mA | |
| Tripping time | Instantaneous | |
| break time under I△n | ≤100ms (Normal type) | |
| Rated impulse withstand voltage(1.2/50) Uimp | 6kV | |
| Dielectric test voltage at ind. Freq. for 1 min | 2.5 | |
| Pollution degree | 2 | |
| Mechanical features | Electrical life | ≥2000 |
| Mechanical life | ≥2000 | |
| Fault current indicator | Yes | |
| Terminal protection degree | IP20 | |
Ambient temperature (with daily average≤35℃) | -25℃ to 55℃ | |
| Storage temperature | -40℃ to 70℃ | |
| Installation | Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable | 25-35 mm² | |
| 18-3/18-2 AWG | ||
| Terminal size top/bottom for busbar | 10/16 mm² | |
| 18-8/18-5 AWG | ||
| Tightening torque | 2.5 N·m | |
| 22 In-Ibs. | ||
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device | |
| Connection | From top and bottom | |
| Standard | EN61008-1 ,IEC62955 |
3. Outline and installation dimensions (mm)
A Residual Current Device (RCD) Inmetro 500V is a protective device designed to quickly disconnect the electrical circuit when a fault current is detected. This device is rated to a voltage of 500V and a frequency of 50/60Hz, with a rated residual operating time of 0.1s and a rated voltage of 240/415V AC. It is also rated to a protection class of IP20. This device is essential for the safety of your electrical system, and can help prevent serious injury or even death due to electrical shock.
The RCD Inmetro 500V is a reliable and robust safety device, designed with advanced technology to protect against electrical shocks and fires. It offers a wide range of features, including a high level of electrical insulation, superior short-circuit protection, and overload protection. It has been tested and certified by Inmetro to meet the highest safety standards, and is suitable for both commercial and residential applications.
The RCD Inmetro 500V is an essential device for protecting both people and property, and is an important part of any electrical system. It is easy to install and maintain, and can provide peace of mind that your electrical system is well protected. So if you're looking for reliable electrical safety, the RCD Inmetro 500V is the perfect solution.
Product Name: Residual Current Device
Type: Type EV
Rated Impact Endurance Voltage: 2kV
Rated Frequency: 50/60Hz
Rated Impulse Withstand Voltage: 4kV
Certificate: CE, ISI, NF, SEMKO, VDE, KEMA
HAROK VKL11 Residual Current Device (RCD) is designed to protect people from electric shock and provide an extra layer of safety in electrical circuits. It detects and quickly breaks an electrical circuit when a leakage of current is detected, which helps to prevent electric shock, fire and other hazards. This RCD meets the latest UL1053 standard and is certified to NF, SEMKO, VDE, KEMA, ISI and CE standards. It has a rated impact endurance voltage of 2kV, a rated residual operating current of 30mA, a rated voltage of 240/415V AC, a rated residual operating time of 0.1s, and a rated short-circuit capacity of 10KA. It is perfect for indoor use in residential, commercial and industrial settings. Our RCD is available in minimum orders of 1000 pieces and comes in a paper carton for easy storage and transport. We can supply up to 100,000 pieces per month with delivery within 4-6 weeks of payment.
| Parameter Name | Parameter Value |
|---|---|
| Product Name | Residual Current Device |
| Rated Short-Circuit Capacity | 10kA |
| Rated Voltage | 240/415V AC |
| Rated Current | 16A-100A |
| Rated Impulse Withstand Voltage | 4kV |
| Rated Operating Temperature | -25℃~+40℃ |
| Certificate | CE, ISI, NF, SEMKO, VDE, KEMA |
| Rated Insulation Voltage | 500V |
| Residual Current Device Type | TYPE A EV |
Brand Name: HAROK
Model Number: VKL11
Place of Origin: CHINA
Certification: NF, SEMKO, VDE, KEMA, ISI, CE
Minimum Order Quantity: 1000
Packaging Details: PAPER CARTON
Delivery Time: 4-6 weeks after payment
Supply Ability: 100,000 PCS PER MONTH
Certificate: CE, ISI, NF, SEMKO, VDE, KEMA
Rated Voltage: 240/415V AC
Rated Frequency: 50/60Hz
Rated Humidity: ≤95%RH
Rated Residual Operating Current: 30mA-300mA
Residual Current Device Type A EV
