| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Certification | NF, SEMKO, VDE, KEMA, ISI, CE |
| Model Number | VKL11 |
| Minimum Order Quantity | 1000 |
| Packaging Details | PAPER CARTON |
| Delivery Time | 4-6 weeks after payment |
| Supply Ability | 100,000 PCS PER MONTH |
| Rated Short-Circuit Capacity | 10kA | Rated Current | 16A-100A |
|---|---|---|---|
| Rated Residual Operating Current | 30mA-300mA | Protection Class | IP20 |
| Rated Impact Endurance Voltage | 2kV | Certificate | CE, ISI, NF, SEMKO, VDE, KEMA |
| Rated Voltage | 240/415V AC | ||
| High Light | TYPE ASi Residual Current Circuit Breaker,415V Residual Current Device,415V a type rcd | ||

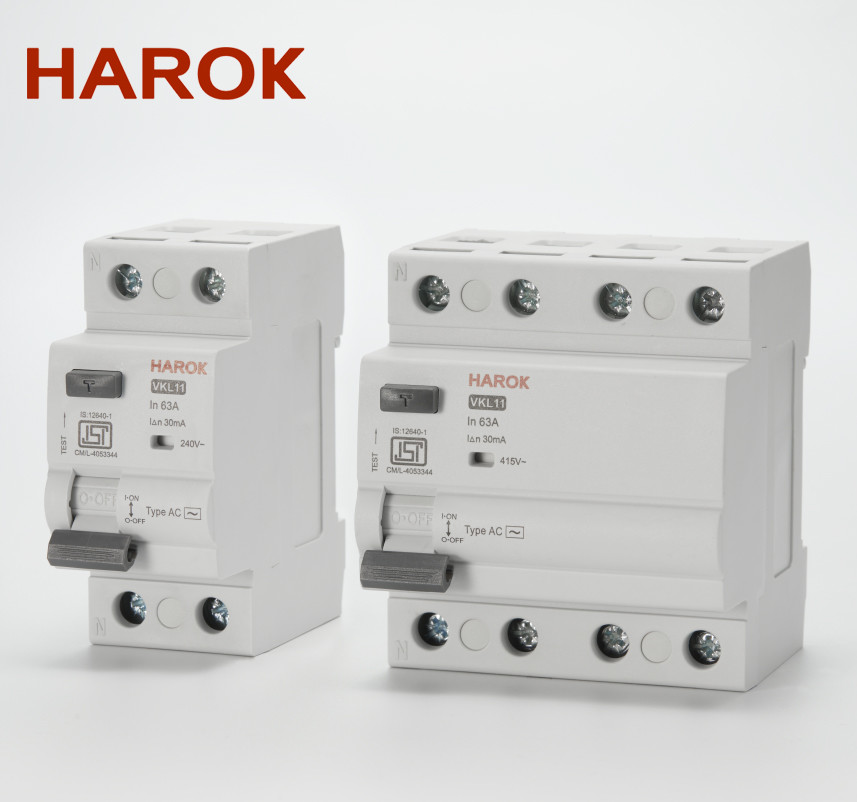

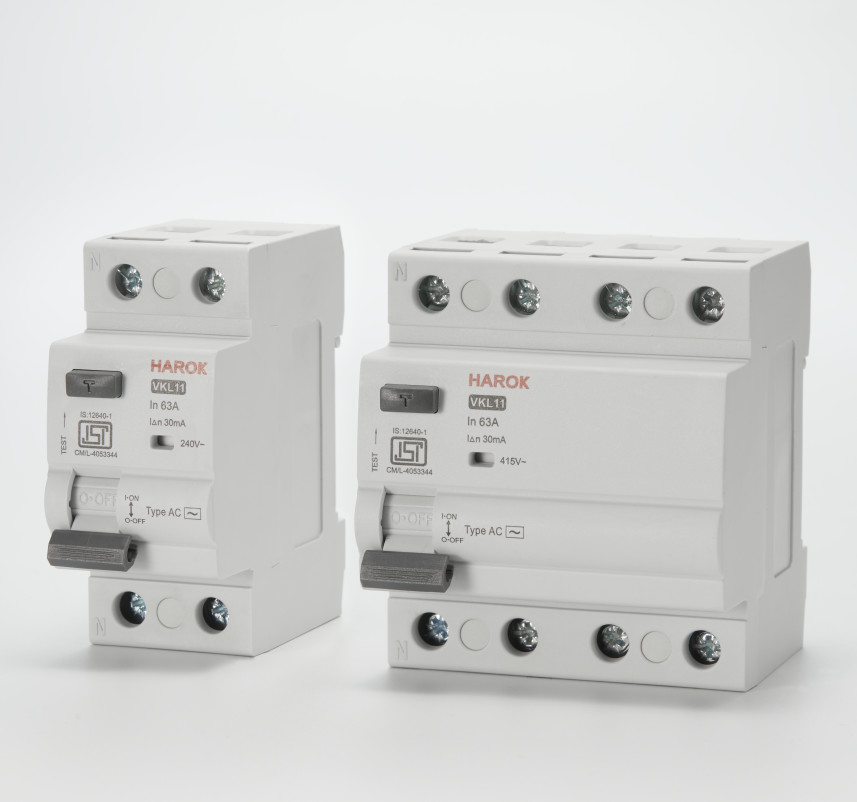

VKL11 Residual Current Device (RCD) Type A Type AC Type ASi
1. General
1.1 Function
Control electric circuits.
Protect people against indirect contacts and additional protection against direct contacts.
Protect installations against fire hazard due to insulation faults.
Residual current circuit breakers are used in housing, tertiary sector and industry.
1.2 Selection
Detectable wave form
| RCD Type | Suitable for electrical networks with | ||
|---|---|---|---|
| Pulsated DC current | Harmonics | Switching surges | |
| AC CLASS | No | No | No |
| A CLASS | Yes | No | No |
| S, ASi CLASS | Yes | Yes | Yes |
A Class RCD may not work satisfactorily in electrical network distributed by harmonics & switching transients and may give nuisance triping.
AC class
Tripping is ensured for slowly increasing sinusoidal AC residual currents
A class
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly.
ASi Type - Full type A features + Si: Super immused (High immunity to unwanted tripping)
Tripping is ensured not only for sinusoidal AC residual currents but also for pulsed DC residual currents whether applied suddenly or increasing slowly. S, G/SI type with filters against spurious tripping caused by harmonics and transient surges. With the impact of 8/20us surge 3000A, this high immunity RCCB will still be in stable status.
Note: Our ASi type includes G/KV function and Si function.
1.3 Approvals and certificates
We certify that the RCCB has been tested for the following routine tests as per IS: 12640 (Part 1):2016 and found to be complying
with the requirements.
1. Verification of the operating characteristic as per Seq. - D0 CL9.9
2. Verification of the operation of the test device at the limits of rated voltage as per Seq. - D1 CL9.16
3. High Voltage Test as per D.3 of Annex D
4. Test for standard values of break time and non- actuating time as per CL 5.3.12 (table -1)
Tripping sensitivity
10mA - precision instrument leakage protection and bathroom use.
30mA - additional protection against direct contact.
100mA - co-ordinated with the earth system according to the formula I△n < 50/R, to provide protection against indirect contacts;
300mA/500mA - protection against indirect contacts, as well as fire hazard.
Tripping time
Instantaneous
It ensures instantaneous tripping(without time-delay).
Short time delay ASi
(High Immunity/ Avoid nuisance tripping &blinding)
It ensures any tripping at least 10ms.
Selective
It ensures total discrimination with a non selective RCD placed downstream.
RCD | Residual Current Device
2. Technical parameters
| Standard | IEC/EN 61008-1 AS/NZS61008.1 | |
| Electrical features | Model No. | VKL11 |
| Poles | 2P, 4P | |
| Rated current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A | |
| Rated Sensitivity I△n | 10mA(2P/4P 16A,25A.32A/40A), 30mA, 100mA, 300mA | |
| Rated voltage Ue | 2P: 240V 4P: 415V | |
| Insulation voltage Ui | 415V | |
| Rated frequency | 50/60 Hz | |
| Rated residual making and breaking capacity I△m | 1500A | |
| Short-circuit current Inc=I△c | 6000A, 10000A | |
| Type (wave form of the earth leakage sensed) | AC, A, ASi, S | |
| break time under I△n | ≤0.1s(Normal type), 10ms~300ms(ASi type). 150ms~500ms(S type) | |
| Rated impulse withstand voltage(1.2/50) Uimp | 4kV | |
| Dielectric test voltage at ind. Freq. for 1 min | 2.5 | |
| Pollution degree | 2 | |
| Mechanical features | Electrical life | ≥2000 |
| Mechanical life | ≥2000 | |
| Fault current indicator | Yes | |
| Terminal protection degree | IP20 | |
Ambient temperature (with daily average≤35℃) | -25℃ to 50℃ | |
| Storage temperate | -30℃ to 70℃ | |
| Installation | Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable | 25-35 mm² | |
| 18-3/18-2 AWG | ||
| Terminal size top/bottom for busbar | 10/16 mm² | |
| 18-8/18-5 AWG | ||
| Tightening torque | 2.5 N·m | |
| 22 In-Ibs. | ||
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device | |
| Connection | From top and bottom |
3. Outline and installation dimensions (mm)
Residual Current Device (RCD) Inmetro, Type EV, manufactured by ABB, is an electrical safety device that provides protection against electric shock. It monitors the current in the circuit and trips when it detects an imbalance between the lines, thus protecting people from electric shock. The RCD has a rated residual operating time of 0.1s, a rated residual non-operating current of 0.5mA, and a rated impact endurance voltage of 2kV. It is certified by CE, ISI, NF, SEMKO, VDE, and KEMA, and is designed to operate at a rated frequency of 50/60Hz. The RCD is a reliable and efficient safety device that offers optimal protection for both operators and consumers.
Product Name: Residual Current Device
Rated Short-Circuit Capacity: 10kA
Rated Frequency: 50/60Hz
Certificate: CE, ISI, NF, SEMKO, VDE, KEMA
Rated Operating Temperature: -25℃~+40℃
Residual Current Device Type: TYPE AC, TYPE A, TYPE ASi
Certificate: Inmetro, NF, ISI, SEMKO, UKCA, CE, VDE
HAROK VKL11 is a Residual Current Device (RCD) that offers a reliable and efficient protection from electric shock due to its advanced construction and features. The device is certified by NF, SEMKO, VDE, KEMA, ISI and CE, which guarantees its quality and safety. It has a rated residual operating time of 0.1s, rated operating temperature of -25℃~+40℃, rated current of 16A-100A. It also has a rated impulse withstand voltage of 4kV. The minimum order quantity is 1000 and the packaging details are paper carton. Delivery time is 4-6 weeks after payment and the supply ability is 100,000 PCS per month. The RCD type AC, Type A and Type ASi are available in this product.
| Product Name | Residual Current Device |
|---|---|
| Certificate | CE, ISI, NF, SEMKO, VDE, KEMA, Inmetro |
| Type | Type AC, Type A, Type ASi |
| Rated Voltage | 240/415V AC |
| Rated Frequency | 50/60Hz |
| Rated Current | 16A-100A |
| Rated Residual Operating Current | 30mA, 100mA, 300mA |
| Rated Operating Temperature | -25℃~+40℃ |
| Protection Class | IP20 |
Model Number: VKL11
Place of Origin: CHINA
Certification: NF, SEMKO, VDE, KEMA, ISI, CE, Inmetro
Minimum Order Quantity: 1000pcs
Packaging Details: PAPER CARTON
Delivery Time: 4-6 weeks after payment
Supply Ability: 100,000 PCS PER MONTH
Rated Operating Temperature: -25℃~+40℃
Rated Current: 16A-100A
Rated Frequency: 50/60Hz
Rated Humidity: ≤95%RH
Rated Impulse Withstand Voltage: 4kV
HAROK Residual Current Device VKL11, with Type AC, Type A, Type ASi, is Inmetro certified product. This RCD is highly reliable with rated operating temperature range of -25℃~+40℃, rated residual current of 30mA to 300mA, rated frequency of 50/60Hz and rated humidity of ≤95%RH. It is also tested for withstanding voltage up to 4kV. The minimum order quantity of this product is 1000. Delivery takes 4-6 weeks after payment and we are able to supply up to 100,000 PCS PER MONTH. Packaging details are PAPER CARTON.
Packaging and Shipping for Residual Current Device:
The product must be packaged in a strong cardboard box.
The box should be securely sealed with strong adhesive tape.
The product should be cushioned with foam or bubble wrap.
The box should be clearly labeled with the product details and address of the recipient.
The package should be shipped via a reliable shipping service, such as FedEx, UPS, or DHL.
