| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Certification | NF, SEMKO, VDE, KEMA, ISI, CE |
| Model Number | VKL11 |
| Minimum Order Quantity | 1000 |
| Packaging Details | PAPER CARTON |
| Delivery Time | 4-6 weeks after payment |
| Supply Ability | 100,000 PCS PER MONTH |
| Rated Impact Endurance Voltage | 2kV | Rated Impulse Withstand Voltage | 4kV |
|---|---|---|---|
| Rated Residual Non-Operating Current | 30mA, 100mA, 300mA | Rated Residual Non-Operating Time | 5s |
| Protection Class | IP20 | Rated Residual Operating Time | 0.1s |
| Rated Residual Operating Current | 16A, 20A, 25A, 32A, 40A, 63A, 80A, 100A | Rated Short-Circuit Capacity | 10kA |
| High Light | UL1053 Residual Current Device,ISI 30ma residual current device,residual current device 40A 30MA | ||

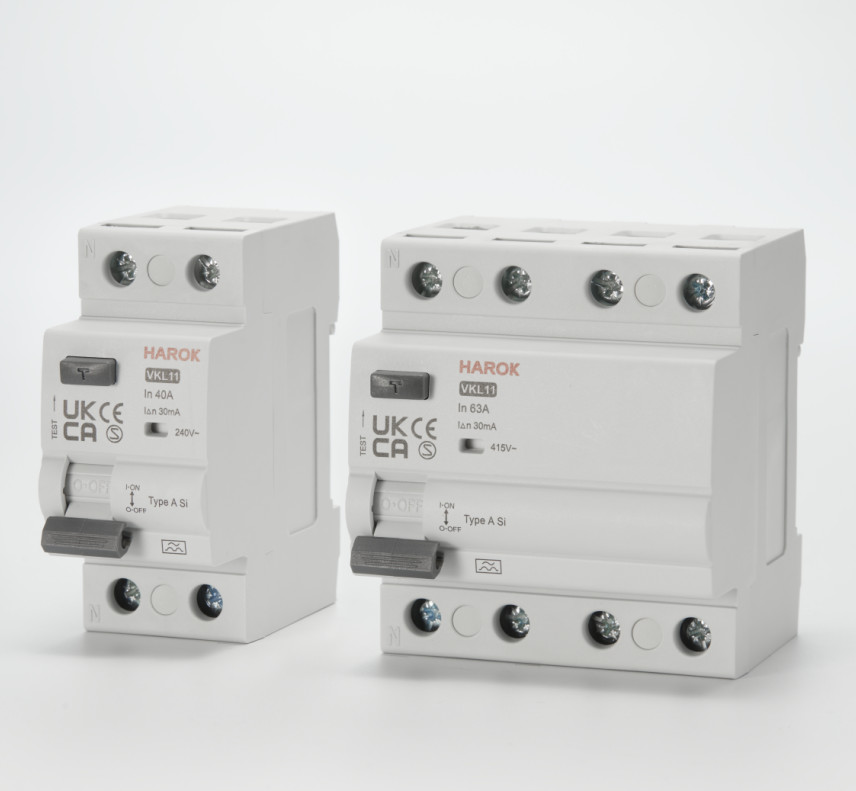

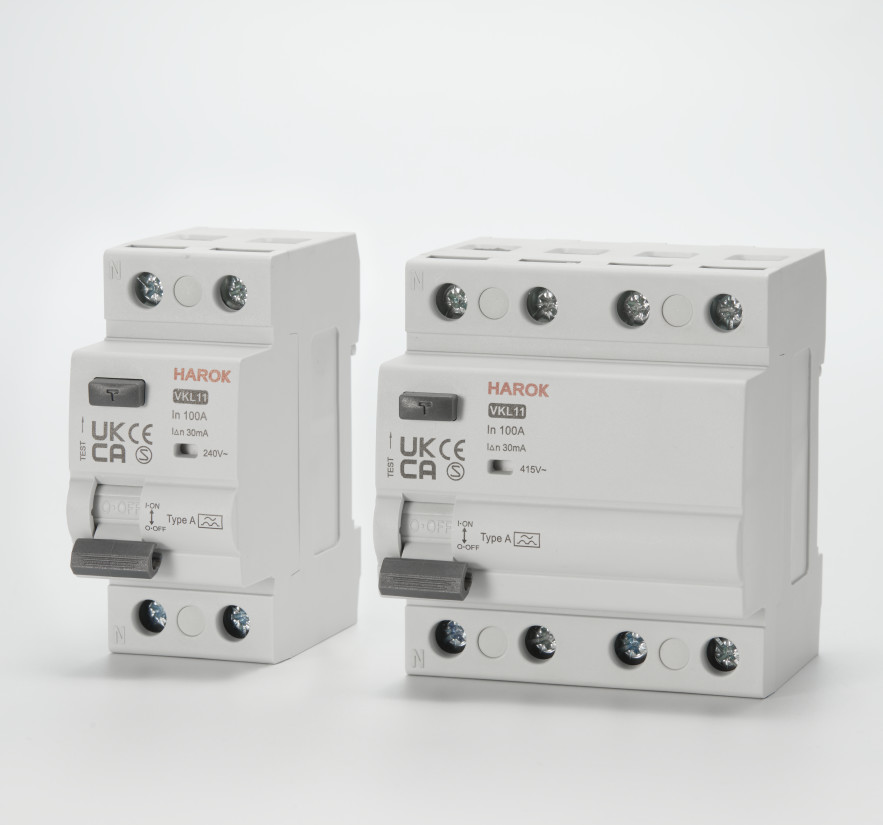

VKL11 Residual Current Device (RCD) UL1053
1. General
1.1 Function
Control electric circuits.
Protect people against indirect contacts and additional protection against direct contacts.
Protect installations against fire hazard due to insulation faults.
Residual current circuit breakers are used in housing, tertiary sector and industry.
1.2 Selection
Detectable wave form
| RCD Type | Suitable for electrical networks with | ||
|---|---|---|---|
| Pulsated DC current | Harmonics | Switching surges | |
| AC CLASS | No | No | No |
| A CLASS | Yes | No | No |
| S, ASi CLASS | Yes | Yes | Yes |
A Class RCD may not work satisfactorily in electrical network distributed by harmonics & switching transients and may give nuisance triping.
AC class
Tripping is ensured for slowly increasing sinusoidal AC residual currents
A class
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly.
ASi Type - Full type A features + Si: Super immused (High immunity to unwanted tripping)
Tripping is ensured not only for sinusoidal AC residual currents but also for pulsed DC residual currents whether applied suddenly or increasing slowly. S, G/SI type with filters against spurious tripping caused by harmonics and transient surges. With the impact of 8/20us surge 3000A, this high immunity RCCB will still be in stable status.
Note: Our ASi type includes G/KV function and Si function.
1.3 Approvals and certificates
We certify that the RCCB has been tested for the following routine tests as per IS: 12640 (Part 1):2016 and found to be complying
with the requirements.
1. Verification of the operating characteristic as per Seq. - D0 CL9.9
2. Verification of the operation of the test device at the limits of rated voltage as per Seq. - D1 CL9.16
3. High Voltage Test as per D.3 of Annex D
4. Test for standard values of break time and non- actuating time as per CL 5.3.12 (table -1)
Tripping sensitivity
10mA - precision instrument leakage protection and bathroom use.
30mA - additional protection against direct contact.
100mA - co-ordinated with the earth system according to the formula I△n < 50/R, to provide protection against indirect contacts;
300mA/500mA - protection against indirect contacts, as well as fire hazard.
Tripping time
Instantaneous
It ensures instantaneous tripping(without time-delay).
Short time delay ASi
(High Immunity/ Avoid nuisance tripping &blinding)
It ensures any tripping at least 10ms.
Selective
It ensures total discrimination with a non selective RCD placed downstream.
RCD | Residual Current Device
2. Technical parameters
| Standard | IEC/EN 61008-1 AS/NZS61008.1 | |
| Electrical features | Model No. | VKL11 |
| Poles | 2P, 4P | |
| Rated current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A | |
| Rated Sensitivity I△n | 10mA(2P/4P 16A,25A.32A/40A), 30mA, 100mA, 300mA | |
| Rated voltage Ue | 2P: 240V 4P: 415V | |
| Insulation voltage Ui | 415V | |
| Rated frequency | 50/60 Hz | |
| Rated residual making and breaking capacity I△m | 1500A | |
| Short-circuit current Inc=I△c | 6000A, 10000A | |
| Type (wave form of the earth leakage sensed) | AC, A, ASi, S | |
| break time under I△n | ≤0.1s(Normal type), 10ms~300ms(ASi type). 150ms~500ms(S type) | |
| Rated impulse withstand voltage(1.2/50) Uimp | 4kV | |
| Dielectric test voltage at ind. Freq. for 1 min | 2.5 | |
| Pollution degree | 2 | |
| Mechanical features | Electrical life | ≥2000 |
| Mechanical life | ≥2000 | |
| Fault current indicator | Yes | |
| Terminal protection degree | IP20 | |
Ambient temperature (with daily average≤35℃) | -25℃ to 50℃ | |
| Storage temperate | -30℃ to 70℃ | |
| Installation | Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable | 25-35 mm² | |
| 18-3/18-2 AWG | ||
| Terminal size top/bottom for busbar | 10/16 mm² | |
| 18-8/18-5 AWG | ||
| Tightening torque | 2.5 N·m | |
| 22 In-Ibs. | ||
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device | |
| Connection | From top and bottom |
3. Outline and installation dimensions (mm)
Residual Current Device (RCD) is a safety device that protects people and property from serious electric shock caused by earth leakage. It is designed to detect, interrupt and trip the circuit when an earth leakage current is detected. This Residual Current Device is certified with CE, ISI, NF, SEMKO, VDE and KEMA, and has a rated insulation voltage of 500V, a rated residual operating time of 0.1s, a rated operating temperature of -25℃ to +40℃ and a rated current of 30mA. It is also compliant with Residual Current Device standard UL1053. This Residual Current Device is a reliable safety device that can effectively protect people and property from electric shock.
Product Name: Residual Current Device
Rated Humidity: ≤95%RH
Rated Impact Endurance Voltage: 2kV
Rated Insulation Voltage: 500V
Rated Current: 16A, 20A, 25A, 32A, 40A, 63A, 80A, 100A
Certificate: CE, ISI, NF, SEMKO, VDE, KEMA, Inmetro
The Residual Current Device (RCD) Type EVKL11 from HAROK is a highly dependable and reliable device that can be used in a variety of applications. It is designed to detect and prevent electric shocks from occurring. The RCD is certified by NF, SEMKO, VDE, KEMA, ISI, and CE, and has a minimum order quantity of 1000. It is packaged in paper carton boxes and typically ships in 4-6 weeks after payment. The supply capacity is 100,000 PCs per month. The rated residual operating current is 30mA, 100mA, 300mA, the rated frequency is 50/60Hz, and the rated operating temperature is -25℃~+40℃.
The Residual Current Device (RCD) Type EVKL11 from HAROK is suitable for use in various environments, including residential, industrial, and commercial settings. It can be used in applications such as grounding, overload protection, and overvoltage protection. It is ideal for protecting electrical circuits from short circuit, overcurrent, and ground fault contaminants. Additionally, it is effective in providing protection against electric shocks, ground fault current, and overcurrent.
The Residual Current Device (RCD) Type EVKL11 from HAROK is a reliable and safe product that can be used in many different applications. It is designed to detect and prevent electric shocks from occurring. It is certified by NF, SEMKO, VDE, KEMA, ISI, and CE, and is rated with a residual operating current of 30mA-300mA, a frequency of 50/60Hz, and an operating temperature of -25℃~+40℃. It is packaged in paper carton boxes and typically ships in 4-6 weeks after payment.
| Attribute | Value |
|---|---|
| Protection Class | IP20 |
| Product Name | Residual Current Device |
| Certificate | CE, ISI, NF, SEMKO, VDE, KEMA |
| Rated Residual Operating Current | 30mA, 100mA, 300mA |
| Rated Residual Operating Time | 0.1s |
| Rated Humidity | ≤95%RH |
| Rated Impulse Withstand Voltage | 4kV |
| Rated Residual Non-Operating Time | 5s |
| Rated Frequency | 50/60Hz |
Brand Name: HAROK
Model Number: VKL11
Place of Origin: CHINA
Certification: NF, SEMKO, VDE, KEMA, ISI, CE
Minimum Order Quantity: 1000
Packaging Details: PAPER CARTON
Delivery Time: 4-6 weeks after payment
Supply Ability: 100,000 PCS PER MONTH
Rated Short-Circuit Capacity: 10kA
Rated Insulation Voltage: 500V
Rated Voltage: 240/415V AC
Rated Current: 16A, 20A, 25A, 32A, 40A, 63A, 80A, 100A
Protection Class: IP20
Residual Current Device Type AC, Type A, Type ASi, Residual Current Device, Residual Current Device Inmetro, HAROK, VKL11
The Residual Current Device must be packaged and shipped according to the following guidelines:
The Residual Current Device must be packaged securely in a box.
The box must be labeled with the Residual Current Device's product name and model number.
The box must be sealed and all packing materials must be removed prior to shipping.
The Residual Current Device must be shipped via a reputable carrier.
