| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Certification | NF, SEMKO, VDE, KEMA, ISI, CE |
| Model Number | VKL11 |
| Minimum Order Quantity | 1000 |
| Packaging Details | PAPER CARTON |
| Delivery Time | 4-6 weeks after payment |
| Supply Ability | 100,000 PCS PER MONTH |
| Rated Voltage | 240/415V AC | Protection Class | IP20 |
|---|---|---|---|
| Rated Humidity | ≤95%RH | Rated Residual Non-Operating Current | 30mA, 100mA, 300mA |
| Rated Insulation Voltage | 500V | Certificate | CE, ISI, NF, SEMKO, VDE, KEMA |
| Rated Operating Temperature | -25℃~+40℃ | Product Name | Residual Current Device |
| High Light | 415VAC Residual Current Device,415VAC RCD Type S,Residual Current Device Type S | ||

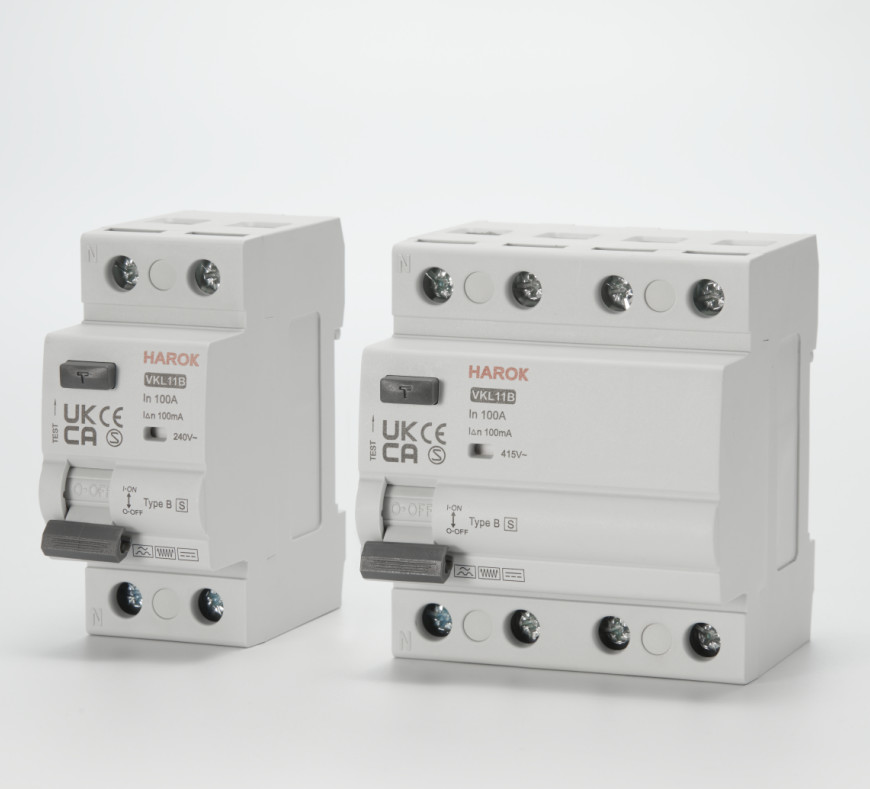

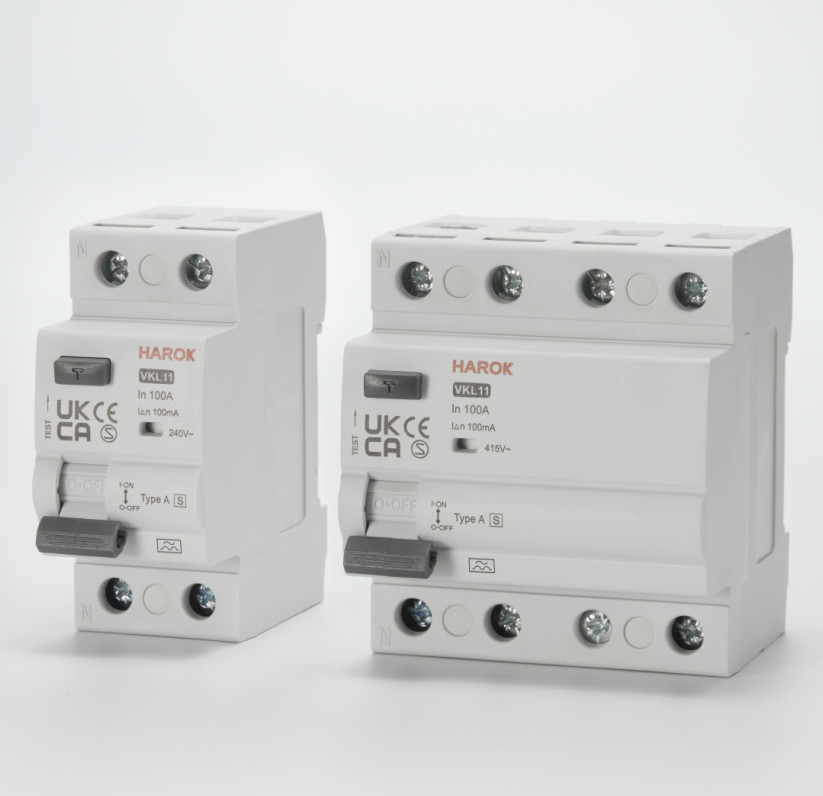

VKL11 Residual Current Device (RCD) type S Selective time delay
1. General
1.1 Function
Control electric circuits.
Protect people against indirect contacts and additional protection against direct contacts.
Protect installations against fire hazard due to insulation faults.
Residual current circuit breakers are used in housing, tertiary sector and industry.
1.2 Selection
Detectable wave form
| RCD Type | Suitable for electrical networks with | ||
|---|---|---|---|
| Pulsated DC current | Harmonics | Switching surges | |
| AC CLASS | No | No | No |
| A CLASS | Yes | No | No |
| S, ASi CLASS | Yes | Yes | Yes |
A Class RCD may not work satisfactorily in electrical network distributed by harmonics & switching transients and may give nuisance triping.
AC class
Tripping is ensured for slowly increasing sinusoidal AC residual currents
A class
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly.
ASi Type - Full type A features + Si: Super immused (High immunity to unwanted tripping)
Tripping is ensured not only for sinusoidal AC residual currents but also for pulsed DC residual currents whether applied suddenly or increasing slowly. S, G/SI type with filters against spurious tripping caused by harmonics and transient surges. With the impact of 8/20us surge 3000A, this high immunity RCCB will still be in stable status.
Note: Our ASi type includes G/KV function and Si function.
1.3 Approvals and certificates
We certify that the RCCB has been tested for the following routine tests as per IS: 12640 (Part 1):2016 and found to be complying
with the requirements.
1. Verification of the operating characteristic as per Seq. - D0 CL9.9
2. Verification of the operation of the test device at the limits of rated voltage as per Seq. - D1 CL9.16
3. High Voltage Test as per D.3 of Annex D
4. Test for standard values of break time and non- actuating time as per CL 5.3.12 (table -1)
Tripping sensitivity
10mA - precision instrument leakage protection and bathroom use.
30mA - additional protection against direct contact.
100mA - co-ordinated with the earth system according to the formula I△n < 50/R, to provide protection against indirect contacts;
300mA/500mA - protection against indirect contacts, as well as fire hazard.
Tripping time
Instantaneous
It ensures instantaneous tripping(without time-delay).
Short time delay ASi
(High Immunity/ Avoid nuisance tripping &blinding)
It ensures any tripping at least 10ms.
Selective
It ensures total discrimination with a non selective RCD placed downstream.
RCD | Residual Current Device
2. Technical parameters
| Standard | IEC/EN 61008-1 AS/NZS61008.1 | |
| Electrical features | Model No. | VKL11 |
| Poles | 2P, 4P | |
| Rated current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A | |
| Rated Sensitivity I△n | 10mA(2P/4P 16A,25A.32A/40A), 30mA, 100mA, 300mA | |
| Rated voltage Ue | 2P: 240V 4P: 415V | |
| Insulation voltage Ui | 415V | |
| Rated frequency | 50/60 Hz | |
| Rated residual making and breaking capacity I△m | 1500A | |
| Short-circuit current Inc=I△c | 6000A, 10000A | |
| Type (wave form of the earth leakage sensed) | AC, A, ASi, S | |
| break time under I△n | ≤0.1s(Normal type), 10ms~300ms(ASi type). 150ms~500ms(S type) | |
| Rated impulse withstand voltage(1.2/50) Uimp | 4kV | |
| Dielectric test voltage at ind. Freq. for 1 min | 2.5 | |
| Pollution degree | 2 | |
| Mechanical features | Electrical life | ≥2000 |
| Mechanical life | ≥2000 | |
| Fault current indicator | Yes | |
| Terminal protection degree | IP20 | |
Ambient temperature (with daily average≤35℃) | -25℃ to 50℃ | |
| Storage temperate | -30℃ to 70℃ | |
| Installation | Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable | 25-35 mm² | |
| 18-3/18-2 AWG | ||
| Terminal size top/bottom for busbar | 10/16 mm² | |
| 18-8/18-5 AWG | ||
| Tightening torque | 2.5 N·m | |
| 22 In-Ibs. | ||
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device | |
| Connection | From top and bottom |
3. Outline and installation dimensions (mm)
Residual Current Device (RCD) is a safety device designed to protect people from electric shock and other potential danger. It can detect the presence of a fault current and quickly disconnect the circuit, so that the fault current is interrupted to protect the safety of people from electric shock.
This product is certified CE, ISI, NF, SEMKO, VDE, KEMA and has a rated operating temperature of -25°C to +40°C. The rated current is 30mA and the rated short-circuit capacity is 10kA.
Residual Current Device is an important safety device in electrical system and it is widely used in many places such as industrial plants, office buildings, homes, etc.
Product Name: Residual Current Device
Rated Residual Non-Operating Time: 5s
Rated Residual Operating Current: 30mA, 100mA, 300mA
Rated Current: 16A, 20A, 25A, 32A, 40A, 63A, 80A, 100A
Rated Residual Operating Time: 0.1s
Rated Operating Temperature: -25℃~+40℃
Type: AC, A, ASi, B, B+, F
HAROK VKL11 Residual Current Device is designed to detect and trip on leakage current in electrical wiring systems in order to protect people and other devices from potential electric shock. It is ideal for use in domestic, commercial and industrial applications. The device is certified by NF, SEMKO, VDE, KEMA, ISI, CE and has a minimum order quantity of 1000. Delivery time is 4-6 weeks after payment and the company has a supply ability of 100,000 PCS PER MONTH. The Rated Impulse Withstand Voltage is 4kV.
The HAROK VKL11 Residual Current Device is available in three types: Type AC, Type A and Type ASi. It has a wide range of applications from domestic to commercial and industrial applications. The device is designed to detect and trip on leakage current and protect people and other devices from potential electric shock. The product comes in a PAPER CARTON packaging and is easy to install and maintain. It is a reliable and cost-effective solution for protecting people and their property from electrical hazards.
| Parameter | Value |
|---|---|
| Product Name | Residual Current Device |
| Type | AC, Type A, Type ASi |
| Rated Impulse Withstand Voltage | 4kV |
| Rated Frequency | 50/60Hz |
| Rated Current | 16A, 20A, 25A, 32A, 40A, 63A, 80A, 100A |
| Rated Insulation Voltage | 500V |
| Certificate | CE, ISI, NF, SEMKO, VDE, KEMA |
| Protection Class | IP20 |
| Rated Residual Operating Current | 30mA, 100mA, 300mA |
Brand Name: HAROK
Model Number: VKL11
Place of Origin: CHINA
Certification: NF, SEMKO, VDE, KEMA, ISI, CE
Minimum Order Quantity: 1000
Packaging Details: PAPER CARTON
Delivery Time: 4-6 weeks after payment
Supply Ability: 100,000 PCS PER MONTH
Rated Residual Operating Current: 30mA, 100mA, 300mA
Rated Humidity: ≤95%RH
Rated Operating Temperature: -25℃~+40℃
Rated Current: 16A, 20A, 25A, 32A, 40A, 63A, 80A, 100A
Rated Impulse Withstand Voltage: 4kV
