| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Certification | NF, SEMKO, VDE, KEMA, ISI, CE |
| Model Number | VKL11 |
| Minimum Order Quantity | 1000 |
| Packaging Details | PAPER CARTON |
| Delivery Time | 4-6 weeks after payment |
| Supply Ability | 100,000 PCS PER MONTH |
| Protection Class | IP20 | Rated Residual Operating Time | 0.1s |
|---|---|---|---|
| Rated Frequency | 50/60Hz | Rated Short-Circuit Capacity | 10kA |
| Rated Impact Endurance Voltage | 2kV | Rated Residual Current | 30mA-300mA |
| Rated Impulse Withstand Voltage | 4kV | Rated Current | 16A, 20A, 25A, 32A, 40A, 63A, 80A, 100A |
| High Light | Residual Current Device Type G,IP20 Residual Current Device,rcd type g 415V AC | ||

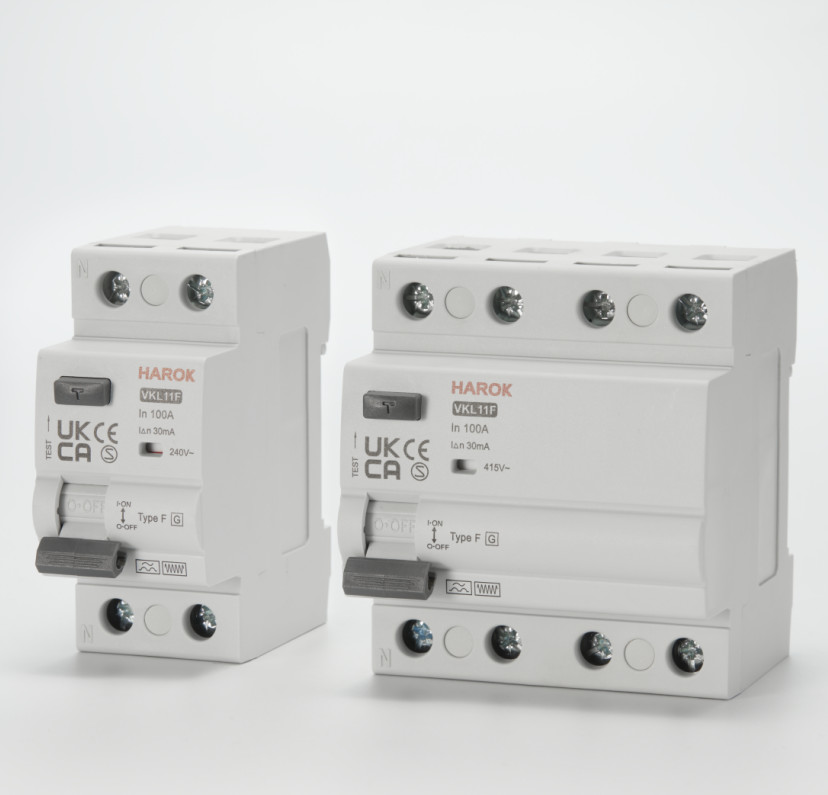

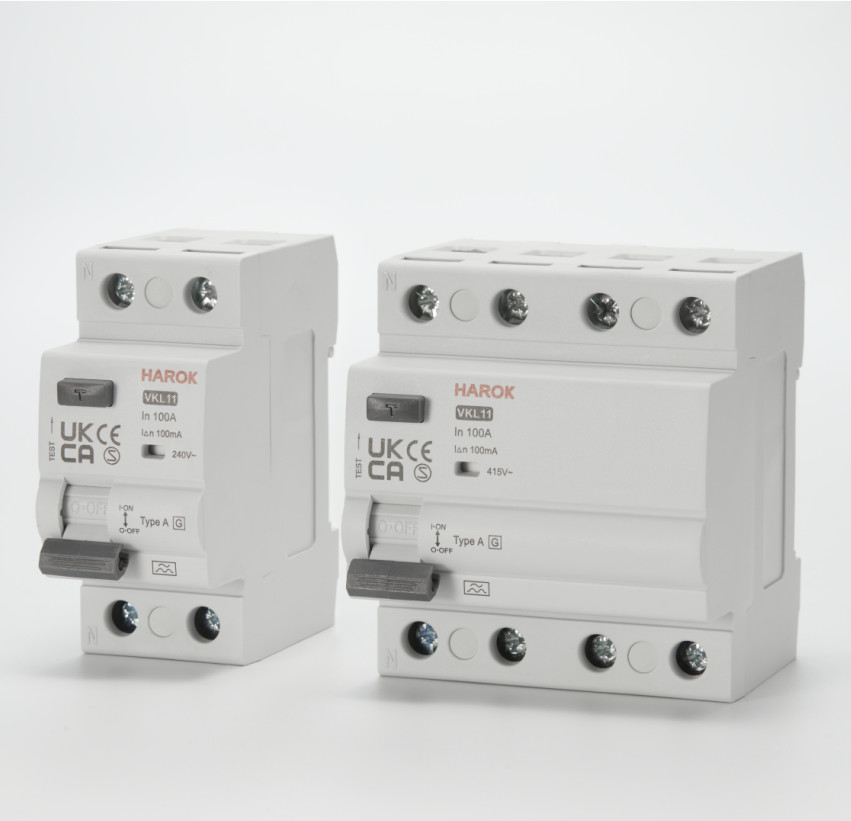

VKL11 Residual Current Device (RCD) type G short-time delay
1. General
1.1 Function
Control electric circuits.
Protect people against indirect contacts and additional protection against direct contacts.
Protect installations against fire hazard due to insulation faults.
Residual current circuit breakers are used in housing, tertiary sector and industry.
1.2 Selection
Detectable wave form
| RCD Type | Suitable for electrical networks with | ||
|---|---|---|---|
| Pulsated DC current | Harmonics | Switching surges | |
| AC CLASS | No | No | No |
| A CLASS | Yes | No | No |
| S, ASi CLASS | Yes | Yes | Yes |
A Class RCD may not work satisfactorily in electrical network distributed by harmonics & switching transients and may give nuisance triping.
AC class
Tripping is ensured for slowly increasing sinusoidal AC residual currents
A class
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly.
ASi Type - Full type A features + Si: Super immused (High immunity to unwanted tripping)
Tripping is ensured not only for sinusoidal AC residual currents but also for pulsed DC residual currents whether applied suddenly or increasing slowly. S, G/SI type with filters against spurious tripping caused by harmonics and transient surges. With the impact of 8/20us surge 3000A, this high immunity RCCB will still be in stable status.
Note: Our ASi type includes G/KV function and Si function.
1.3 Approvals and certificates
We certify that the RCCB has been tested for the following routine tests as per IS: 12640 (Part 1):2016 and found to be complying
with the requirements.
1. Verification of the operating characteristic as per Seq. - D0 CL9.9
2. Verification of the operation of the test device at the limits of rated voltage as per Seq. - D1 CL9.16
3. High Voltage Test as per D.3 of Annex D
4. Test for standard values of break time and non- actuating time as per CL 5.3.12 (table -1)
Tripping sensitivity
10mA - precision instrument leakage protection and bathroom use.
30mA - additional protection against direct contact.
100mA - co-ordinated with the earth system according to the formula I△n < 50/R, to provide protection against indirect contacts;
300mA/500mA - protection against indirect contacts, as well as fire hazard.

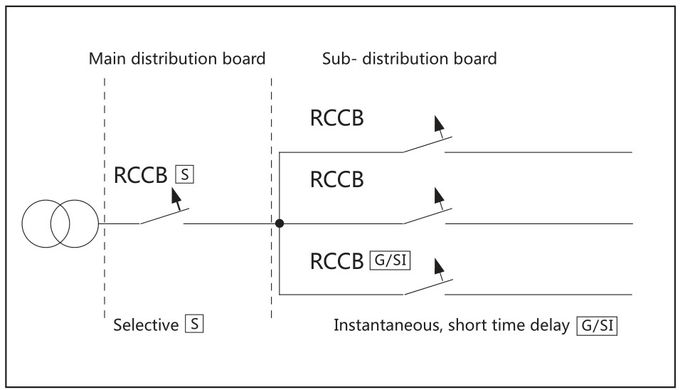

Tripping time
Instantaneous
It ensures instantaneous tripping(without time-delay).
Short time delay ASi
(High Immunity/ Avoid nuisance tripping &blinding)
It ensures any tripping at least 10ms.
Selective
It ensures total discrimination with a non selective RCD placed downstream.
RCD | Residual Current Device
2. Technical parameters
| Standard | IEC/EN 61008-1 AS/NZS61008.1 | |
| Electrical features | Model No. | VKL11 |
| Poles | 2P, 4P | |
| Rated current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A | |
| Rated Sensitivity I△n | 10mA(2P/4P 16A,25A.32A/40A), 30mA, 100mA, 300mA | |
| Rated voltage Ue | 2P: 240V 4P: 415V | |
| Insulation voltage Ui | 415V | |
| Rated frequency | 50/60 Hz | |
| Rated residual making and breaking capacity I△m | 1500A | |
| Short-circuit current Inc=I△c | 6000A, 10000A | |
| Type (wave form of the earth leakage sensed) | AC, A, ASi, S | |
| break time under I△n | ≤0.1s(Normal type), 10ms~300ms(ASi type). 10ms~300ms(G type) | |
| Rated impulse withstand voltage(1.2/50) Uimp | 4kV | |
| Dielectric test voltage at ind. Freq. for 1 min | 2.5 | |
| Pollution degree | 2 | |
| Mechanical features | Electrical life | ≥2000 |
| Mechanical life | ≥2000 | |
| Fault current indicator | Yes | |
| Terminal protection degree | IP20 | |
Ambient temperature (with daily average≤35℃) | -25℃ to 50℃ | |
| Storage temperate | -30℃ to 70℃ | |
| Installation | Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable | 25-35 mm² | |
| 18-3/18-2 AWG | ||
| Terminal size top/bottom for busbar | 10/16 mm² | |
| 18-8/18-5 AWG | ||
| Tightening torque | 2.5 N·m | |
| 22 In-Ibs. | ||
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device | |
| Connection | From top and bottom |

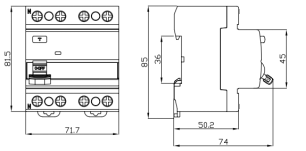

3. Outline and installation dimensions (mm)
The Residual Current Device Type G is a type of Residual Current Device (RCD) designed for alternating current (AC). It is available in Six types - Type A, Type AC, Type ASi, Type B, Type B+ and Type F - with a rated voltage of 240/415V AC, a rated residual operating current of 30mA to 300mA, a rated current of 16A to 100A and a rated insulation voltage of 500V. It is also designed with a rated operating temperature of -25℃~+40℃, making it ideal for a range of applications and environments.
The Residual Current Device Type G is designed to protect people from electric shocks and provide protection of equipment from fire and other damages. It works by sensing the magnitude of the current and disconnecting the load when the current is not balanced. It is designed with a high level of accuracy and a quick response time to detect any unbalanced current.
This Residual Current Device Type G is suitable for a range of applications, including residential and commercial buildings, industrial equipment, and medical equipment. It is also designed to meet the safety and quality standards of Underwriters Laboratories (UL) 1053.
Product Name: Residual Current Device
Certificate: CE, ISI, NF, SEMKO, VDE, KEMA
Residual Current Device Type: Type AC, Type A, Type ASi
Rated Current: 16A, 20A, 25A, 32A, 40A, 63A, 80A, 100A
Rated Operating Temperature: -25℃~+40℃
Rated Impact Endurance Voltage: 2kV
HAROK VKL11 Residual Current Device Type G is a reliable and safe product for the electrical safety. It is certified by NF, SEMKO, VDE, KEMA, ISI, CE and manufactured with premium materials, ensuring its stable performance. The Rated Humidity is ≤95%RH, the Rated Impulse Withstand Voltage is 4kV, the Rated Operating Temperature is -25℃~+40℃, the Rated Voltage is 240/415V AC. With the minimum order quantity of 1000, the packaging is paper carton. The delivery time is 4-6 weeks after payment and the Supply Ability is 100,000 PCS PER MONTH.
The HAROK VKL11 Residual Current Device Type G is widely used in the residential, commercial, and industrial places. With its outstanding performance in electrical safety, it is ideal for preventing electrical shock, fire hazard, and other dangerous accidents. It is also a perfect choice for protecting the electrical appliances from over-current, over-voltage, short-circuit and other hazardous conditions.
HAROK VKL11 is an ideal product for providing reliable electrical safety. It is superior to other similar products in terms of rated voltage, rated current, rated impulse withstand voltage, rated residual non-operating current, rated operating temperature, rated humidity, and other important parameters. With its superior performance, it is the perfect choice for both residential and commercial applications.
| Parameter | Specification |
|---|---|
| Product Name | Residual Current Device |
| Residual Current Device Type | Type G |
| Rated Humidity | ≤95%RH |
| Rated Short-Circuit Capacity | 10kA |
| Rated Impulse Withstand Voltage | 4kV |
| Rated Impact Endurance Voltage | 2kV |
| Protection Class | IP20 |
| Rated Current | 16A, 20A, 25A, 32A, 40A, 63A, 80A, 100A |
| Rated Frequency | 50/60Hz |
Brand Name: HAROK
Model Number: VKL11
Place of Origin: CHINA
Certification: NF, SEMKO, VDE, KEMA, ISI, CE
Minimum Order Quantity: 1000
Packaging Details: PAPER CARTON
Delivery Time: 4-6 weeks after payment
Supply Ability: 100,000 PCS PER MONTH
Residual Current Device Type G: Rated Residual Operating Current: 30mA, 100mA, 300mA; Rated Short-Circuit Capacity: 10kA; Protection Class: IP20; Certificate: CE, ISI, NF, SEMKO, VDE, KEMA.
