| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Certification | NF, SEMKO, VDE, KEMA, ISI, CE |
| Model Number | VFL001 |
| Minimum Order Quantity | 1000 |
| Packaging Details | PAPER CARTON |
| Delivery Time | 4-6 weeks after payment |
| Supply Ability | 100,000 PCS PER MONTH |
| Rated Impulse Withstand Voltage | 4kV | Rated Short-Circuit Capacity | 10kA |
|---|---|---|---|
| Rated Impact Endurance Voltage | 10kV | Rated Residual Operating Current | 30mA-300mA |
| Protection Class | IP20 | Rated Frequency | 50/60Hz |
| Rated Current | 16A-300A | ||
| High Light | VFL001 Residual Current Device,RCD Type AC 10kA,RCD Type AC 4kV | ||

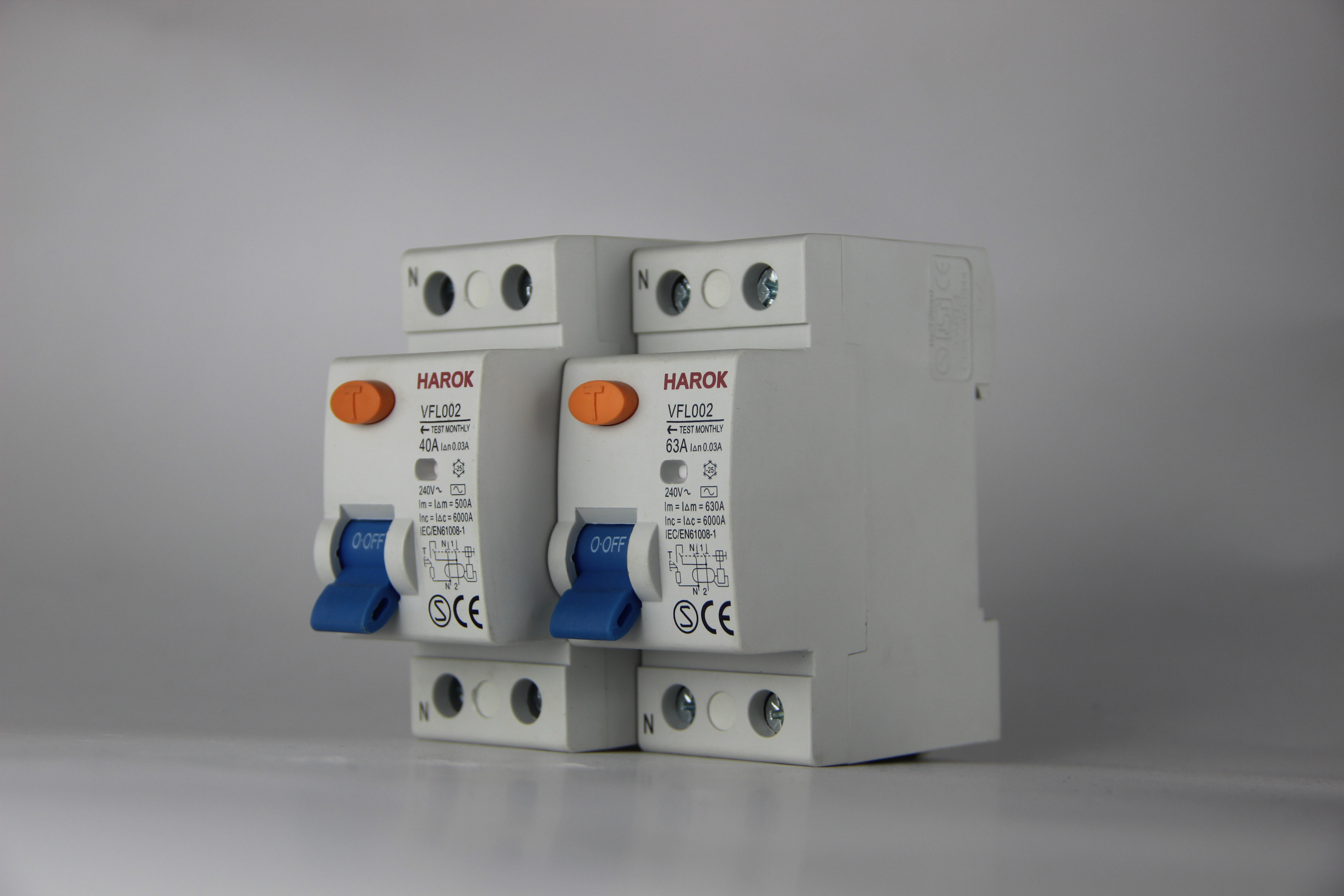

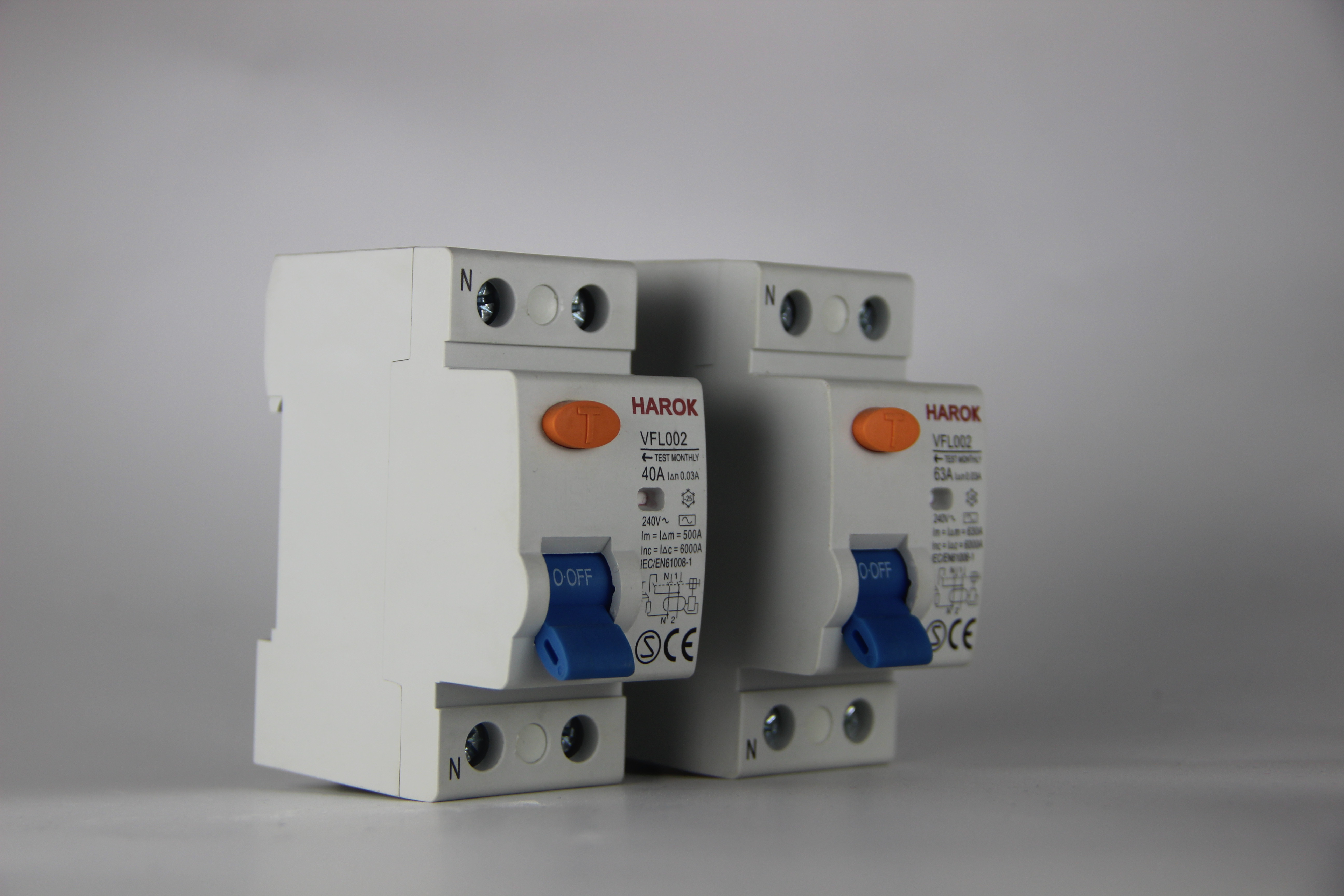

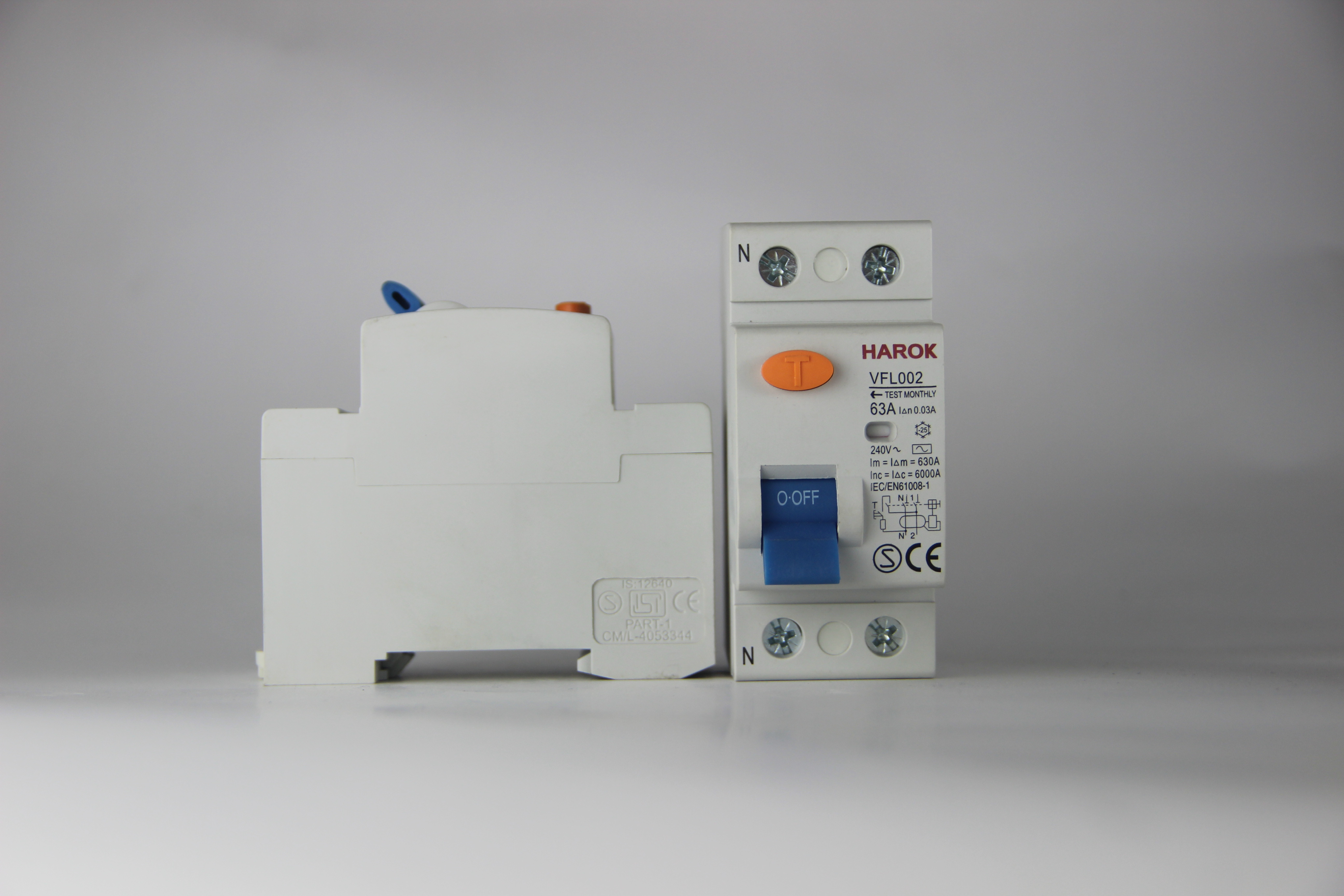

VFL001 Residual Current Device (RCD) Type A Type AC Type ASi
1. General
1.1 Function
Control electric circuits.
Protect people against indirect contacts and additional protection against direct contacts.
Protect installations against fire hazard due to insulation faults.
Residual current circuit breakers are used in housing, tertiary sector and industry.
1.2 Selection
Detectable wave form
| RCD Type | Suitable for electrical networks with | ||
|---|---|---|---|
| Pulsated DC current | Harmonics | Switching surges | |
| AC CLASS | No | No | No |
| A CLASS | Yes | No | No |
| S, ASi CLASS | Yes | Yes | Yes |
A Class RCD may not work satisfactorily in electrical network distributed by harmonics & switching transients and may give nuisance triping.
AC class
Tripping is ensured for slowly increasing sinusoidal AC residual currents
A class
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly.
ASi Type - Full type A features + Si: Super immused (High immunity to unwanted tripping)
Tripping is ensured not only for sinusoidal AC residual currents but also for pulsed DC residual currents whether applied suddenly or increasing slowly. S, G/SI type with filters against spurious tripping caused by harmonics and transient surges. With the impact of 8/20us surge 3000A, this high immunity RCCB will still be in stable status.
Note: Our ASi type includes G/KV function and Si function.
1.3 Approvals and certificates
We certify that the RCCB has been tested for the following routine tests as per IS: 12640 (Part 1):2016 and found to be complying
with the requirements.
1. Verification of the operating characteristic as per Seq. - D0 CL9.9
2. Verification of the operation of the test device at the limits of rated voltage as per Seq. - D1 CL9.16
3. High Voltage Test as per D.3 of Annex D
4. Test for standard values of break time and non- actuating time as per CL 5.3.12 (table -1)
Tripping sensitivity
10mA - precision instrument leakage protection and bathroom use.
30mA - additional protection against direct contact.
100mA - co-ordinated with the earth system according to the formula I△n < 50/R, to provide protection against indirect contacts;
300mA/500mA - protection against indirect contacts, as well as fire hazard.
Tripping time
Instantaneous
It ensures instantaneous tripping(without time-delay).
Short time delay ASi
(High Immunity/ Avoid nuisance tripping &blinding)
It ensures any tripping at least 10ms.
Selective
It ensures total discrimination with a non selective RCD placed downstream.
RCD | Residual Current Device
2. Technical parameters
| Standard | IEC/EN 61008-1 AS/NZS61008.1 | |
| Electrical features | Model No. | VFL001 |
| Poles | 2P, 4P | |
| Rated current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A | |
| Rated Sensitivity I△n | 10mA(2P/4P 16A,25A.32A/40A), 30mA, 100mA, 300mA | |
| Rated voltage Ue | 2P: 240V 4P: 415V | |
| Insulation voltage Ui | 415V | |
| Rated frequency | 50/60 Hz | |
| Rated residual making and breaking capacity I△m | 1500A | |
| Short-circuit current Inc=I△c | 6000A, 10000A | |
| Type (wave form of the earth leakage sensed) | AC, A, ASi, S | |
| break time under I△n | ≤0.1s(Normal type), 10ms~300ms(ASi type). 150ms~500ms(S type) | |
| Rated impulse withstand voltage(1.2/50) Uimp | 4kV | |
| Dielectric test voltage at ind. Freq. for 1 min | 2.5 | |
| Pollution degree | 2 | |
| Mechanical features | Electrical life | ≥2000 |
| Mechanical life | ≥2000 | |
| Fault current indicator | Yes | |
| Terminal protection degree | IP20 | |
Ambient temperature (with daily average≤35℃) | -25℃ to 50℃ | |
| Storage temperate | -30℃ to 70℃ | |
| Installation | Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable | 25-35 mm² | |
| 18-3/18-2 AWG | ||
| Terminal size top/bottom for busbar | 10/16 mm² | |
| 18-8/18-5 AWG | ||
| Tightening torque | 2.5 N·m | |
| 22 In-Ibs. | ||
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device | |
| Connection | From top and bottom |
3. Outline and installation dimensions (mm)
Residual Current Device (RCD), also known as a ground fault circuit interrupter (GFCI) or a Residual Current Protection Device (RCPD), is an electrical safety device that helps protect people from electric shock and fire by automatically disconnecting the power supply in the event of an electrical fault. RCDs are used to protect against electrical shock and fire and are commonly found in residential, commercial and industrial applications. RCDs are available in a variety of types, including Residual Current Device Type AC (Type AC), Residual Current Device Type A (Type A) and Residual Current Device Type ASi (Type ASi). All of these types of RCDs are designed to provide reliable protection in applications where the risk of electric shock or fire is high. RCDs are designed to detect and interrupt any leakage current that could cause an electrical hazard. They are rated for a specific voltage (230V AC) and frequency (50/60Hz) and must meet certain requirements for impact endurance voltage (2kV). RCDs are an important part of any electrical safety system and are essential for providing protection against electric shock and fire.
Product Name: Residual Current Device
Rated Residual Operating Time: 0.1s
Rated Current: 30mA-300mA
Rated Operating Temperature: -25℃~+40℃
Rated Voltage: 240/415V AC
Rated Humidity: ≤95%RH
Types: Residual Current Device Type AC, Type A, Type ASi
Certification: Inmetro, ISI, NF, UKCA, CE
HAROK VFL001 Residual Current Device is a protective device designed to reduce the risk of electric shocks caused by earth fault currents. It is widely used for protection of household and similar electrical installation against fire and shock hazards. It is certified by NF, SEMKO, VDE, KEMA, ISI, CE with a minimum order quantity of 1000. It has a rated impulse withstand voltage of 4kV, and a rated operating temperature of -25℃~+40℃. It is available in five different types: Type AC, Type A, Type ASi, Type B and Type F, and it is packaged in paper carton. Delivery time is 4-6 weeks after payment and it can supply up to 100,000 pieces per month.
| Parameter | Value |
|---|---|
| Product Name | Residual Current Device |
| Rated Impact Endurance Voltage | 2kV |
| Rated Residual Operating Time | 0.1s |
| Rated Operating Temperature | -25℃~+40℃ |
| Rated Impulse Withstand Voltage | 4kV |
| Certificate | CE, ISI, NF, SEMKO, VDE, KEMA |
| Rated Frequency | 50/60Hz |
| Rated Insulation Voltage | 500V |
HAROK VFL001 Residual Current Device is designed to provide short-circuit, overload and earth leakage protection for electrical systems. With this product, you can be sure to stay safe from power surges, short-circuits, and electrical shocks. It is certified by NF, SEMKO, VDE, KEMA, ISI, CE, with a minimum order quantity of 1000. It comes with a PAPER CARTON packaging and delivery time of 4-6 weeks after payment. With a supply ability of 100,000 PCS PER MONTH, this product comes with a CE, ISI, NF, SEMKO, VDE, KEMA certificate. It has a rated residual non-operating time of 5s, a rated insulation voltage of 500V, a rated operating temperature of -25℃~+40℃, and a rated voltage of 240/415V AC.
