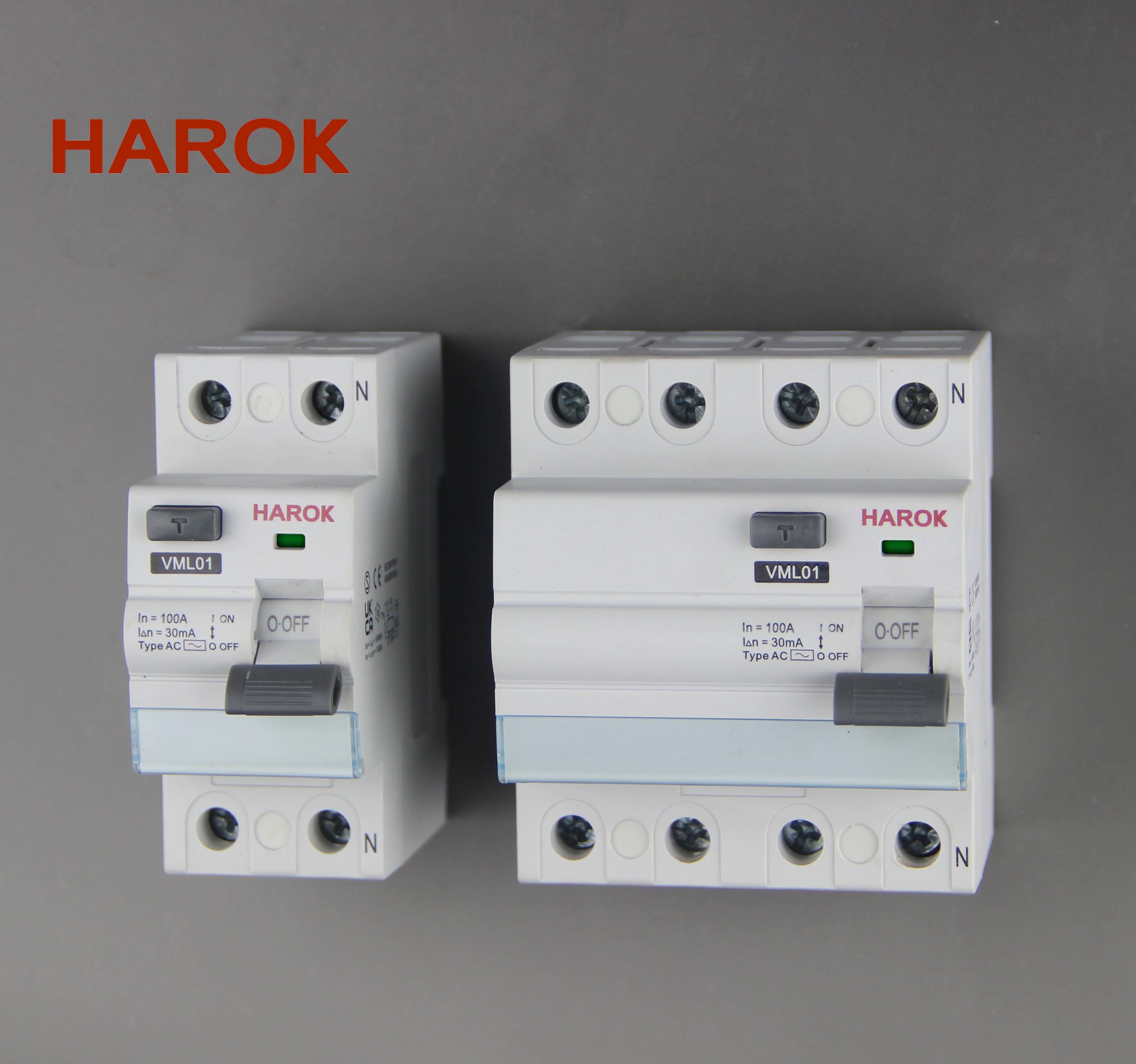

VML01 Residual Current Device(RCD) Inmetro
1. General
1.1 Function
Control electric circuits.
Protect people against indirect contacts and additional protection against direct contacts.
Protect installations against fire hazard due to insulation faults.
Residual current circuit breakers are used in housing, tertiary sector and industry.
1.2 Selection
Detectable wave form
AC class
Tripping is ensured for slowly increasing sinusoidal AC residual currents
A class
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly.
ASi Type - Full type A features + Si: Super immused (High immunity to unwanted tripping)
Tripping is ensured not only for sinusoidal AC residual currents but also for pulsed DC residual currents whether applied suddenly or increasing slowly. S, G/SI type with filters against spurious tripping caused by harmonics and transient surges. With the impact of 8/20us surge 3000A, this high immunity RCCB will still be in stable status.
Note: Our ASi type includes G/KV function and Si function.
1.3 Approvals and certificates
We certify that the RCCB has been tested for the following routine tests as per IS: 12640 (Part 1):2016 and found to be complying
with the requirements.
1. Verification of the operating characteristic as per Seq. - D0 CL9.9
2. Verification of the operation of the test device at the limits of rated voltage as per Seq. - D1 CL9.16
3. High Voltage Test as per D.3 of Annex D
4. Test for standard values of break time and non- actuating time as per CL 5.3.12 (table -1)
Tripping sensitivity
10mA - precision instrument leakage protection and bathroom use.
30mA - additional protection against direct contact.
100mA - co-ordinated with the earth system according to the formula I△n < 50/R, to provide protection against indirect contacts;
300mA/500mA - protection against indirect contacts, as well as fire hazard.
Tripping time
Instantaneous
It ensures instantaneous tripping(without time-delay).
Short time delay ASi
(High Immunity/ Avoid nuisance tripping &blinding)
It ensures any tripping at least 10ms.
Selective
It ensures total discrimination with a non selective RCD placed downstream.
RCD | Residual Current Device
2. Technical parameters
| Standard | IEC/EN 61008-1 AS/NZS61008.1 | |
| Electrical features | Model No. | VML01 |
| Poles | 2P, 4P | |
| Rated current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A | |
| Rated Sensitivity I△n | 10mA(2P/4P 16A,25A.32A/40A), 30mA, 100mA, 300mA | |
| Rated voltage Ue | 2P: 240V 4P: 415V | |
| Insulation voltage Ui | 415V | |
| Rated frequency | 50/60 Hz | |
| Rated residual making and breaking capacity I△m | 1500A | |
| Short-circuit current Inc=I△c | 6000A, 10000A | |
| Type (wave form of the earth leakage sensed) | AC, A, ASi, S | |
| break time under I△n | ≤0.1s(Normal type), 10ms~300ms(ASi type). 150ms~500ms(S type) | |
| Rated impulse withstand voltage(1.2/50) Uimp | 4kV | |
| Dielectric test voltage at ind. Freq. for 1 min | 2.5 | |
| Pollution degree | 2 | |
| Mechanical features | Electrical life | ≥2000 |
| Mechanical life | ≥2000 | |
| Fault current indicator | Yes | |
| Terminal protection degree | IP20 | |
Ambient temperature (with daily average≤35℃) | -25℃ to 50℃ | |
| Storage temperate | -30℃ to 70℃ | |
| Installation | Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable | 25-35 mm² | |
| 18-3/18-2 AWG | ||
| Terminal size top/bottom for busbar | 10/16 mm² | |
| 18-8/18-5 AWG | ||
| Tightening torque | 2.5 N·m | |
| 22 In-Ibs. | ||
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device | |
| Connection | From top and bottom |
3. Outline and installation dimensions (mm)
A Residual Current Device (RCD) is a safety device that protects people from electric shocks and prevents fires. It is an essential part of any electrical installation. RCDs are designed to detect any imbalance in the electrical circuit and interrupt the current flow when it occurs. This device is designed for use in AC circuits and is certified according to Inmetro standards. It is available in three types: Type AC, Type A and Type ASi.
The RCD Type AC is rated for a short-circuit capacity of 10kA, a rated current of 30mA, a rated frequency of 50/60Hz and a rated impulse withstand voltage of 4kV. It also has a protection class of IP20. This device helps to protect people and property from electricity-related hazards, making it an invaluable addition to any electrical installation.
Product Name: Residual Current Device
Rated Residual Operating Time: 0.1s
Rated Insulation Voltage: 500V
Rated Humidity: ≤95%RH
Rated Short-Circuit Capacity: 10kA
Rated Impact Endurance Voltage: 2kV
Residual Current Device Type: A, AC, ASi
Residual Current Device Inmetro: Certified
HAROK's VKL11 Residual Current Device Type A, AC, ASi is the perfect choice for providing reliable and dependable protection against electric shock. It is certified by Inmetro, NF, SEMKO, VDE, KEMA, ISI, and CE and has a minimum order quantity of 1000. The rated insulation voltage is 500V, the rated humidity is ≤95%RH, the rated impact endurance voltage is 2kV, the rated current is 16, 20A, 25A, 32A, 40A, 63A, 80A, 100A, and the rated residual operating time is 0.1s. The device is packaged in a paper carton and is available for delivery within 4-6 weeks after payment. The maximum monthly supply is 100,000 PCS.
The VKL11 RCD has advanced safety features and is suitable for a wide range of industrial, commercial, and residential applications. It is also ideal for use in areas where there is a risk of electric shock, such as bathrooms, kitchens, and other wet locations. The device is designed to detect leakage currents and instantly disconnect the power supply to protect users from electric shock. It also helps to reduce the risk of fires and other damage caused by electrical faults.
The VKL11 RCD is a great choice for providing reliable and long-lasting protection against electric shock. It is easy to install and use and requires minimal maintenance. Its advanced safety features make it an ideal choice for a variety of applications. The device is reliable and dependable and will provide years of worry-free protection.
| Parameter | Value |
|---|---|
| Residual Current Device Type | Type AC, Type A, Type ASi |
| Rated Residual Operating Current | 30mA, 100mA, 300mA |
Ambient temperature (with daily average≤35℃) | -25℃ to 55℃ |
Storage temperature | -40℃ to 70℃ |
| Rated Frequency | 50/60Hz |
| Rated Current | 16A, 20A, 25A, 32A, 40A, 63A, 80A, 100A |
| Rated Impact Endurance Voltage | 2kV |
| Rated Insulation Voltage | 500V |
| Rated Residual Operating Time | 0.1s |
| Rated Voltage | 240/415V AC |
| Rated Short-Circuit Capacity | 10kA |
Brand Name: HAROK
Model Number: VKL11
Place of Origin: CHINA
Certification: NF, SEMKO, VDE, KEMA, ISI, CE
Minimum Order Quantity: 1000
Packaging Details: PAPER CARTON
Delivery Time: 4-6 weeks after payment
Supply Ability: 100,000 PCS PER MONTH
Protection Class: IP20
Rated Impulse Withstand Voltage: 4kV
Rated Operating Temperature: -25℃~+40℃
Rated Current: 16A-100A
Residual Current Device Type: Type AC, Type A, Type ASi
