| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Model Number | VKL11 |
| Mechanical Endurance | ≥ 4000 | Standard | IEC/EN 62423, IEC/EN 61008-1, OVE E8601 |
|---|---|---|---|
| Rated Frequency | 50/60Hz | Rated Current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A |
| Electrical Endurance | ≥ 2000 | Rated Insulation Voltage Ui | 500V |
| High Light | Residual Current Circuit Breaker Type B,RCCB TYPE B VDE,16A Residual Current Circuit Breaker | ||

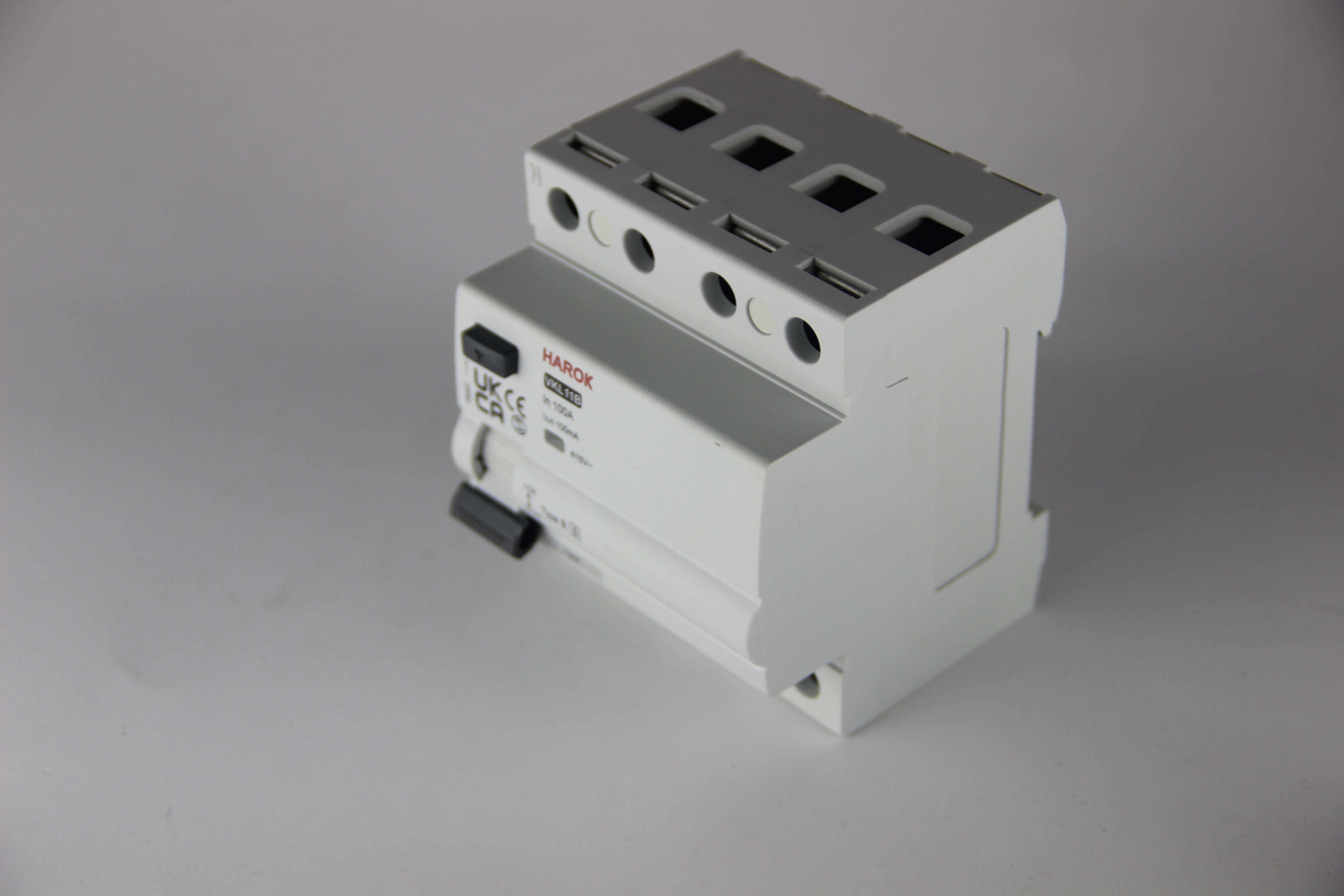

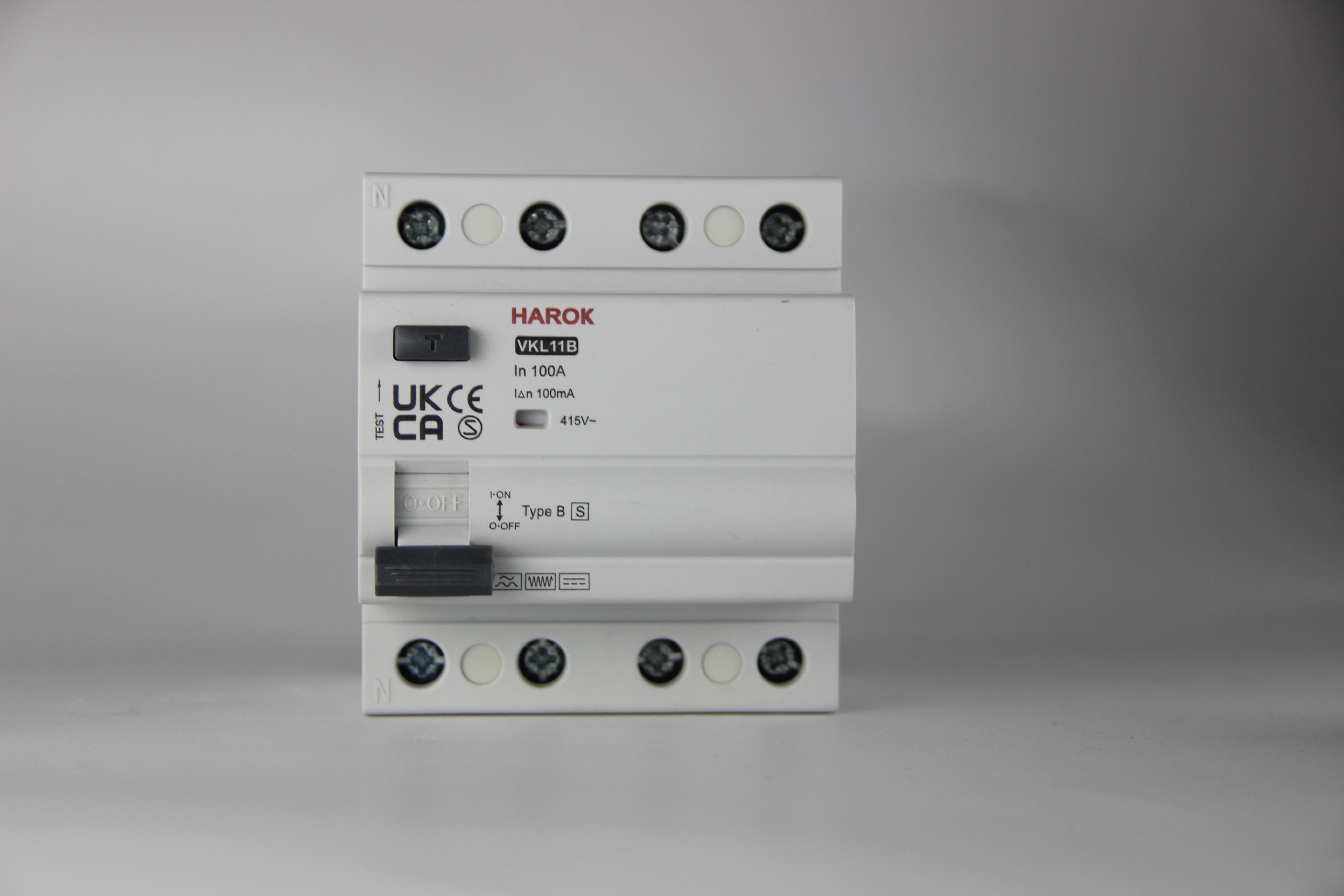

VKL11 Residual Current Circuit Breaker Type B VDE KEMA NF
1. General
1.1 Function
VKL11B RCCB and VKL11B+ RCCB is appearance design, compact structure, good reliability, and high safety. They are universal residual current circuit breaker.
Residual current circuit breaker type B are suitable for domestic as well as industrial applications, where are used frequency inverters, PV plant, EV chargers and similar elements. B type provides a sensitivity to residual AC, pulsating and smooth DC current, together with high frequencies up to 1 kHz.
Residual current circuit breaker type B+ meet full type B feature , with additional tripping values are defined up to 20KHZ and they are below 420mA.
They are based on electronic technology, which brings advantages of more accurate measuring of residual current and, as a consequence, reduction of unwanted tripping. These devices also do not suffer with magnetization of the tripping unit.
1.2 Selection
Detectable wave form
Type B
Tripping is ensured for sinusoidal AC residual currents pulsed DC residual currents, alternating residual sinusoidal currents up to 1000Hz, pulsating direct residual currents and for smooth direct residual currents, whether applied suddenly or increasing slowly.
Type B+
Meet full type B feature , with additional tripping values are defined up to 20KHZ and they are below 420mA
Tripping sensitivity
30mA - additional protection against direct contact.
100mA - co-ordinated with the earth system according to the formula IΔn＜50/R, to provide protection against indirect contacts;
300mA - protection against indirect contacts, as well as fire hazard.
Tripping time
Instantaneous It ensures instantaneous tripping(without time-delay).
Short time delay
Selective (time delay)
1.3 Approvals and certificates
RCCB | Residual Current Circuit Breaker
2. Technical parameters
| Type | B | B+ | ||
| Electrical | ||||
| Design according to | IEC/EN 62423, IEC/EN 61008-1, OVE E8601 | |||
| VDE 0664-400 | ||||
| Current test marks as printed onto the device | ||||
| Rated voltage Un | 2P: 230/240V AC 4P: 400/415V AC | |||
| Rated frequency fn | 50/60Hz | |||
| Mode of operation | "A type functionality: voltage independent B and B+ type functionality: voltage dependent" | |||
| Operation voltage electronic | 50 – 264V AC | |||
| Voltage range test circuit | 2P: 184 – 264V AC 4P: 184 – 440V AC | |||
| Rated current In | 25A | |||
Rated residual operating current I△n | Instantaneous | 30mA, 100mA, 300mA, 500mA | 30mA, 100mA, 300mA | |
| K-short time delayed (G, ASi) | 30mA, 100mA, 300mA, 500mA | 30mA, 100mA, 300mA | ||
| S- selective | 100mA, 300mA, 500mA | 100mA, 300mA | ||
| Sensitivity | Alternating, pulsed and smooth direct currents | |||
| High frequency up to 1 kHZ | High frequency up to 20kHZ | |||
| Rated insulation voltage Ui | 500 V | |||
| Rated impulse withstand voltage Uimp | 4 kV (1.2/50μs) | |||
| Rated conditional short-circuit current Inc | 10 kA | |||
| Rated making and breaking capacity Im | 1500 A | |||
| Peak withstand current | 3 kA (8/20 μs) surge current proof 5 kA (8/20 μs) surge current proof for type S | |||
| Electrical isolation | > 4 mm contact space | |||
Maximum back-up fuse In = 16-100A | Short circuit and overload protection 100 A gG/gL | |||
Endurance (operating cycles) | electrical components | ≥ 2000 | ||
| mechanical components | ≥ 4000 | |||
| Mechanical | ||||
| Degree of protection | IP20 | |||
| Upper and lower terminals | open mounted / lift terminals | |||
| Terminal capacity | 1 - 25 mm2 | |||
| Terminal torque | 2 - 2.5 Nm | |||
| Busbar thickness | 0.8 - 2 mm | |||
| Operating temperature | -25°C ... +55°C | |||
| Storage- and transport temperature | -40°C ... +70°C | |||
| Resistance to climatic conditions | IEC/EN 61008 | |||
| Contact position indicator | mechanical red / green | |||
| Supply possibility | top or bottom | |||
| Mounting position | any | |||
3. Special features regarding the use of SIQUENCE universal current-sensitive residual current circuit breaker (Type B and Type B+)
3.1 Applications
Typical applications that are vulnerable to smooth DC residual currents:
- Frequency converters with a three-phase connection
- Medical equipment such as X-ray equipment or CT machines
- Photovoltaic or UPS systems
- Connection points (wall boxes, charging stations) for electric vehicles
- Elevator controllers
- Pipeline trace heating
- Test setups in laboratories
- Construction sites in accordance with BGI 608 information leaflet (Electronic equipment on construction sites)
- Charging stations for battery-powered forklift trucks
- Cranes of all kinds
- Mixing plants if relevant loads are connected
- Variable-speed machine tools, such as milling and grinding machines or lathes
4. Wiring diagrams
5. Tripping characteristics
B type
6. Dimensions (mm)
High immunity RCCB, Residual Current Circuit Breaker (RCCB), Residual Current Circuit Breaker Type B is a kind of over-current protective device with high immunity. It is designed to protect people and equipments against electric shock and fire caused by earth leakage. It is suitable for 2P 230/240V~ and 4P 400/415V~ AC electricity supply systems. It meets the requirements of IEC/EN 62423, IEC/EN 61008-1 and OVE E8601. Its sensitivity can detect alternating, pulsed and smooth direct currents (high frequency up to 1 KHZ). It has voltage dependent mode of operation and mechanical endurance of more than 4000. It is a reliable choice for the safety of people and equipments.
Product Name: RCCB TYPE B
Mode of operation: Voltage Dependent
Busbar thickness: 0.8 - 2 Mm
Rated impulse withstand voltage Uimp: 4 KV (1.2/50μs)
Standard: IEC/EN 62423, IEC/EN 61008-1, OVE E8601
Degree of protection: IP20
HAROK VKL11 RESIDUAL CURRENT CIRCUIT BREAKER TYPE B is a perfect solution for protecting people from electric shock or fire caused by earth leakage current. This product is highly efficient, reliable and eco-friendly, with a premium quality and a high degree of protection of IP20. It is designed to work with voltage dependent mode, offering a range of rated current In of 16A, 25A, 32A, 40A, 63A, 80A, 100A. Moreover, it has a long electrical endurance of ≥ 2000 and rated residual operating current I△n of 30mA, 100mA, 300mA, 500mA (Instantaneous & K-short Time Delayed (G, ASi)) and 100mA, 300mA, 500mA (100mA, 300mA, 500mA). With its super immunised RCCB feature, this product is ideal for use in residential, commercial and industrial applications, providing an effective and safe protection and a peace of mind.
| Parameter | Value |
|---|---|
| Degree of protection | IP20 |
| Rated residual operating current I△n | 30mA, 100mA, 300mA |
| Rated voltage Un | 2P 230/240V~; 4P 400/415V~ |
| Standard | IEC/EN 62423, IEC/EN 61008-1, OVE E8601 |
| Rated insulation voltage Ui | 500V |
| Busbar thickness | 0.8 - 2 Mm |
| Product Name | RESIDUAL CURRENT CIRCUIT BREAKER TYPE B |
| Rated Frequency | 50/60Hz |
| Rated current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A |
Brand Name: HAROK
Model Number: VKL11
Place of Origin: CHINA
Product Name: RESIDUAL CURRENT CIRCUIT BREAKER TYPE B
Mechanical Endurance: ≥ 4000
Electrical Endurance: ≥ 2000
Rated Frequency: 50/60Hz
Rated voltage Un: 2P 230/240V~; 4P 400/415V~
Packaging and Shipping for RCCB TYPE B:
The RCCB TYPE B product is packaged in a durable cardboard box and shipped with foam insert to protect the product from any damage.
It is then shipped to the destination via a reliable and trustworthy courier service to make sure the product is delivered in good condition.
