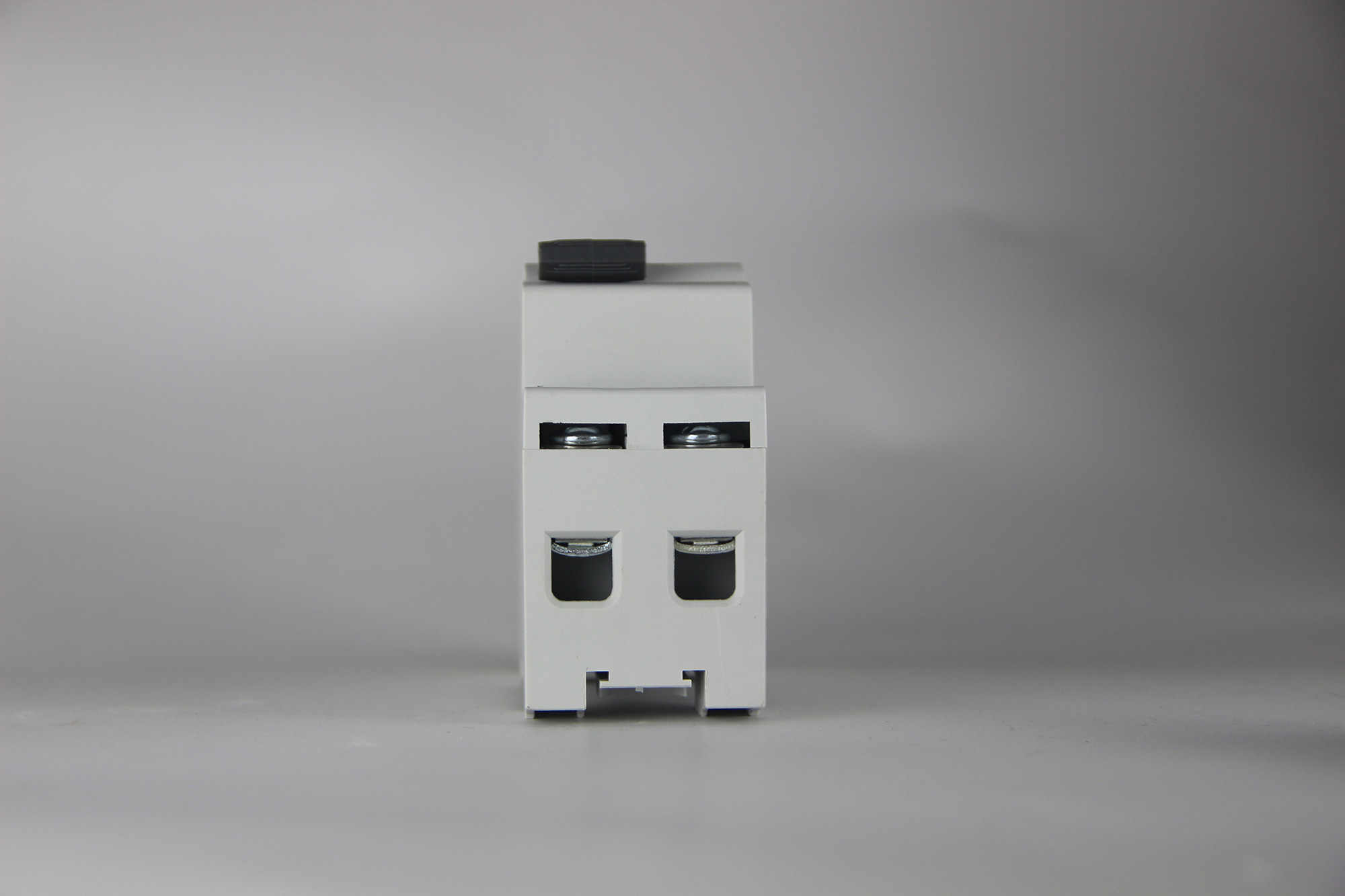

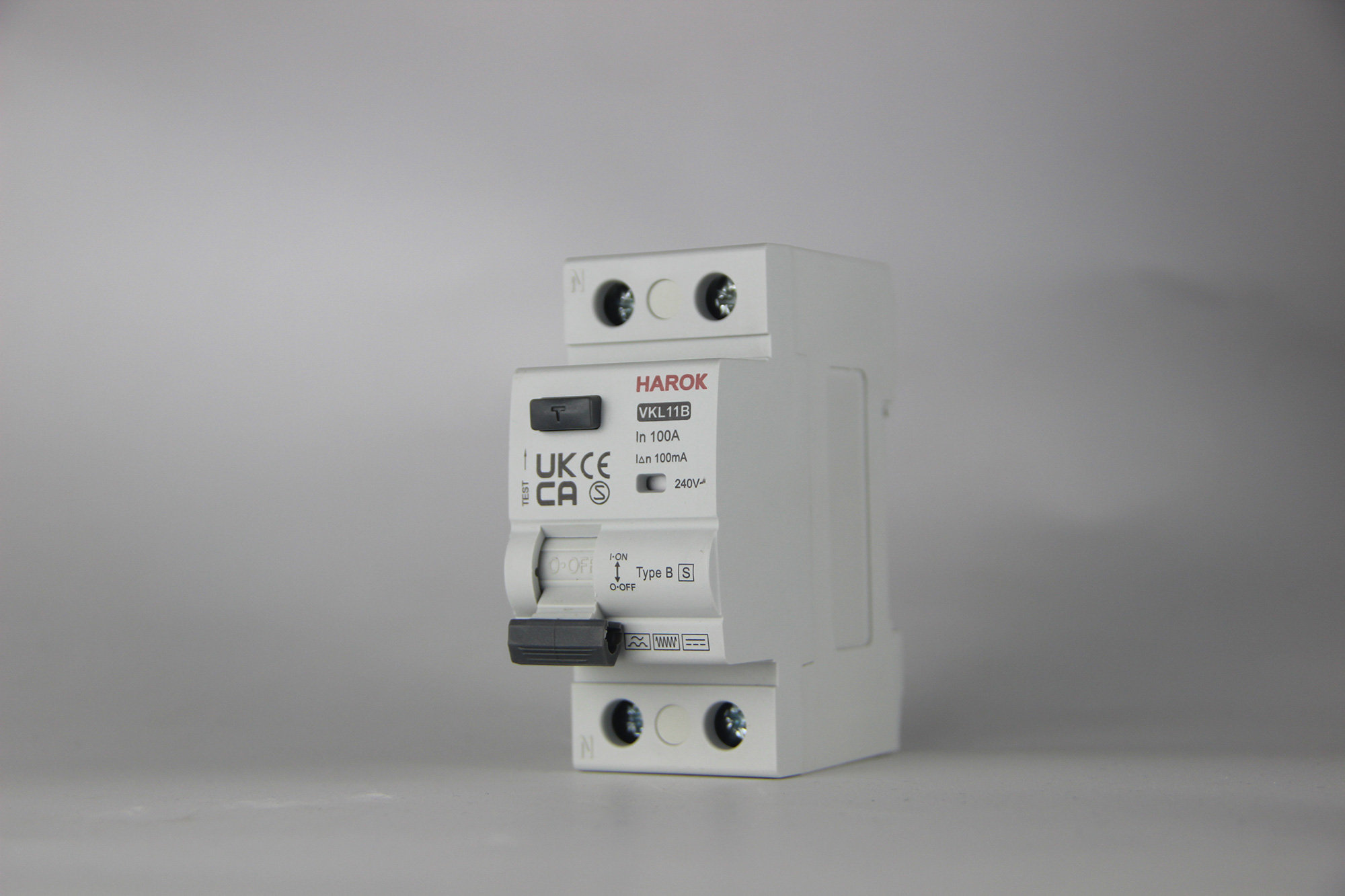

VKL11 RCCB Type B+

1. General

1.1 Function

A residual current circuit breaker (RCCB) is an electrical device that is designed to protect against electrical shock caused by ground faults. It works by detecting any imbalance in the electrical current flowing through a circuit and immediately shutting off the power to prevent any potential injury or damage. RCCBs are particularly important in areas where water and electricity are in close proximity, such as bathrooms and kitchens. They are also commonly used to provide additional safety protection in damp or wet locations, as well as in industrial settings where high voltage or high current circuits are used. Overall, RCCBs provide a crucial layer of protection against electrical hazards and are an essential component of any safe and effective electrical system.

VKL11B RCCB and VKL111B+ RCCB is appearance design, compact structure, good reliability, and high safety. They are universal residual current circuit breaker.

Residual current circuit breaker type B are suitable for domestic as well as industrial applications, where are used frequency inverters, PV plant, EV chargers and similar elements. B type provides a sensitivity to residual AC, pulsating and smooth DC current, together with high frequencies up to 1 kHz.

Residual current circuit breaker type B+ meet full type B feature , with additional tripping values are defined up to 20KHZ and they are below 420mA.

They are based on electronic technology, which brings advantages of more accurate measuring of residual current and, as a consequence, reduction of unwanted tripping. These devices also do not suffer with magnetization of the tripping unit.

1.2 Selection

Detectable wave form

Product Description:

The High immunity RCCB TYPE B is a Voltage Dependent RCCB with rated impulse withstand voltage Uimp of 4 KV (1.2/50μs). This Super immunised RCCB has a busbar thickness of 0.8 - 2 Mm and rated frequency of 50/60Hz. It is capable of providing high reliability and superior protection against electric shock and providing a safe environment. The RCCB TYPE B is the perfect choice for any application where safety is a priority.

Features:

• Product Name: RCCB TYPE B (Residual Current Circuit Breaker Type B)

• Electrical Endurance: ≥ 2000

• Mechanical Endurance: ≥ 4000

• Degree of protection: IP20

• Busbar thickness: 0.8 - 2 Mm

• Sensitivity: Alternating, Pulsed and Smooth Direct Currents (High Frequency up to 1 KHZ)

Applications:

HAROK's VKL11 Residual Current Circuit Breaker (RCCB) Type B is a reliable and trusted device designed to protect people from electric shock and fire hazards caused by earth leakage. It is certified to comply with IEC/EN 62423, IEC/EN 61008-1, and OVE E8601 standards and has a rated impulse withstand voltage Uimp of 4 KV (1.2/50μs). It is rated with a voltage of 2P 230/240V~; 4P 400/415V~ and an insulation voltage Ui of 500V. In addition, its rated residual operating current I△n is 30mA, 100mA, 300mA, and 500mA (Instantaneous & K-short Time Delayed (G, ASi)), and 100mA, 300mA, and 500mA (100mA, 300mA, 500mA). It is suitable for a wide range of applications and is ideal for protecting against electric shock and fire risks caused by earth leakage. Its reliable design and high-quality components make it an excellent choice for residential, commercial, and industrial applications.

Technical Parameters:

Customization:

• Brand Name: HAROK

• Model Number: VKL11

• Place of Origin: CHINA

• Rated Frequency: 50/60Hz

• Mechanical Endurance: ≥ 4000

• Rated insulation voltage Ui: 500V

• Rated residual operating current I△n: 30mA, 100mA, 300mA, 500mA (Instantaneous & K-short Time Delayed (G, ASi)); 100mA, 300mA, 500mA (100mA, 300mA, 500mA)

• Standard: IEC/EN 62423, IEC/EN 61008-1, OVE E8601

HAROK VKL11 High Immunity RCCB is a type B residual current circuit breaker, which is designed in accordance with IEC/EN 62423, IEC/EN 61008-1, and OVE E8601 standards. It has a rated frequency of 50/60 Hz and a rated insulation voltage of 500V. Its mechanical endurance is ≥ 4000, and its rated residual operating current is I△n: 30mA, 100mA, 300mA, 500mA (Instantaneous & K-short Time Delayed (G, ASi)); 100mA, 300mA, 500mA (100mA, 300mA, 500mA).

Packing and Shipping:

Packaging and Shipping for RCCB TYPE B:

We package RCCB TYPE B in a sturdy cardboard box to ensure safe delivery. The box is filled with foam to provide an extra layer of protection. The shipping method chosen will depend on the size and weight of the shipment, and may include air, land or sea transport.
