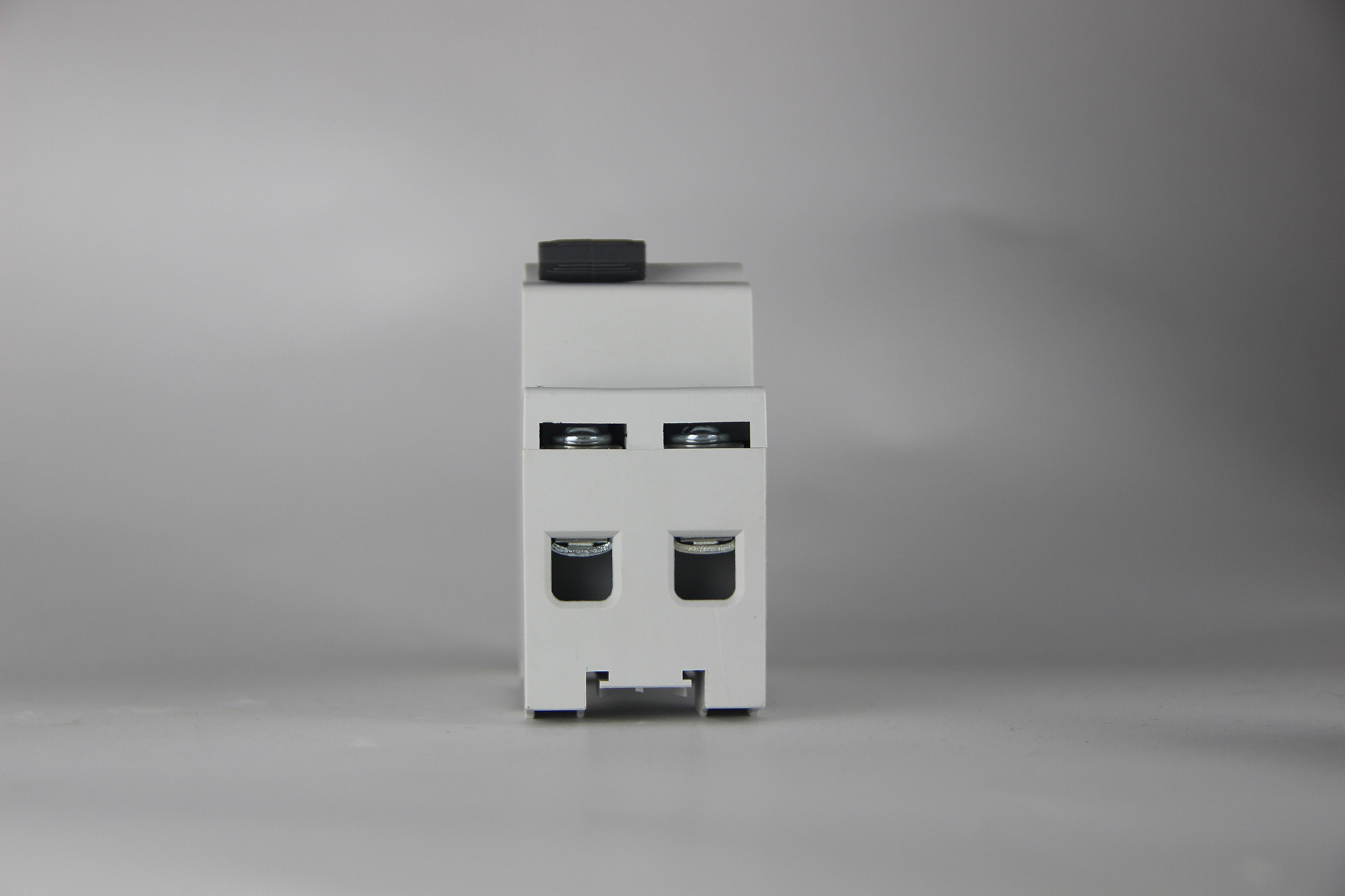

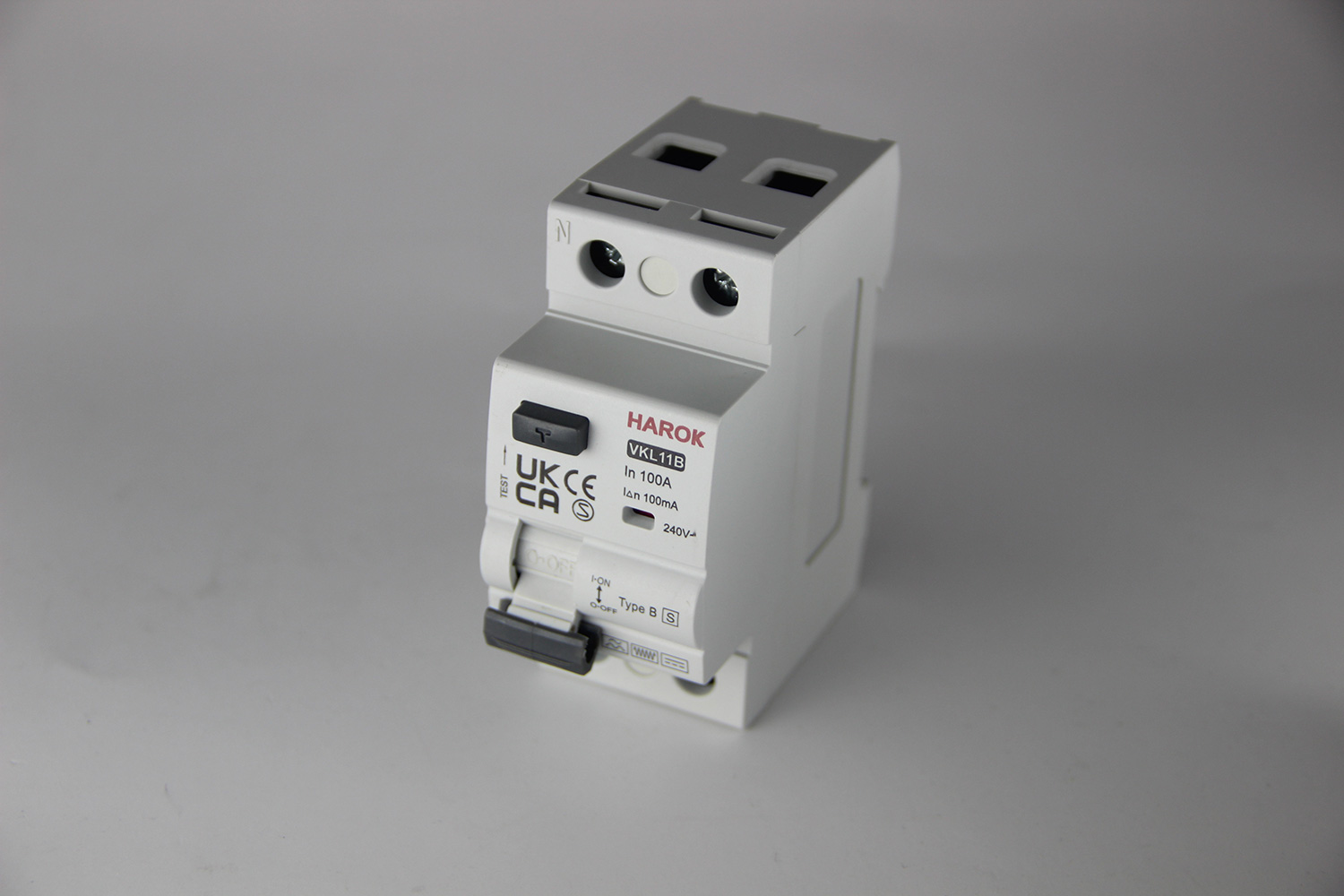

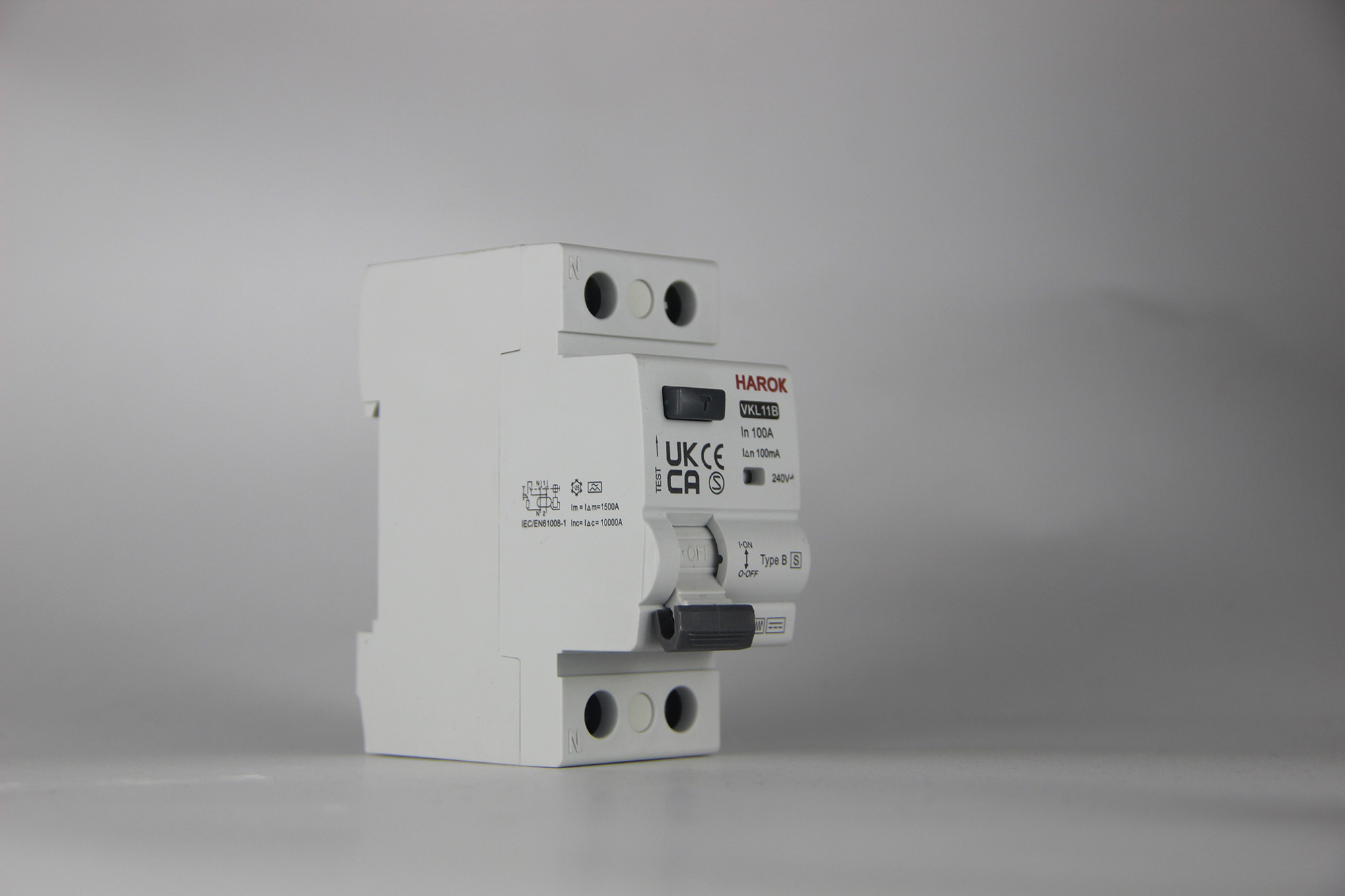

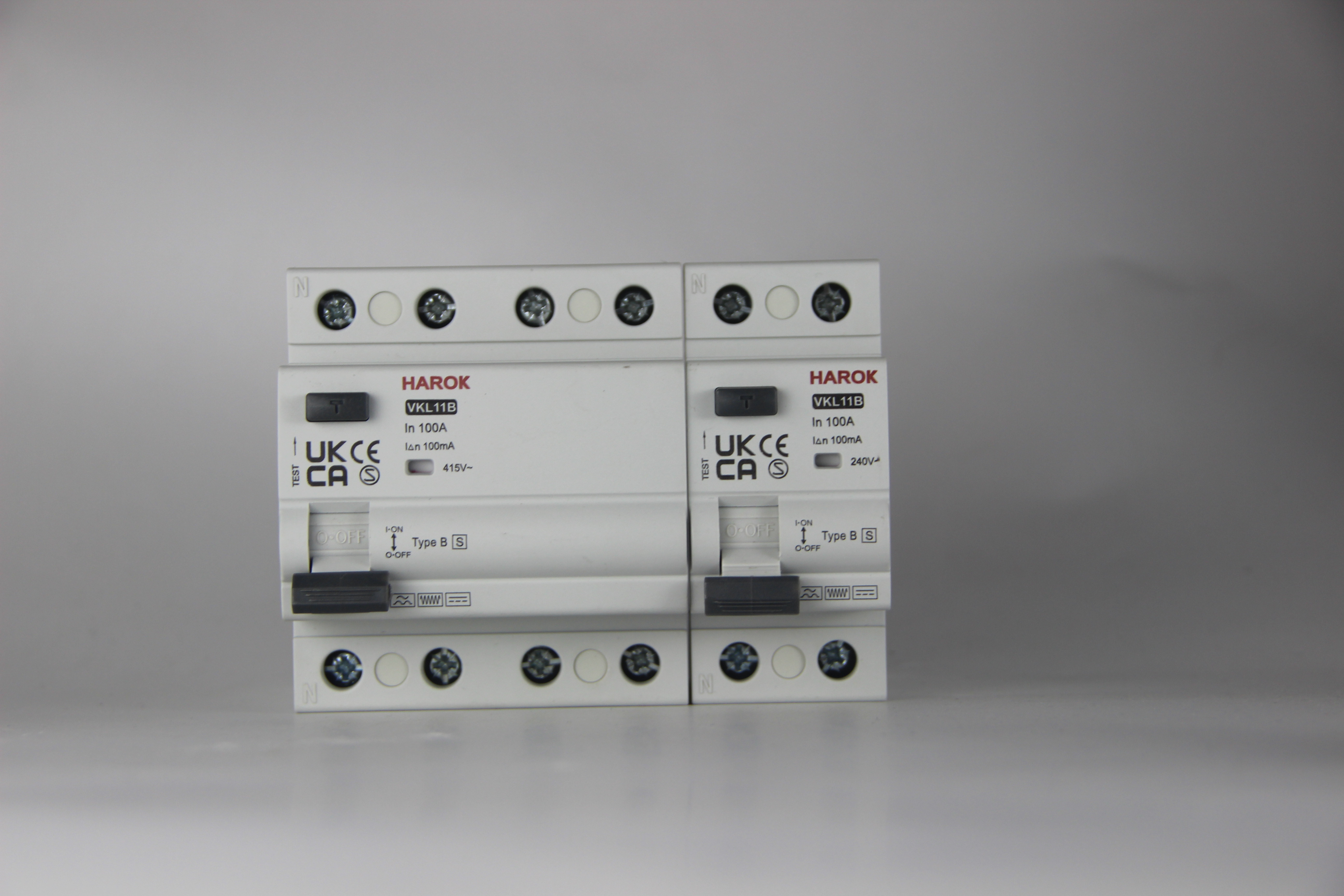

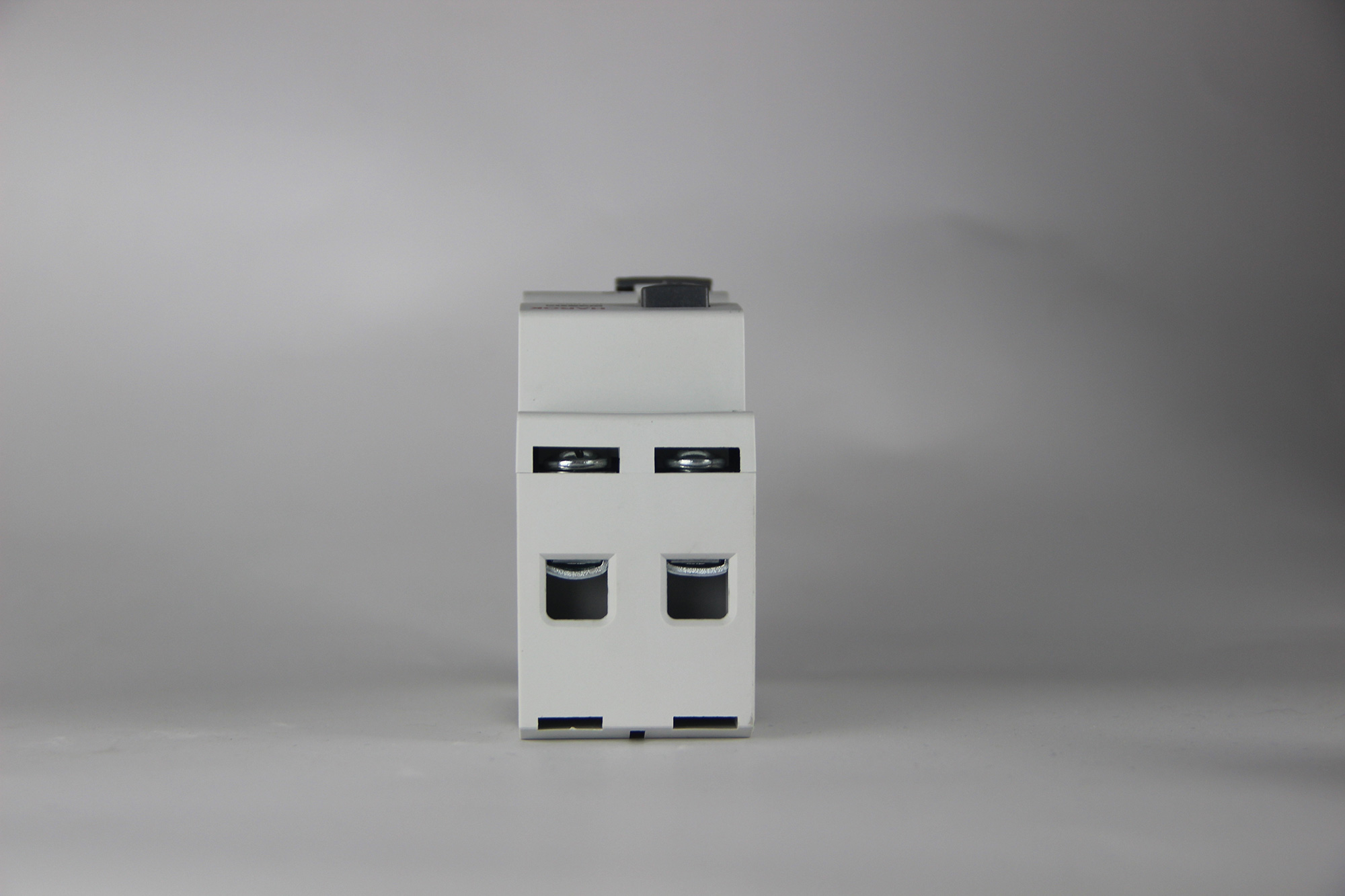

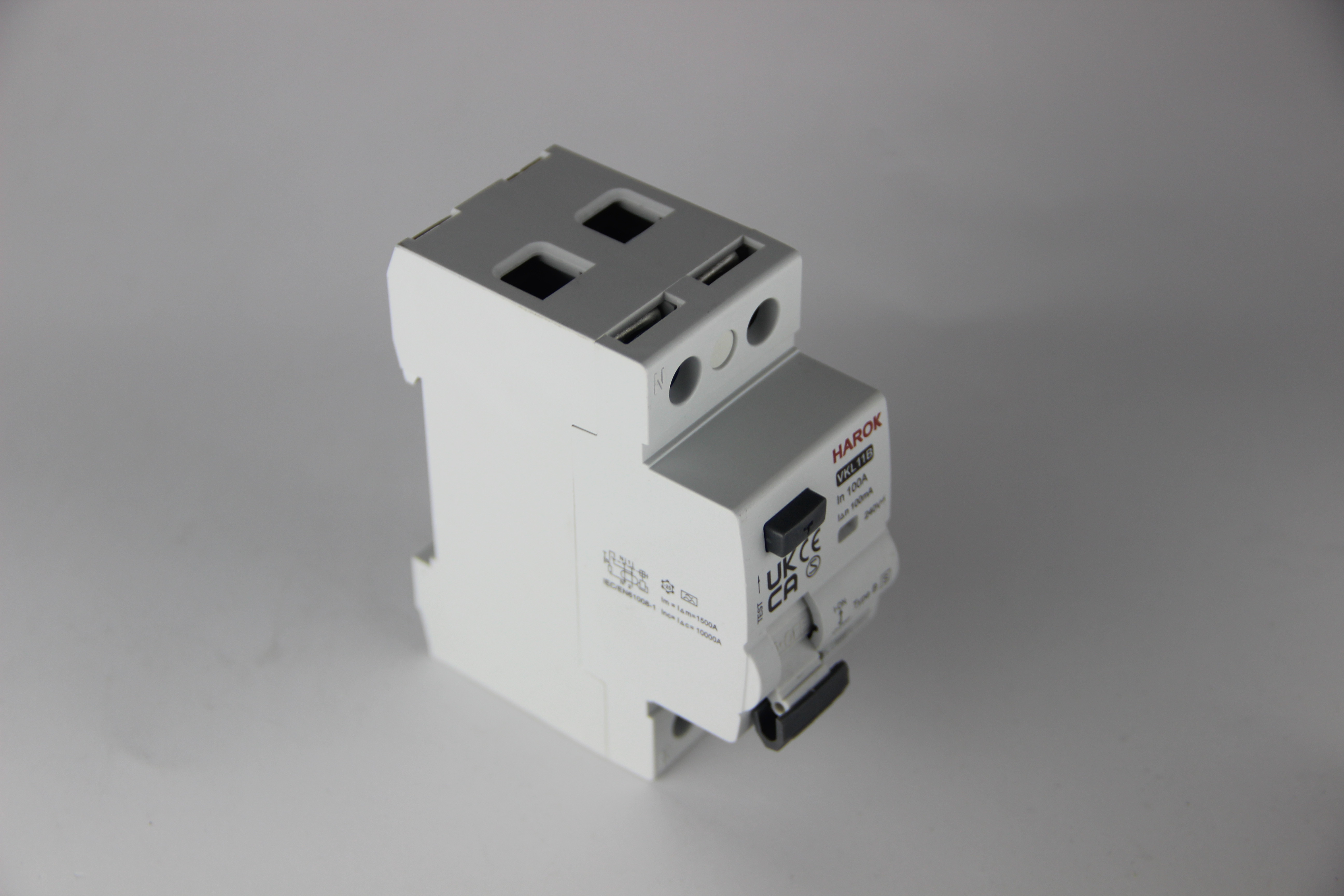

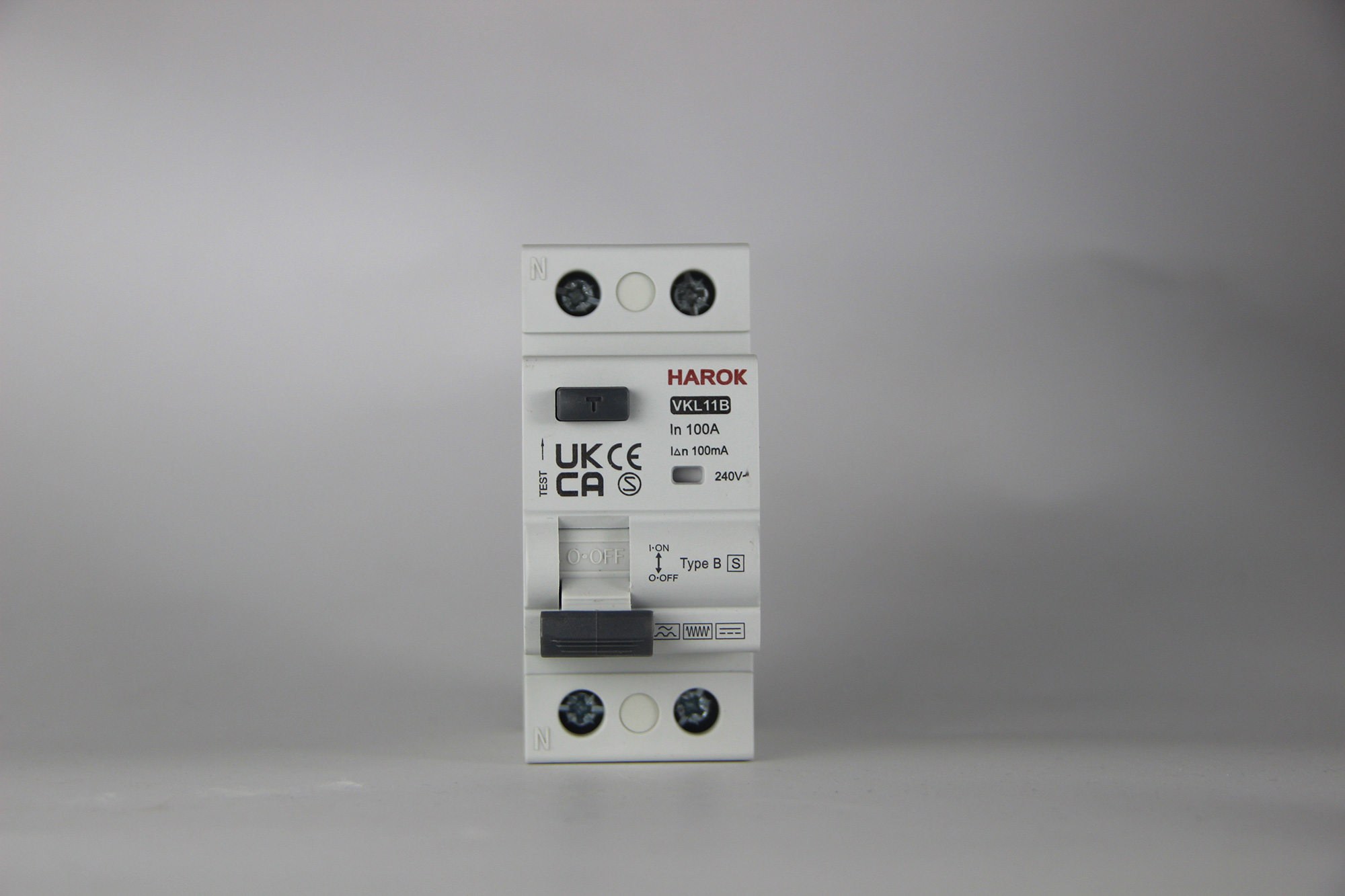

Super immunised Residual Current Circuit Breaker Type B

1. General

1.1 Function

VKL11B RCCB and VKL11B+ RCCB is appearance design, compact structure, good reliability, and high safety. They are universal residual current circuit breaker.

Residual current circuit breaker type B are suitable for domestic as well as industrial applications, where are used frequency inverters, PV plant, EV chargers and similar elements. B type provides a sensitivity to residual AC, pulsating and smooth DC current, together with high frequencies up to 1 kHz.

Residual current circuit breaker type B+ meet full type B feature , with additional tripping values are defined up to 20KHZ and they are below 420mA.

They are based on electronic technology, which brings advantages of more accurate measuring of residual current and, as a consequence, reduction of unwanted tripping. These devices also do not suffer with magnetization of the tripping unit.

1.2 Selection

Detectable wave form

Product Description:

RCCB TYPE B is a high immunity RCCB (Residual Current Circuit Breaker) with mode of operation voltage dependent. It is a super immunised RCCB designed to protect people from electric shock or injury due to earth leakage. It has a rated residual operating current I△n of 30mA, 100mA, 300mA, 500mA(Instantaneous & K-short Time Delayed (G, ASi)); 100mA, 300mA, 500mA (100mA, 300mA, 500mA) and rated current In of 16A, 25A, 32A, 40A, 63A, 80A, 100A. It has an electrical endurance of ≥ 2000 and is widely used in residential, commercial and industrial applications. RCCB TYPE B ensures high safety levels in any electrical installation. It offers superior protection against electric shock and is an ideal protection device for human safety.

Features:

• Product Name: Super immunised RCCB TYPE B

• Rated Frequency: 50/60Hz

• Mode of operation: Voltage Dependent

• Busbar thickness: 0.8 - 2 Mm

• Rated residual operating current I△n: 30mA, 100mA, 300mA, 500mA(Instantaneous & K-short Time Delayed (G, ASi)); 100mA, 300mA, 500mA (100mA, 300mA, 500mA)

• Rated insulation voltage Ui: 500V

Applications:

HAROK's VKL11 RCCB TYPE B is specially designed for high immunity requirement. It is a Residual Current Circuit Breaker (RCCB) manufactured in CHINA, complying with IEC/EN 62423, IEC/EN 61008-1, and OVE E8601 standards. This RCCB operates based on voltage dependent mode, and it has a rated making and breaking capacity of 1500A, as well as rated residual operating current of 30mA, 100mA, 300mA, 500mA (Instantaneous & K-short Time Delayed (G, ASi)), and 100mA, 300mA, 500mA (100mA, 300mA, 500mA). The rated current is 16A, 25A, 32A, 40A, 63A, 80A, 100A.

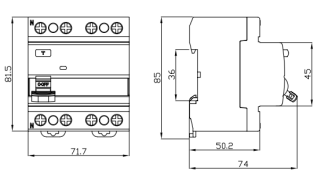

Technical Parameters:

Customization:

Brand Name: HAROK
Model Number: VKL11
Place of Origin: CHINA
Product Name: RCCB TYPE B

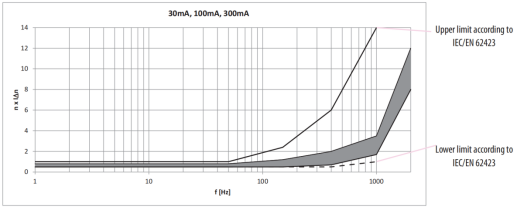

Sensitivity: Alternating, Pulsed And Smooth Direct Currents (High Frequency Up To 1 KHZ)
Rated insulation voltage Ui: 500V
Rated Frequency: 50/60Hz
Rated impulse withstand voltage Uimp: 4 KV (1.2/50μs)

HAROK VKL11 High immunity RCCB TYPE B provides superior immunity against alternating, pulsed and smooth direct currents (high frequency up to 1 KHZ) with 500V rated insulation voltage and 4KV rated impulse withstand voltage, 50/60Hz rated frequency.
