VKL11 RCCB Type B VDE KEMA NF
1. General
1.1 Function
VKL11B RCCB and VKL11B+ RCCB is appearance design, compact structure, good reliability, and high safety. They are universal residual current circuit breaker.
Residual current circuit breaker type B are suitable for domestic as well as industrial applications, where are used frequency inverters, PV plant, EV chargers and similar elements. B type provides a sensitivity to residual AC, pulsating and smooth DC current, together with high frequencies up to 1 kHz.
Residual current circuit breaker type B+ meet full type B feature , with additional tripping values are defined up to 20KHZ and they are below 420mA.
They are based on electronic technology, which brings advantages of more accurate measuring of residual current and, as a consequence, reduction of unwanted tripping. These devices also do not suffer with magnetization of the tripping unit.
1.2 Selection
Detectable wave form
Type B
Tripping is ensured for sinusoidal AC residual currents pulsed DC residual currents, alternating residual sinusoidal currents up to 1000Hz, pulsating direct residual currents and for smooth direct residual currents, whether applied suddenly or increasing slowly.
Type B+
Meet full type B feature , with additional tripping values are defined up to 20KHZ and they are below 420mA
Tripping sensitivity
30mA - additional protection against direct contact.
100mA - co-ordinated with the earth system according to the formula IΔn＜50/R, to provide protection against indirect contacts;
300mA - protection against indirect contacts, as well as fire hazard.
Tripping time
Instantaneous It ensures instantaneous tripping(without time-delay).
Short time delay
Selective (time delay)
1.3 Approvals and certificates
RCCB | Residual Current Circuit Breaker
2. Technical parameters
| Type | B | B+ | ||
| Electrical | ||||
| Design according to | IEC/EN 62423, IEC/EN 61008-1, OVE E8601 | |||
| VDE 0664-400 | ||||
| Current test marks as printed onto the device | ||||
| Rated voltage Un | 2P: 230/240V AC 4P: 400/415V AC | |||
| Rated frequency fn | 50/60Hz | |||
| Mode of operation | "A type functionality: voltage independent B and B+ type functionality: voltage dependent" | |||
| Operation voltage electronic | 50 – 264V AC | |||
| Voltage range test circuit | 2P: 184 – 264V AC 4P: 184 – 440V AC | |||
| Rated current In | 80A | |||
Rated residual operating current I△n | Instantaneous | 30mA, 100mA, 300mA, 500mA | 30mA, 100mA, 300mA | |
| K-short time delayed (G, ASi) | 30mA, 100mA, 300mA, 500mA | 30mA, 100mA, 300mA | ||
| S- selective | 100mA, 300mA, 500mA | 100mA, 300mA | ||
| Sensitivity | Alternating, pulsed and smooth direct currents | |||
| High frequency up to 1 kHZ | High frequency up to 20kHZ | |||
| Rated insulation voltage Ui | 500 V | |||
| Rated impulse withstand voltage Uimp | 4 kV (1.2/50μs) | |||
| Rated conditional short-circuit current Inc | 10 kA | |||
| Rated making and breaking capacity Im | 1500 A | |||
| Peak withstand current | 3 kA (8/20 μs) surge current proof 5 kA (8/20 μs) surge current proof for type S | |||
| Electrical isolation | > 4 mm contact space | |||
Maximum back-up fuse In = 16-100A | Short circuit and overload protection 100 A gG/gL | |||
Endurance (operating cycles) | electrical components | ≥ 2000 | ||
| mechanical components | ≥ 4000 | |||
| Mechanical | ||||
| Degree of protection | IP20 | |||
| Upper and lower terminals | open mounted / lift terminals | |||
| Terminal capacity | 1 - 25 mm2 | |||
| Terminal torque | 2 - 2.5 Nm | |||
| Busbar thickness | 0.8 - 2 mm | |||
| Operating temperature | -25°C ... +55°C | |||
| Storage- and transport temperature | -40°C ... +70°C | |||
| Resistance to climatic conditions | IEC/EN 61008 | |||
| Contact position indicator | mechanical red / green | |||
| Supply possibility | top or bottom | |||
| Mounting position | any | |||
3. Special features regarding the use of SIQUENCE universal current-sensitive residual current circuit breaker (Type B and Type B+)
3.1 Applications
A Residual Current Circuit Breaker (RCCB) is a type of electrical switch that is designed to protect people and equipment from electrical hazards by detecting and disconnecting electrical circuits when a current imbalance is detected. RCCBs are typically used in residential, commercial and industrial settings to provide protection against electric shock and fire hazards.
The main application of an RCCB is to detect the difference in electric current between the live and neutral wires of a circuit. The device is installed in a circuit and monitors the flow of current between these two wires. If there is an imbalance in the current flow, i.e., greater than the rated current, the RCCB trips and disconnects the circuit from the power supply.
RCCBs are commonly used in homes and buildings to protect against electrical hazards caused by faulty wiring, damaged appliances, faulty electrical equipment, and other similar problems. They are commonly used in combination with standard circuit breakers or fuses to provide additional electrical protection.
In summary, the application of an RCCB is to protect people and equipment from electrical hazards by detecting and disconnecting electrical circuits when a current imbalance is detected.
4. Wiring diagrams
5. Tripping characteristics
B type
6. Dimensions (mm)
RESIDUAL CURRENT CIRCUIT BREAKER TYPE B (RCCB TYPE B) is designed in accordance with international standards IEC/EN 62423, IEC/EN 61008-1, and OVE E8601, and has a voltage rating of 2P 230/240V~, 4P 400/415V~, and insulation voltage Ui of 500V. It has a degree of protection of IP20 and a busbar thickness of 0.8-2mm. It is a reliable and safe device, providing protection against electric shock from direct and indirect contact.
Product Name: RCCB TYPE B
Rated impulse withstand voltage Uimp: 4 KV (1.2/50μs)
Rated residual operating current I△n:
30mA, 100mA, 300mA, 500mA (Instantaneous & K-short Time Delayed (G, ASi));
100mA, 300mA, 500mA (100mA, 300mA, 500mA)
Sensitivity: Alternating, Pulsed And Smooth Direct Currents (High Frequency Up To 1 KHZ)
Rated making and breaking capacity Im: 1500A
Super immunised RCCB
High immunity RCCB

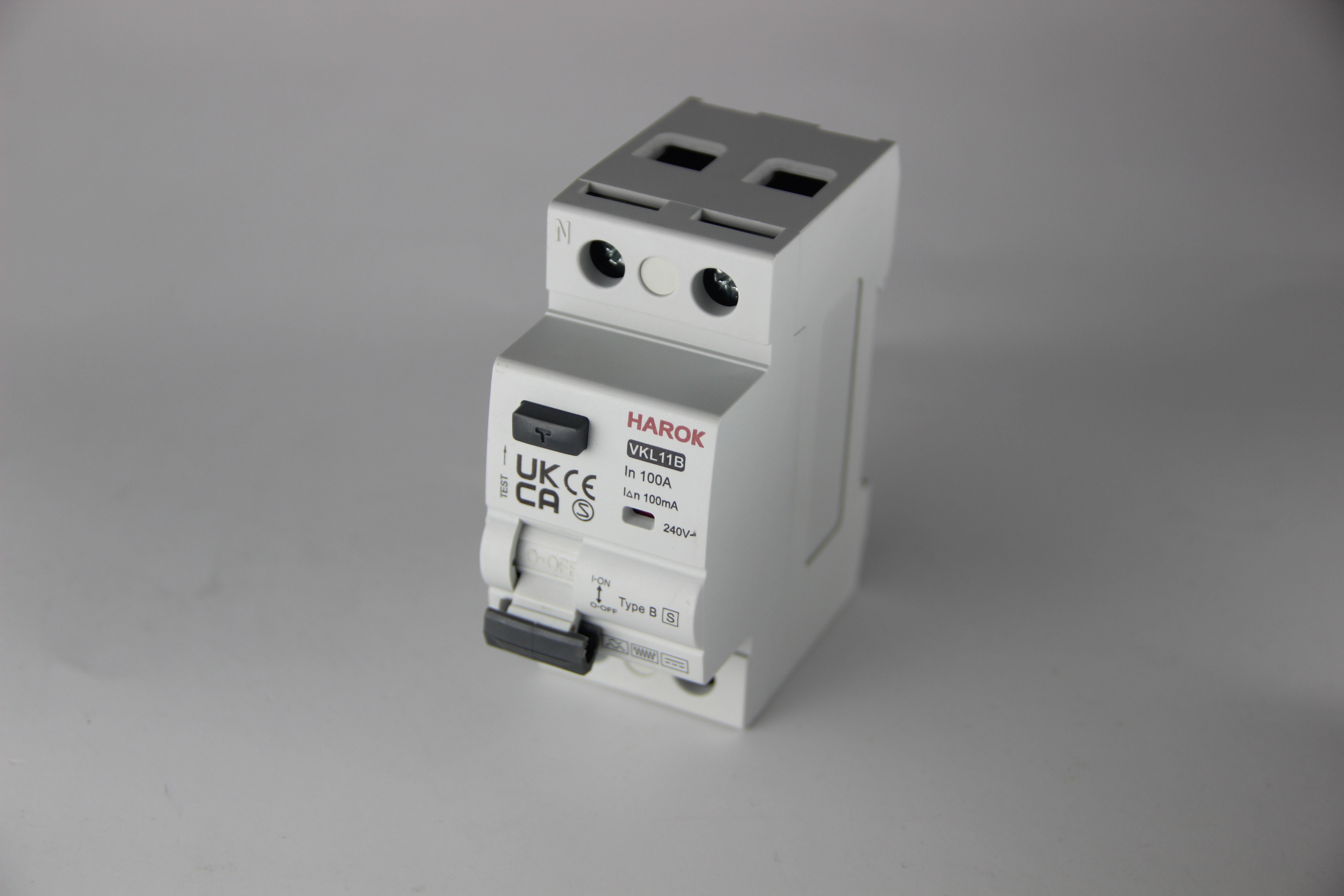

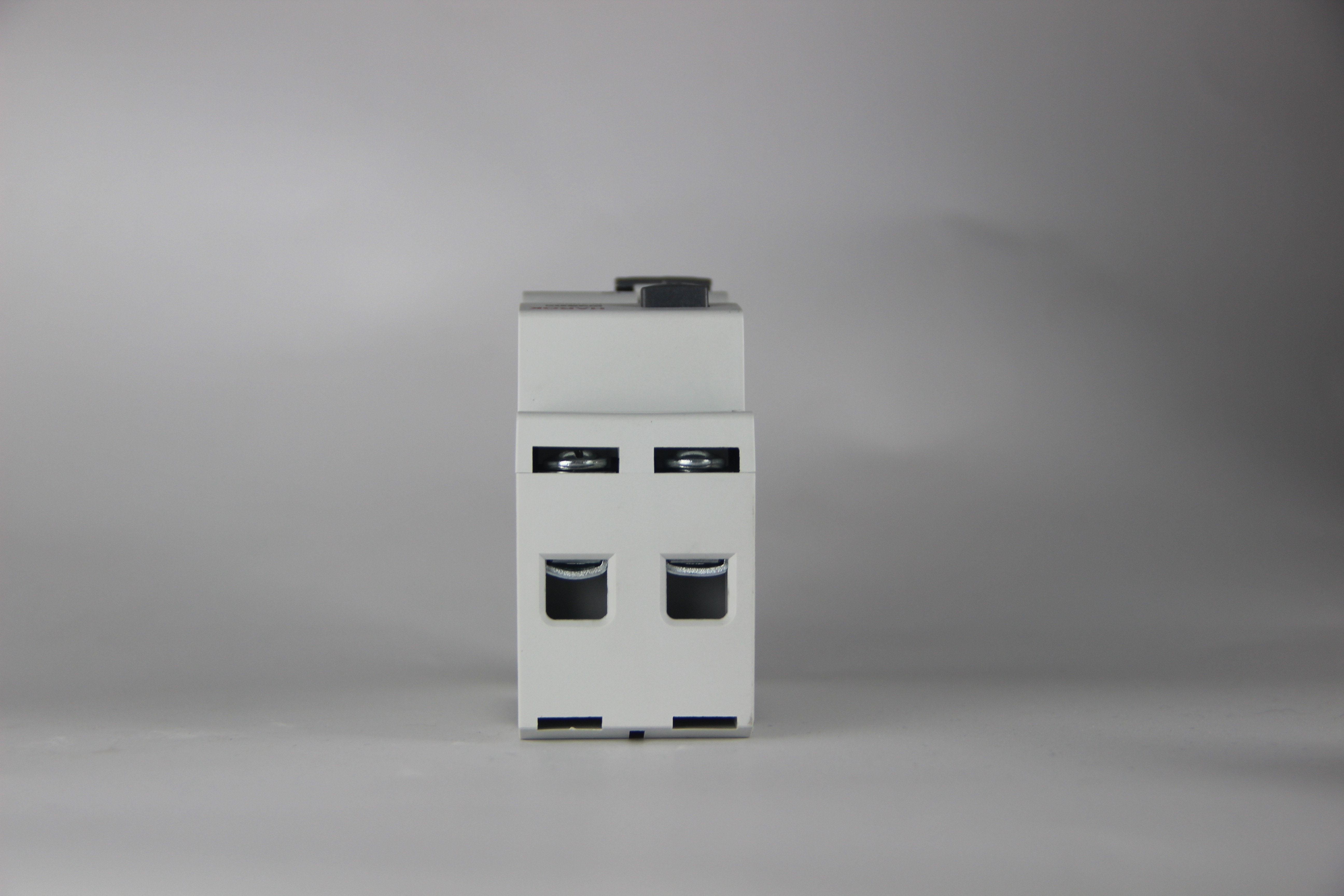

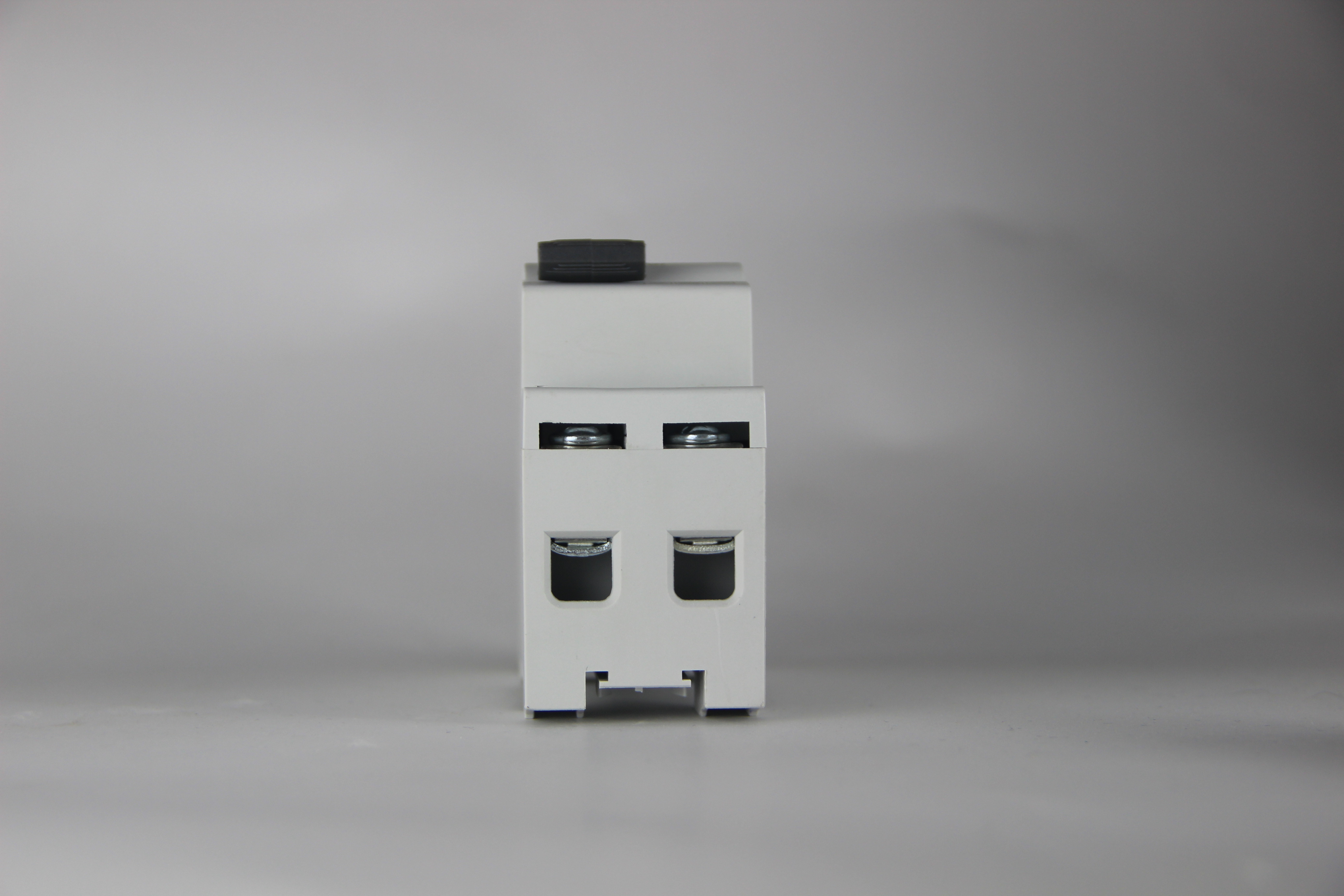

HAROK VKL11 RCCB Type B is a highly-immune RESIDUAL CURRENT CIRCUIT BREAKER with exceptional performance in protecting people from electric shock. It features a rated residual operating current I△n of 30mA, 100mA, 300mA, 500mA (Instantaneous & K-short Time Delayed (G, ASi)) and 100mA, 300mA, 500mA (100mA, 300mA, 500mA). The electrical endurance of this Super immunised RCCB is ≥ 2000, and the mechanical endurance is ≥ 4000. It is available in various rated current In of 16A, 25A, 32A, 40A, 63A, 80A, 100A, making it suitable for a wide range of applications. It provides reliable and safe protection for people, and is the perfect choice for high-safety applications.
| Parameter | Value |
|---|---|
| Mechanical Endurance | ≥ 4000 |
| Rated insulation voltage Ui | 500V |
| Mode of operation | Voltage Dependent |
| Rated Frequency | 50/60Hz |
| Standard | IEC/EN 62423, IEC/EN 61008-1, OVE E8601 |
| Busbar thickness | 0.8 - 2 Mm |
| Sensitivity | Alternating, Pulsed And Smooth Direct Currents (High Frequency Up To 1 KHZ) |
| Rated current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A |
| Degree of protection | IP20 |
| Rated voltage Un | 2P 230/240V~; 4P 400/415V~ |
Brand Name: HAROK
Model Number: VKL11
Place of Origin: CHINA
Mechanical Endurance: ≥ 4000
Busbar thickness: 0.8 - 2 Mm
Rated residual operating current I△n:
30mA, 100mA, 300mA, 500mA (Instantaneous & K-short Time Delayed (G, ASi))
100mA, 300mA, 500mA (100mA, 300mA, 500mA)
Mode of operation: Voltage Dependent
Sensitivity: Alternating, Pulsed And Smooth Direct Currents (High Frequency Up To 1 KHZ)
