| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Model Number | VKL11 |
| Rated Making And Breaking Capacity Im | 1500A | Degree Of Protection | IP20 |
|---|---|---|---|
| Mode Of Operation | Voltage Dependent | Rated Current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A |
| Rated Residual Operating Current I△n | 30mA, 100mA, 300mA, 500mA(Instantaneous & K-short Time Delayed (G, ASi)); 100mA, 300mA, 500mA (100mA, 300mA, 500mA) | Mechanical Endurance | ≥ 4000 |
| Product Name | RCCB TYPE B | Electrical Endurance | ≥ 2000 |
| High Light | Super immunity RCCB TYPE B,Super immunity rccb device,1500A RCCB TYPE B | ||

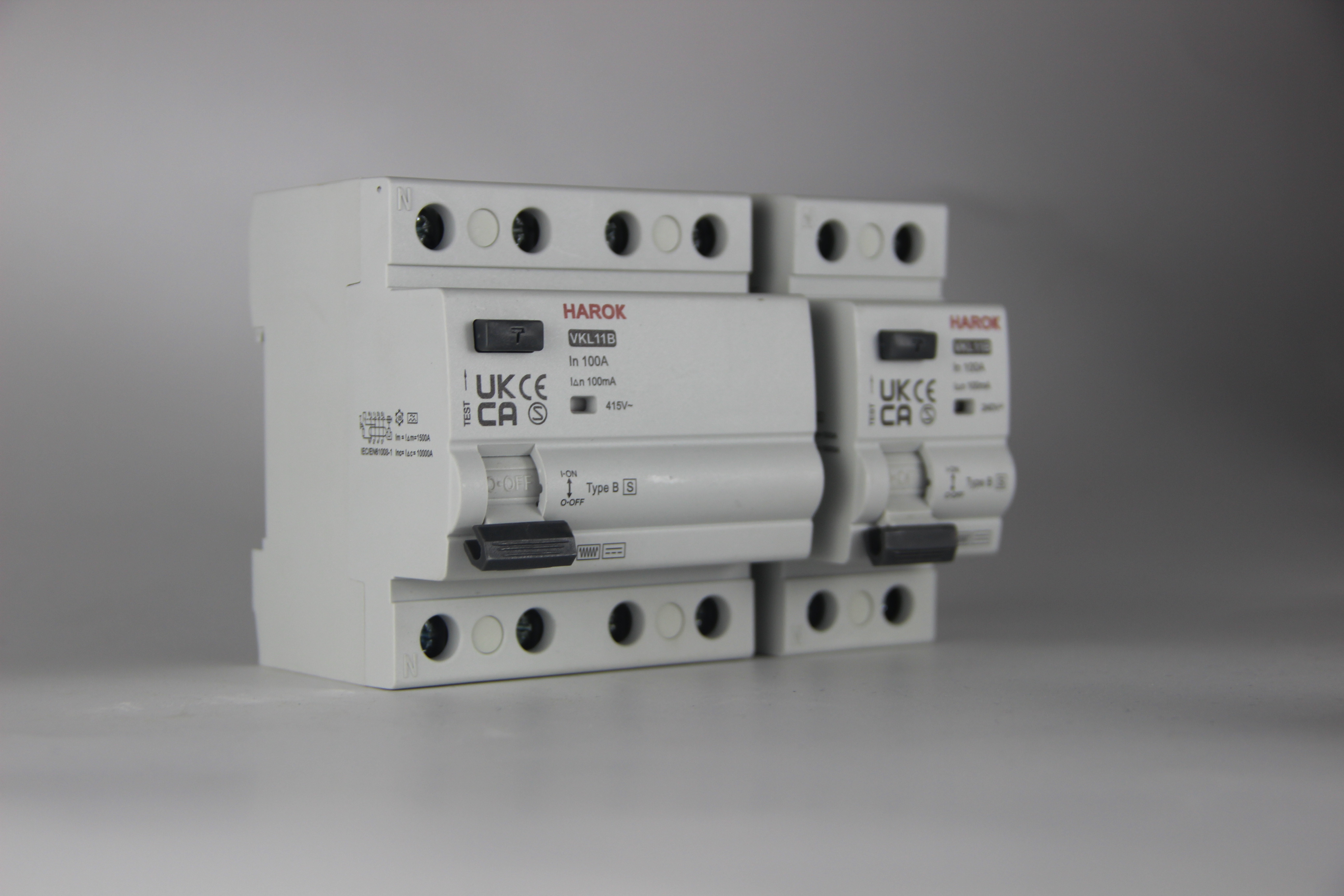

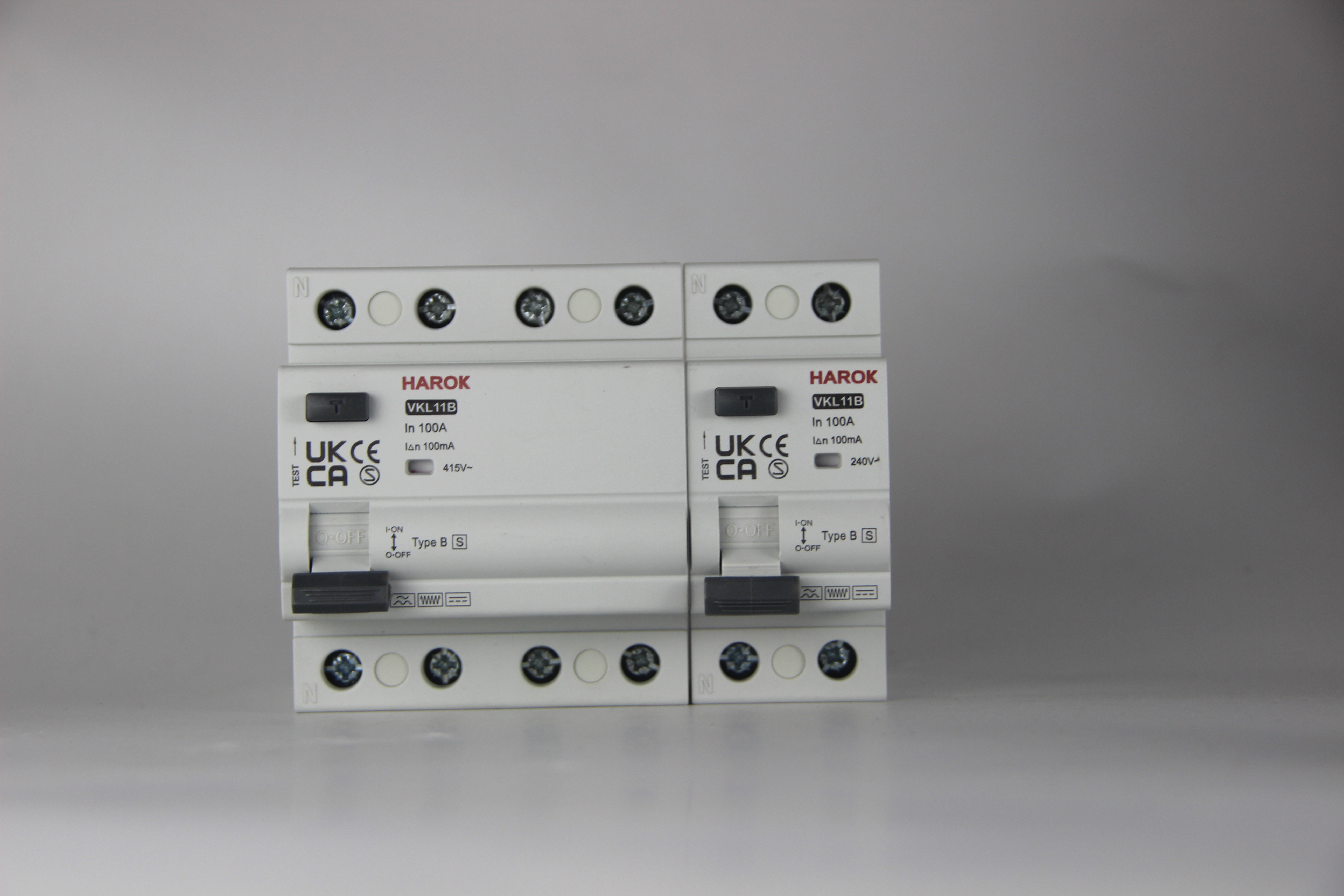

Super immunity RCCB TYPE B
1. General
1.1 Function
VKL11B RCCB and VKL11B+ RCCB is appearance design, compact structure, good reliability, and high safety. They are universal residual current circuit breaker.
Residual current circuit breaker type B are suitable for domestic as well as industrial applications, where are used frequency inverters, PV plant, EV chargers and similar elements. B type provides a sensitivity to residual AC, pulsating and smooth DC current, together with high frequencies up to 1 kHz.
Residual current circuit breaker type B+ meet full type B feature , with additional tripping values are defined up to 20KHZ and they are below 420mA.
They are based on electronic technology, which brings advantages of more accurate measuring of residual current and, as a consequence, reduction of unwanted tripping. These devices also do not suffer with magnetization of the tripping unit.
1.2 Selection
Detectable wave form
Type B
Tripping is ensured for sinusoidal AC residual currents pulsed DC residual currents, alternating residual sinusoidal currents up to 1000Hz, pulsating direct residual currents and for smooth direct residual currents, whether applied suddenly or increasing slowly.
Type B+
Meet full type B feature , with additional tripping values are defined up to 20KHZ and they are below 420mA
Tripping sensitivity
30mA - additional protection against direct contact.
100mA - co-ordinated with the earth system according to the formula IΔn＜50/R, to provide protection against indirect contacts;
300mA - protection against indirect contacts, as well as fire hazard.
Tripping time
Instantaneous It ensures instantaneous tripping(without time-delay).
Short time delay
Selective (time delay)
1.3 Approvals and certificates
RCCB | Residual Current Circuit Breaker
2. Technical parameters
| Type | B | B+ | ||
| Electrical | ||||
| Design according to | IEC/EN 62423, IEC/EN 61008-1, OVE E8601 | |||
| VDE 0664-400 | ||||
| Current test marks as printed onto the device | ||||
| Rated voltage Un | 2P: 230/240V AC 4P: 400/415V AC | |||
| Rated frequency fn | 50/60Hz | |||
| Mode of operation | "A type functionality: voltage independent B and B+ type functionality: voltage dependent" | |||
| Operation voltage electronic | 50 – 264V AC | |||
| Voltage range test circuit | 2P: 184 – 264V AC 4P: 184 – 440V AC | |||
| Rated current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A | |||
Rated residual operating current I△n | Instantaneous | 30mA, 100mA, 300mA, 500mA | 30mA, 100mA, 300mA | |
| K-short time delayed (G, ASi) | 30mA, 100mA, 300mA, 500mA | 30mA, 100mA, 300mA | ||
| S- selective | 100mA, 300mA, 500mA | 100mA, 300mA | ||
| Sensitivity | Alternating, pulsed and smooth direct currents | |||
| High frequency up to 1 kHZ | High frequency up to 20kHZ | |||
| Rated insulation voltage Ui | 500 V | |||
| Rated impulse withstand voltage Uimp | 4 kV (1.2/50μs) | |||
| Rated conditional short-circuit current Inc | 10 kA | |||
| Rated making and breaking capacity Im | 1500 A | |||
| Peak withstand current | 3 kA (8/20 μs) surge current proof 5 kA (8/20 μs) surge current proof for type S | |||
| Electrical isolation | > 4 mm contact space | |||
Maximum back-up fuse In = 16-100A | Short circuit and overload protection 100 A gG/gL | |||
Endurance (operating cycles) | electrical components | ≥ 2000 | ||
| mechanical components | ≥ 4000 | |||
| Mechanical | ||||
| Degree of protection | IP20 | |||
| Upper and lower terminals | open mounted / lift terminals | |||
| Terminal capacity | 1 - 25 mm2 | |||
| Terminal torque | 2 - 2.5 Nm | |||
| Busbar thickness | 0.8 - 2 mm | |||
| Operating temperature | -25°C ... +55°C | |||
| Storage- and transport temperature | -40°C ... +70°C | |||
| Resistance to climatic conditions | IEC/EN 61008 | |||
| Contact position indicator | mechanical red / green | |||
| Supply possibility | top or bottom | |||
| Mounting position | any | |||
3. Special features regarding the use of SIQUENCE universal current-sensitive residual current circuit breaker (Type B and Type B+)
3.1 Applications
Typical applications that are vulnerable to smooth DC residual currents:
- Frequency converters with a three-phase connection
- Medical equipment such as X-ray equipment or CT machines
- Photovoltaic or UPS systems
- Connection points (wall boxes, charging stations) for electric vehicles
- Elevator controllers
- Pipeline trace heating
- Test setups in laboratories
- Construction sites in accordance with BGI 608 information leaflet (Electronic equipment on construction sites)
- Charging stations for battery-powered forklift trucks
- Cranes of all kinds
- Mixing plants if relevant loads are connected
- Variable-speed machine tools, such as milling and grinding machines or lathes
4. Wiring diagrams
5. Tripping characteristics
B type
6. Dimensions (mm)
Product Name: RCCB TYPE B
Rated voltage Un: 2P 230/240V~; 4P 400/415V~
Rated making and breaking capacity Im: 1500A
Mode of operation: Voltage Dependent
Standard: IEC/EN 62423, IEC/EN 61008-1, OVE E8601
Busbar thickness: 0.8 - 2 Mm
Residual Current Circuit Breaker (RCCB) for reliable protection against indirect contact
HAROK's VKL11 High immunity RCCB is a reliable device of degree of protection IP20, with rated current In of 16A, 25A, 32A, 40A, 63A, 80A, 100A and rated frequency of 50/60Hz. It is manufactured in CHINA, and certified to IEC/EN 62423, IEC/EN 61008-1, OVE E8601. It has a rated impulse withstand voltage of 4 KV (1.2/50μs). The product is designed to be used in diverse applications with high immunity demands, such as commercial, industrial, and residential electrical installations.
| Parameter | Value |
|---|---|
| Electrical Endurance | ≥ 2000 |
| Rated making and breaking capacity Im | 1500A |
| Mode of operation | Voltage Dependent |
| Sensitivity | Alternating, Pulsed And Smooth Direct Currents (High Frequency Up To 1 KHZ) |
| Rated residual operating current I△n | 30mA, 100mA, 300mA, 500mA (Instantaneous & K-short Time Delayed (G, ASi)); 100mA, 300mA, 500mA (100mA, 300mA, 500mA) |
| Rated Frequency | 50/60Hz |
| Rated current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A |
| Rated voltage Un | 2P 230/240V~; 4P 400/415V~ |
| Busbar thickness | 0.8 - 2 Mm |
| Product Name | RCCB TYPE B |
| Keywords | Residual Current Circuit Breaker, Super immunised RCCB |
Brand Name: HAROK
Model Number: VKL11
Place of Origin: CHINA
Rated Making and Breaking Capacity Im: 1500A
Degree of Protection: IP20
Standard: IEC/EN 62423, IEC/EN 61008-1, OVE E8601
Mode of Operation: Voltage Dependent
Busbar Thickness: 0.8 - 2 Mm
Our RCCB TYPE B is a super immunised Residual Current Circuit Breaker that provides protection against electric shock and fire caused by indirect contacts. It is designed and manufactured with Brand Name HAROK, Model Number VKL11. It has a rated making and breaking capacity of 1500A and IP20 Degree of Protection. This RCCB meets the standards of IEC/EN 62423, IEC/EN 61008-1, OVE E8601 and works in a Voltage Dependent mode. The Busbar Thickness is 0.8 - 2 Mm.
