| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Model Number | VKL11 |
| Rated Frequency | 50/60Hz | Electrical Endurance | ≥ 2000 |
|---|---|---|---|
| Rated Residual Operating Current I△n | 30mA, 100mA, 300mA, 500mA(Instantaneous & K-short Time Delayed (G, ASi)); 100mA, 300mA, 500mA (100mA, 300mA, 500mA) | Standard | IEC/EN 62423, IEC/EN 61008-1, OVE E8601 |
| Rated Impulse Withstand Voltage Uimp | 4 KV (1.2/50μs) | Sensitivity | Alternating, Pulsed And Smooth Direct Currents (High Frequency Up To 1 KHZ) |
| Rated Current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A | Rated Voltage Un | 2P 230/240V~; 4P 400/415V~ |
| High Light | Residual Current Circuit Breaker Type B+,rccb device Type B+,25A Residual Current Circuit Breaker | ||

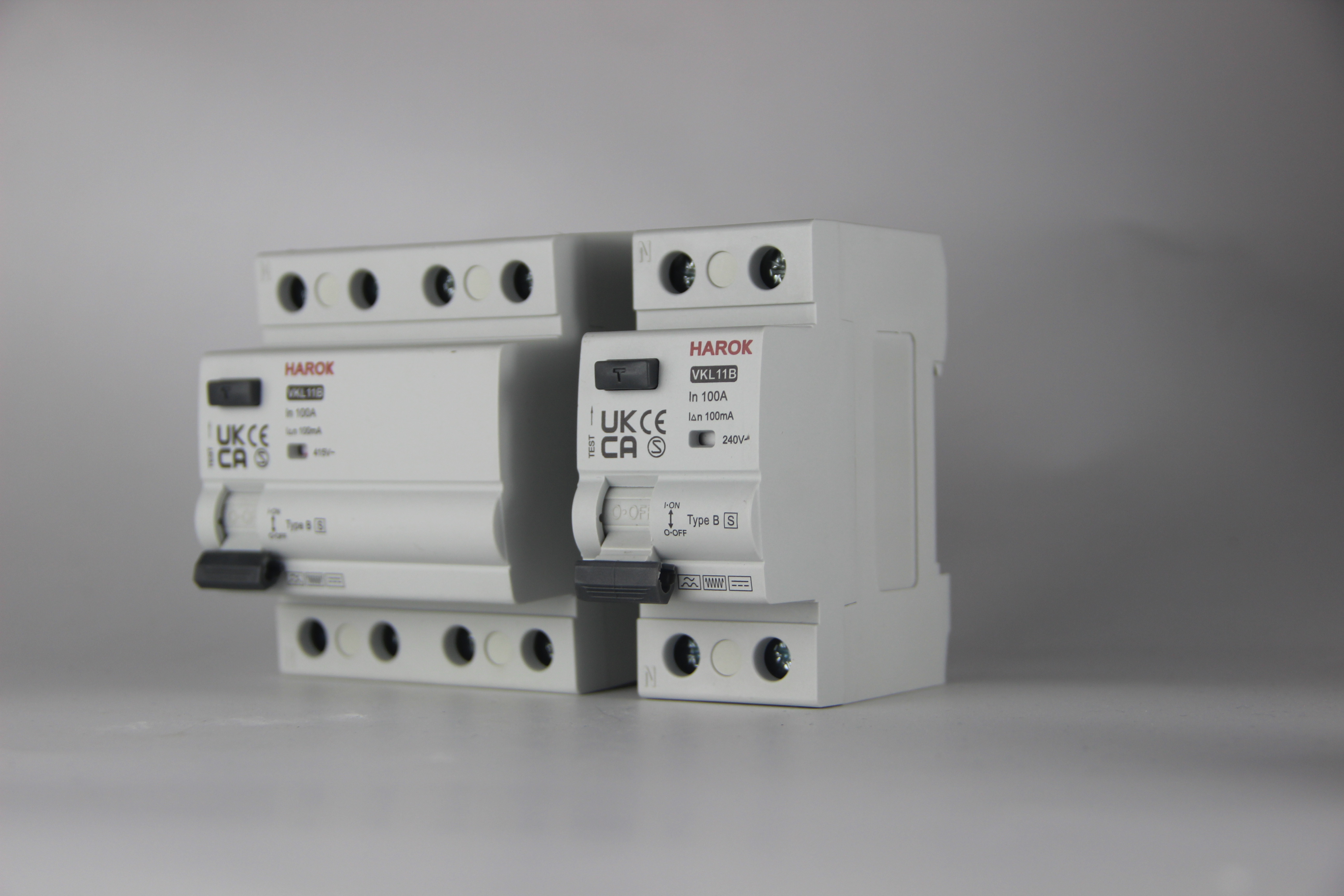

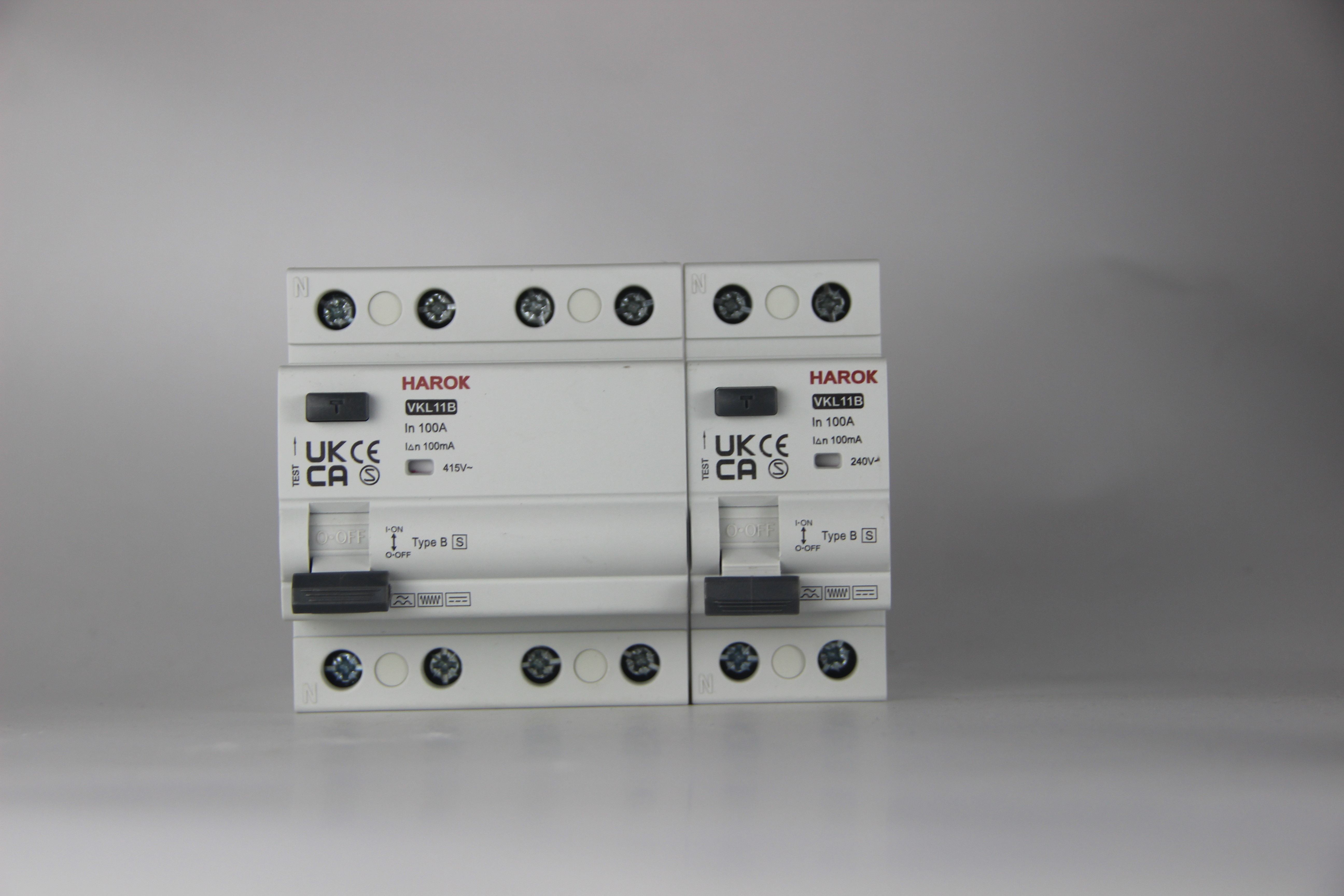

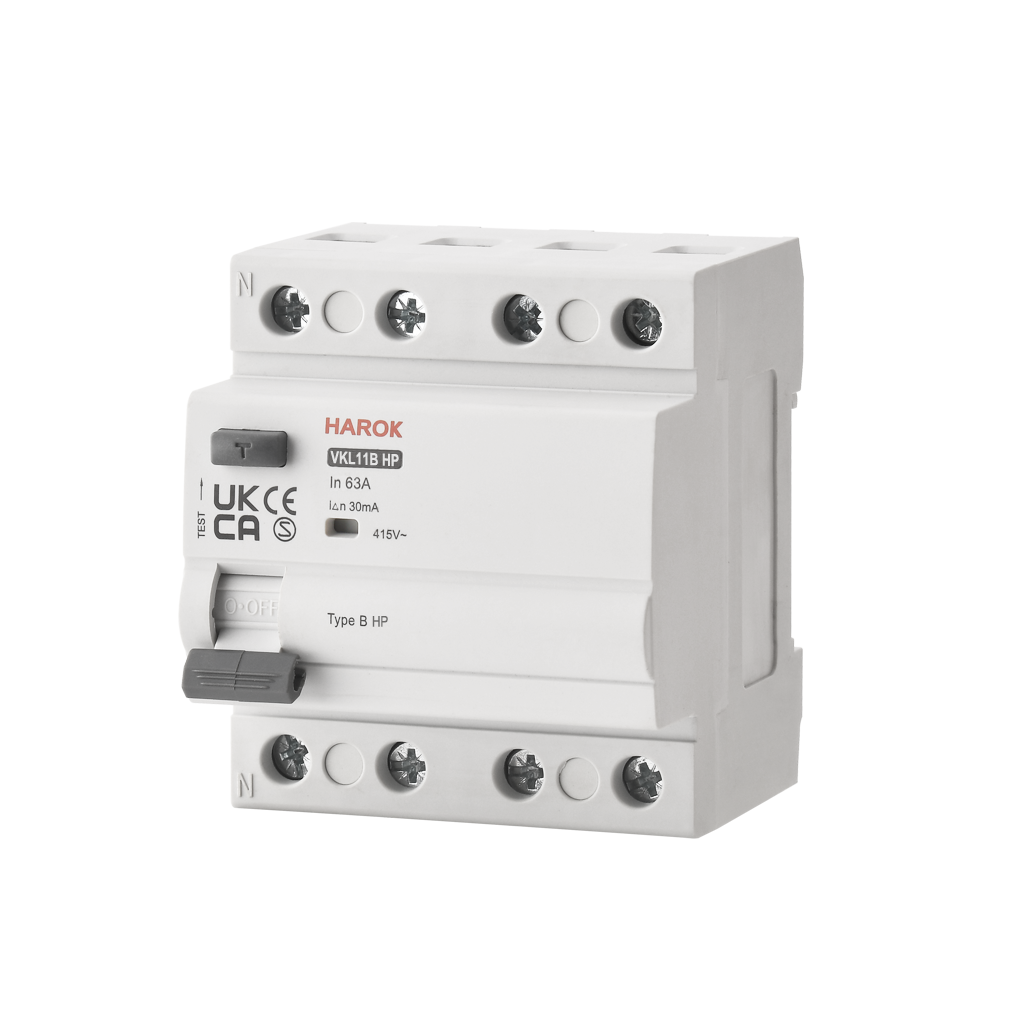

VKL11 Residual Current Circuit Breaker Type B+
1. General
1.1 Function
VKL11B RCCB and VKL11B+ RCCB is appearance design, compact structure, good reliability, and high safety. They are universal residual current circuit breaker.
Residual current circuit breaker type B are suitable for domestic as well as industrial applications, where are used frequency inverters, PV plant, EV chargers and similar elements. B type provides a sensitivity to residual AC, pulsating and smooth DC current, together with high frequencies up to 1 kHz.
Residual current circuit breaker type B+ meet full type B feature , with additional tripping values are defined up to 20KHZ and they are below 420mA.
They are based on electronic technology, which brings advantages of more accurate measuring of residual current and, as a consequence, reduction of unwanted tripping. These devices also do not suffer with magnetization of the tripping unit.
1.2 Selection
Detectable wave form
Type B
Tripping is ensured for sinusoidal AC residual currents pulsed DC residual currents, alternating residual sinusoidal currents up to 1000Hz, pulsating direct residual currents and for smooth direct residual currents, whether applied suddenly or increasing slowly.
Type B+
Meet full type B feature , with additional tripping values are defined up to 20KHZ and they are below 420mA
Tripping sensitivity
30mA - additional protection against direct contact.
100mA - co-ordinated with the earth system according to the formula IΔn＜50/R, to provide protection against indirect contacts;
300mA - protection against indirect contacts, as well as fire hazard.
Tripping time
Instantaneous It ensures instantaneous tripping(without time-delay).
Short time delay
Selective (time delay)
1.3 Approvals and certificates
RCCB | Residual Current Circuit Breaker
2. Technical parameters
| Type | B | B+ | ||
| Electrical | ||||
| Design according to | IEC/EN 62423, IEC/EN 61008-1, OVE E8601 | |||
| VDE 0664-400 | ||||
| Current test marks as printed onto the device | ||||
| Rated voltage Un | 2P: 230/240V AC 4P: 400/415V AC | |||
| Rated frequency fn | 50/60Hz | |||
| Mode of operation | "A type functionality: voltage independent B and B+ type functionality: voltage dependent" | |||
| Operation voltage electronic | 50 – 264V AC | |||
| Voltage range test circuit | 2P: 184 – 264V AC 4P: 184 – 440V AC | |||
| Rated current In | 32A | |||
Rated residual operating current I△n | Instantaneous | 30mA, 100mA, 300mA, 500mA | 30mA, 100mA, 300mA | |
| K-short time delayed (G, ASi) | 30mA, 100mA, 300mA, 500mA | 30mA, 100mA, 300mA | ||
| S- selective | 100mA, 300mA, 500mA | 100mA, 300mA | ||
| Sensitivity | Alternating, pulsed and smooth direct currents | |||
| High frequency up to 1 kHZ | High frequency up to 20kHZ | |||
| Rated insulation voltage Ui | 500 V | |||
| Rated impulse withstand voltage Uimp | 4 kV (1.2/50μs) | |||
| Rated conditional short-circuit current Inc | 10 kA | |||
| Rated making and breaking capacity Im | 1500 A | |||
| Peak withstand current | 3 kA (8/20 μs) surge current proof 5 kA (8/20 μs) surge current proof for type S | |||
| Electrical isolation | > 4 mm contact space | |||
Maximum back-up fuse In = 16-100A | Short circuit and overload protection 100 A gG/gL | |||
Endurance (operating cycles) | electrical components | ≥ 2000 | ||
| mechanical components | ≥ 4000 | |||
| Mechanical | ||||
| Degree of protection | IP20 | |||
| Upper and lower terminals | open mounted / lift terminals | |||
| Terminal capacity | 1 - 25 mm2 | |||
| Terminal torque | 2 - 2.5 Nm | |||
| Busbar thickness | 0.8 - 2 mm | |||
| Operating temperature | -25°C ... +55°C | |||
| Storage- and transport temperature | -40°C ... +70°C | |||
| Resistance to climatic conditions | IEC/EN 61008 | |||
| Contact position indicator | mechanical red / green | |||
| Supply possibility | top or bottom | |||
| Mounting position | any | |||
3. Special features regarding the use of SIQUENCE universal current-sensitive residual current circuit breaker (Type B and Type B+)
3.1 Applications
Typical applications that are vulnerable to smooth DC residual currents:
- Frequency converters with a three-phase connection
- Medical equipment such as X-ray equipment or CT machines
- Photovoltaic or UPS systems
- Connection points (wall boxes, charging stations) for electric vehicles
- Elevator controllers
- Pipeline trace heating
- Test setups in laboratories
- Construction sites in accordance with BGI 608 information leaflet (Electronic equipment on construction sites)
- Charging stations for battery-powered forklift trucks
- Cranes of all kinds
- Mixing plants if relevant loads are connected
- Variable-speed machine tools, such as milling and grinding machines or lathes
4. Wiring diagrams
5. Tripping characteristics
B type
6. Dimensions (mm)
RESIDUAL CURRENT CIRCUIT BREAKER (RCCB) TYPE B is a high immunity RCCB designed to provide protection against electric shocks and overcurrents. It is equipped with a rated making and breaking capacity Im of 1500A and a busbar thickness of 0.8-2mm, which makes it ideal for residential, commercial and industrial applications. The rated voltage Un is 2P 230/240V~; 4P 400/415V~, and it has a degree of protection of IP20. RCCB TYPE B is a reliable and secure product that offers high performance and safety.
Product Name: RCCB TYPE B
Super immunised RCCB
High immunity RCCB
High sensitivity RCCB
Rated insulation voltage Ui: 500V
Standard: IEC/EN 62423, IEC/EN 61008-1, OVE E8601
Rated voltage Un: 2P 230/240V~; 4P 400/415V~
Mode of operation: Voltage Dependent
Electrical Endurance: ≥ 2000
| Product Name | Technical Parameters |
|---|---|
| RCCB TYPE B | Degree of protection: IP20 Mechanical Endurance: ≥ 4000 Rated residual operating current I△n: 30mA, 100mA, 300mA, 500mA (Instantaneous & K-short Time Delayed (G, ASi)); 100mA, 300mA, 500mA (100mA, 300mA, 500mA) Rated impulse withstand voltage Uimp: 4 KV (1.2/50μs) Rated current In: 16A, 25A, 32A, 40A, 63A, 80A, 100A Busbar thickness: 0.8 - 2 Mm Rated Frequency: 50/60Hz Sensitivity: Alternating, Pulsed And Smooth Direct Currents (High Frequency Up To 1 KHZ) Rated making and breaking capacity Im: 1500A Super immunised RCCB, High immunity RCCB, High immunity RCCB, High immunity RCCB |
We offer customized services for HAROK VKL11 RCCB TYPE B. This product is a high immunity RCCB, featuring super immunised RCCB type B, with a rated voltage Un of 2P 230/240V~; 4P 400/415V~, a rated frequency of 50/60Hz, a mode of operation of voltage dependent, and a degree of protection of IP20. It has a rated making and breaking capacity Im of 1500A.
