RCBO | Residual Current Operated Circuit Breaker with over-current protection

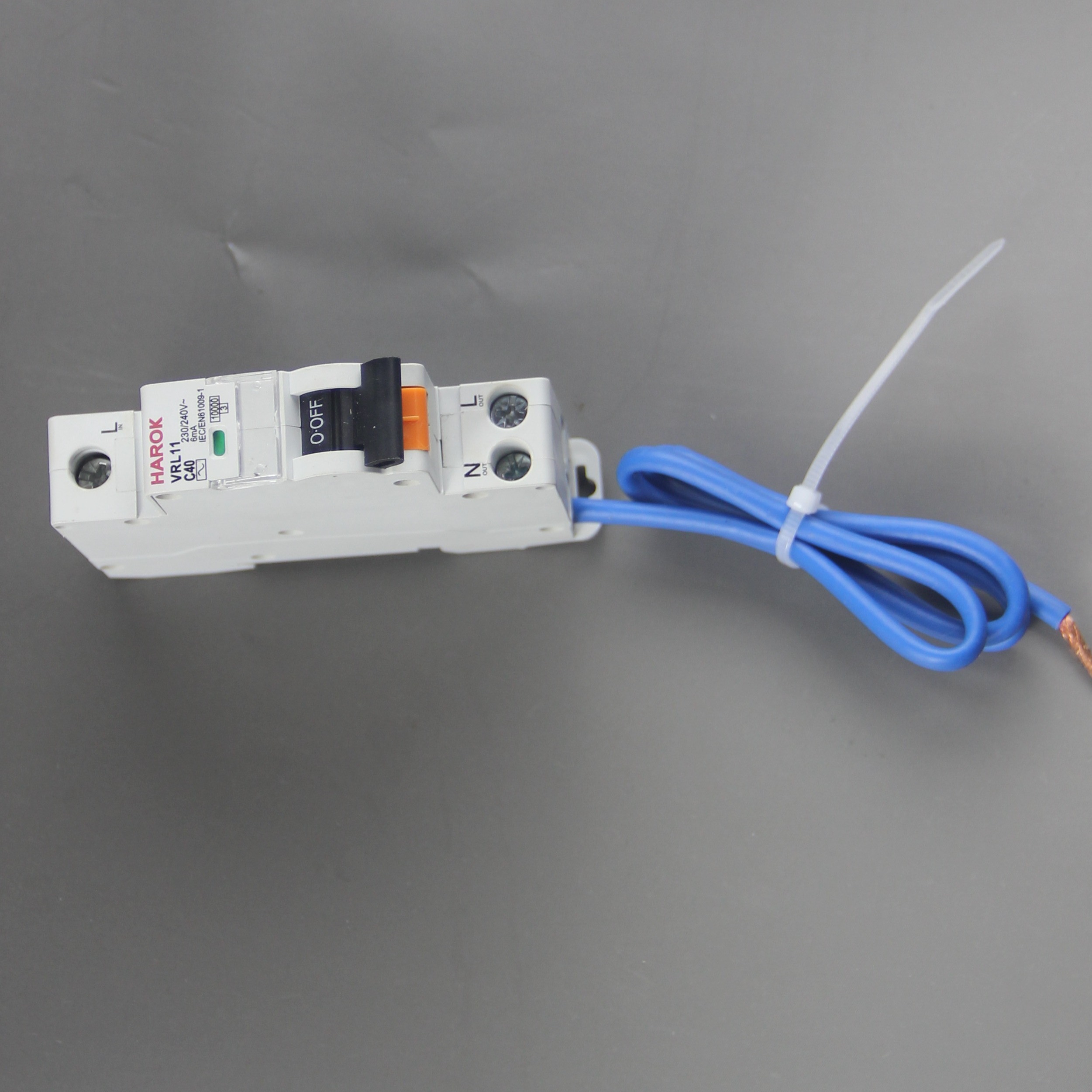

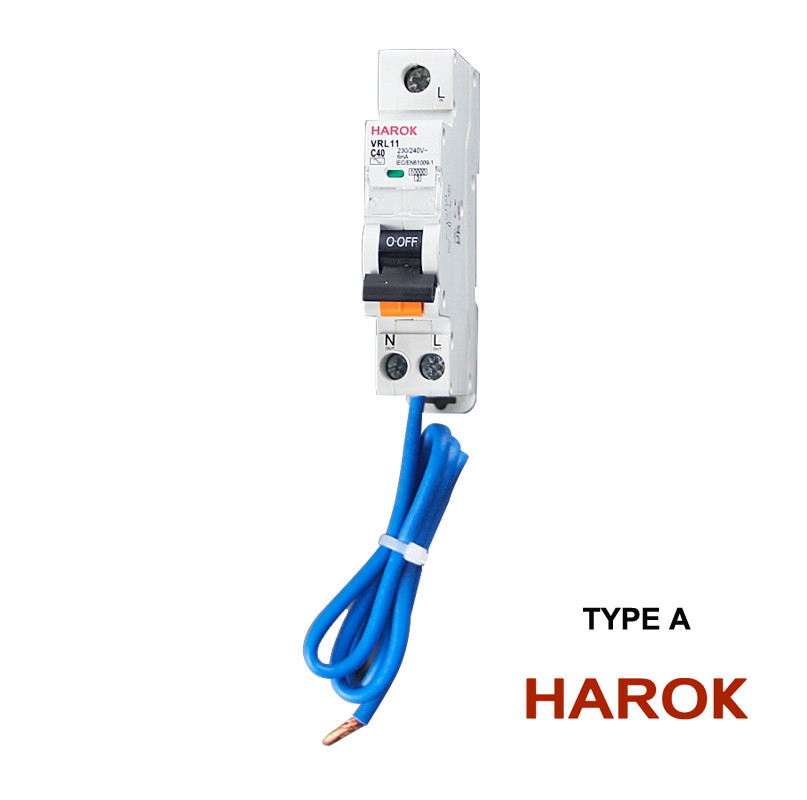

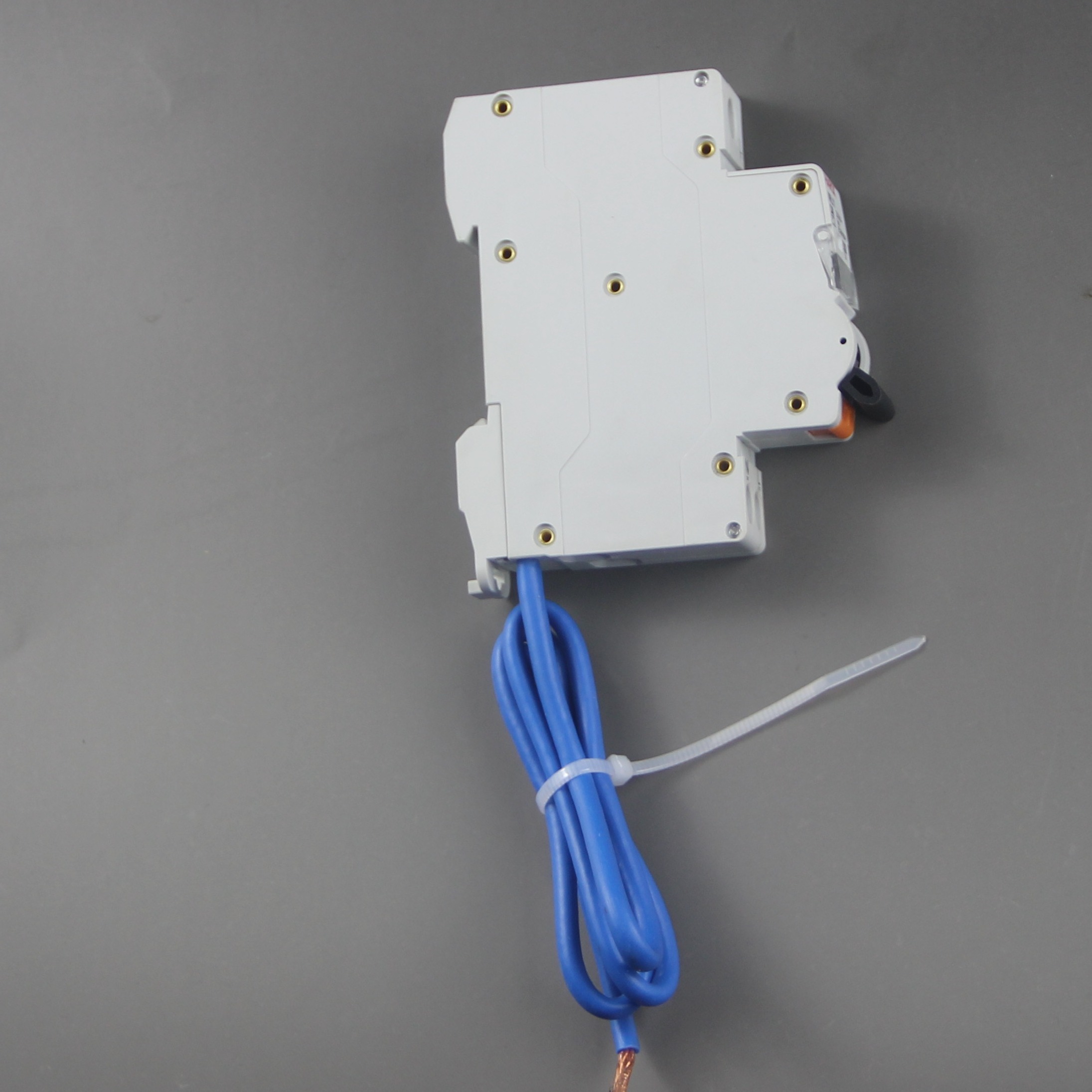

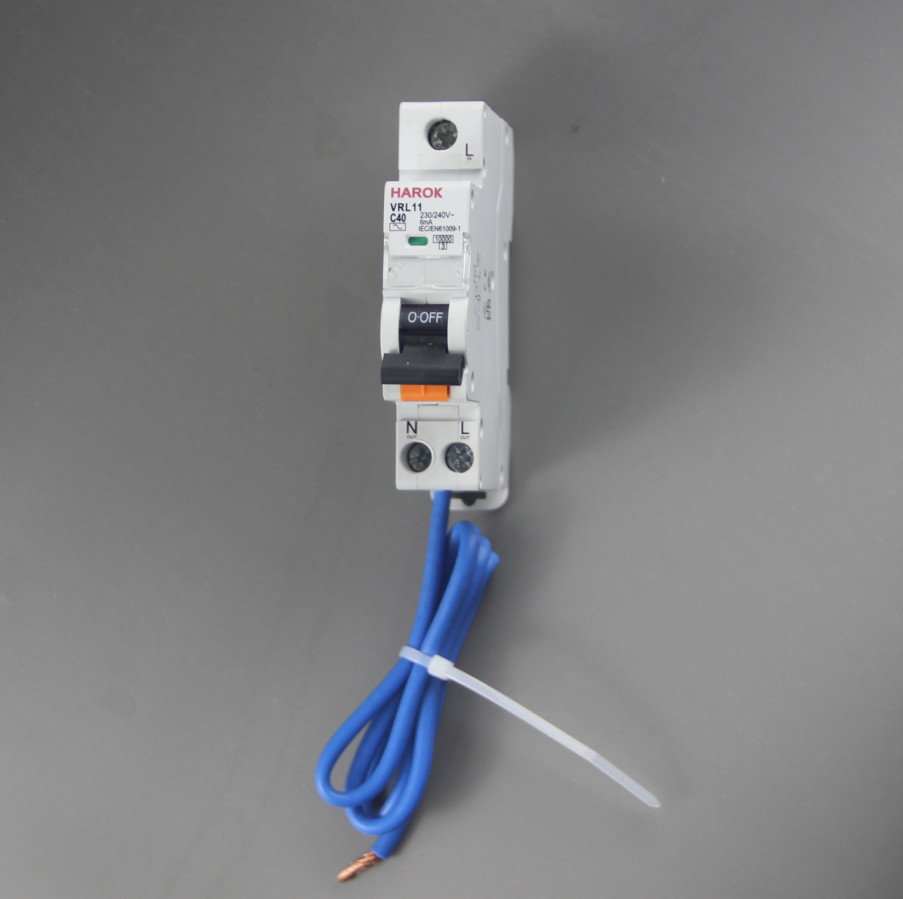

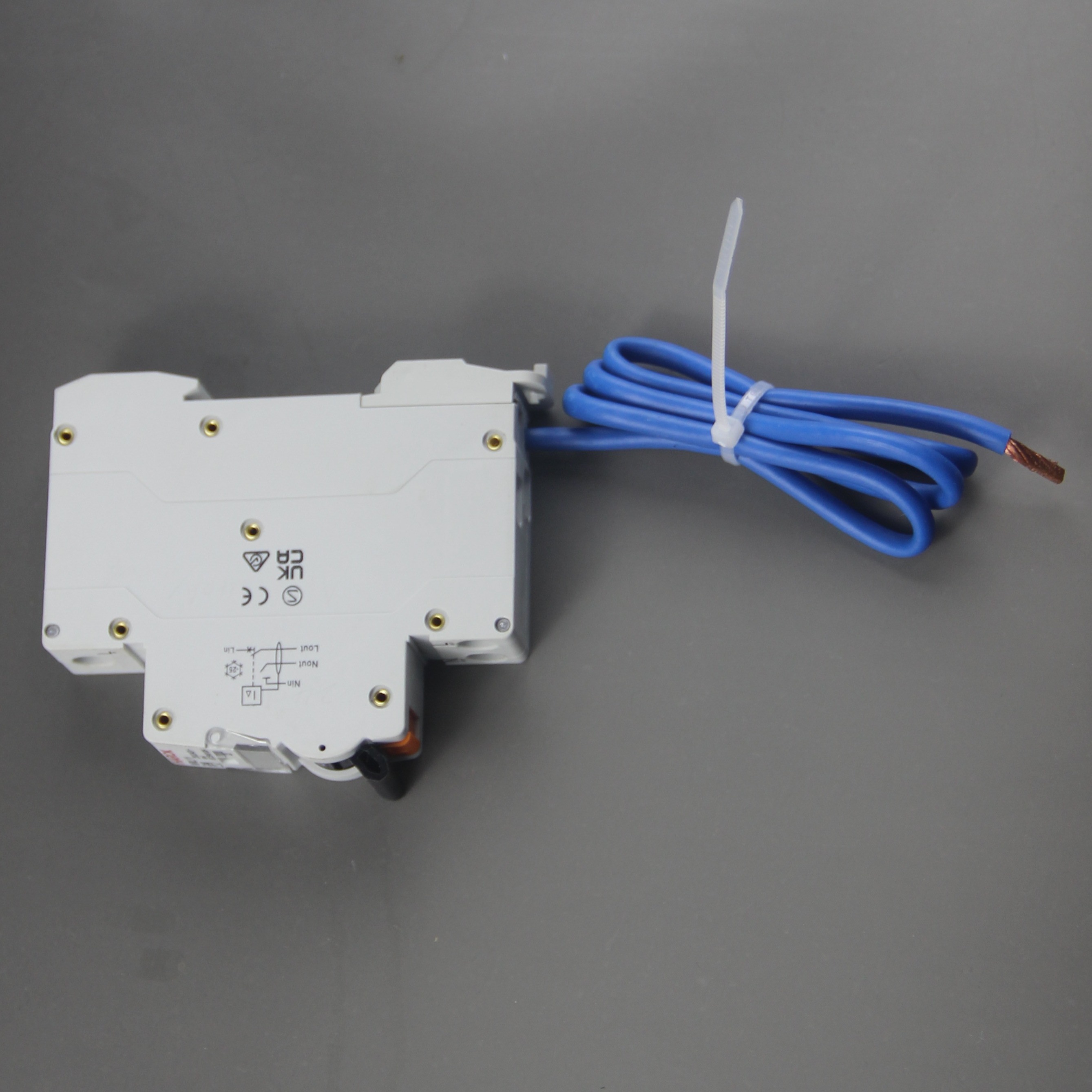

VRL11 Residual Current Operated Circuit Breaker with over-current protection (RCBO)
(MCB sized 1 module with switched neutral)
1. General
VRL11 residual current operated circuit breakers are suitable for lines with AC 50/60Hz, rated voltage 240V, 120V, rated current up to 40A and for purposes of residual current protection, overload and short circuit protection. When any personal electric shock occurs or the circuit leakage current exceeds the predetermined value, the residual current operated circuit breaker can automatically cut off the power supply in a very short period of time, so that the safety of persons and electrical equipment can be operated. The residual current operated circuit breaker can be used for infrequent conversion of lines under normal conditions, and applied under occasions such as industrial, and commercial, high-rise buildings and residential houses.
2. Technical parameters

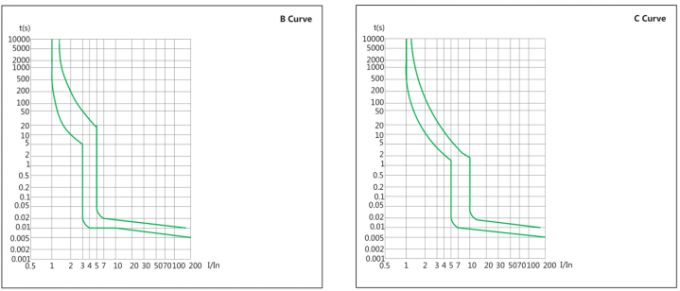

2.1 The tripping characteristic curves are as shown below.
2.2 Basic parameters
| Standard | IEC/EN 61009-1 | |
| Main Specifications | Model No. | VDL006 |
| Rated current In | 5A, 6A, 10A, 13A, 15A, 16A, 20A, 25A, 30A, 32A, 35A, 40A | |
| Classified by Type of Instantaneous Tripping | Type B: (3 ~ 5) In, Type C: (5 ~ 10) In | |
| Poles | 1P + N | |
| Type (wave form of the earth leakage sensed) | Type B | |
| Mechanical features | Rated voltage Ue | AC240V |
| Frame size rated current In | 40A | |
| Rated residual operating current I△n | 0.006A, 0.01A, 0.03A, 0.1A, 0.3A | |
| Rated residual non-operating current I△no | 0.003A, 0.005A, 0.015A, 0.05A, 0.15A | |
| Rated short-circuit breaking capacity Icn | 10000A (230, 240V~); 15000A(120V~) | |
Rated residual making and breaking capacity I△m | 3000A | |
| Electrical life | 2,000 | |
| Mechanical life | 2,000 | |
| Rated impulse withstand voltage Uimp | 6000V | |
| Connection | From top and bottom, from bottom and top |
2.3 The residual current breaking times
| In (A) | I△n (A) | Breaking time when the residual current assumes the following values (s) | ||||
| I△n | 2I△n | 5I△n | 5A, 10A, 20A, 50A, 100A, 200A, 500A(a) | I△t(b) | ||
| 5~40 | 0.006, 0.01, 0.03, 0.1, 0.3 | 0.1 | 0.05 | 0.04 | 0.04 | 0.04 |
a. For tests of 5A, 10A, 20A, 50A, 100A, 200A and 500A, the current values beyond the lower limit of over-current instantaneous tripping are not tested. B. Tests are done when I△t is equal to the lower limit current of over-current instantaneous tripping of type B and type C. | ||||||
2.4 The over-current protection characteristics
| No. | Rated current In (A) | Initial state | Test current (A) | Specified time (t) | Expected result | Remarks |
| a | 6 ~ 40 | Cold state | 1.13 In | t ≥ 1h | Non-tripping | |
| b | Immediately after sequence a | 1.45 In | t < 1h | Tripping | Increase to the specified current within 5s after test item a. | |
| c | Cold state | 2.55 In | 1s < t < 60s | Tripping | ||
| d | Cold state | 3 In | t ≥ 0.1s | Non-tripping | Type B | |
| 5 In | t < 0.1s | Tripping | ||||
| 5 In | t ≥ 0.1s | Non-tripping | Type C | |||
| 10 In | t < 0.1s | Tripping |

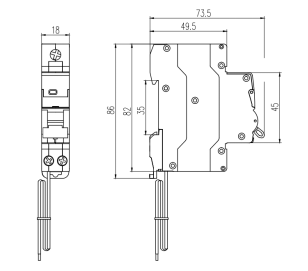

3. Outline and installation dimensions (mm)
RCBO Type A is a Residual Current Operated Circuit Breaker with over-current protection, which can provide protection against electric shock and short-circuit current. It features a Rated Residual Current Operating Time of ≤0.1s, a Rated Frequency of 50/60 Hz, and a Frame size with a Rated current Inm of 50A. It also has a Rated residual operating current I△n of 0.01A, 0.03A, 0.1A, 0.3A, and a Rated Current of 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A.
RCBO Type A is safety device designed to protect people and electrical equipment from the risk of electric shock and short-circuit current, as well as providing over-current protection. With a fast-acting Residual Current Operating Time of ≤0.1s and a wide range of Rated Current, it is suitable for a variety of applications. Its robust Frame size and Rated Frequency of 50/60 Hz makes it a reliable and durable choice for many industries.
RCBO Type A is an essential safety device for any electrical installation, and is an ideal choice for providing reliable over-current protection and residual current operated circuit breaker. Its wide range of Rated Current and Rated residual operating current I△n options make it suitable for various applications, while its Rated Frequency of 50/60 Hz and Rated Residual Current Operating Time of ≤0.1s make it a reliable and durable choice.
Product Name: RCBO Type A
Rated Current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A
Rated impulse withstand voltage Uimp: 6000V
Rated Residual Current On-state: ≤0.2mA
Rated Residual Current Operating Time: ≤0.1s
Classified by Type of Instantaneous Tripping: Type B: (3 ~ 5) In, Type C: (5 ~ 10) In
Residual Current Operated Circuit Breaker with Over-current Protection
HAROK's RCBO type A is an ideal choice for efficient and reliable over-current protection. It is designed to detect and disconnect circuits when an abnormal current is detected. Its rated residual current operating time is ≤0.1s and rated current is 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A. It is available in several different models including VRL22, VAL003, VKL003, VDL006, VRL11, VRL01, VRL02, VRL03, VK007LE. It offers two types of connection: from top to bottom; from bottom to top. Rated residual current on-state is ≤0.2mA and electrical life is 2000. It is made of high quality materials that ensure superior performance and durability. This product is manufactured in CHINA and offers the highest level of safety and reliability.
| Parameter | Value |
|---|---|
| Product Name | Residual Current Operated Circuit Breaker with over-current protection, RCBO TYPE A, RCBO CIRCUIT BREAKER |
| Mechanical life | 2000 |
| Rated Breaking Capacity | 6kA |
| Electrical life | 2000 |
| Rated Frequency | 50/60Hz |
| Rated short-circuit breaking capacity Icn | 230/240V 6000A, 10000A; 120V 15000A |
| Rated residual non-operating current I△no | 0.005A, 0.015A, 0.05A, 0.15A |
| Rated Residual Current On-state | ≤0.2mA |
| Rated residual operating current I△n | 0.01A, 0.03A, 0.1A, 0.3A |
| Classified by Type of Instantaneous Tripping | Type B: (3 ~ 5) In, Type C: (5 ~ 10) In |
| Rated Residual Current Off-state | ≤0.1mA |
Specifications:
Brand Name: HAROK
Model Number: VRL22, VAL003, VKL003, VDL006, VRL11, VRL01, VRL02, VRL03, VK007LE
Place of Origin: CHINA
Mechanical life: 2000
Electrical life: 2000
Rated Frequency: 50/60Hz
Connection: From Top To Bottom; From Bottom To Top
Product Name: RCBO Type A
Residual Current Operated Circuit Breaker with over-current protection, HAROK’s RCBO Type A is a reliable and durable device to protect electrical circuits from overloads and short circuits. It is designed with a mechanical life of 2000 and electrical life of 2000, rated frequency of 50/60Hz, and connection from top to bottom and from bottom to top.
RCBO Type A Packaging and Shipping:
The product is packaged in a cardboard box.
The product is placed in a sealed plastic bag.
The box is labeled with product name, model number, date of manufacture, and other pertinent information.
The box is then placed in a shipping container.
The shipping container is labeled with the recipient's address and other shipping information.
The container is then shipped to the destination.
