| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Model Number | VRL02 |
| Minimum Order Quantity | 3000PCS |
| Payment Terms | L/C, T/T |
| Poles Number | 1P+N | Rated Voltage | AC240V |
|---|---|---|---|
| Mechanical Life | 2000 | Standard | IEC/EN 61009-1 |
| Rated Frequency | 50/60Hz | Rated Current | 6A, 10A, 16A, 20A, 25A, 32A, 40A, ,45A, 50A |
| Electrical Life | 2000 | CURVE | TYPE A, AC |
| High Light | 32 a rcbo,type A rcbo 6A 30mA,45A Residual Current Operated Circuit Breaker | ||
RCBO | Residual Current Operated Circuit Breaker with over-current protection

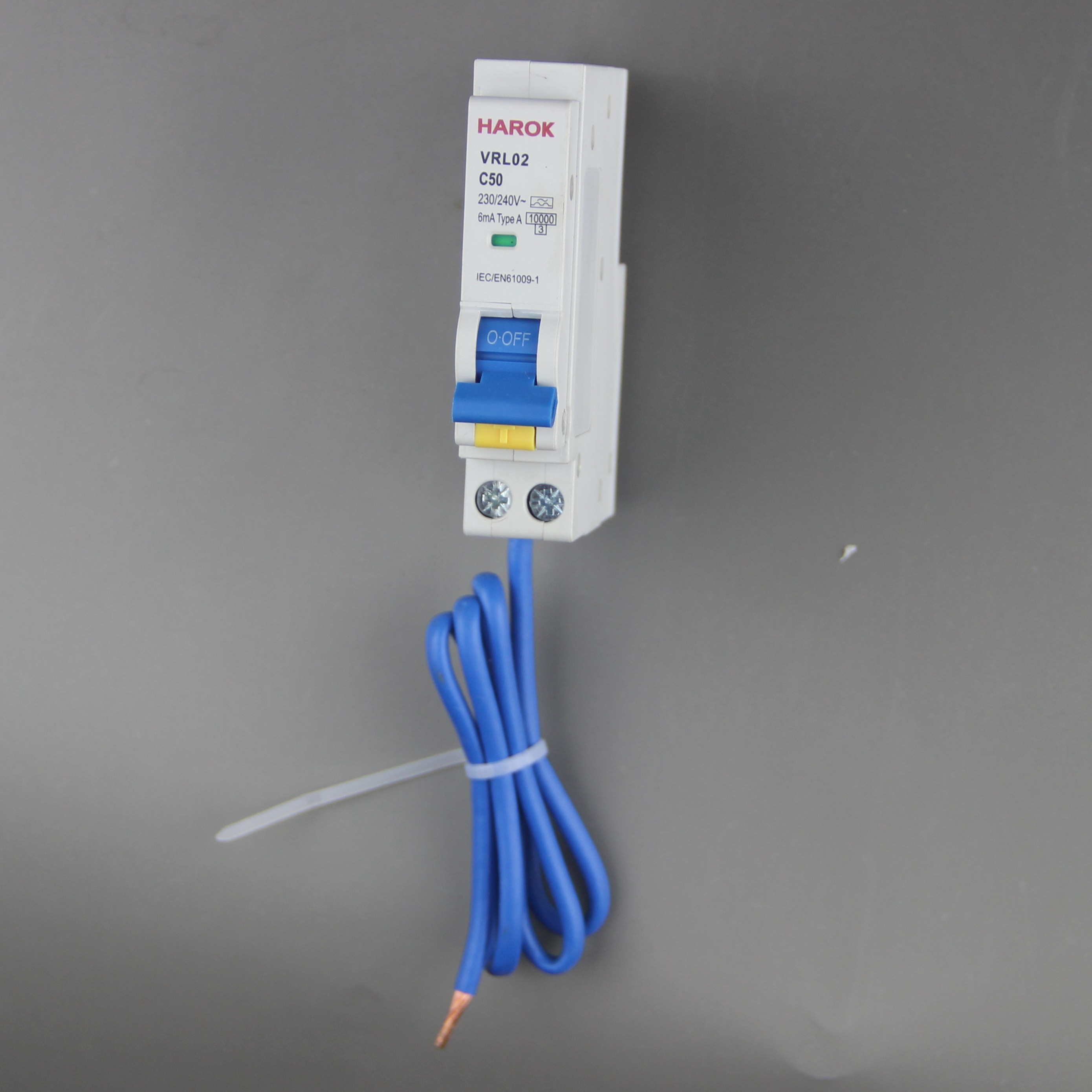

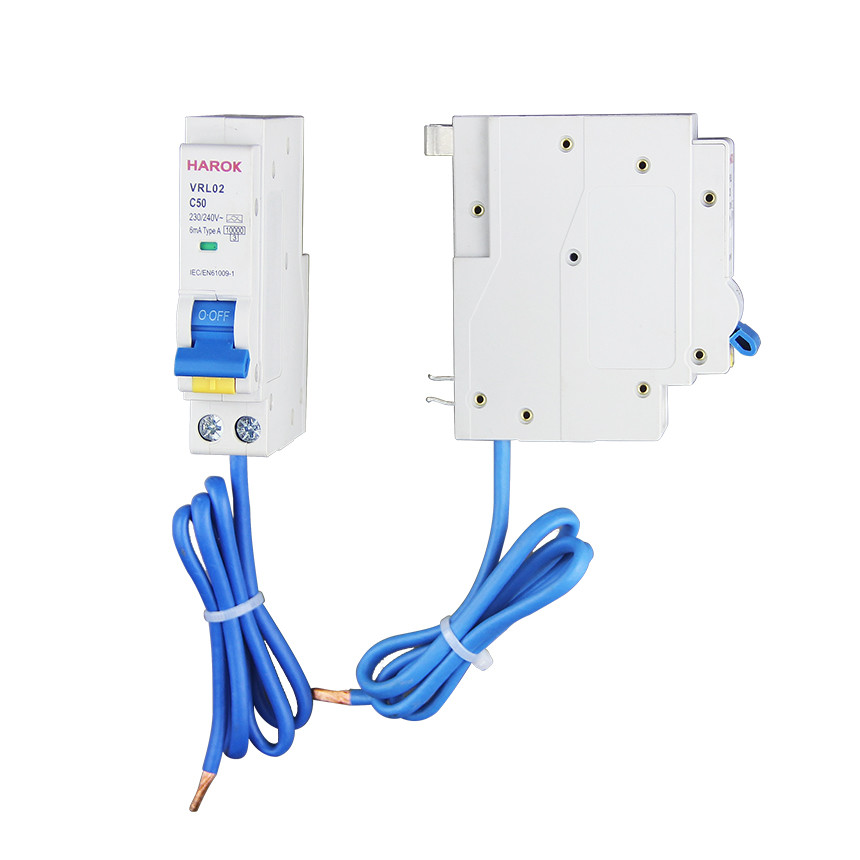

VRL02 Residual Current Operated Circuit Breaker with over-current protection
(MCB sized 1 module with switched neutral)
1. General
VRL02 residual current operated circuit breakers are suitable for lines with AC 50/60Hz, rated voltage 240V, rated current up to 50A and for purposes of residual current protection, overload and short circuit protection. When any personal electric shock occurs or the circuit leakage current exceeds the predetermined value, the residual current operated circuit breaker can automatically cut off the power supply in a very short period of time, so that the safety of persons and electrical equipment can be operated. The residual current operated circuit breaker can be used for infrequent conversion of lines under normal conditions, and applied under occasions such as industrial, and commercial, high-rise buildings and residential houses.
2. Technical parameters
2.1 The tripping characteristic curves are as shown below.
2.2 Basic parameters
| Standard | IEC/EN 61009-1, AS/NZS 61009.1 | |
| Main Specifications | Model No. | VRL02 |
| Rated current In | 6A, 10A, 16A, 20A, 25A, 32A, 40A, ,45A, 50A | |
| Classified by Type of Instantaneous Tripping | Type B: (3 ~ 5) In, Type C: (5 ~ 10) In | |
| Poles | 1P + N | |
| Type (wave form of the earth leakage sensed) | Type AC, Type A | |
| ;Mechanical features | Rated voltage Ue | AC240V |
| Frame size rated current Inm | 50A | |
| Rated residual operating current I△n | 0.01A, 0.03A, 0.1A, 0.3A | |
| Rated residual non-operating current I△no | 0.005A, 0.015A, 0.05A, 0.15A | |
| Rated short-circuit breaking capacity Icn | 230/240V 6000A, 10000A; 120V 15000A | |
Rated residual making and breaking capacity I△m | 500A | |
| Electrical life | 2,000 | |
| Mechanical life | 2,000 | |
| Rated impulse withstand voltage Uimp | 6000V | |
| Connection | From top and bottom, from bottom and top |
2.3 The residual current breaking times
| In (A) | I△n (A) | Breaking time when the residual current assumes the following values (s) | ||||
| I△n | 2I△n | 5I△n | 5A, 10A, 20A, 50A, 100A, 200A, 500A(a) | I△t(b) | ||
| 5~40 | 0.006, 0.01, 0.03, 0.1, 0.3 | 0.1 | 0.05 | 0.04 | 0.04 | 0.04 |
a. For tests of 5A, 10A, 20A, 50A, 100A, 200A and 500A, the current values beyond the lower limit of over-current instantaneous tripping are not tested. B. Tests are done when I△t is equal to the lower limit current of over-current instantaneous tripping of type B and type C. | ||||||
2.4 The over-current protection characteristics
| No. | Rated current In (A) | Initial state | Test current (A) | Specified time (t) | Expected result | Remarks |
| a | 6 ~ 40 | Cold state | 1.13 In | t ≥ 1h | Non-tripping | |
| b | Immediately after sequence a | 1.45 In | t < 1h | Tripping | Increase to the specified current within 5s after test item a. | |
| c | Cold state | 2.55 In | 1s < t < 60s | Tripping | ||
| d | Cold state | 3 In | t ≥ 0.1s | Non-tripping | Type B | |
| 5 In | t < 0.1s | Tripping | ||||
| 5 In | t ≥ 0.1s | Non-tripping | Type C | |||
| 10 In | t < 0.1s | Tripping |
3. Outline and installation dimensions (mm)
RCBO Type A Circuit Breaker is a reliable and robust device offering comprehensive protection against electric shock, fire and short circuit. It is rated with a residual current off-state of ≤0.1 mA, residual current on-state of ≤0.2 mA, rated impulse withstand voltage of 6000V, mechanical life of 2000 and a rated breaking capacity of 6kA. The RCBO Type A Circuit Breaker is highly accurate and efficient in detecting and avoiding potential fire hazards, ensuring the safety of your home or workplace.

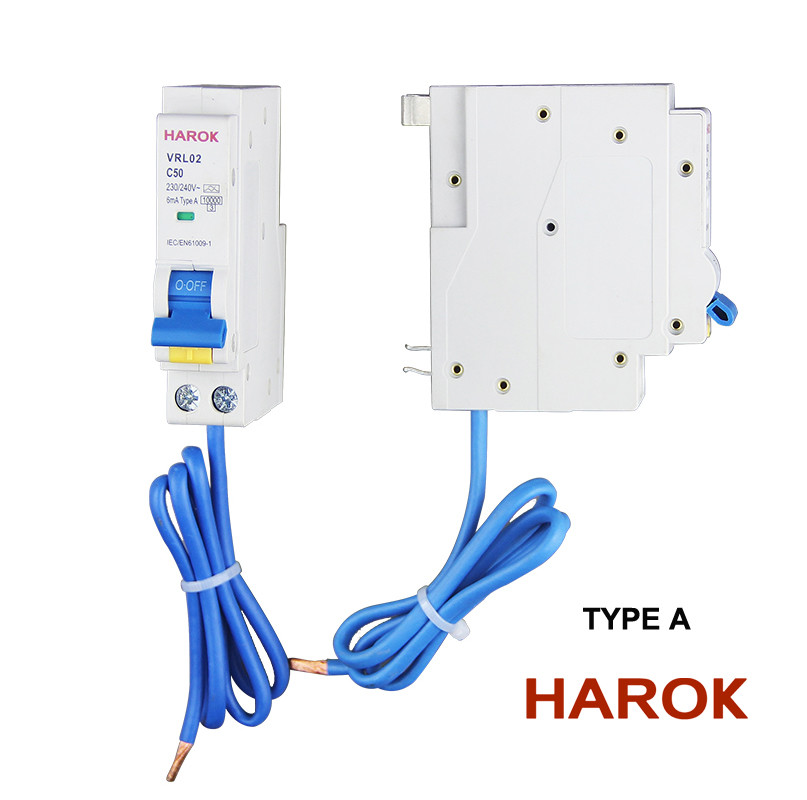

Product Name: RCBO Type A
Classified by Type of Instantaneous Tripping: Type B (3~5 In), Type C (5~10 In)
Rated Residual Current Operating Time: ≤0.1s
Rated voltage Ue: AC240V
Frame size rated current Inm: 50A
Rated impulse withstand voltage Uimp: 6000V
Residual Current Operated Circuit Breaker with over-current protection
HAROK RCBO Type A, with its model numbers VRL22, VAL003, VKL003, VDL006, VRL11, VRL01, VRL02, VRL03, VK007LE, is a Residual Current Operated Circuit Breaker with over-current protection, developed and produced in China. It comes with a variety of rated current from 6A to 50A and residual non-operating current I△no from 0.005A, 0.015A, 0.05A, 0.15A. With its high rated breaking capacity of 6kA and electrical life of 2000, HAROK RCBO Type A is the ideal choice for applications that require high safety and trustworthiness.
HAROK RCBO Type A is suitable for a variety of residential, commercial and industrial settings due to its rated residual current off-state of ≤0.1mA. It is especially suitable for applications that require high safety protection, such as electrical installations in public places, medical establishments and educational institutions. In addition, due to its superior rated breaking capacity and electrical life, it is also suitable for commercial and industrial settings, such as factories, warehouses, laboratories and research centers.
HAROK RCBO Type A is an ideal choice for providing high safety and trustworthiness in any applications that require Residual Current Operated Circuit Breaker with over-current protection. Its superior rated breaking capacity and electrical life ensures its reliability and longevity. It is suitable for residential, commercial and industrial settings due to its rated residual current off-state of ≤0.1mA.
| Parameter | Value |
|---|---|
| Connection | From Top To Bottom; From Bottom To Top |
| Rated residual operating current I△n | 0.01A, 0.03A, 0.1A, 0.3A |
| Rated Residual Current Operating Time | ≤0.1s |
| Electrical life | 2000 |
| Rated impulse withstand voltage Uimp | 6000V |
| Rated residual non-operating current I△no | 0.005A, 0.015A, 0.05A, 0.15A |
| Frame size rated current Inm | 50A |
| Rated voltage Ue | AC240V |
| Rated short-circuit breaking capacity Icn | 230/240V 6000A, 10000A; 120V 15000A |
| Rated Frequency | 50/60Hz |
HAROK is proud to offer a wide selection of RCBO Type A products, designed to provide superior Residual Current Operated Circuit Breaker with over-current protection. Our RCBO Type A products offer the following features:
Model Number: VRL22, VAL003, VKL003, VDL006, VRL11, VRL01, VRL02, VRL03, VK007LE
Place of Origin: CHINA
Rated Residual Current Off-state: ≤0.1mA
Rated Breaking Capacity: 6kA
Rated residual operating current I△n: 0.01A, 0.03A, 0.1A, 0.3A
Rated Current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A
Rated impulse withstand voltage Uimp: 6000V
All of our RCBO Type A products are made to the highest industry standards and are backed by our commitment to customer satisfaction. Contact us today to learn more about our RCBO Type A products and how we can help you find the perfect solution for your needs.
RCBO Type A shall be packaged and shipped using the following process:
The product shall be securely packed in a non-conductive material.
It shall be sealed in a moisture-resistant bag.
The product shall be placed in a box that provides adequate protection against shock and vibration.
The package shall be labeled to ensure that the product is properly identified.
The package shall be shipped via an appropriate shipping method.
