| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Model Number | VRL01 |
| Minimum Order Quantity | 3000PCS |
| Payment Terms | L/C, T/T |
| Poles Number | 1P+N | Rated Voltage | AC240V |
|---|---|---|---|
| Mechanical Life | 2000 | Standard | IEC/EN 61009-1 |
| Rated Frequency | 50/60Hz | Rated Current | 6A, 10A, 16A, 20A, 25A, 32A, 40A, ,45A, 50A |
| Electrical Life | 2000 | CURVE | TYPE A, AC |
| High Light | type A rcbo 16A 30mA,type A rcbo 20A 30mA,25A a type rcbo | ||

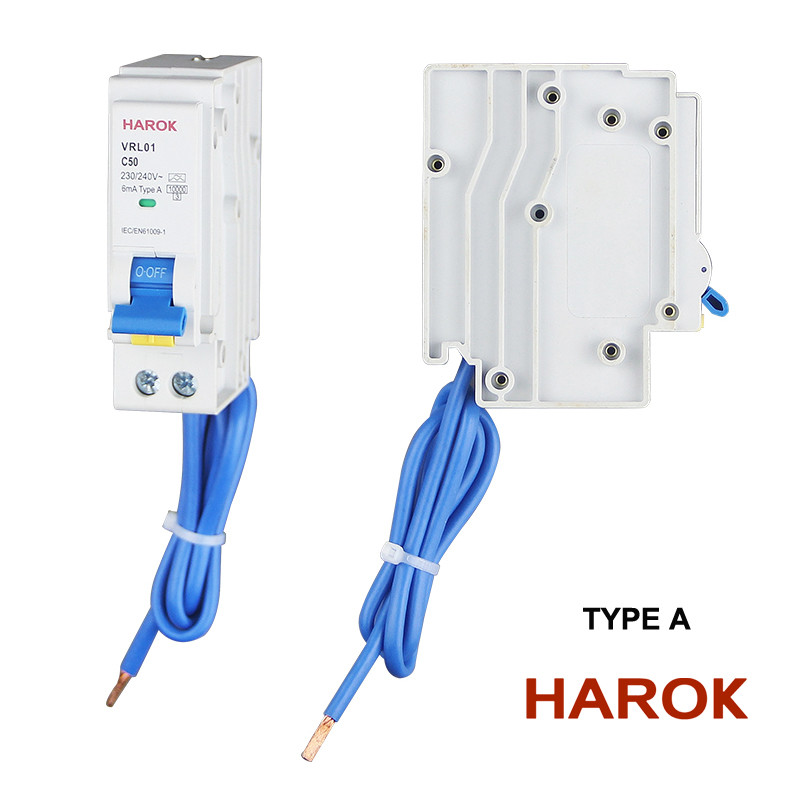

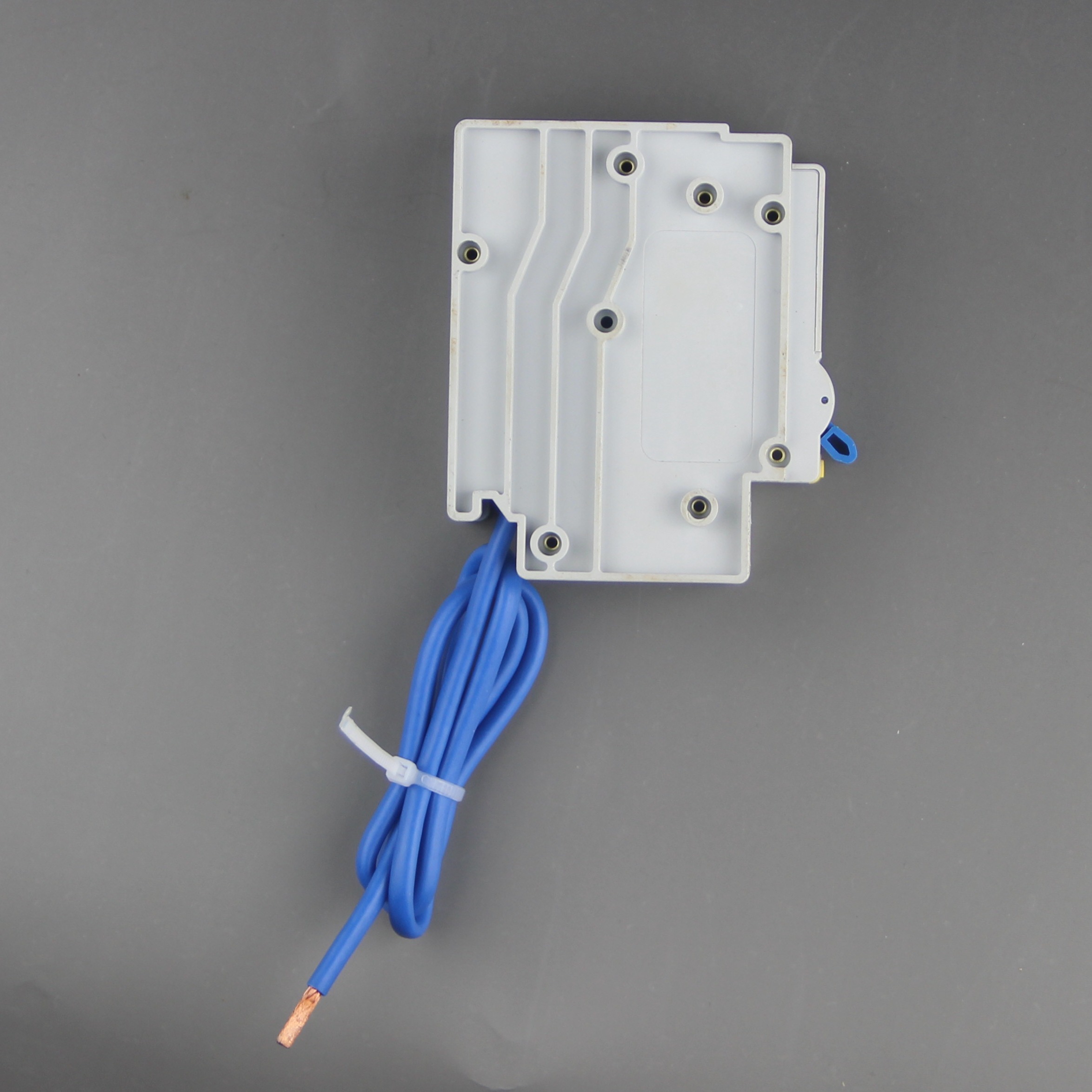

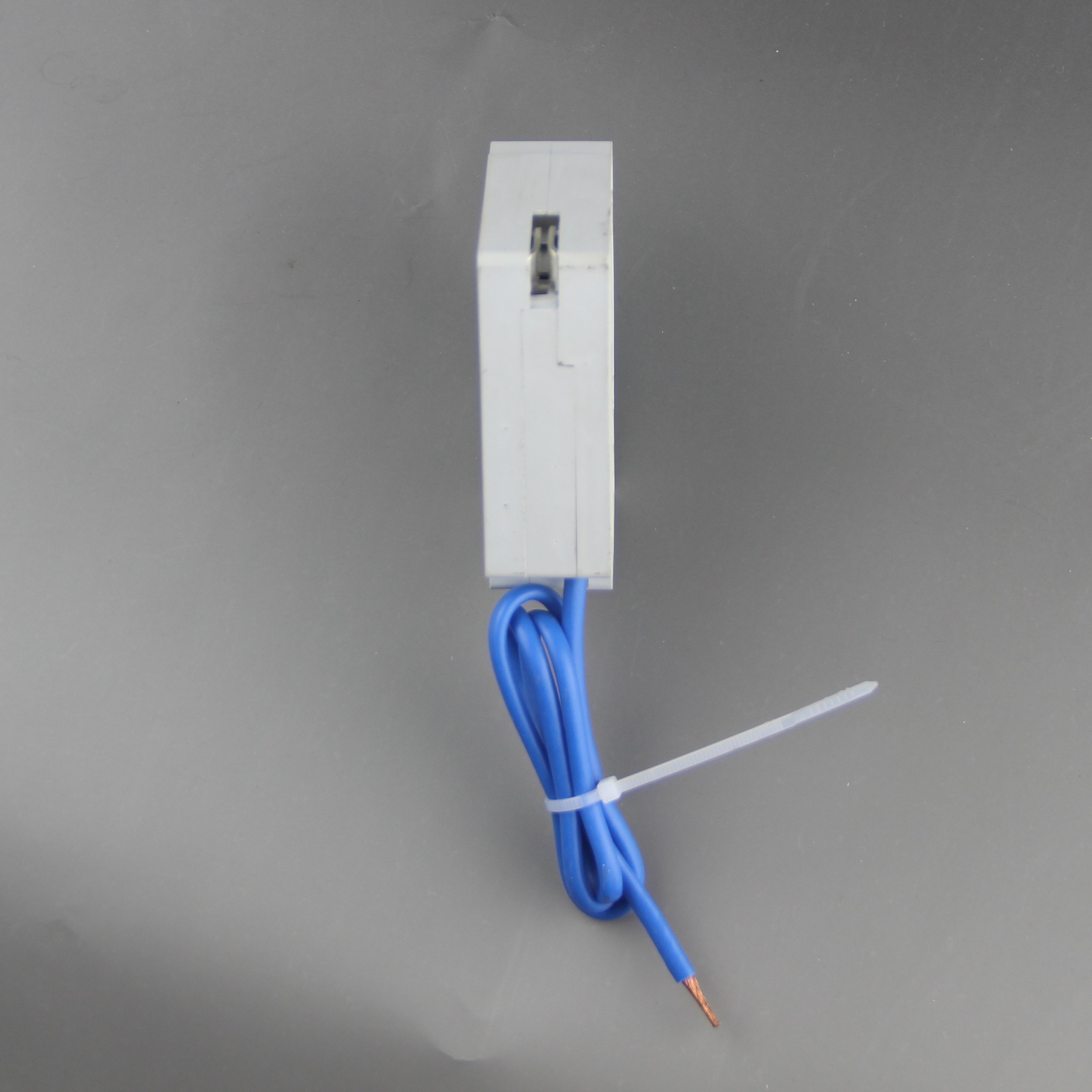

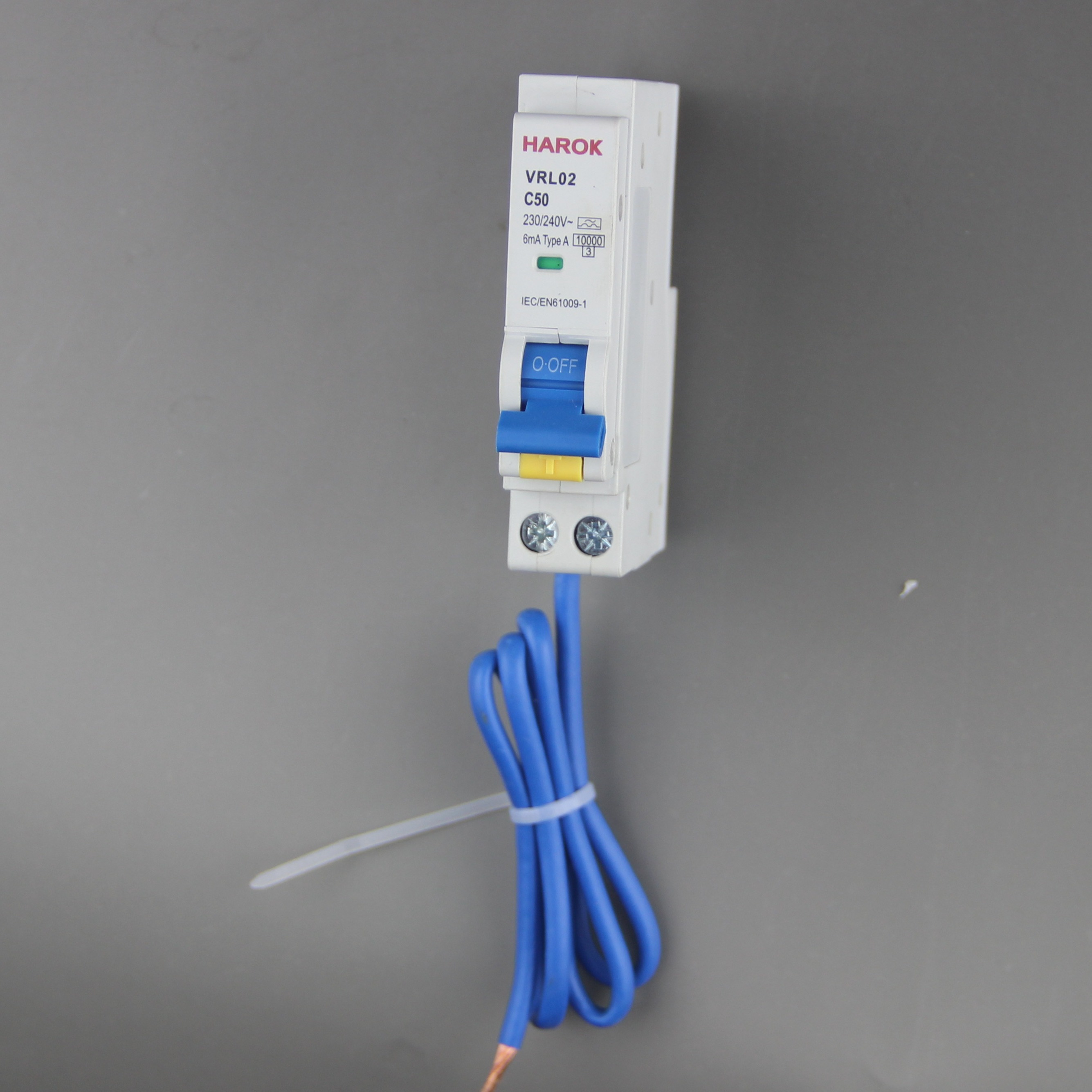

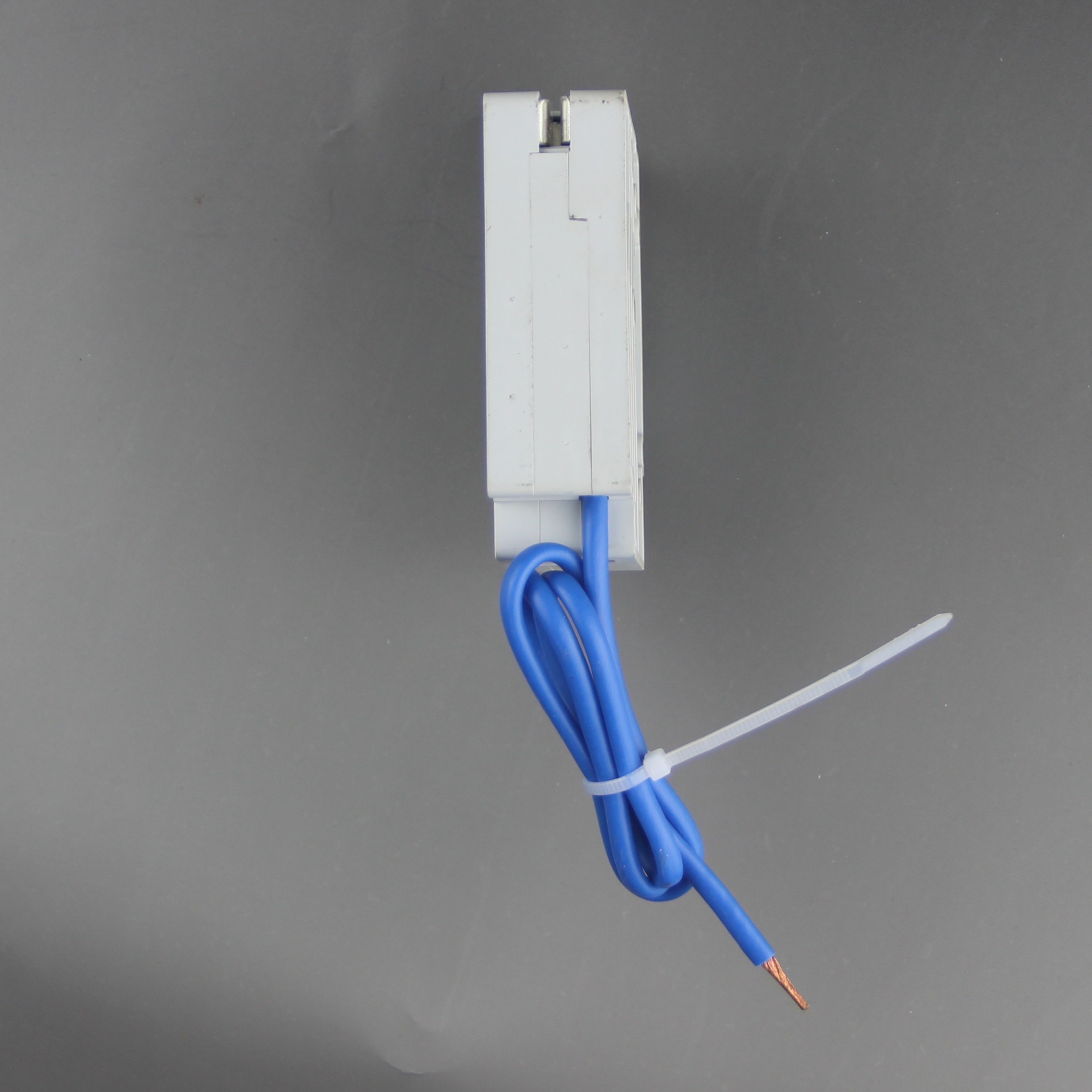

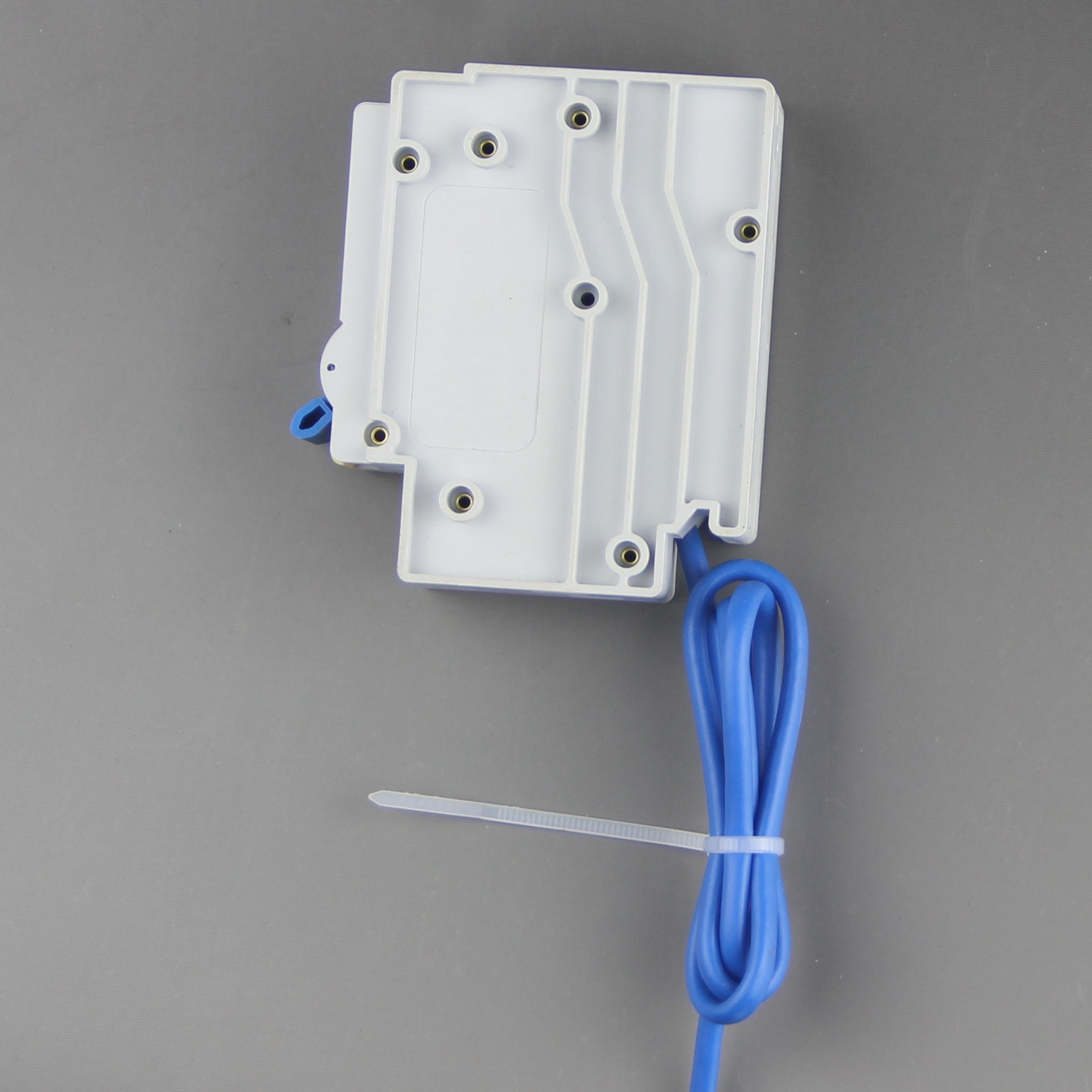

RCBO | Residual Current Operated Circuit Breaker with over-current protection

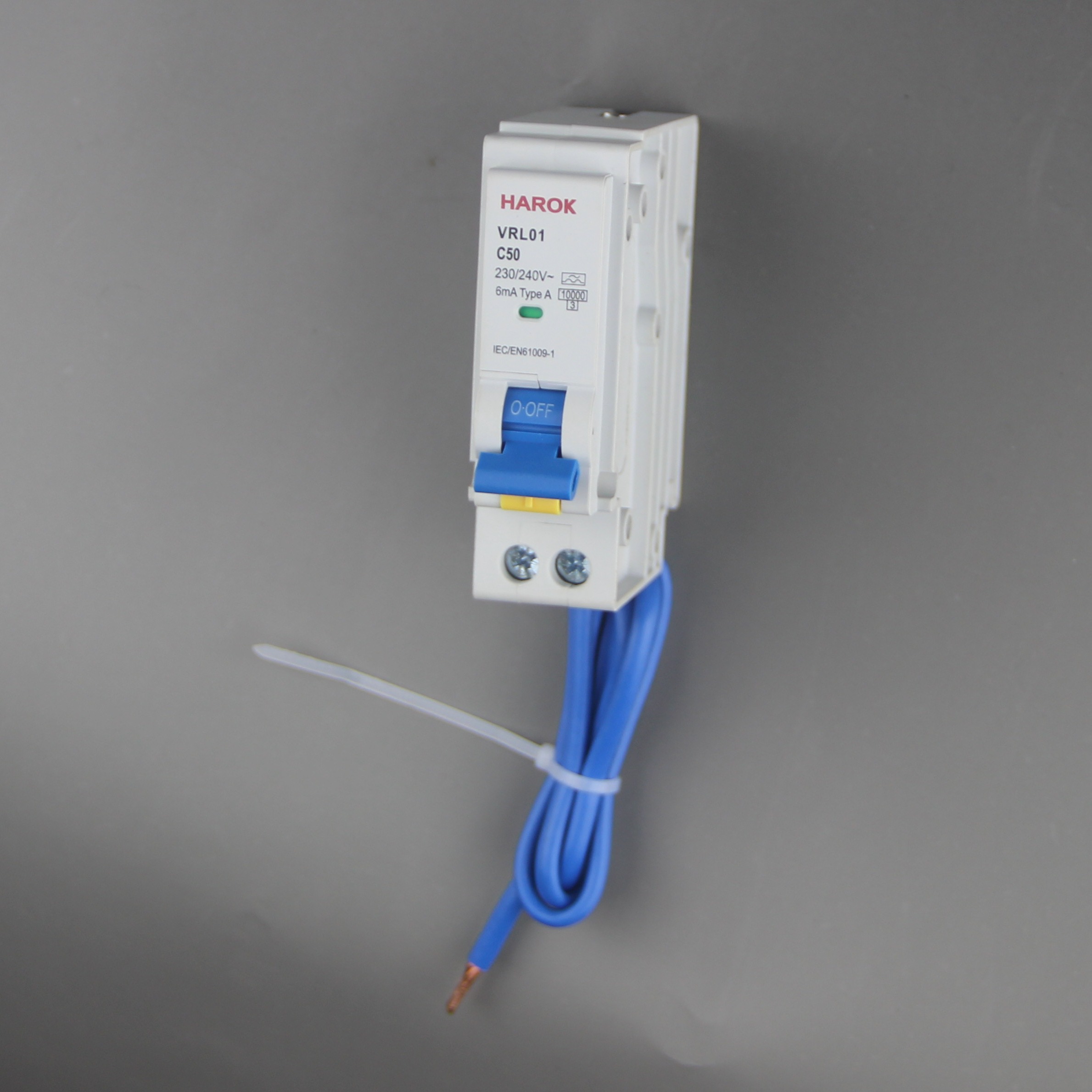

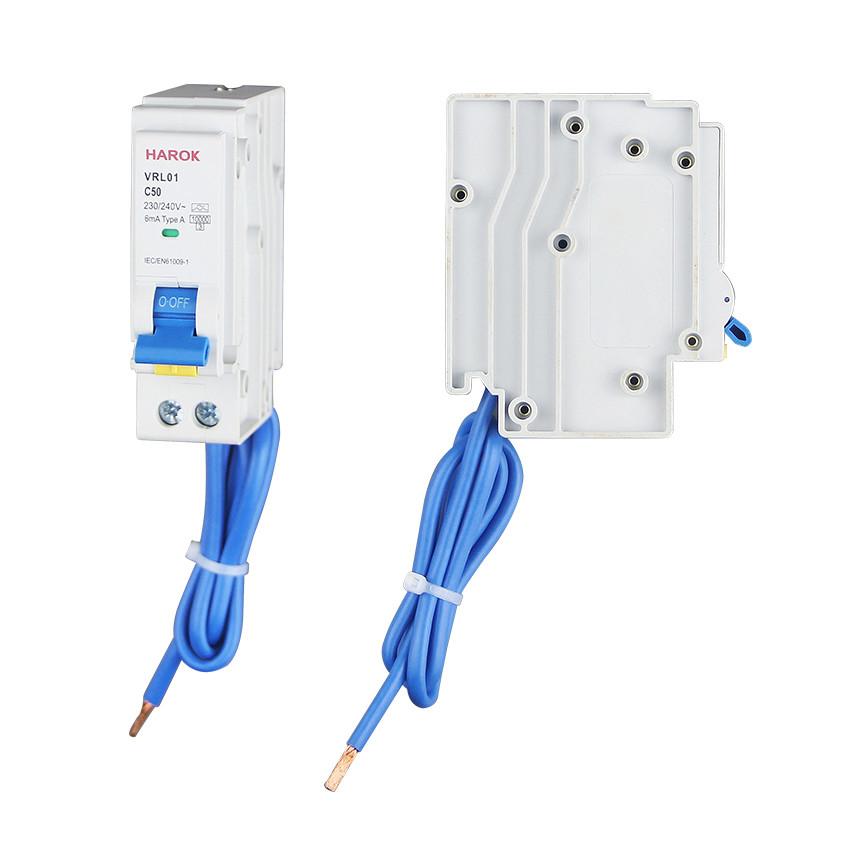

VRL01 Residual Current
Operated Circuit Breaker
with over-current protection
(MCB sized 1 module with switched neutral)
1. General
VRL01 residual current operated circuit breakers are suitable for lines with AC 50/60Hz, rated voltage 240V, rated current up to 50A and for purposes of residual current protection, overload and short circuit protection. When any personal electric shock occurs or the circuit leakage current exceeds the predetermined value, the residual current operated circuit breaker can automatically cut off the power supply in a very short period of time, so that the safety of persons and electrical equipment can be operated. The residual current operated circuit breaker can be used for infrequent conversion of lines under normal conditions, and applied under occasions such as industrial, and commercial, high-rise buildings and residential houses.
2. Technical parameters

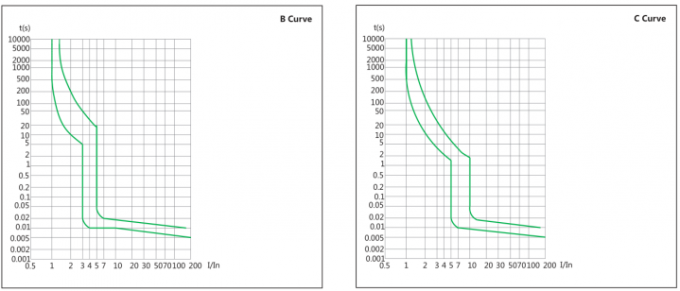

2.1 The tripping characteristic curves are as shown below.
2.2 Basic parameters
| Standard | IEC/EN 61009-1, AS/NZS 61009.1 | |
| Main Specifications | Model No. | VRL01 |
| Rated current In | 6A, 10A, 16A, 20A, 25A, 32A, 40A, ,45A, 50A | |
| Classified by Type of Instantaneous Tripping | Type B: (3 ~ 5) In, Type C: (5 ~ 10) In | |
| Poles | 1P + N | |
| Type (wave form of the earth leakage sensed) | Type AC, Type A | |
| ;Mechanical features | Rated voltage Ue | AC240V |
| Frame size rated current Inm | 50A | |
| Rated residual operating current I△n | 0.01A, 0.03A, 0.1A, 0.3A | |
| Rated residual non-operating current I△no | 0.005A, 0.015A, 0.05A, 0.15A | |
| Rated short-circuit breaking capacity Icn | 230/240V 6000A, 10000A; 120V 15000A | |
Rated residual making and breaking capacity I△m | 500A | |
| Electrical life | 2,000 | |
| Mechanical life | 2,000 | |
| Rated impulse withstand voltage Uimp | 6000V | |
| Connection | From top and bottom, from bottom and top |
2.3 The residual current breaking times
| In (A) | I△n (A) | Breaking time when the residual current assumes the following values (s) | ||||
| I△n | 2I△n | 5I△n | 5A, 10A, 20A, 50A, 100A, 200A, 500A(a) | I△t(b) | ||
| 5~40 | 0.006, 0.01, 0.03, 0.1, 0.3 | 0.1 | 0.05 | 0.04 | 0.04 | 0.04 |
a. For tests of 5A, 10A, 20A, 50A, 100A, 200A and 500A, the current values beyond the lower limit of over-current instantaneous tripping are not tested. B. Tests are done when I△t is equal to the lower limit current of over-current instantaneous tripping of type B and type C. | ||||||
2.4 The over-current protection characteristics
| No. | Rated current In (A) | Initial state | Test current (A) | Specified time (t) | Expected result | Remarks |
| a | 6 ~ 40 | Cold state | 1.13 In | t ≥ 1h | Non-tripping | |
| b | Immediately after sequence a | 1.45 In | t < 1h | Tripping | Increase to the specified current within 5s after test item a. | |
| c | Cold state | 2.55 In | 1s < t < 60s | Tripping | ||
| d | Cold state | 3 In | t ≥ 0.1s | Non-tripping | Type B | |
| 5 In | t < 0.1s | Tripping | ||||
| 5 In | t ≥ 0.1s | Non-tripping | Type C | |||
| 10 In | t < 0.1s | Tripping |
3. Outline and installation dimensions (mm)
RCBO Type A is a Residual Current Operated Circuit Breaker with Over-Current Protection. It has a frame size rated current of 50A and a rated breaking capacity of 6kA. The residual current operating time of RCBO Type A is ≤ 0.1s and the residual current off-state is ≤ 0.1mA.
This product is designed for a wide range of applications, with its high breaking capacity and excellent operating time. RCBO Type A is an ideal choice for residential and industrial areas, providing reliable protection against over-currents and short-circuits.
RCBO Type A is a highly reliable product, made with top quality materials and designed to meet the highest safety standards. With its compact size and easy installation, it is an efficient and reliable solution for any application.
Product Name: RCBO Type A
Rated short-circuit breaking capacity Icn: 230/240V 6000A, 10000A; 120V 15000A
Frame size rated current Inm: 50A
Rated residual non-operating current I△no: 0.005A, 0.015A, 0.05A, 0.15A
Rated Residual Current Off-state: ≤0.1mA
Rated impulse withstand voltage Uimp: 6000V
HAROK RCBO Type A Circuit Breaker is a residual current operated circuit breaker with over-current protection. It is designed with a rated residual non-operating current of 0.005A, 0.015A, 0.05A, 0.15A, and a rated residual current on-state of ≤0.2mA. It has a mechanical life of 2000 and an electrical life of 2000. It is designed for a variety of applications, including VRL22, VAL003, VKL003, VDL006, VRL11, VRL01, VRL02, VRL03, VK007LE. HAROK RCBO Type A Circuit Breaker is made in China and has been widely used in many places for its reliable performance.
| Parameter | Value |
|---|---|
| Product Name | RCBO Type A |
| Rated Frequency | 50/60Hz |
| Frame size rated current Inm | 50A |
| Rated Current | 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A |
| Rated Breaking Capacity | 6kA |
| Rated Residual Current On-state | ≤0.2mA |
| Rated Residual Current Off-state | ≤0.1mA |
| Rated residual non-operating current I△no | 0.005A, 0.015A, 0.05A, 0.15A |
| Mechanical life | 2000 |
| Electrical life | 2000 |
Looking for a reliable RCBO Circuit Breaker? Look no further. HAROK's RCBO Type A is the perfect product for you. It is made of high-quality materials with the following features:
Brand Name: HAROK
Model Number: VRL22, VAL003, VKL003, VDL006, VRL11, VRL01, VRL02, VRL03, VK007LE
Place of Origin: CHINA
Product Name: RCBO Type A
Rated residual operating current I△n: 0.01A, 0.03A, 0.1A, 0.3A
Frame size rated current Inm: 50A
Rated Breaking Capacity: 6kA
Rated Residual Current Off-state: ≤0.1mA
HAROK's RCBO Type A is the perfect solution for your RCBO Circuit Breaker needs.
Packaging and Shipping
RCBO Type A product is packaged with a corrugated box, bubble wrap, and Styrofoam corners. The box is sealed with tape and labeled with a warning sign. After packaging the product, it is shipped in a cardboard box with appropriate cushioning material to protect it from damage during transit.
