RCBO | Residual Current Circuit Breaker
with Overcurrent Protection

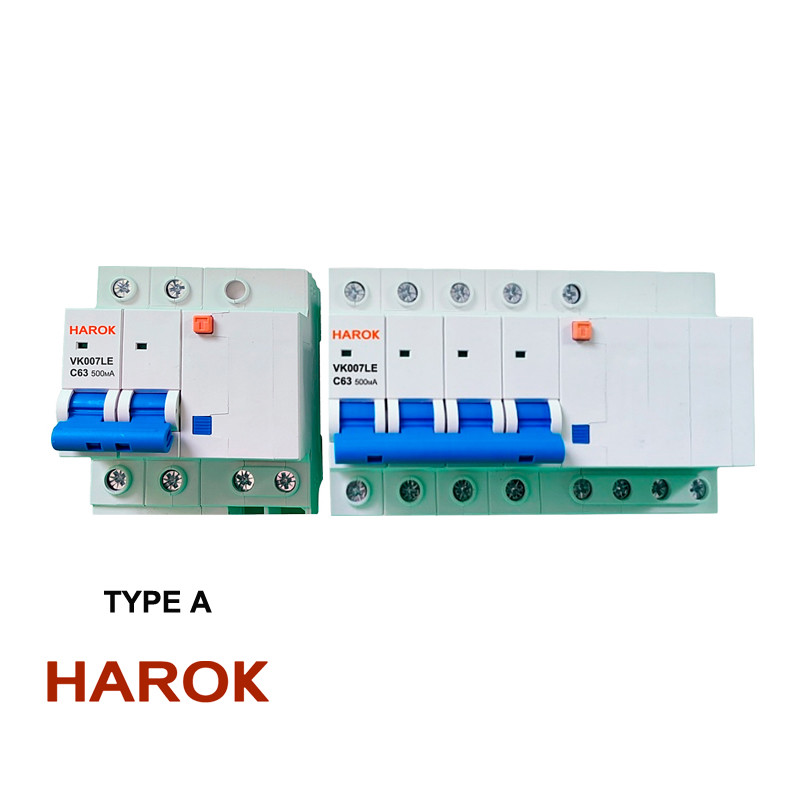

VK007LE Residual Current Operated Circuit Breaker with Overcurrent Protection (RCBO)
1. General
VK007LE residual current operated circuit breakers with overcurrent protection (RCBO) are suitable for lines with AC 50/60Hz, rated voltage 240V/415V, rated current up to 63A and for purposes of residual current protection, overload and short circuit protection. When any personal electric shock occurs or the circuit leakage current exceeds the predetermined value, the residual current operated circuit breaker can automatically cut off the power supply in a very short period of time, so that the safety of persons and electrical equipment can be operated. The residual current operated circuit breaker can be used for infrequent conversion of lines under normal conditions, and applied under occasions such as industrial, and commercial, high-rise buildings and residential houses.
2. Technical parameters

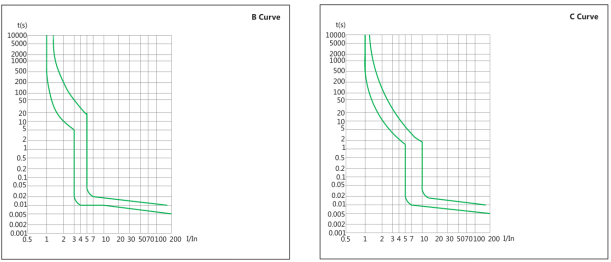

2.1 The tripping characteristic curves are as shown below.
2.2 Basic parameters
| Standard | IEC/EN 61009-1 | |
| Main Specifications | Model No. | VK007LE |
| Rated current In | 6A, 10A, 13A,16A, 20A, 25A, 32A, 40A, 50A, 63A | |
| Tripping Curve | B: (3 ~ 5) In, C: (5 ~ 10) In | |
| Poles | 1P + N, 2P, 3P, 3P+N, 4P | |
| Type (wave form of the earth leakage sensed) | Type AC, Type A | |
| Mechanical features | Rated voltage Ue | AC240V, AC415V |
| Frame size rated current In | 63A | |
| Rated residual operating current I△n | 30mA, 100mA, 300mA, 500mA | |
| Rated residual non-operating current I△no | 15mA, 50mA, 150mA, 250mA | |
| Rated short-circuit breaking capacity Icn | 4500A, 6000A | |
Rated residual making and breaking capacity I△m | 500A | |
| Electrical life | 2,000 | |
| Mechanical life | 2,000 | |
| Rated impulse withstand voltage Uimp | 4000V | |
| Connection | From top and bottom |
2.3 The residual current breaking times
| In (A) | I△n (A) | Breaking time when the residual current assumes the following values (s) | ||||
| I△n | 2I△n | 5I△n | 5A, 10A, 20A, 50A, 100A, 200A, 500A(a) | I△t(b) | ||
| 6~63 | 0.01, 0.03, 0.1, 0.3, 0.5 | 0.1 | 0.05 | 0.04 | 0.04 | 0.04 |
a. For tests of 5A, 10A, 20A, 50A, 100A, 200A and 500A, the current values beyond the lower limit of over-current instantaneous tripping are not tested. B. Tests are done when I△t is equal to the lower limit current of over-current instantaneous tripping of type B and type C. | ||||||
2.4 The over-current protection characteristics
| No. | Rated current In (A) | Initial state | Test current (A) | Specified time (t) | Expected result | Remarks |
| a | 6 ~ 63 | Cold state | 1.13 In | t ≥ 1h | Non-tripping | |
| b | Immediately after sequence a | 1.45 In | t < 1h | Tripping | Increase to the specified current within 5s after test item a. | |
| c | Cold state | 2.55 In | 1s < t < 60s | Tripping | ||
| d | Cold state | 3 In | t ≥ 0.1s | Non-tripping | Curve B | |
| 5 In | t < 0.1s | Tripping | ||||
| 5 In | t ≥ 0.1s | Non-tripping | Curve C | |||
| 10 In | t < 0.1s | Tripping |
RCBO Type A is a Residual Current Operated Circuit Breaker with over-current protection. It is equipped with a reliable, long-lasting, and strong mechanical life of 2000. It has two connection options, from top to bottom and from bottom to top. The rated residual current operating time is 0.1 seconds or less. It is also equipped with four types of rated residual non-operating current, 0.005A, 0.015A, 0.05A, and 0.15A. Its rated voltage is AC240V. It is a reliable and effective RCBO Circuit Breaker and provides a safe and secure environment.
Product Name: RCBO Type A
Rated voltage Ue: AC240V
Frame size rated current Inm: 50A
Rated Breaking Capacity: 6kA
Rated Current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A
Classified by Type of Instantaneous Tripping: Type B: (3 ~ 5) In, Type C: (5 ~ 10) In
RCBO Type A, a Residual Current Operated Circuit Breaker with over-current protection, is a reliable and secure electrical protection device. Developed by HAROK, RCBO Type A features a wide range of models, including VRL22, VAL003, VKL003, VDL006, VRL11, VRL01, VRL02, VRL03 and VK007LE, and is manufactured in CHINA. It provides a Rated Residual Current Operating Time of ≤0.1s, and is classified by Type of Instantaneous Tripping as Type B: (3 ~ 5) In, and Type C: (5 ~ 10) In. The Rated Frequency is 50/60Hz, and the Rated Residual Operating Current is 0.01A, 0.03A, 0.1A and 0.3A. The Rated Residual Current On-state is ≤0.2mA. RCBO Type A is an ideal choice for ensuring safety and stability in your electrical systems.
| Property | Value |
|---|---|
| Rated Current | 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A |
| Rated Residual Current Off-state | ≤0.1mA |
| Rated residual operating current I△n | 0.01A, 0.03A, 0.1A, 0.3A |
| Rated Breaking Capacity | 6kA |
| Rated voltage Ue | AC240V |
| Rated impulse withstand voltage Uimp | 6000V |
| Rated Frequency | 50/60Hz |
| Electrical life | 2000 |
| Rated short-circuit breaking capacity Icn | 230/240V 6000A, 10000A; 120V 15000A |
| Rated Residual Current Operating Time | ≤0.1s |
Brand Name: HAROK
Model Numbers: VRL22, VAL003, VKL003, VDL006, VRL11, VRL01, VRL02, VRL03, VK007LE
Place of Origin: CHINA
Electrical life: 2000
Rated Current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A
Rated Residual Current On-state: ≤0.2mA
Rated Voltage Ue: AC240V
Classified by Type of Instantaneous Tripping: Type B: (3 ~ 5) In, Type C: (5 ~ 10) In
RCBO Type A is a circuit breaker designed to protect electrical systems from overload, short circuits and ground faults. It is suitable for both residential and commercial applications. The product features a high-quality design that ensures its durability and reliable performance. With its rated current of 6A, 10A, 16A, 20A, 25A, 32A, 40A, and 50A, it is suitable for a wide range of applications. It also offers a rated residual current on-state of ≤0.2mA and is classified by type of instantaneous tripping into Type B: (3 ~ 5) In and Type C: (5 ~ 10) In.
HAROK RCBO Type A is a reliable circuit breaker with a long electrical life of 2000 that is designed to provide protection against overloads, short circuits and ground faults. With its wide range of rated current and rated voltage, it is suitable for a range of applications. It is also highly reliable and durable, making it an ideal choice for any commercial or residential application.
