| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Model Number | VDL01 |
| Minimum Order Quantity | 3000PCS |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Type | Normal Type, Type S | Rated Current | 300mA, 500mA |
|---|---|---|---|
| Rated Voltage | 230/240V, 400/415V | Standard | NF C 61450, NF C 62411, IEC 61009 |
| Breaking Capacity | 3kA | Pole | 2P, 4P |
| High Light | 3kA RCBO Type A,Residual Current Operated Circuit Breaker 3kA,type A rcbo 10A 30mA | ||

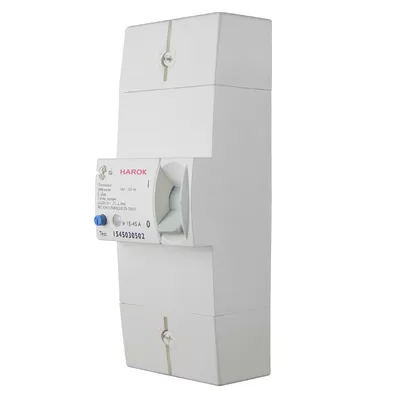

VDL01 Residual Current
Operated Circuit Breaker
with over-current protection
1. General
VDL01 residual current operated circuit breakers are suitable for lines with rated voltage 230/240V, 400/415V, rated current adjustable from 5A up to 90A, and for purposes of residual current protection, overload and short circuit protection. It can be applied under occasions such as industrial, and commercial, high-rise buildings and residential houses, with advantages as below:
1) High level of safety protection.
2) Not affected by ambient temperature.
3) Multi-stage adjustment of rated current
4) Digital display of rated current.
5) Strong electricity anti-stealing capacity.
2. Technical parameters
2.1 Basic parameters
| Standard | NF C 61450, NF C 62411, IEC 61009 | |||||
| Main Specifications | Model No. | VDL01 | ||||
| Rated current In | 5/15A | 10/30A | 15/45A | 30/60A | 60/90A | |
| Poles | 2P, 4P | |||||
| Type | Normal Type, Type S | |||||
| Mechanical features | Rated voltage Ue | 230/240V, 400/415V | ||||
| Rated residual operating current I△n | 300mA, 500mA | |||||
| Rated short-circuit breaking capacity Icn | 3kA | |||||
Rated residual making and breaking capacity I△m | 2000A | 2000A | 2000A | 2400A | 2400A | |
| Electrical life | 2,000 | |||||
| Mechanical life | 2,000 | |||||
| Pollution degree | 3 | |||||
Ambient temperature (with daily average≤35℃; altitude ≤ 2000m) | -5℃ to 40℃ | |||||
| Ambient humidity | ≤90%(when ambient temperature≤25℃); ≤50%(when ambient temperature = 40℃) | |||||
| Installation | Vertical tilt on installation | ≤5° | ||||
| Terminal size top/bottom for cable | 2.5mm² | 6 mm² | 10 mm² | 16 mm² | 35 mm² | |
| 14AWG | 10 AWG | 8 AWG | 6 AWG | 3 AWG | ||
| Connection | From top and bottom | |||||
2.2 The residual current breaking times
| MODEL | In (A) | I△n (A) | Breaking time when the residual current assumes the following values (s) | ||||
| I△n | 2I△n | 5I△n | 500A | ||||
| Normal type | Any value | any value | 0.3 | 0.15 | 0.04 | 0.04 | Maximum breaking time |
| S Type | ≥25 | >0.030 | 0.5 | 0.2 | 0.15 | 0.15 | Maximum breaking time |
| 0.13 | 0.06 | 0.05 | 0.04 | Limit non-actuating time | |||
2.3 The over-current protection characteristics
| Poles | In (A) | Adj In(A) | 1.1Ir s | 1.4Ir s | 2.5Ir s | 5Ir s | 10Ir s | 10In s | 20In s | 25In s | 29In s | 43In s |
| 2 | 15
| 5 | ∞ | 2＜t≤900 | 0.5＜t≤40 | 0.1＜t≤5 | t≤0.8 | / | / | / | t≤0.0012 | / |
| 10 | 0.8＜t≤5 | t≤0.8 | / | / | / | |||||||
| 15 | 0.05＜t≤5 | t≤0.3 | t≤0.03 | / | ||||||||
| 45 | 15 | ∞ | 2＜t≤900 | 0.5＜t≤40 | 0.1＜t≤5 | t≤0.8 | / | / | / | t≤0.0012 | / | |
| 30 | 0.8＜t≤5 | t≤0.8 | / | / | / | / | ||||||
| 45 | 0.05＜t≤5 | t≤0.3 | t≤0.03 | / | / | |||||||
| 60 | 30 | ∞ | 2＜t≤900 | 0.5＜t≤40 | 0.08＜t≤5 | t≤0.8 | / | / | / | / | / | |
| 45 | 0.06＜t≤5 | t≤0.8 | / | / | / | |||||||
| 60 | 0.05＜t≤5 | t≤0.3 | t≤0.02 | t≤0.0012 | ||||||||
| 90 | 60 | ∞ | 2＜t≤900 | 0.5＜t≤40 | 0.08＜t≤12 | t≤1.2 | / | / | / | / | / | |
| 75 | 0.06＜t≤7 | t≤0.7 | / | / | / | |||||||
| 90 | 0.05＜t≤5 | t≤0.3 | t≤0.02 | t≤0.0012 | ||||||||
| 4 | 30 | 10 | ∞ | 2＜t≤900 | 0.5＜t≤40 | 0.1＜t≤5 | t≤0.8 | / | / | / | / | / |
| 15 | 0.1＜t≤5 | t≤0.8 | / | / | / | |||||||
| 20 | 0.08＜t≤5 | t≤0.8 | / | / | / | |||||||
| 25 | 0.06＜t≤5 | t≤0.8 | / | / | / | |||||||
| 30 | 0.05＜t≤5 | t≤0.5 | t≤0.05 | t≤0.012 | ||||||||
| 60 | 30 | ∞ | 2＜t≤900 | 0.5＜t≤40 | 0.1＜t≤5 | t≤0.8 | / | / | / | / | / | |
| 40 | 0.08＜t≤5 | t≤0.8 | / | / | / | |||||||
| 50 | 0.06＜t≤5 | / | / | / | / | |||||||
| 60 | 0.05＜t≤5 | t≤0.6 | t≤0.3 | t≤0.02 | t≤0.0012 |
3. Outline and installation dimensions (mm)
RCBO Type A is a Residual Current Operated Circuit Breaker with over-current protection, which is designed to provide reliable protection for electrical circuits and equipment. This device has a rated voltage of AC240V, a rated breaking capacity of 6kA, a frame size rated current Inm of 50A, and a rated residual operating current I△n of 0.01A, 0.03A, 0.1A, 0.3A. The RCBO CIRCUIT BREAKER offers maximum protection and safety, with a mechanical life of 2000. The RCBO Type A is a reliable and cost-effective solution for protecting electrical circuits and equipment from over-current and short-circuit damage.
Product Name: RCBO Type A
Rated residual non-operating current I△no: 0.005A, 0.015A, 0.05A, 0.15A
Rated Residual Current Operating Time: ≤0.1s
Rated Breaking Capacity: 6kA
Mechanical life: 2000
HAROK RCBO TYPE A is a Residual Current Operated Circuit Breaker with over-current protection, which offers maximum protection to your electrical system. It comes with model numbers such as VRL22, VAL003, VKL003, VDL006, VRL11, VRL01, VRL02, VRL03 and VK007LE, and is manufactured in China. Its frame size rated current is 50A, making it suitable for a variety of applications. The rated breaking capacity of the device is 6kA, while its rated residual current on-state is ≤0.2mA. Boasting an impressive electrical life of 2000, the device is designed to operate with an AC240V rated voltage. HAROK RCBO TYPE A is the ideal choice for reliable protection from over-currents and short circuits.
| Attribute | Description |
|---|---|
| Rated impulse withstand voltage Uimp | 6000V |
| Rated short-circuit breaking capacity Icn | 230/240V 6000A, 10000A; 120V 15000A |
| Rated Current | 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A |
| Mechanical life | 2000 |
| Frame size rated current Inm | 50A |
| Rated Residual Current Off-state | ≤0.1mA |
| Connection | From Top To Bottom; From Bottom To Top |
| Rated residual non-operating current I△no | 0.005A, 0.015A, 0.05A, 0.15A |
| Rated Residual Current Operating Time | ≤0.1s |
| Rated residual operating current I△n | 0.01A, 0.03A, 0.1A, 0.3A |
Welcome to HAROK's RCBO Type A customization service. Our RCBO Type A is a Residual Current Operated Circuit Breaker with over-current protection. We offer a variety of models for your choice, including VRL22, VAL003, VKL003, VDL006, VRL11, VRL01, VRL02, VRL03, VK007LE. Our RCBO Type A is made in China. Rated residual non-operating current I△no: 0.005A, 0.015A, 0.05A, 0.15A. Rated residual operating current I△n: 0.01A, 0.03A, 0.1A, 0.3A. Rated Residual Current Operating Time: ≤0.1s. Rated Residual Current Off-state: ≤0.1mA. Connection: From Top To Bottom; From Bottom To Top.
Packaging and Shipping of RCBO Type A:
Each RCBO Type A product is placed in a box with customized dimensions.
The box is filled with a protective foam to ensure the product is safely stored.
The box is then sealed and labeled with the RCBO type A product name.
The box is then packed in a cardboard box for shipping.
The cardboard box is also labeled with the RCBO type A product name.
The package is then shipped to the customer.
