Brand Name | HAROK |
PRODUCT DETAILS
High Light | IP67 PV System Protection , 1000V Solar DC Connector , IP67 Solar DC Connector |
PRODUCT DESCRIPTION

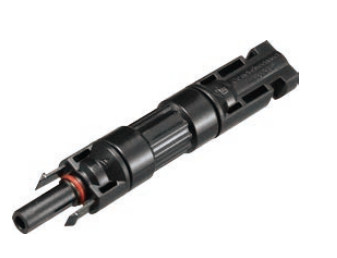

DC connector MD-MC4 series are applicable for use in connection for photovoltaic devices like DC
combiner box, Inverters, String Combiner Boxes, etc ,double electric shock free protection for load
closure and disconnection,can meet quick connection and anti vibration function.
rainproof,moisture-proof,dust-proof and durable .waterproof grade IP67.high heat
resistance,wear resistance,durability, corrosion resistance, thick copper inner core,high quality
material selection.
Technical dlata
Connector system | Φ4mm |
Rated voltage | 1000V DC(IEC)1 |
Rated current | 10A,15A,20A(1.5mm2,2.5mm2;14AWG,4mm2; 6mm2; 12AWG,10AWG) |
Test voltage | 6kV(50Hz,1min.) |
Temperature Range | -40℃C...+90°(IEC) -40℃...+75℃(UL) |
Upper Temperature Limit | +105℃(IEC) |
Degree of protection,mated | IP67 |
unmated | IP2X |
Comtact resistanceof plug connectors | 0.5mΩ |
Safety class | II |
Contact material | Messing,verzinnt Copper Alloy,tin plated |
Insulation mtacenal | PC/PPO |
Locking system | Snap-in |
Fameclass | UL-94-VO |
Salt mist spray test,degree of severity 5 | IEC 60068-2-52 |
Dimensions(mm)
