Brand Name | HAROK |
Model Number | HKSPD1 |
Minimum Order Quantity | 3000 |
PRODUCT DETAILS
High Light | 3.0KV Low Voltage Surge Arrester , 2P Surge Protective Device , Low Voltage Surge Arrester 2P |
PRODUCT DESCRIPTION
HKSPD1 DC Surge Protection Device
1. Specification:
Material: PC flame retardant shell
Uc: 1000V
Type: #1, 10/20KA; #2, 20/40KA(Optional)
Nominal discharge current: 10KA(#1),20KA(#2)
Maximum discharge current: 20KA(#1), 40KA(#2)
Installation mode: 2P Guide rail mounting
Residual voltage after unloading voltage: <3.0KV
Rated connectivity and segmentation Ability: 1M

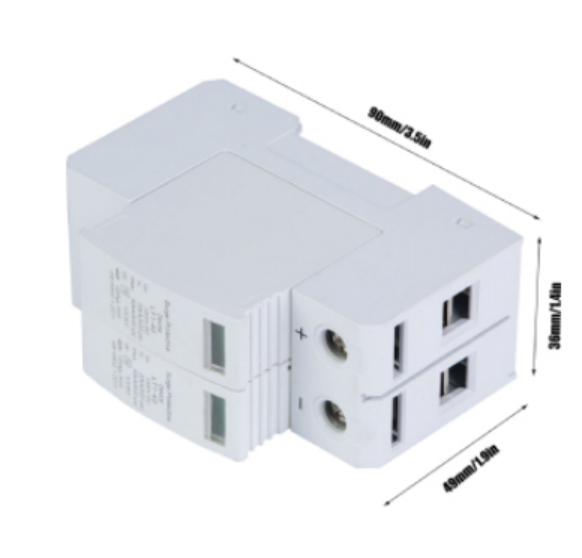

Product dimension: 90×49×36mm / 3.5×1.9×1.4in
Weight: 260g/9.2oz
2. Technical parameters
Standard | ICE61643-1 | |
Electrical features | Model No. | HKSPD1 |
Poles | 1P, 2P, 3P, 4P | |
Uc | 1000VDC | |
In (8/20µs) | 20kA | |
Imax (8/20µs) | 40kA | |
Up (8/20µs) | ≤ 3.0kV | |
tA | ≤ 25 ns | |
Mechanical features | Electrical life | ≤4,000 |
Mechanical life | ≤4,000 | |
Fail-safe mode | Disconnection | |
Failure indication | Green: normal Red: Invalid | |
Sheathing Material | PBT UL94VO | |
Protection degree | IP20 | |
Size | 90×49×36(2p) | |
Operating temperature | -25℃ to 60℃ | |
Storage temperature | -40℃ to 75℃ | |
Installation | Terminal size top/bottom for cable | 2.5-25mm2 |
Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device |

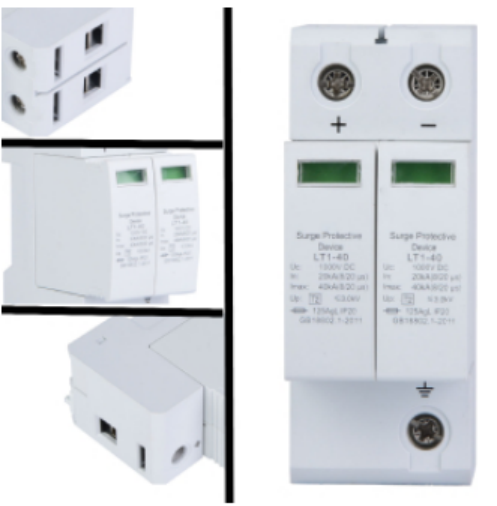

3. Good Electrical Conductivity
The voltage surge arrester device is of purple copper fittings, with good electrical conductivity, adopting modular design, and its use and maintenance are very simple. The shell of the voltage surge arrester device is made of PC flame retardant material, which is safer to use, with good quality and fine performance, deserving your choice.
· ✈ STABLE PERFORMANCE---The voltage surge arrester device is made of precise electronic components, with longer service life and more stable performance, helping to finish your work more effectively
· ✈ GOOD ELECTRICAL CONDUCTIVITY---The voltage surge arrester device is of purple copper fittings, with good electrical conductivity, adopting modular design, and its use and maintenance are very simple
·
· ✈ SIMPLE INSTALLATION---The voltage surge arrester device adopts 2P guide rail installation, installation is very simple. Installation with standard 36MM guide rail and use with circuit breaker in distribution box
· ✈ SAFE TO USE---The shell of the voltage surge arrester device is made of PC flame retardant material, which is safer to use, with good quality and fine performance, deserving your choice
· ✈ SUPERIOR AFTER SALE SUPPORT---Please feel free to contact us for your any problems about our product. It is our pleasure to service you. Do not doubt your importance to us.

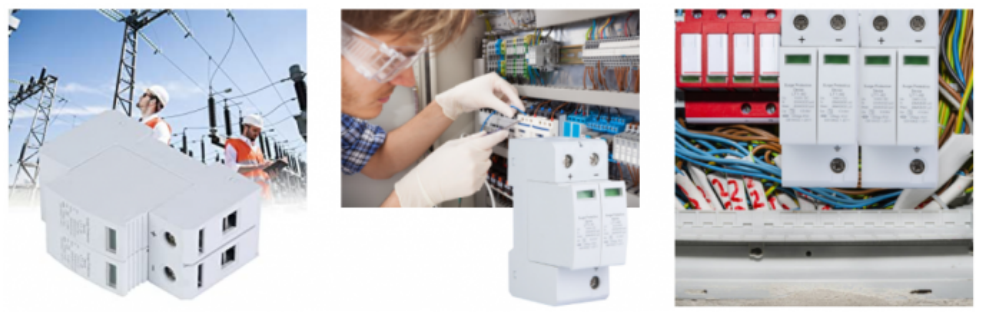

4. Widely application
