Brand Name | HAROK |
PRODUCT DETAILS
High Light | 63A PV System Protection , 30A PV DC Combiner Box , 63A PV DC Combiner Box |
PRODUCT DESCRIPTION
Suitable for PV system, equipped with a surge protector and isolator fuses, provid-ing isolation,
leakage and grounding protection.
Specification
Model Number 1/1 2/1 2/2 3/1 | ||||||||
Input | 1 string | 2 string | 2 string | 3 string | ||||
Output | 1 string | 1 string | 2 string | 1 string | ||||
Max Voltage | 600V | 1000V | 600V | 1000V | 600V | 1000V | 600V | 1000V |
Max Current Input (Eachstring) | 30A | 30A | 30A | 30A | 30A | 30A | 30A | 30A |
Max Current Output (Eachstring) | 30A | 30A | 63A | 63A | 30A | 30A | 63A | 63A |
Enclosure | ||||||||
Material | PC/ABS | |||||||
Degree of Protection | IP65/IP66 | |||||||
Impacts | Ik10 | |||||||
Input Cable Glands | PG09,2.5-16 | |||||||
Output Cable Gland | PG21,2.5-16 | |||||||
Environment | ||||||||
Operating temperature | -25℃~+60℃ | |||||||
Model Number 3/3 4/2 6/2 6/3 | ||||||
Input | 3 string | 4 string | 6 string | 6 string | ||
Output | 1 string | 2 string | 2 string | 3 string | ||
Max Voltage | 600V | 1000V | 600V | 1000V | 1000V | 1000V |
Max Current Input (Eachstring) | 30A | 30A | 30A | 30A | 20A | 30A |
Max Current Output(Eachstring) | 30A | 30A | 63A | 63A | 63A | 63A |
Enclosure | ||||||
Material | PC/ABS | |||||
Degree of Protection | IP65/IP66 | |||||
Impacts | Ik10 | |||||
Input Cable Glands | PG09,2.5-16 | |||||
Output Cable Gland | PG21,2.5-16 | |||||
Environment | ||||||
Operating temperature | -25℃~+60℃ | |||||
Dimensions(unit:mm)

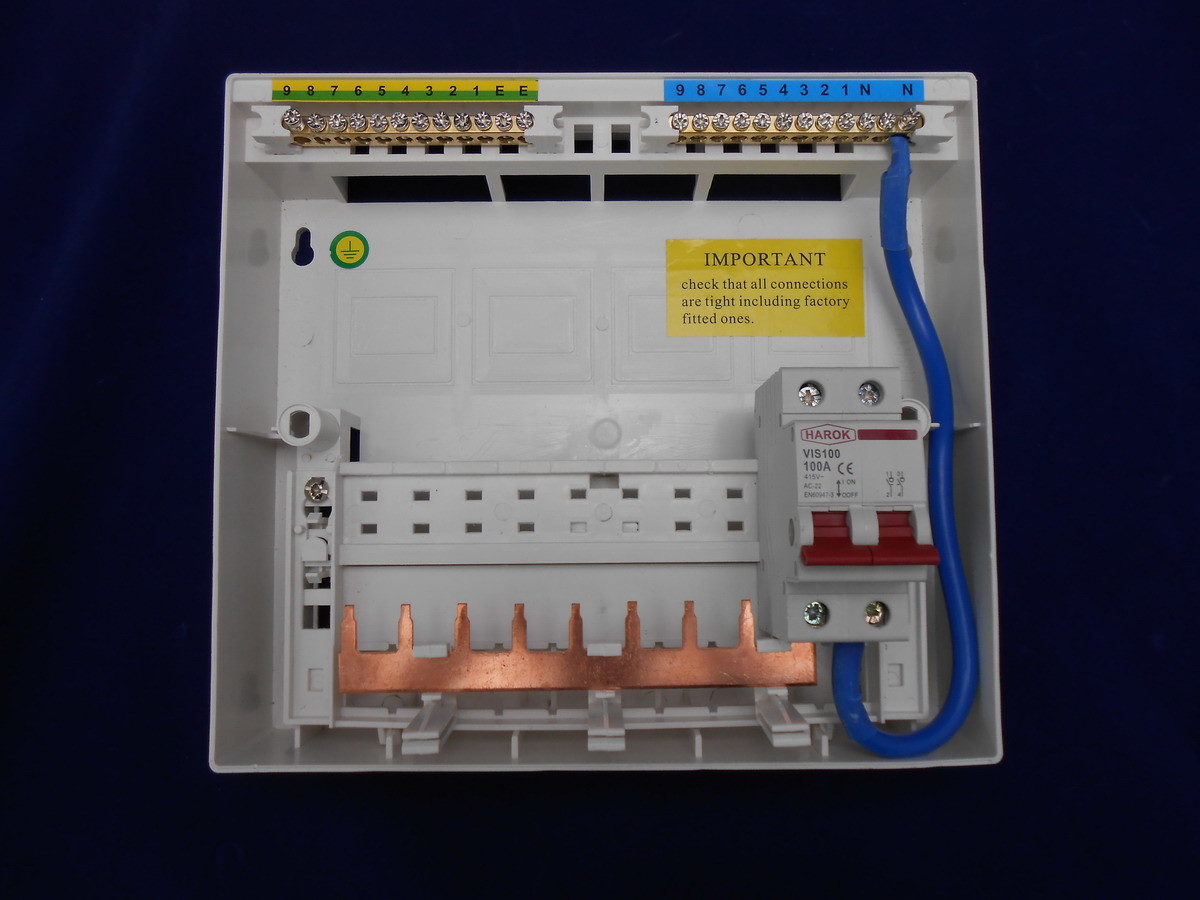

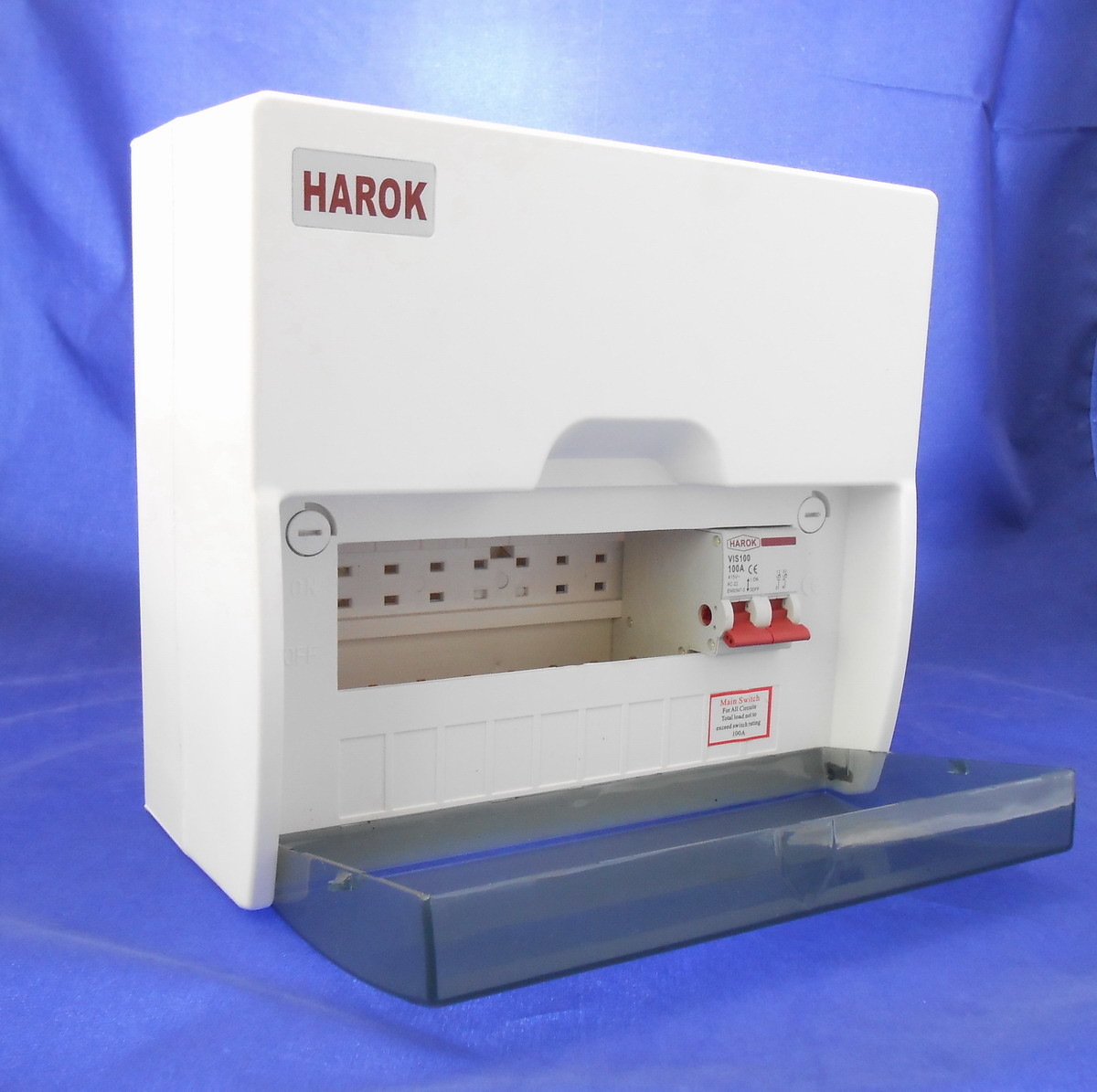

Distribution box(MDJB-A) L*W*H | |
8 Ways | 245x235x125 |
12 Ways | 315x235x125 |
18 Ways | 425x235x125 |
24 Ways | 315x405x125 |
4 Ways | 107x210x92 |
6 Ways | 165x200x100 |
9 Ways | 220x200x110 |
12 Ways | 270x230x110 |
18 Ways | 375x230x110 |
24 Ways | 270x375x110 |
36 Ways | 270x530x110 |
Technical Parameters
Model | MDJB-1/1 | MDJB-2/1 | MDJB-3/1 | MDJB-4/1 | MDJB-6/1 |
DC surge protection | |||||
Maximum working voltage | 1000V | ||||
Maximum discharge cumrent | 40 kA | ||||
Executive Standard | EN 50539-11 Type 2 | ||||
Certification | CE,TUV | ||||
DC isolated switch/DC MCB | |||||
Rated insulation pad | 1000V | ||||
Rated cumrent | 32A | 32A | 32A | 63A | 63A/80A |
Classification | DC-PV1/DC-PV2 | ||||
Executive Standard | IEC/EN 60947-3,UL5081 | ||||
Certification | CE,TUV CB, TUV Australia Approval | ||||
DC fuse | |||||
Rated working voltage | 1000V | ||||
Rated cument | 15~32A(Optional) | ||||
Dimensions (W"H*D) | Φ10·38mm | ||||
Executive Standard | TUV.CE,CB | ||||
Environmental parameters | |||||
Operating temperature | -20'℃-+60℃ | ||||
Humidity | 99% | ||||
Alitude | 2000m(2000m Above derating) | ||||
Instalation method | Wall-mounted installation | ||||

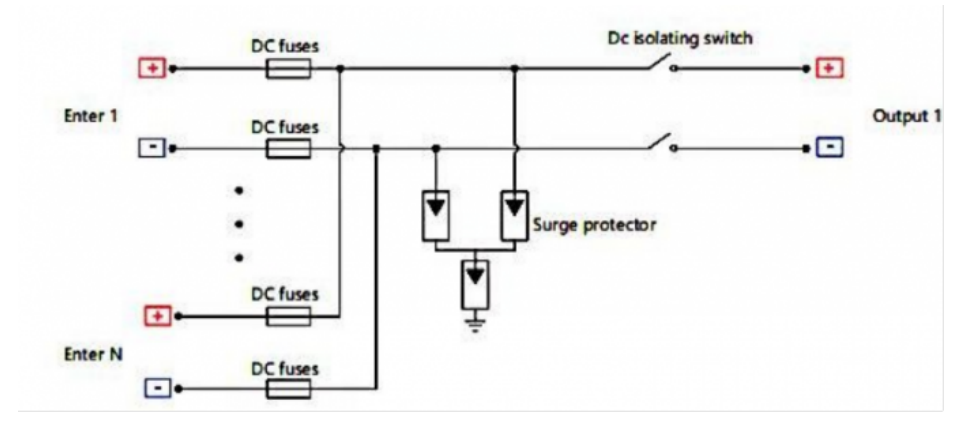

Diagram
