| Brand Name | HAROK |
|---|---|
| Certification | CE |
| Model Number | VIS100 |
| Minimum Order Quantity | 3000 |
| Product Name | Main Switch Isolator | Model | VIS100 |
|---|---|---|---|
| Color | White Body With Red Knob | Connection | From Top To Bottom |
| Poles | 1p/2p/3p/4p | Terminal Connection Type | Cable/U-type Busbar/Pin-type Busbar |
| Rated Voltage Ue | 240/415V | Protection Degree | IP20 |
| High Light | Main Switch Isolator CE,100A Main Switch Isolator | ||

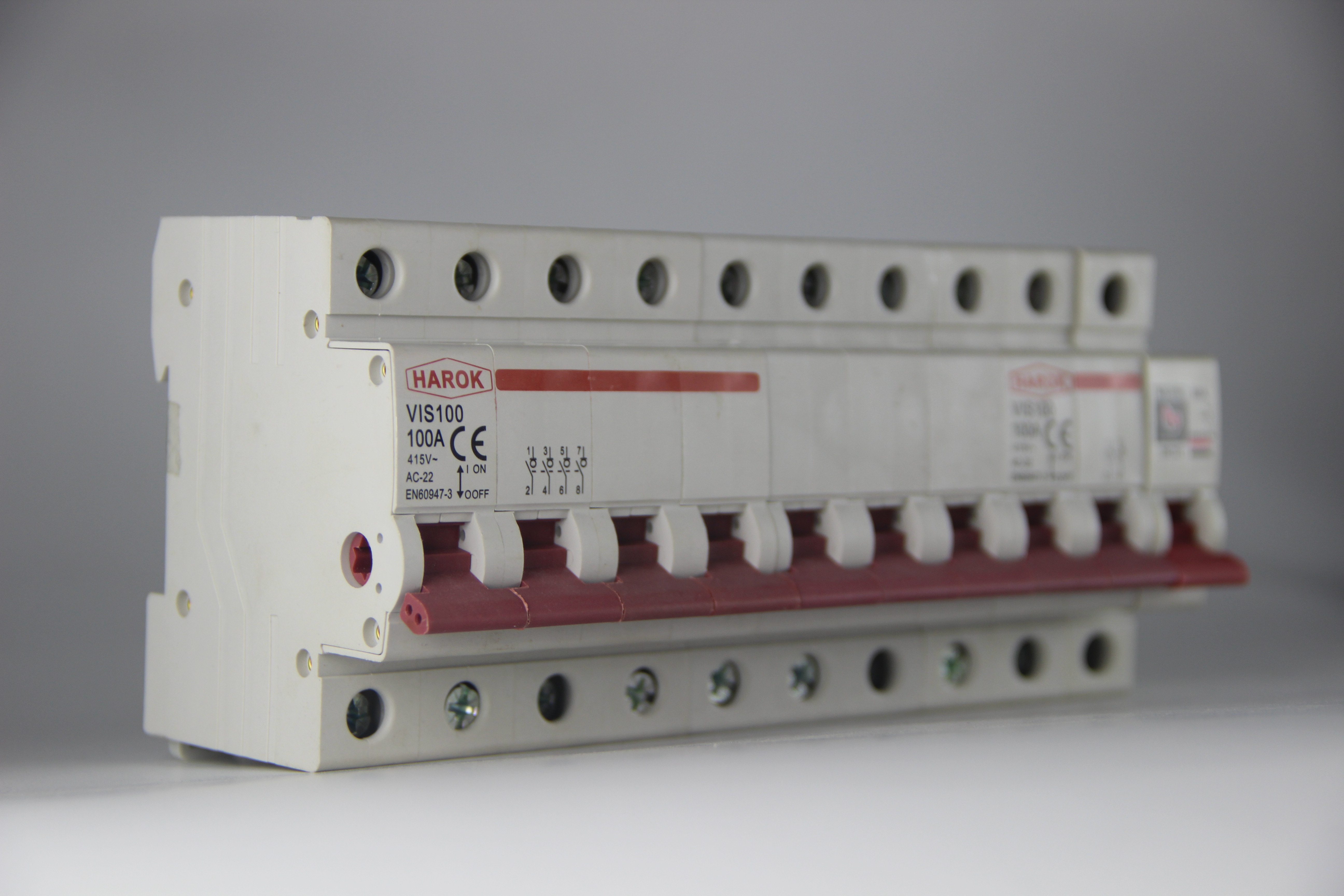

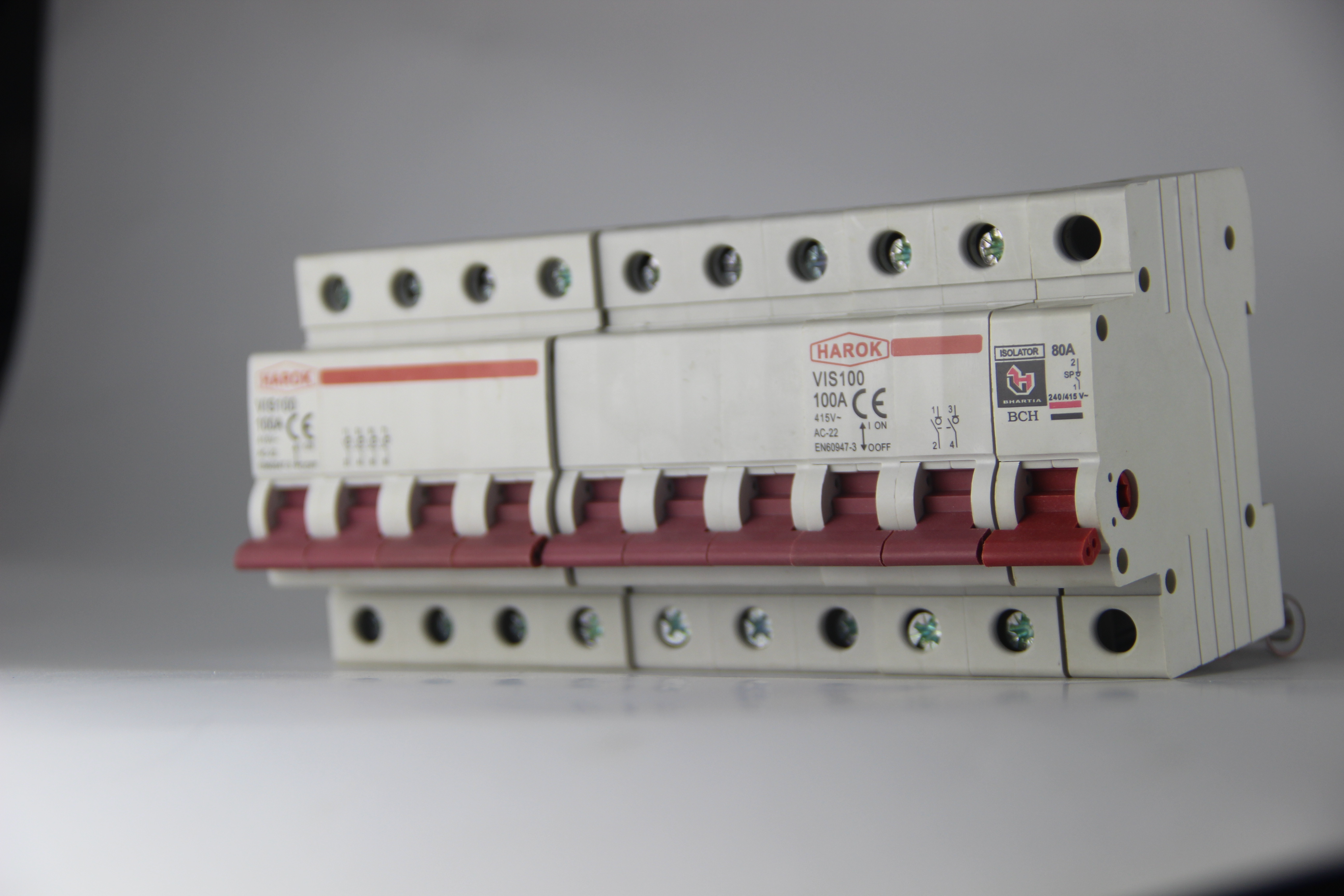

VIS100 Main Switch Isolator
1. General
VIS100 is applicable to circuit with rated voltage 240/415 AC, 50/60Hz for power distribution and motor operation as switching disconnector in both household & commercial electric equipment installations. It is free of maintenance and suitable for use by non-professionals.
In the open position, It complies with the requirements of
1.2 the isolating function.
1.2 It is designed to match HAROK MCBs/RCCBs/RCBOs.
1.3 Approvals and certificates
2. Technical parameters
| Standard | IEC/EN 60947-3 | |
| Electrical features | Model No. | VIS100 |
| Poles | 1P, 2P, 3P, 4P | |
| Rated voltage Ue | 240/415V | |
| Rated current Ie | 32A, 40A, 63A, 80A, 100A, 125A | |
| Rated frequency | 50/60 Hz | |
| Rated impulse withstand voltage(1.2/50) Uimp | 4000V | |
| Rated short-time withstand current Icw | 12Ie, 1s | |
| Rated making and breaking capacity | 3Ie, 1.05Ue, cosΦ=0.65 | |
| Rated short circuit making capacity Icm | 20Ie, t=0.1s | |
| Dielectric test voltage at ind. Freq. For 5s | 1.89kV | |
| Insulation voltage Ui | 500V | |
| Pollution degree | 2 | |
| Utilization category | AC-22A | |
| Mechanical features | Electrical life | 1,500 |
| Mechanical life | 8,500 | |
| Protection degree | IP20 | |
| Reference temperature for setting of thermal element | 30℃ | |
| Ambient temperature (with daily average≤35℃) | -5℃ to 40℃ | |
| Storage temperature | -25℃ to 70℃ | |
| Installation | Terminal connection type | Cable/U-type busbar/Pin-type busbar |
| Terminal size top/bottom for cable | 25 mm² | |
| 18-4 AWG | ||
| Terminal size top/bottom for busbar | 10 mm² | |
| 18-8 AWG | ||
| Tightening torque | 2.5 N·m | |
| 22 In-Ibs. | ||
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device | |
| Connection | From top and bottom |
3. Outline and installation dimensions (mm)
Rotary Isolator is a kind of main switch isolator, which is widely used in industrial and commercial applications for circuit isolation. It is a din rail product and comes in 1P, 2P, 3P, 4P poles with white body and red knob. The rated voltage Ue of this product is 240/415V and its rated frequency is 50/60 Hz. It also has a long electrical life of 1,500 cycles. This product is ideal for industrial and commercial applications where an effective and reliable circuit isolation is required.
Product Name: Rotary Isolator
Electrical life: 1,500
Color: White Body With Red Knob
Connection: From Top And Bottom
Mechanical life: 8,500
Protection Degree: IP20
Special Features: Main Switch Isolator, din rail products, Main Switch Isolator
HAROK VIS100 Rotary Isolator provides reliable circuit isolation and protection for electrical systems. It is a din rail product with a protection degree of IP20, and connection from top and bottom. It is available in 1P, 2P, 3P and 4P poles, and rated current Ie of 32A, 40A, 63A, 80A, 100A and 125A. The rotary isolator has a white body with red knob, making it a stylish addition to any electrical system. With its superior quality and reliable circuit isolation, the HAROK VIS100 Rotary Isolator is an ideal choice for protecting your electrical system.
| Parameter | Value |
|---|---|
| Product Name | Rotary Isolator |
| Ambient Temperature | -25℃~+55℃ |
| Electrical life | 1,500 |
| Mechanical life | 8,500 |
| Model No. | VIS100 |
| Protection Degree | IP20 |
| Rated current Ie | 32A, 40A, 63A, 80A, 100A, 125A |
| Certification | CE/RoHS |
| Connection | From Top And Bottom |
| Rated voltage Ue | 240/415V |
| Terminal connection type | Cable/U-type Busbar/Pin-type Busbar |
Harok VIS100 Rotary Isolator provides the highest level of circuit isolation and safety. With a rated current of up to 125A, rated frequency of 50/60 Hz, and IP20 protection degree, it is suitable for a wide range of applications. Harok VIS100 features terminal connection type of either Cable/U-type Busbar/Pin-type Busbar for easy installation, and a mechanical life of 8,500 operations. VIS100 is your ideal choice for circuit isolation and safety.
Brand Name: Harok
Model Number: VIS100
Place of Origin: China
Rated current Ie: 32A, 40A, 63A, 80A, 100A, 125A
Terminal connection type: Cable/U-type Busbar/Pin-type Busbar
Rated frequency: 50/60 Hz
Mechanical life: 8,500
Protection Degree: IP20
Rotary Isolators should be packaged in a sturdy, moisture-proof container. All containers should be clearly marked with the type of product, the exact quantity, and the name and address of the shipping party.
Rotary Isolators should be shipped in a manner that ensures safe and secure transport. The shipping party should choose an appropriate shipping method that meets the needs of both the shipper and receiver. This may include ground, air, rail, or sea freight.
If applicable, the shipping party should also include any required documentation, such as customs forms, hazardous material forms, etc.
It is also important to inspect the Rotary Isolator before shipping to ensure it is in good working condition. All packaging, containers, and components should be inspected prior to shipping.
When shipping Rotary Isolators, the shipping party should also take into account any applicable safety regulations and requirements. This may include the safe handling of hazardous materials, as well as proper labeling and documentation.
The shipping party should also take into consideration any applicable environmental regulations and requirements. This may include the proper disposal of any used materials or components, as well as recycling or reuse where possible.
Finally, the shipping party should ensure that all parties involved in the transaction are aware of the Rotary Isolator’s packaging and shipping requirements. This includes the shipper, the receiver, and any third-party service providers.
By following these guidelines, the shipping party can ensure that the Rotary Isolator is safely and securely shipped and received.
