VF002 Miniature Circuit Breaker
1. General
1.1 Function
-protection of circuits against short-circuit currents
-protection of circuits against overload currents, switch
-isolation
VF002 circuit-breakers are used in domestic installation, as well as in commercial and industry electrical distribution systems.
1.2 Selection
Technical data of the network at the point considered:
-short-circuit current at the circuit-breaker installation point, which must always be less than the breaking capacity of this device
-Network normal voltag
Tripping curves:
B curve (3-5In)
protection for people and big length cables in TN and IT systems.
C curves (5-10In)
protection for resistive and inductive loads with low inrush current.
2. Technical parameters
2.1
| Standard | IEC/EN 60898-1 | ||||
| Electrical features | Model No. | VF002 | |||
| Poles | 1P, 2P, 3P | ||||
| Rated current In | 6A, 10A, 15A, 16A, 20A, 25A, 30A, | ||||
| 32A, 35A, 40A, 45A, 50A, 60A, 63A | |||||
| Rated voltage Ue | 120V, 240/415V | ||||
| Insulation voltage Ui | 500V | ||||
| Rated frequency | 50/60 Hz | ||||
| Rated breaking capacity | 4500A, 6000A, 10000A | ||||
| Energy limiting class | 3 | ||||
| Rated impulse withstand voltage(1.2/50) Uimp | 4000V | ||||
| Dielectric test voltage at ind. Freq. for 1 min | 2kV | ||||
| Pollution degree | 2 | ||||
| Thermo-magnetic release characteristic | B, C | ||||
| Mechanical features | Electrical life | 10,000 | |||
| Mechanical life | 20,000 | ||||
| Contact position indicator | Yes | ||||
| Protection degree | IP20 | ||||
Reference temperature for setting of thermal element | 30℃ | ||||
Ambient temperature (with daily average≤35℃) | -5℃ to 40℃ | ||||
| Storage temperature | -25℃ to 70℃ | ||||
| Installation | Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable | 25mm² | |
| 18-4AWG | ||
| Terminal size top/bottom for busbar | 10mm² | |
| 18-8 AWG | ||
| Tightening torque | 2.5 N·m | |
| 22In-Ibs. | ||

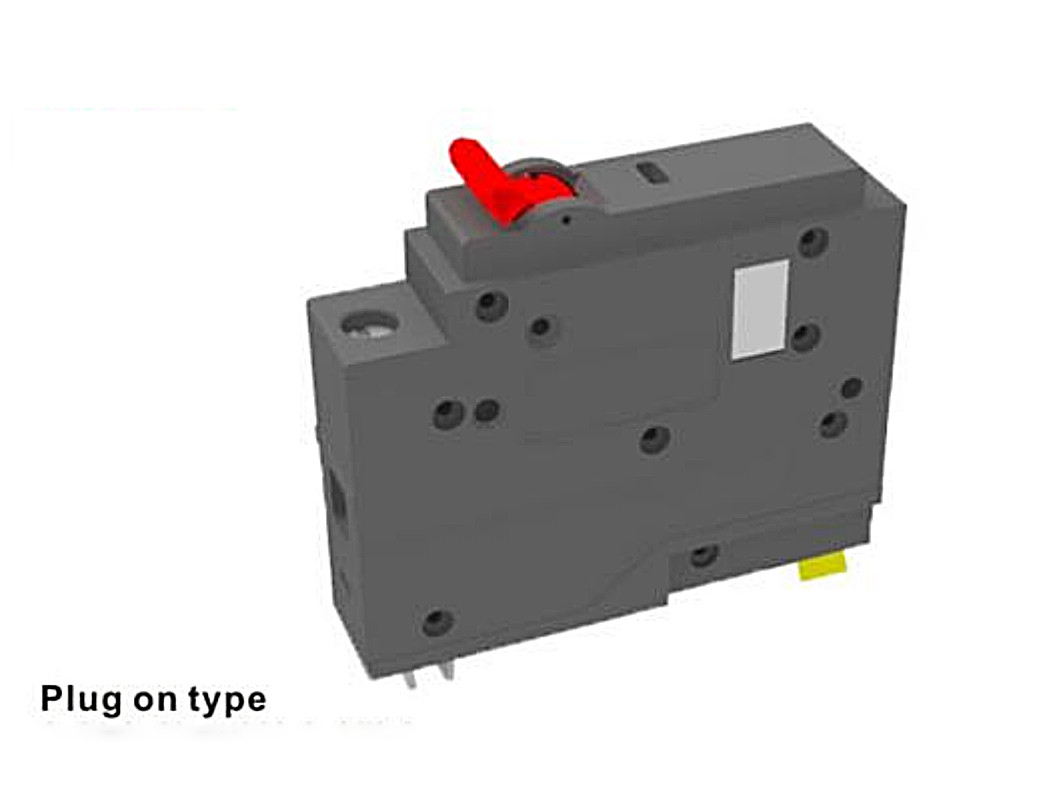

| Mounting | Plug-on Mounting | |
| Connection | From top and bottom | |
| Combination with accessories | Auxiliary contact | Yes |
Shunt release | Yes | |
| Under voltage release | Yes | |
Alarm contact | Yes |

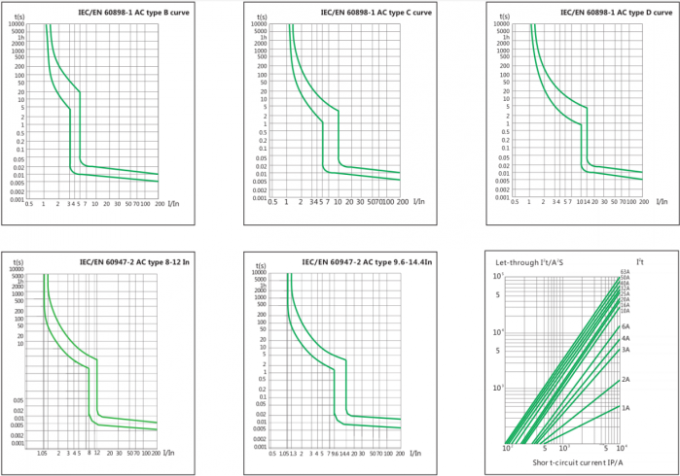

2.2 Curves
The UL489 Circuit Breaker is a reliable and safe mini circuit breaker which is certified by CE, SAA, SEMKO and NF and compliant with IEC/EN 60947-2 standards. It is a perfect choice for higher-level safety protection, and can be used in a wide range of rated voltage including 120V, 230/400V~240/415V. It has a thermo-magnetic release characteristic of B, C, D, which makes it especially suitable for the protection of household and similar electrical installations. It is a great product for many applications and provides superior protection for your electric system.
Product Name: UL489 Circuit Breaker
Mounting Type: On DIN Rail EN 60715 (35mm) By Means Of Fast Clip Device
Insulation voltage Ui: 500V
Certificate: CE, SAA, SEMKO, NF
Trip Type: Thermal-Magnetic
Mini Circuit breaker
The HAROK UL489 Circuit Breaker is the perfect choice for a wide range of applications, offering protection against overload and short circuit for residential, commercial, and industrial installations. This miniature circuit breaker (MCB) is made to meet the highest standards of safety and reliability, and comes in a variety of models—VF001, VF002, VF003, VK007, VA007, VF008, VK009— each with a 20,000 cycle mechanical life. Depending on the model number, it is available with rated voltage between 120V and 240/415V, and rated current from 1A to 63A. It features a 500V insulation voltage, providing maximum protection against electric shock. UL489 Circuit Breaker from HAROK is the ideal solution for any application, as it ensures reliable and safe protection of electrical circuits and equipment.
| Parameters | Value |
|---|---|
| Product Name | UL489 Circuit Breaker |
| Number of Poles | 1P, 1P+N, 2P, 3P, 3P+N, 4P |
| Rated Current | 1A, 2A, 3A, 4A, 6A, 10A, 15A, 16A, 20A, 25A, 30A, 32A, 40A, 45A, 50A, 60A, 63A |
| Operating Temperature | -5℃ To 40℃ |
| Reference temperature for setting of thermal element | 30℃ |
| Frequency Rating | 50/60 Hz |
| Protection Type | Overload And Short-Circuit |
| Certificate | CE, SAA, SEMKO, NF |
| Protection degree | IP20 |
| Electrical life | 10,000 |
Brand Name: HAROK
Model Number: VF001, VF002, VF003, VK007, VA007, VF008, VK009
Place of Origin: CHINA
Electrical life: 10,000
Number of Poles: 1P, 1P+N, 2P, 3P, 3P+N, 4P
Product Name: UL489 Circuit Breaker
Standards: IEC/EN 60947-2, IEC/EN 60947-2
Trip Type: Thermal-Magnetic
HAROK is a professional MCB supplier, offering customized UL489 Circuit Breaker with electrical life of 10,000 and various number of poles. The UL489 Circuit Breaker meets the standards of IEC/EN 60947-2 and IEC/EN 60947-2, and the trip type is thermal-magnetic. You are welcome to place orders with us.
