| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Certification | CE |
| Model Number | VIS100 |
| Minimum Order Quantity | 3000 |
| MODEL | VIS100 | POLES | 2 POLE |
|---|---|---|---|
| Rated Voltage Ue | 240V | Rated Current Ie | 32A, 40A, 63A, 80A, 100A, 125A |
| Rated Frequency | 50/60 Hz | Protection Degree | IP20 |
| High Light | 100a double pole isolator,63 amp 2 pole isolator,100 amp 2 pole isolator | ||

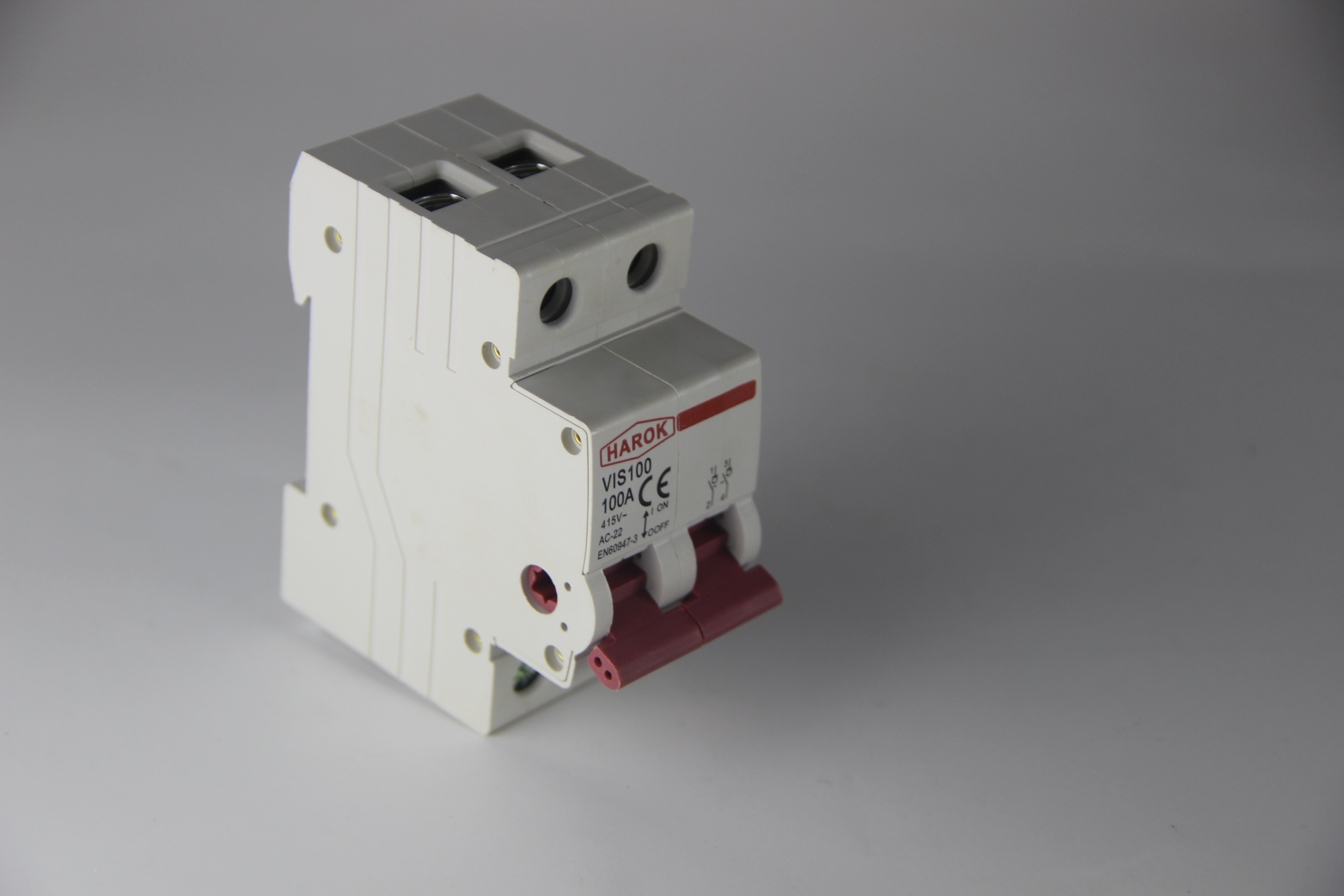

VIS100 Main Switch Isolator
Protect Electrical: The installation is simple and convenient to use, which effectively protects electrical appliances.
The shell is made of PC flame-retardant ; can be used with the circuit breaker of the distribution box.
Thunder Protection Effect: Prevent the danger of thunder, protect safety, quick response, good thunder protection effect.
Quality Materials: Using quality materials, strong and durable, has a long service life.
Widely Used: Widely used in workshops, outdoor monitoring boxes, companies, households, It is suitable for the new energy solar power generation system, and protects the lightning current connected to the tube, the direct lightning current or other instantaneous overvoltage.
VIS100 is applicable to circuit with rated voltage 240/415 AC, 50/60Hz for power distribution and motor operation as switching disconnector in both household & commercial electric equipment installations. It is free of maintenance and suitable for use by non-professionals.
In the open position, It complies with the requirements of
1.2 the isolating function.
1.2 It is designed to match HAROK MCBs/RCCBs/RCBOs.
1.3 Approvals and certificates
| Standard | IEC/EN 60947-3 | |
| Electrical features | Model No. | VIS100 |
| Poles | 2P | |
| Rated voltage Ue | 240/415V | |
| Rated current Ie | 32A, 40A, 63A, 80A, 100A, 125A | |
| Rated frequency | 50/60 Hz | |
| Rated impulse withstand voltage(1.2/50) Uimp | 4000V | |
| Rated short-time withstand current Icw | 12Ie, 1s | |
| Rated making and breaking capacity | 3Ie, 1.05Ue, cosΦ=0.65 | |
| Rated short circuit making capacity Icm | 20Ie, t=0.1s | |
| Dielectric test voltage at ind. Freq. For 5s | 1.89kV | |
| Insulation voltage Ui | 500V | |
| Pollution degree | 2 | |
| Utilization category | AC-22A | |
| Mechanical features | Electrical life | 1,500 |
| Mechanical life | 8,500 | |
| Protection degree | IP20 | |
| Reference temperature for setting of thermal element | 30℃ | |
| Ambient temperature (with daily average≤35℃) | -5℃ to 40℃ | |
| Storage temperature | -25℃ to 70℃ | |
| Installation | Terminal connection type | Cable/U-type busbar/Pin-type busbar |
| Terminal size top/bottom for cable | 25 mm² | |
| 18-4 AWG | ||
| Terminal size top/bottom for busbar | 10 mm² | |
| 18-8 AWG | ||
| Tightening torque | 2.5 N·m | |
| 22 In-Ibs. | ||
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device | |
| Connection | From top and bottom |
The Rotary Isolator is a certified CE/RoHS Main Switch Isolator for circuit isolation and safety protection. It features a white body with a red knob mounted on a DIN Rail EN 60715 (35mm) by means of a fast clip device, and connection from top and bottom. This isolator has a long mechanical life of 8,500 and is perfect for a variety of applications. It offers reliable circuit isolation and safety protection with a high quality construction and reliable performance. This product is ideal for any application that requires circuit isolation and safety protection.
Product Name: Main Switch Isolator
Connection: From Top And Bottom
Mounting: On DIN Rail EN 60715 (35mm) By Means Of Fast Clip Device
Ambient Temperature: -25℃~+55℃
Rated voltage Ue: 240/415V
Key Feature: Circuit Isolation
HAROK VIS100 Rotary Isolator is a reliable and cost-effective safety switch for circuit isolation, with a rated voltage of 240/415V and rated current of 32A, 40A, 63A, 80A, 100A or 125A. It is made in CHINA and offers a variety of terminal connection types, including cable, U-type busbar and Pin-type busbar, as well as 1P, 2P, 3P and 4P poles. The product can be quickly and easily mounted on a DIN Rail EN 60715 (35mm) by means of a fast clip device. This product is designed to provide superior electrical safety, making it suitable for many industrial and commercial applications, such as commercial buildings, factories, power plants and more.
Whether you are looking for a reliable and safe switch for circuit isolation or a din rail product for electrical safety, HAROK VIS100 Rotary Isolator is the perfect solution. With its high quality build, fast installation and cost-effectiveness, this product is sure to provide superior performance in a wide range of applications.
| Parameter | Value |
|---|---|
| Product Name | Main Switch Isolator |
| Rated frequency | 50/60 Hz |
| Color | White Body With Red Knob |
| Rated voltage Ue | 240/415V |
| Terminal connection type | Cable/U-type Busbar/Pin-type Busbar |
| Certification | CE/RoHS |
| Rated current Ie | 32A, 40A, 63A, 80A, 100A, 125A |
| Ambient Temperature | -25℃~+55℃ |
| Poles | 1P, 2P, 3P, 4P |
| Protection Degree | IP20 |
Brand Name: HAROK
Model Number: VIS100
Place of Origin: CHINA
Mechanical life: 8,500
Certification: CE/RoHS
Model No.: VIS100
Color: White Body With Red Knob
Ambient Temperature: -25℃~+55℃
HAROK VIS100 Rotary Isolator is a Din Rail product with circuit isolation, which is certified with CE/RoHS, and has a mechanical life of 8,500. It comes with a white body with red knob and works in the ambient temperature range of -25℃~+55℃.
Packaging and Shipping for Rotary Isolator:
The product is wrapped in a plastic film and then placed in a cardboard box, and a foam sheet is used to fill the gap.
The box is sealed with packaging tape and shipped to the customer.
Before leaving the warehouse, the product will be inspected for damage and any problems will be reported to the customer.
