| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Certification | CE |
| Model Number | VIS100 |
| Minimum Order Quantity | 3000 |
| Model No. | VIS100 | POLES | 4P |
|---|---|---|---|
| Rated Current Ie | 125A | Rated Impulse Withstand Voltage(1.2/50) Uimp | 4000V |
| Insulation Voltage Ui | 500V | Pollution Degree | Ll |
| High Light | 4 pole isolator switch 100A,100a isolator 4 pole,100a 4 pole isolator switch | ||

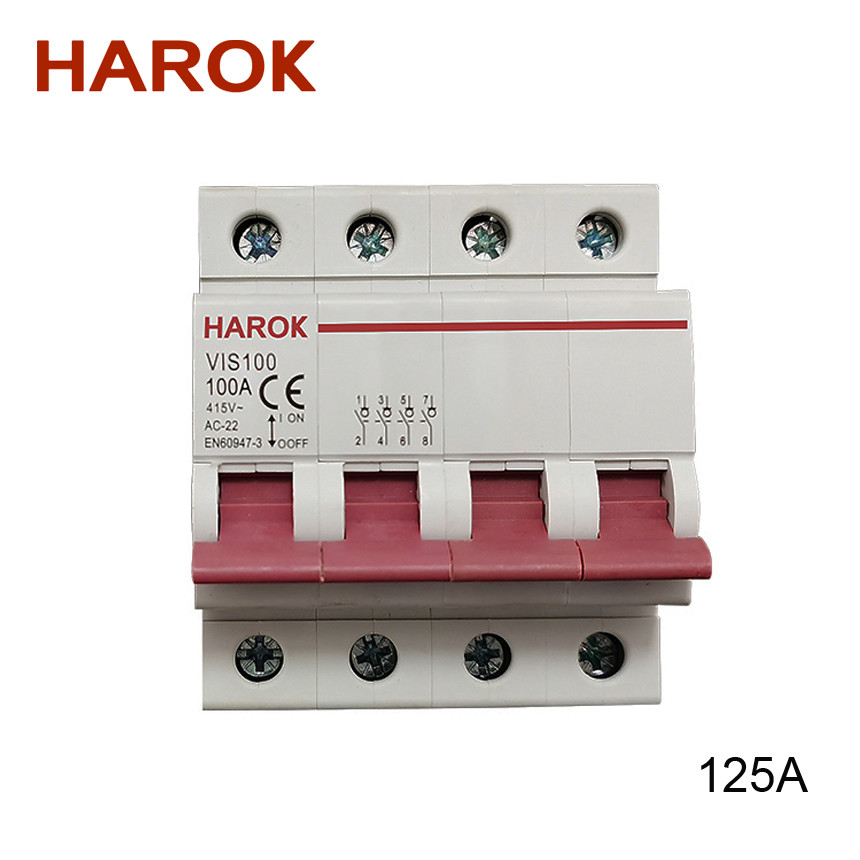

VIS100 Main Switch Isolator
Protect Electrical: The installation is simple and convenient to use, which effectively protects electrical appliances.
The shell is made of PC flame-retardant ; can be used with the circuit breaker of the distribution box.
Thunder Protection Effect: Prevent the danger of thunder, protect safety, quick response, good thunder protection effect.
Quality Materials: Using quality materials, strong and durable, has a long service life.
Widely Used: Widely used in workshops, outdoor monitoring boxes, companies, households, It is suitable for the new energy solar power generation system, and protects the lightning current connected to the tube, the direct lightning current or other instantaneous overvoltage.
VIS100 is applicable to circuit with rated voltage 240/415 AC, 50/60Hz for power distribution and motor operation as switching disconnector in both household & commercial electric equipment installations. It is free of maintenance and suitable for use by non-professionals.
In the open position, It complies with the requirements of
1.2 the isolating function.
1.2 It is designed to match HAROK MCBs/RCCBs/RCBOs.
1.3 Approvals and certificates
| Standard | IEC/EN 60947-3 | |
| Electrical features | Model No. | VIS100 |
| Poles | 4P | |
| Rated voltage Ue | 415V | |
| Rated current Ie | 125A | |
| Rated frequency | 50/60 Hz | |
| Rated impulse withstand voltage(1.2/50) Uimp | 4000V | |
| Rated short-time withstand current Icw | 12Ie, 1s | |
| Rated making and breaking capacity | 3Ie, 1.05Ue, cosΦ=0.65 | |
| Rated short circuit making capacity Icm | 20Ie, t=0.1s | |
| Dielectric test voltage at ind. Freq. For 5s | 1.89kV | |
| Insulation voltage Ui | 500V | |
| Pollution degree | 2 | |
| Utilization category | AC-22A | |
| Mechanical features | Electrical life | 1,500 |
| Mechanical life | 8,500 | |
| Protection degree | IP20 | |
| Reference temperature for setting of thermal element | 30℃ | |
| Ambient temperature (with daily average≤35℃) | -5℃ to 40℃ | |
| Storage temperature | -25℃ to 70℃ | |
| Installation | Terminal connection type | Cable/U-type busbar/Pin-type busbar |
| Terminal size top/bottom for cable | 25 mm² | |
| 18-4 AWG | ||
| Terminal size top/bottom for busbar | 10 mm² | |
| 18-8 AWG | ||
| Tightening torque | 2.5 N·m | |
| 22 In-Ibs. | ||
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device | |
| Connection | From top and bottom |
The VIS100 is a rotary isolator main switch designed to provide circuit isolation and protection. It is rated IP20 for protection against dust, dirt and other types of particles, and has a white body with a red knob. This switch is reliable and has an impressive mechanical life of 8,500. It is an ideal solution for providing circuit isolation in a variety of applications. The VIS100 isolator switch is designed for ultimate durability and reliability, making it an ideal choice for a wide range of applications.
The VIS100 rotary isolator main switch is designed with a high level of circuit isolation, making it a perfect choice for any circuit isolation needs. The VIS100 is rated IP20, making it resistant to dust, dirt, and other particles. It has a white body and a red knob for easy identification, and its impressive mechanical life of 8,500 makes it a great choice for any application.
The VIS100 rotary isolator main switch is a reliable and durable choice for providing circuit isolation. It has a white body and red knob, and is rated IP20 for protection against dust, dirt, and other particles. It has an impressive mechanical life of 8,500, making it the perfect choice for a wide range of applications. The VIS100 is designed to provide maximum circuit isolation and protection.
Product Name: Main Switch Isolator
Certification: CE/RoHS
Model No.: VIS100
Mechanical life: 8,500
Rated current Ie: 32A, 40A, 63A, 80A, 100A, 125A
Circuit isolation with high safety and reliability
DIN rail products with easy installation and maintenance
HAROK VIS100 Main Switch Isolator is a type of rotary isolator with cable/U-type busbar/pin-type busbar terminal connection, which can be connected from top and bottom. This product is widely used in the switchgear and storage battery industries and is an essential part of din rail products. With its high electrical and mechanical life of 1,500 and 8,500 respectively, it is a reliable and effective choice for many applications.
| Product Feature | Specification |
|---|---|
| Mounting | On DIN Rail EN 60715 (35mm) By Means Of Fast Clip Device |
| Color | White Body With Red Knob |
| Certification | CE/RoHS |
| Rated voltage Ue | 240/415V |
| Ambient Temperature | -25℃~+55℃ |
| Poles | 1P, 2P, 3P, 4P |
| Model No. | VIS100 |
| Mechanical life | 8,500 |
| Rated frequency | 50/60 Hz |
| Protection Degree | IP20 |
Customized Service for Rotary Isolator
Brand Name: HAROK
Model Number: VIS100
Place of Origin: CHINA
Mechanical life: 8,500
Model No.: VIS100
Rated current Ie: 32A, 40A, 63A, 80A, 100A, 125A
Color: White Body With Red Knob
Rated frequency: 50/60 Hz
Keywords: din rail products, din rail products, din rail products, din rail product
Rotary Isolator products are packaged in accordance with the highest standards of quality. Each product is inspected and tested prior to packing to ensure that it meets the product specifications. The product is then securely packed in two layers of packaging material to ensure safe transportation. The inner layer is made of corrugated cardboard, and the outer layer is a strong plastic film. It is then sealed with a tamper-resistant tape or zip-tie to prevent tampering. The product is then shipped via a trusted courier service to the customer's designated destination worldwide.
