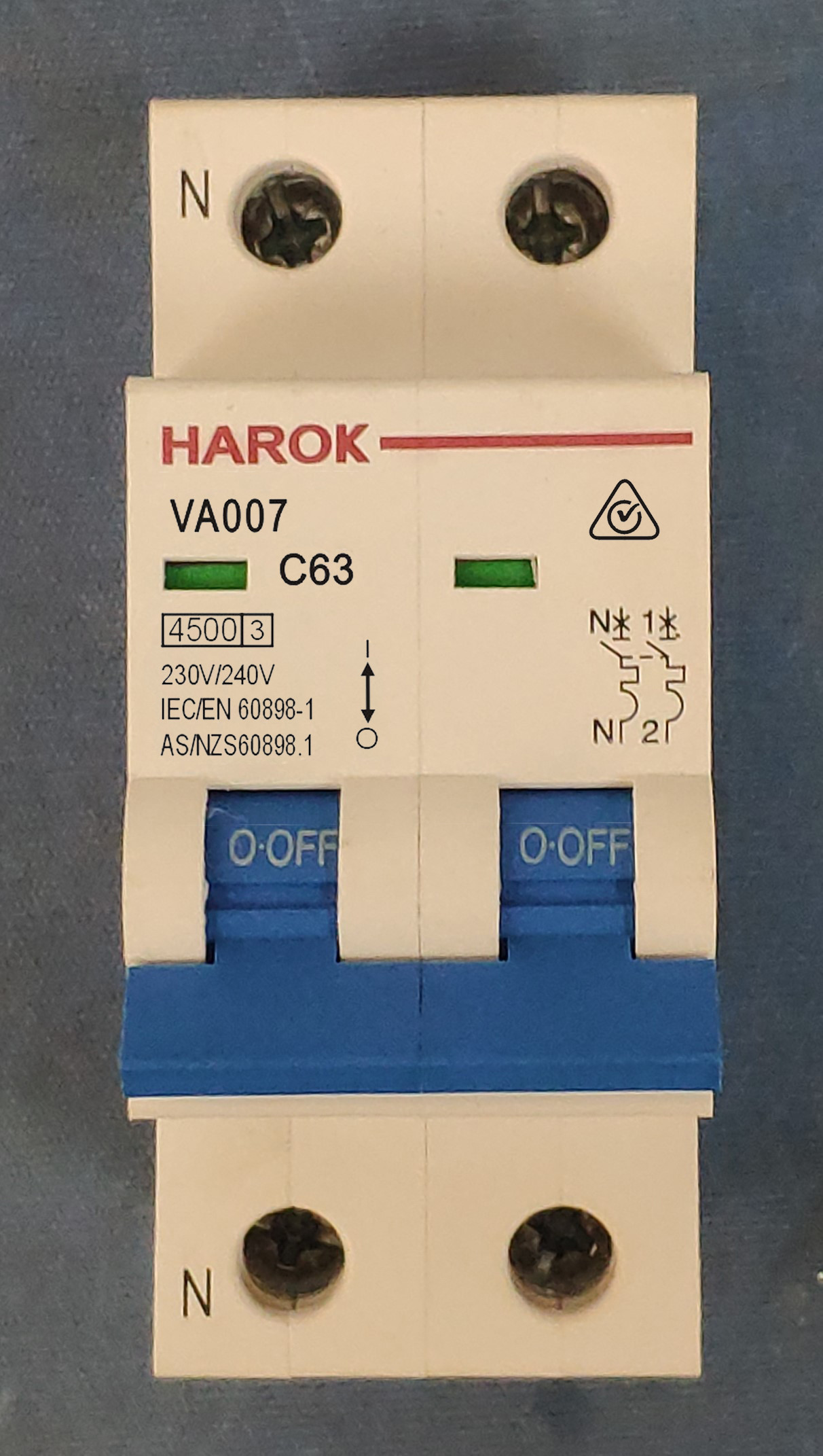

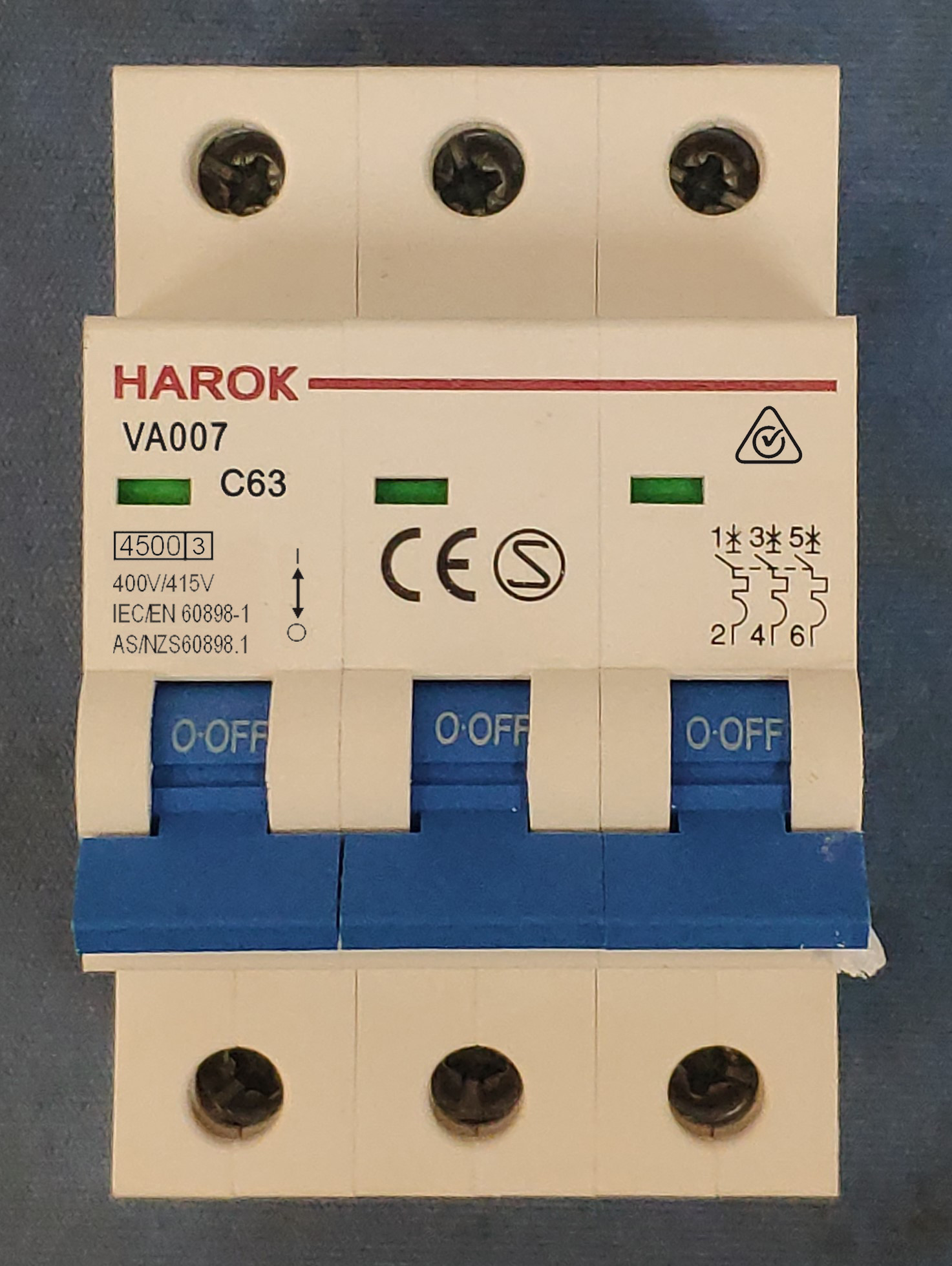

VA007 Miniature Circuit Breaker
1. General
1.1 Function
-protection of circuits against short-circuit currents
-protection of circuits against overload currents, switch
-isolation
VA007 circuit-breakers are used in domestic installation, as well as in commercial and industry electrical distribution systems.
1.2 Selection
Technical data of the network at the point considered:
-short-circuit current at the circuit-breaker installation point, which must always be less than the breaking capacity of this device
-Network normal voltag
Tripping curves:
B curve (3-5In)
protection for people and big length cables in TN and IT systems.
C curves (5-10In)
protection for resistive and inductive loads with low inrush current.
D curves (10-14In)
protection for circuits which supply loads with high inrush current at the circuit closing (LV/LV transformers,
breakdown lamps)
2. Technical parameters
2.1
| Standard | EN 60 898-1:2019 | |||
| Electrical features | Model No. | VA007 | ||
| Poles | 1P, 1P+N, 2P, 3P, 3P+N, 4P | 1P, 2P, 3P, 4P | ||
| Rated current In | 2A, 3A, 4A, 5A, 6A, 10A, 15A, 16A, 20A, | |||
| 25A, 30A, 32A, 40A, 45A, 50A, 60A, 63A | ||||
| Rated voltage Ue | 120V~, 240/415V~(230/400V~) (1P), 240V~(230V~) (1P+N), 415V~(400V~) (2P,3P, 3P+N, 4P) | |||
| Insulation voltage Ui | 500V | |||
| Rated frequency | 50/60 Hz | |||
| Rated breaking capacity | 6kA (2~40A), 4.5kA(45~60A) | |||
| Energy limiting class | 3 | |||
| Rated impulse withstand voltage(1.2/50) Uimp | 4000V | |||
| Dielectric test voltage at ind. Freq. for 1 min | 2kV | 1.89kV | ||
| Pollution degree | 2 | |||
| Thermo-magnetic release characteristic | B, C | (8 – 12) In | ||
| Mechanical features | Electrical life | 10,000 | ||
| Mechanical life | 20,000 | |||
| Contact position indicator | Yes | |||
| Protection degree | IP20 | |||
Reference temperature for setting of thermal element | 30℃ and 50 ℃ | |||
Ambient temperature (with daily average≤35℃) | -5℃ to 40℃ | |||
| Storage temperature | -25℃ to 70℃ | |||
MCB | Miniature Circuit Breaker
| Installation | Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable | 25mm² | |
| 18-4AWG | ||
| Terminal size top/bottom for busbar | 10mm² | |
| 18-8 AWG | ||
| Tightening torque | 2.5 N·m | |
| 22In-Ibs. | ||
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device | |
| Connection | From top and bottom | |
| Combination with accessories | Auxiliary contact | Yes |
| Shunt release | Yes | |
| Under voltage release | Yes | |
Alarm contact Yes | Yes |
2.2 Curves
3. Outline and installation dimensions (mm)
