| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Brand | Harok | Voltage | 230 Volts |
|---|---|---|---|
| Special Feature | Surge Protection | Weight | 0.1 Kgs |
| Protect Current | 63A | Color | White |
| High Light | over and under voltage protection device 230V,over and under voltage protection device 63A | ||

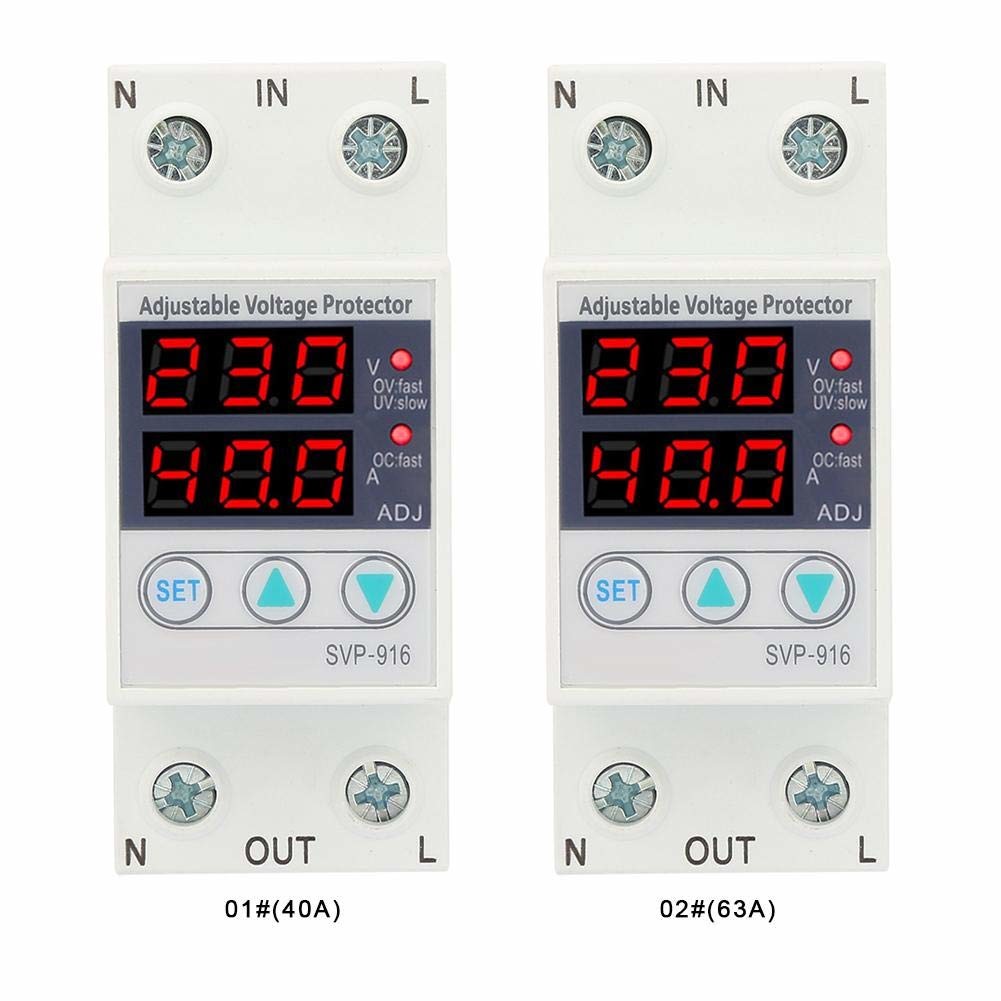

[Stabilizer]This voltage protector not only can provide under or over voltage protection but also measure and stabilize the output voltage.
[Adjustable Value and Time]Both overvoltage and undervoltage protection values and recovery values are adjustable, and overvoltage and undervoltage protection action time is also adjustable.
[Solid Material] This device is made of highquality plastic, hard and ilight weight, easy to carry and mount.
[Reset Available]The voltage protector supports reset mode selection, fault query and factory reset function, it is more than a home appliance protection device.
[Quality Service] We strive to provide you with high quality and convenient service. Feel free to contact us if you have any problem about our product.

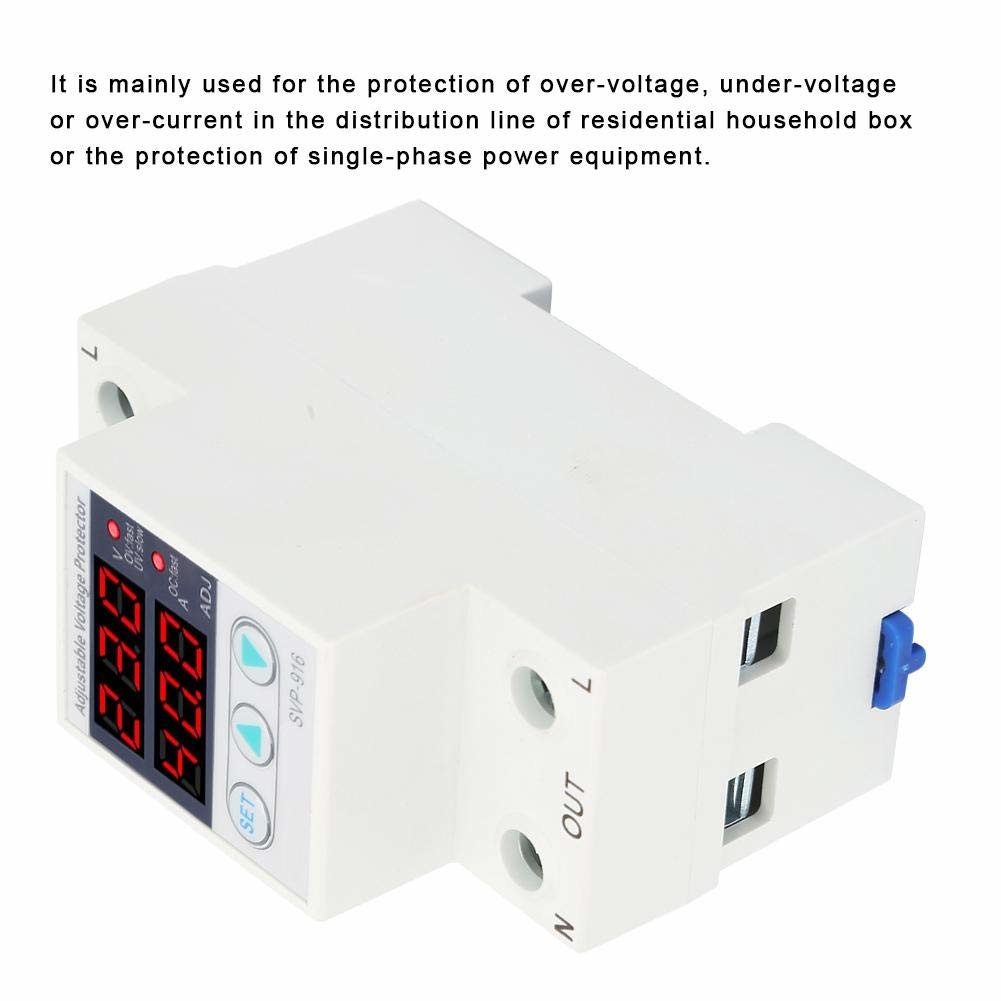

Functions: Prevent circuit hazards
1. Overvoltage protection
2. Undervoltage protection
3. Voltage display (voltage measurement)
4. Overvoltage protection value is adjustable
5. Overvoltage recovery value is adjustable
6. Overvoltage protection action time is adjustable
7. Adjustable undervoltage protection value
8. Adjustable undervoltage recovery value
9. Undervoltage protection action time is adjustable
10. Adjustable delay time for fault recovery
11. Adjustable turn-on time after power-on
12. Reset method selection
13. Troubleshooting
14. Restore factory settings
| Conditon: | 100% Brand New |
| Item Type: | Under Over Voltage Protector |
| Material: | Plastic |
| Optional Specification: | 63A, 80A |
| Model: | SVP-912 |
| Whole Product Size: | Approx. 35 x 85 x 65mm/1.4 x 3.3 x 2.6in |
| Rated Voltage: | 230VAC 50Hz |
| Rated Current: | 1-40A Adjustable 1-63A Adjustable 1-80A Adjustable |
| Undervoltage Protection Value: | 219V-150V-OFF (Adjustable) |
| Overvoltage Protection Value: | 221V-300V-OFF (Adjustable) |
| Recovery Delay Time: | 2-512s |
| Boot Delay Time: | 2-255s |
| Overvoltage: | 221-300V |
| Undervoltage: | 219-150V (Adjustable) |
| Package List: | 1 x Under Over Voltage Protector1 x English Manual |
Wiring Diagram:

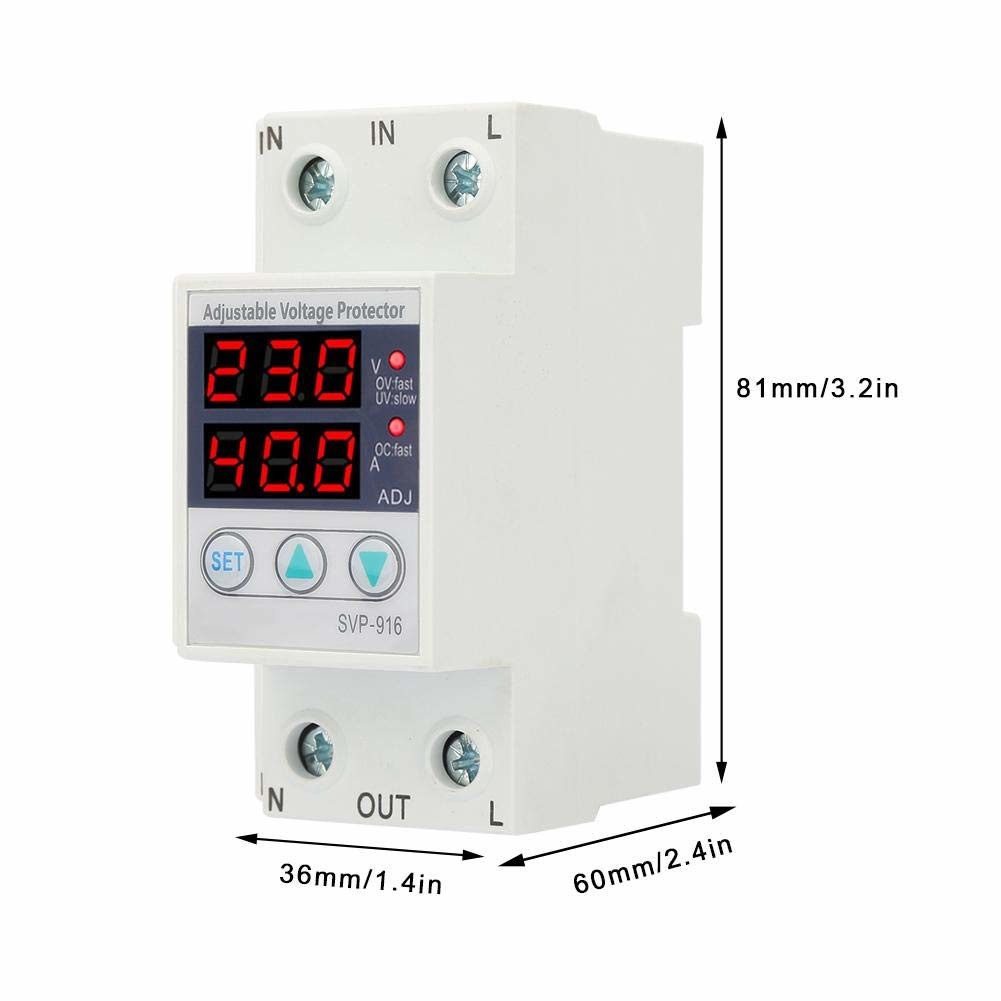

Dimension:
