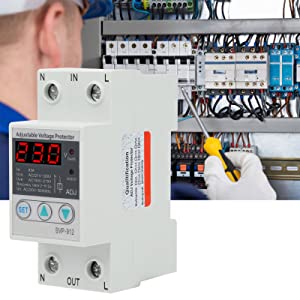

Production information:

It is mainly used for the protection of over-voltage, under-voltage or over-current in the distribution line of residential household box or the protection of single-phase power equipment. .

The protector has over voltage protection, under Voltage protection and other functions.

•

• Specification:

  Conditon:	100% Brand New
  Item Type:	Under Over Voltage Protector
  Material:	Plastic
  Optional Specification:	63A, 80A
  Model:	SVP-912
  Whole Product Size:	Approx. 35 x 85 x 65mm/1.4 x 3.3 x 2.6in
  Rated Voltage:	230VAC 50Hz
  Rated Current:	1-40A Adjustable 1-63A Adjustable 1-80A Adjustable

  Undervoltage Protection Value:	219V-150V-OFF (Adjustable)
  Overvoltage Protection Value:	221V-300V-OFF (Adjustable)
  Recovery Delay Time:	2-512s
  Boot Delay Time:	2-255s
  Overvoltage:	221-300V
  Undervoltage:	219-150V (Adjustable)
  Package List:	1 x Under Over Voltage Protector1 x English Manual







  Functions:

• 1. Overvoltage protection

• 2. Undervoltage protection

• 3. Voltage display (voltage measurement)

• 4. Overvoltage protection value is adjustable

• 5. Overvoltage recovery value is adjustable

• 6. Overvoltage protection action time is adjustable

• 7. Adjustable undervoltage protection value

• 8. Adjustable undervoltage recovery value

• 9. Undervoltage protection action time is adjustable

• 10. Adjustable delay time for fault recovery

• 11. Adjustable turn-on time after power-on

• 12. Reset method selection

• 13. Troubleshooting

• 14. Restore factory settings
