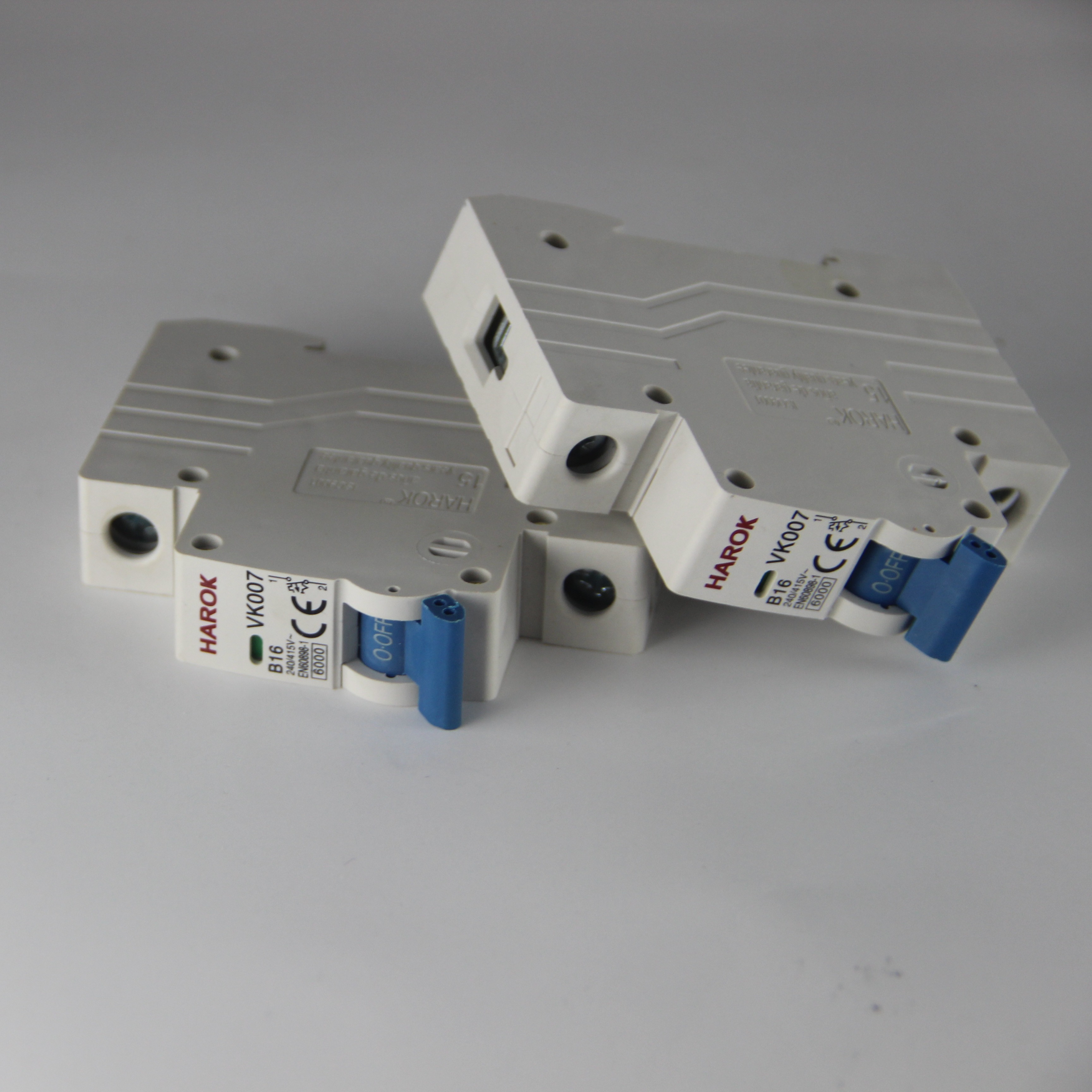

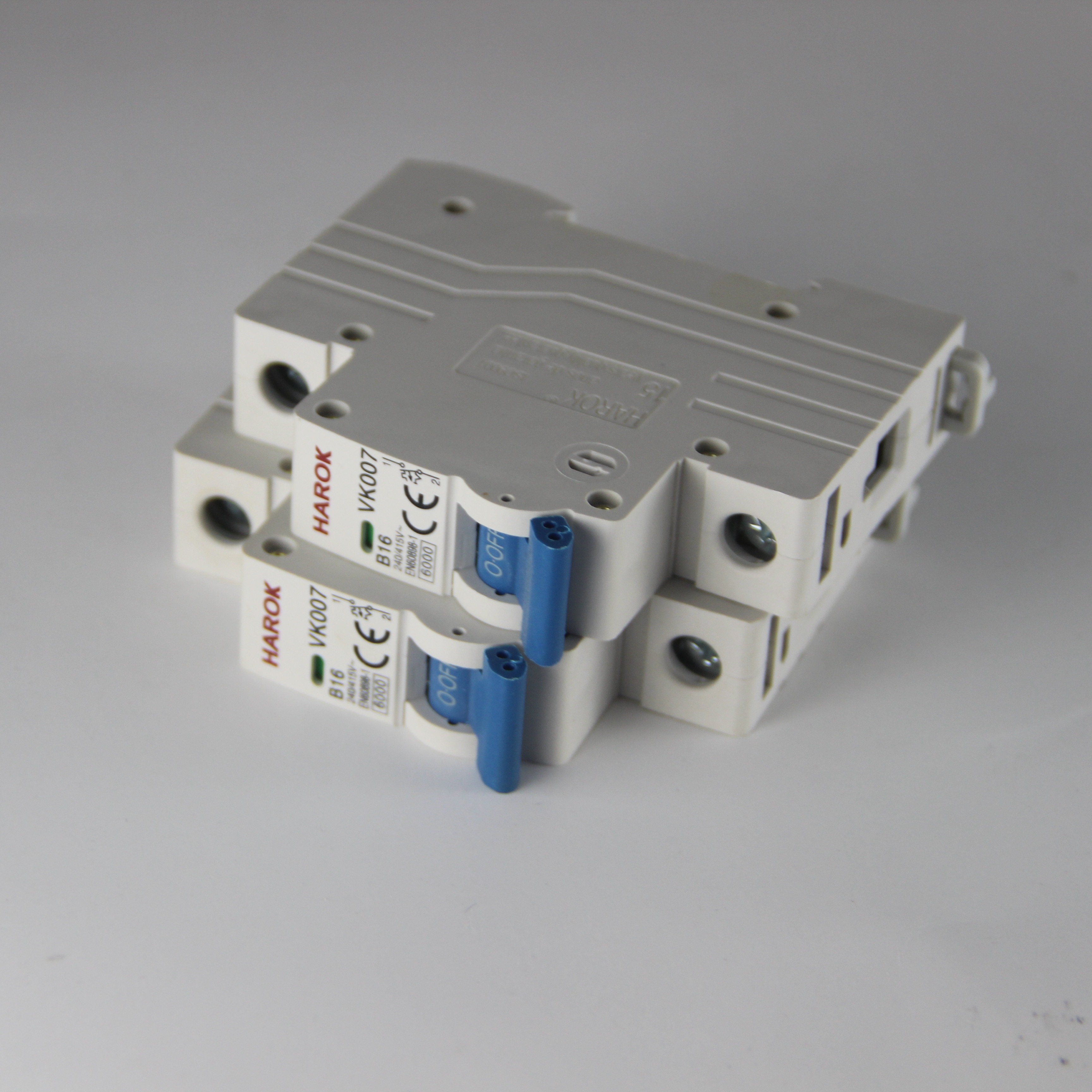

VK007 Miniature Circuit Breaker
1. General
1.1 Function
-protection of circuits against short-circuit currents
-protection of circuits against overload currents, switch
-isolation
VK007 circuit-breakers are used in domestic installation, as well as in commercial and industry electrical distribution systems.
1.2 Selection
Technical data of the network at the point considered:
-short-circuit current at the circuit-breaker installation point, which must always be less than the breaking capacity of this device
-Network normal voltag
Tripping curves:
B curve (3-5In)
protection for people and big length cables in TN and IT systems.
C curves (5-10In)
protection for resistive and inductive loads with low inrush current.
D curves (10-14In)
protection for circuits which supply loads with high inrush current at the circuit closing (LV/LV transformers,
breakdown lamps)
2. Technical parameters
2.1
| Standard | IEC/EN 60947-2 | IEC/EN 60947-2 | |||
| Electrical features | Model No. | VK007 | |||
| Poles | 1P, 1P+N, 2P, 3P, 3P+N, 4P | 1P, 2P, 3P, 4P | |||
| Rated current In | 1A, 2A, 3A, 4A, 6A, 10A, 15A, 16A, 20A, | ||||
| 25A, 30A, 32A, 40A, 45A, 50A, 60A, 63A | |||||
| Rated voltage Ue | 120V, 230/400V ~ 240/415V | ||||
| Insulation voltage Ui | 500V | ||||
| Rated frequency | 50/60 Hz | ||||
| Rated breaking capacity | 4500A, 6000A | ||||
| Energy limiting class | 3 | ||||
| Rated impulse withstand voltage(1.2/50) Uimp | 4000V | ||||
| Dielectric test voltage at ind. Freq. for 1 min | 2kV | 1.89kV | |||
| Pollution degree | 2 | ||||
| Thermo-magnetic release characteristic | B, C, D | (8 – 12) In | |||
| Mechanical features | Electrical life | 10,000 | |||
| Mechanical life | 20,000 | ||||
| Contact position indicator | Yes | ||||
| Protection degree | IP20 | ||||
Reference temperature for setting of thermal element | 30℃ | ||||
Ambient temperature (with daily average≤35℃) | -5℃ to 40℃ | ||||
| Storage temperature | -25℃ to 70℃ | ||||
| Installation | Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable | 25mm² | |
| 18-4AWG | ||
| Terminal size top/bottom for busbar | 10mm² | |
| 18-8 AWG | ||
| Tightening torque | 2.5 N·m | |
| 22In-Ibs. | ||
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device | |
| Connection | From top and bottom | |
| Combination with accessories | Auxiliary contact | Yes |
Shunt release | Yes | |
| Under voltage release | Yes | |
Alarm contact | Yes |

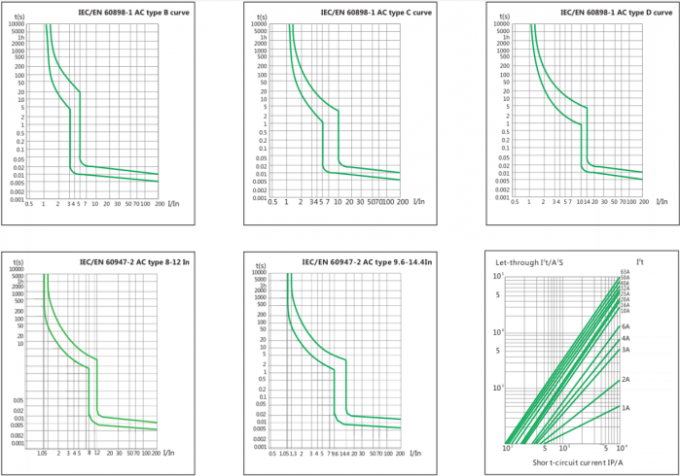

2.2 Curves

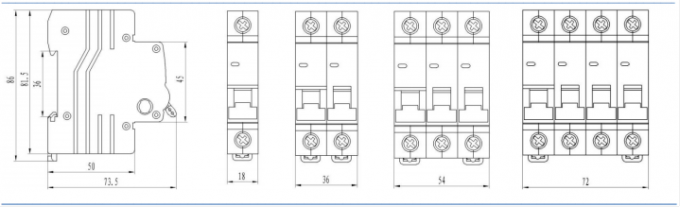

3. Outline and installation dimensions (mm)
UL489 Circuit breaker is a mini-circuit breaker (MCB) that meets IEC/EN 60947-2 standards. It has a storage temperature range of -25℃ to 70℃ and a mechanical life of 20,000 operations. The rated current is available in the range of 1A to 63A and the reference temperature for the setting of the thermal element is 30℃. This thermal-magnetic circuit breaker provides assured protection against overload and short circuit faults in electric lines.
Product Name: UL489 Circuit Breaker
Standards: IEC/EN 60947-2, IEC/EN 60947-2
Number of Poles: 1P, 1P+N, 2P, 3P, 3P+N, 4P
Insulation voltage Ui: 500V
Thermo-magnetic release characteristic: B, C, D
Trip Type: Thermal-Magnetic
HAROK UL489 Mini Circuit Breaker (MCB), including models VF001, VF002, VF003, VK007, VA007, VF008 and VK009, is certified by CE, SAA, SEMKO and NF. The number of poles are 1P, 1P+N, 2P, 3P, 3P+N and 4P, and the electrical life is 10,000 with the mechanical life of 20,000. It is made in China and the storage temperature ranges from -25℃ to 70℃.
The UL489 Circuit Breaker is widely used in industrial, commercial and residential applications, such as air conditioning, refrigerators, motors, pumps and other equipments. It helps to protect the circuit from overload and short circuit, thus ensuring the safety of the circuit. It is easy to install and maintain, and suitable for most of the occasions.
| Parameter | Value |
|---|---|
| Insulation voltage Ui | 500V |
| Electrical life | 10,000 |
| Standards | IEC/EN 60947-2, IEC/EN 60947-2 |
| Trip Type | Thermal-Magnetic |
| Protection Type | Overload And Short-Circuit |
| Mounting Type | On DIN Rail EN 60715 (35mm) By Means Of Fast Clip Device |
| Thermo-magnetic release characteristic | B, C, D |
| Protection degree | IP20 |
| Storage temperature | -25℃ To 70℃ |
| Rated Current | 1A, 2A, 3A, 4A, 6A, 10A, 15A, 16A, 20A, 25A, 30A, 32A, 40A, 45A, 50A, 60A, 63A |
Brand Name: HAROK
Model Number: VF001, VF002, VF003, VK007, VA007, VF008, VK009
Place of Origin: CHINA
Product Name: UL489 Circuit Breaker
Frequency Rating: 50/60 Hz
Rated Current: 1A, 2A, 3A, 4A, 6A, 10A, 15A, 16A, 20A, 25A, 30A, 32A, 40A, 45A, 50A, 60A, 63A
Storage temperature: -25℃ To 70℃
Certificate: CE, SAA, SEMKO, NF
Keywords: MCB, Mini Circuit breaker, Mini Circuit breaker
