| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Model Number | VF001 |
| Minimum Order Quantity | 3000PCS |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Product Name | Miniature Circuit Breaker | Pole | 1P, 2P, 3P, |
|---|---|---|---|
| Rated Current In | 6A, 10A, 15A, 16A, 20A, 25A, 30A, 32A, 35A, 40A, 45A, 50A, 60A, 63A | Rated Voltage Ue | 120V, 240/415V |
| Electrical Life | 10,000 Times | Mechanical Life | 20,000 Times |
| High Light | PLUG ON Miniature Circuit Breaker MCBs,Miniature Circuit Breaker 120V,IEC/EN 60898-1 mcb circuit breaker | ||

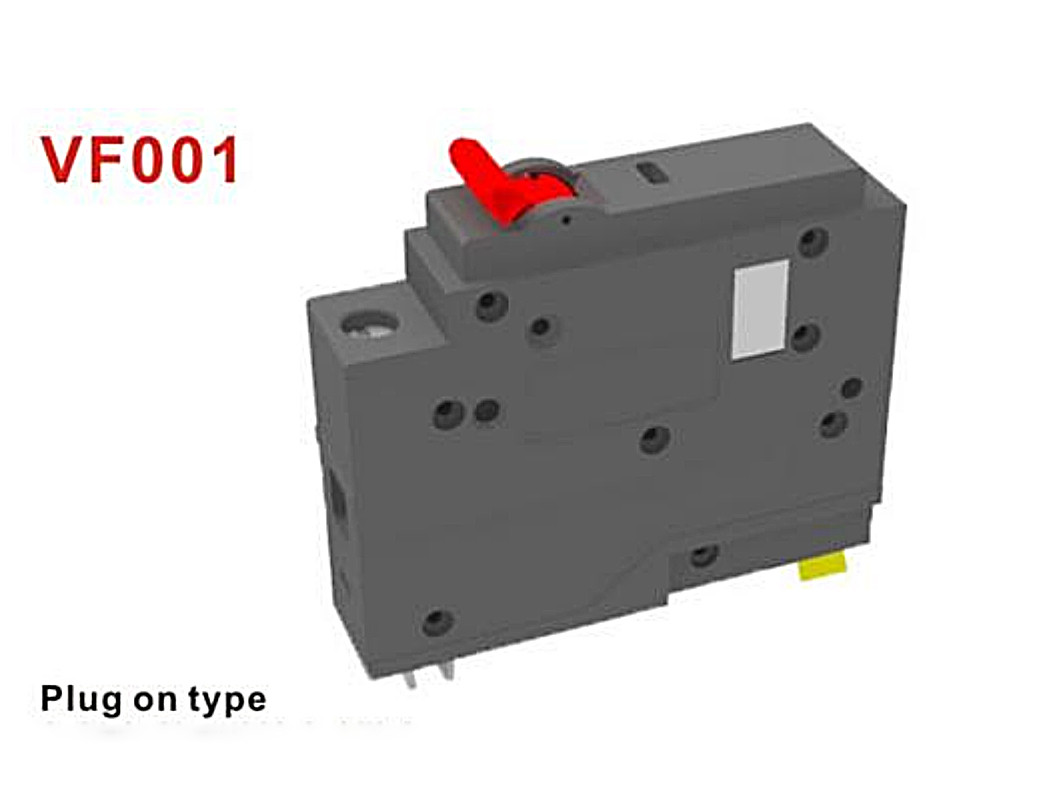

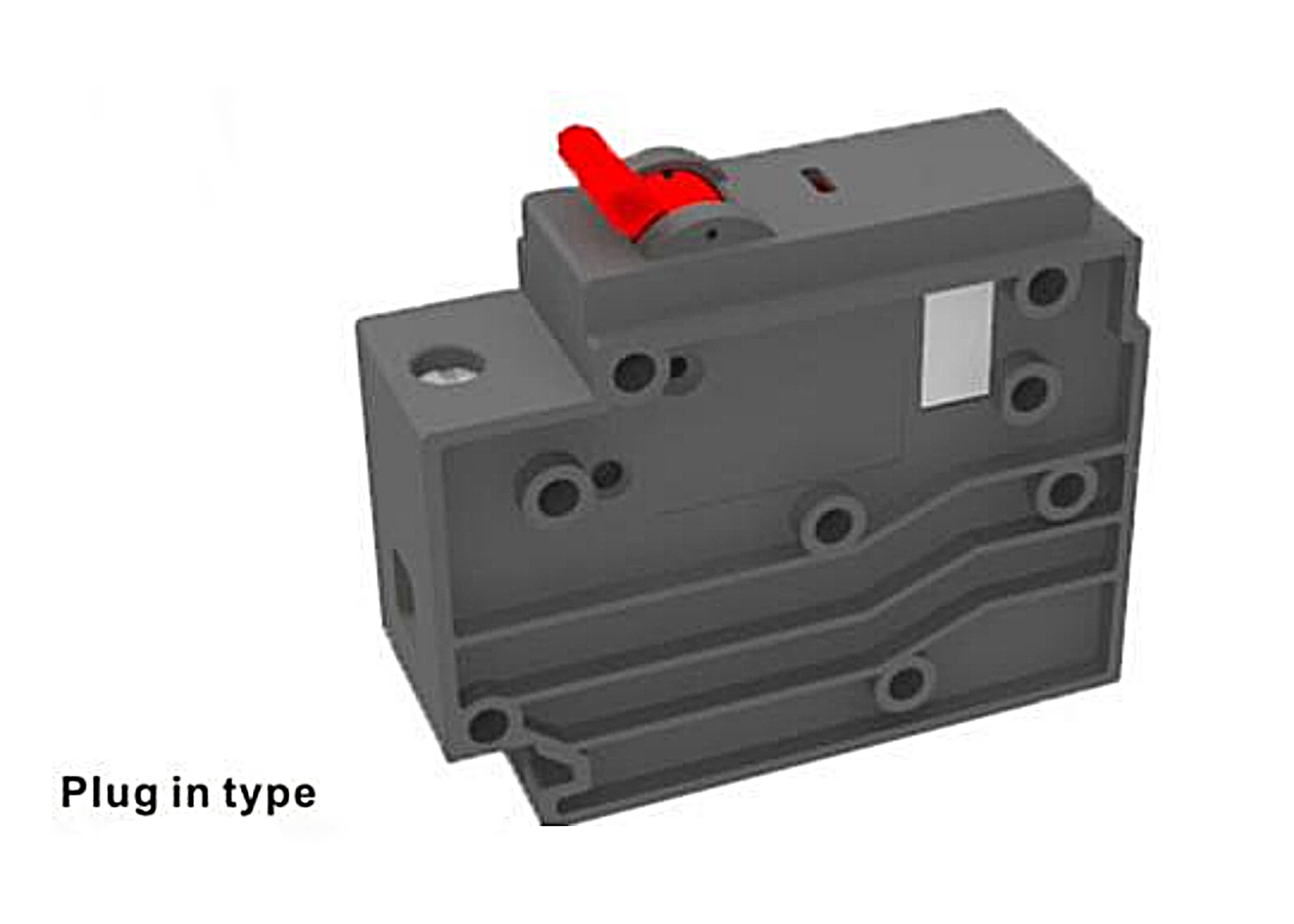

VF001 Miniature Circuit Breaker
1. General
1.1 Function
-protection of circuits against short-circuit currents
-protection of circuits against overload currents, switch
-isolation
VF001 circuit-breakers are used in domestic installation, as well as in commercial and industry electrical distribution systems.
1.2 Selection
Technical data of the network at the point considered:
-short-circuit current at the circuit-breaker installation point, which must always be less than the breaking capacity of this device
-Network normal voltag
Tripping curves:
B curve (3-5In)
protection for people and big length cables in TN and IT systems.
C curves (5-10In)
protection for resistive and inductive loads with low inrush current.
2. Technical parameters
2.1
| Standard | IEC/EN 60898-1 | ||||
| Electrical features | Model No. | VF001 | |||
| Poles | 1P, 2P, 3P | ||||
| Rated current In | 6A, 10A, 15A, 16A, 20A, 25A, 30A, | ||||
| 32A, 35A, 40A, 45A, 50A, 60A, 63A | |||||
| Rated voltage Ue | 120V, 240/415V | ||||
| Insulation voltage Ui | 500V | ||||
| Rated frequency | 50/60 Hz | ||||
| Rated breaking capacity | 4500A, 6000A, 10000A | ||||
| Energy limiting class | 3 | ||||
| Rated impulse withstand voltage(1.2/50) Uimp | 4000V | ||||
| Dielectric test voltage at ind. Freq. for 1 min | 2kV | ||||
| Pollution degree | 2 | ||||
| Thermo-magnetic release characteristic | B, C | ||||
| Mechanical features | Electrical life | 10,000 | |||
| Mechanical life | 20,000 | ||||
| Contact position indicator | Yes | ||||
| Protection degree | IP20 | ||||
Reference temperature for setting of thermal element | 30℃ | ||||
Ambient temperature (with daily average≤35℃) | -5℃ to 40℃ | ||||
| Storage temperature | -25℃ to 70℃ | ||||
| Installation | Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable | 25mm² | |
| 18-4AWG | ||
| Terminal size top/bottom for busbar | 10mm² | |
| 18-8 AWG | ||
| Tightening torque | 2.5 N·m | |
| 22In-Ibs. | ||
| Mounting | Plug-on Mounting | |
| Connection | From top and bottom | |
| Combination with accessories | Auxiliary contact | Yes |
Shunt release | Yes | |
| Under voltage release | Yes | |
Alarm contact | Yes |

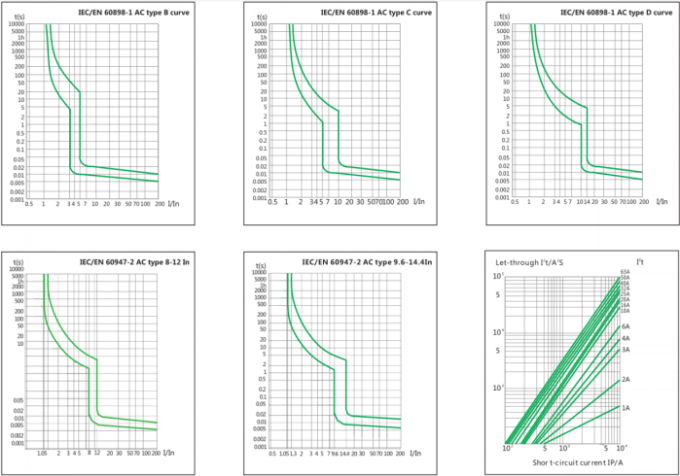

2.2 Curves
UL489 Circuit Breaker (MCB) is a Mini Circuit Breaker with one, two, three or four poles, which is designed to meet the UL489 standard. The poles are 1P, 1P+N, 2P, 3P, 3P+N, and 4P, and the storage temperature ranges from -25℃ to 70℃. The protection degree is up to IP20, and the product is certified by CE, SAA, SEMKO, and NF. It also has various thermo-magnetic release characteristics, including B, C, and D.
Product Name: UL489 Circuit Breaker
Thermo-magnetic release characteristic: B, C, D
Storage temperature: -25℃ To 70℃
Standards: IEC/EN 60947-2, IEC/EN 60947-2
Rated Current: 1A, 2A, 3A, 4A, 6A, 10A, 15A, 16A, 20A, 25A, 30A, 32A, 40A, 45A, 50A, 60A, 63A
Rated voltage Ue: 120V, 230/400V ~ 240/415V
MCB: Mini Circuit breaker, Mini Circuit breaker
The UL489 Circuit Breaker from HAROK is a reliable and cost-effective solution for various electrical applications. It is available in several models such as VF001, VF002, VF003, VK007, VA007, VF008 and VK009. It is manufactured in CHINA and is compliant with IEC/EN 60947-2, IEC/EN 60947-2 standards. It has a 50/60 Hz frequency rating and IP20 protection degree, which makes it ideal for a wide range of applications. The UL489 Circuit Breaker is designed to operate in temperatures ranging from -25℃ to 70℃, which makes it suitable for both indoor and outdoor applications. It is also suitable for use in low voltage distribution systems, making it an ideal solution for protecting circuits from overload and short circuit. By using a MCB, it provides a higher level of safety and reliability than conventional fuses. This ensures that the device is suitable for a wide range of applications, making it an ideal choice for any electrical system.
| Standards | IEC/EN 60947-2, IEC/EN 60947-2 |
|---|---|
| Insulation voltage Ui | 500V |
| Rated Current | 1A, 2A, 3A, 4A, 6A, 10A, 15A, 16A, 20A, 25A, 30A, 32A, 40A, 45A, 50A, 60A, 63A |
| Protection degree | IP20 |
| Reference temperature for setting of thermal element | 30℃ |
| Mechanical life | 20,000 |
| Thermo-magnetic release characteristic | B, C, D |
| Operating Temperature | -5℃ To 40℃ |
| Frequency Rating | 50/60 Hz |
| Trip Type | Thermal-Magnetic |
Product Name: UL489 Circuit Breaker (MCB, MCB Switch)
Brand Name: HAROK
Model Number: VF001, VF002, VF003, VK007, VA007, VF008, VK009
Place of Origin: CHINA
Reference temperature for setting of thermal element: 30℃
Mechanical life: 20,000
Protection degree: IP20
Rated Current: 1A, 2A, 3A, 4A, 6A, 10A, 15A, 16A, 20A, 25A, 30A, 32A, 40A, 45A, 50A, 60A, 63A
Certificate: CE, SAA, SEMKO, NF
UL489 circuit breakers are securely packaged for shipping. Small circuit breakers are placed in boxes, while larger circuit breakers may be packaged in wooden crates. The packaging is designed to provide maximum protection to the product during the shipping process.
UL489 circuit breakers are shipped via ground or air transport depending on the customer's needs. All shipments are insured to ensure that the product will arrive in pristine condition.
