| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Certification | CE, NF |
| Model Number | VF003 |
| Minimum Order Quantity | 3000PCS |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Product Name | Miniature Circuit Breaker | Pole | 1P+N |
|---|---|---|---|
| Rated Current In | 2A, 6A, 10A, 16A, 20A, 25A, 32A | Rated Voltage Ue | 120V, 230/400V ~ 240/415V |
| Electrical Life | 10,000 | Mechanical Life | 20,000 |
| Certification | NF, CE | ||
| High Light | NF Miniature Circuit Breaker,Miniature Circuit Breaker 400V,mcb circuit breaker 415V | ||

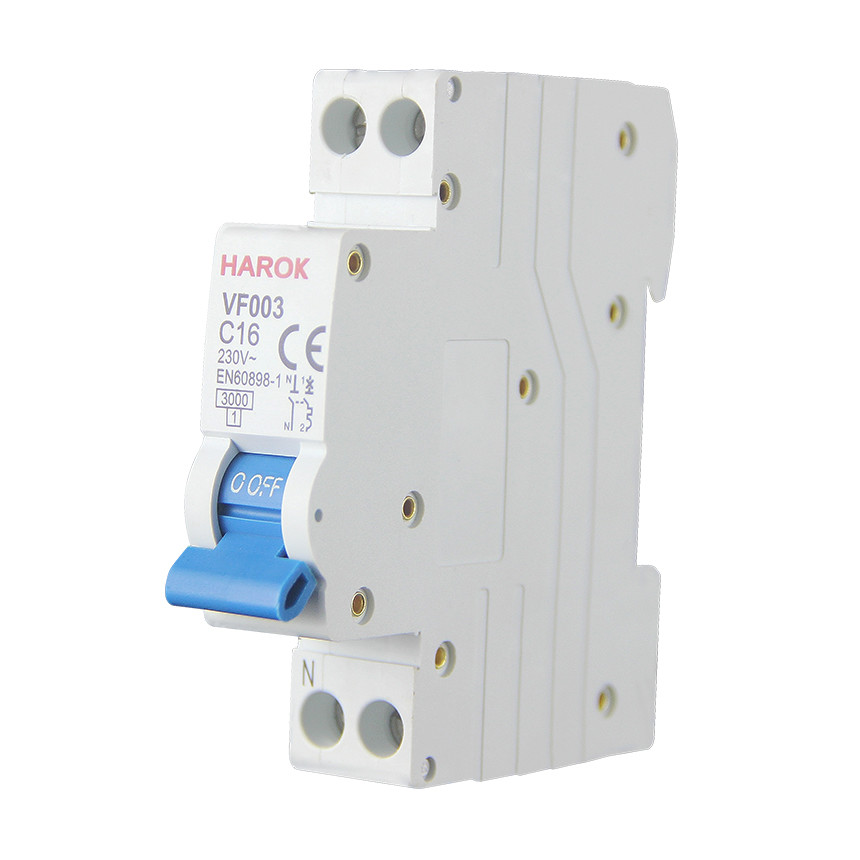

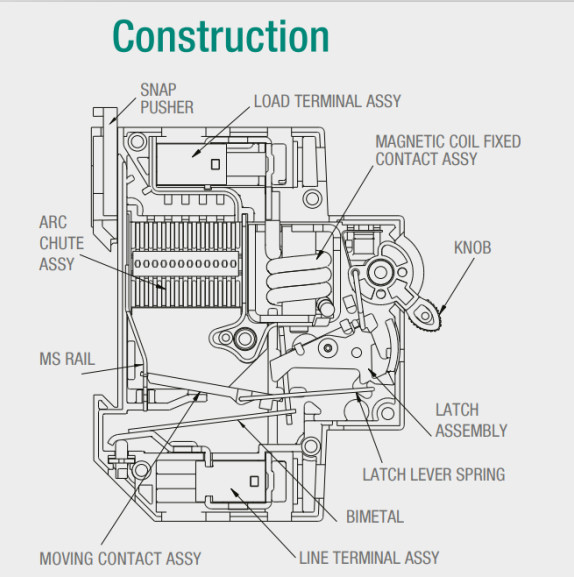

VF003 Miniature Circuit Breaker
1. General
1.1 Function
-protection of circuits against short-circuit currents
-protection of circuits against overload currents, switch
-isolation
VF003 circuit-breakers are used in domestic installation, as well as in commercial and industry electrical distribution systems.
1.2 Selection
Technical data of the network at the point considered:
-short-circuit current at the circuit-breaker installation point, which must always be less than the breaking capacity of this device
-Network normal voltag
Tripping curves:
B curve (3-5In)
protection for people and big length cables in TN and IT systems.
C curves (5-10In)
protection for resistive and inductive loads with low inrush current.
D curves (10-14In)
protection for circuits which supply loads with high inrush current at the circuit closing (LV/LV transformers, breakdown lamps)
2. Technical parameters
2.1
| Standard | IEC/EN 60947-2 | IEC/EN 60947-2 | |||
| Electrical features | Model No. | VF003 | |||
| Poles | 1P+N | ||||
| Rated current In | 2A, 6A, 10A, 16A, 20A, 25A, 32A | ||||
| Rated voltage Ue | 120V, 230/400V ~ 240/415V | ||||
| Insulation voltage Ui | 500V | ||||
| Rated frequency | 50/60 Hz | ||||
| Rated breaking capacity | 4500A, 6000A, 10000A | ||||
| Energy limiting class | 3 | ||||
| Rated impulse withstand voltage(1.2/50) Uimp | 4000V | ||||
| Dielectric test voltage at ind. Freq. for 1 min | 2kV | 1.89kV | |||
| Pollution degree | 2 | ||||
| Thermo-magnetic release characteristic | B, C | (8 – 12) In | |||
| Mechanical features | Electrical life | 10,000 | |||
| Mechanical life | 20,000 | ||||
| Contact position indicator | Yes | ||||
| Protection degree | IP20 | ||||
Reference temperature for setting of thermal element | 30℃ | ||||
Ambient temperature (with daily average≤35℃) | -5℃ to 40℃ | ||||
| Storage temperature | -25℃ to 70℃ | ||||
| Installation | Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable | 25mm² | |
| 18-4AWG | ||
| Terminal size top/bottom for busbar | 10mm² | |
| 18-8 AWG | ||
| Tightening torque | 2.5 N·m | |
| 22In-Ibs. | ||
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device | |
| Connection | From top and bottom | |
| Combination with accessories | Auxiliary contact | Yes |
Shunt release | Yes | |
| Under voltage release | Yes | |
Alarm contact | Yes |

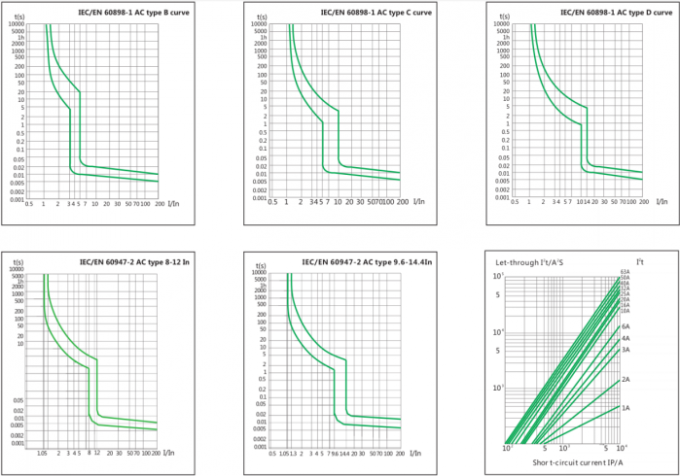

2.2 Curves

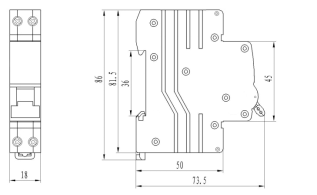

3. Outline and installation dimensions (mm)
The UL489 Circuit Breaker is a kind of Mini Circuit Breaker (MCB). It is designed to meet the most rigorous international standards IEC/EN 60947-2 and IEC/EN 60947-2. UL489 Circuit Breaker is available in 1P, 1P+N, 2P, 3P, 3P+N and 4P poles. It is rated with an insulation voltage of 500V and it is mounted to DIN Rail EN 60715 (35mm) by means of fast clip device. UL489 Circuit Breaker offers excellent reliability and safety.
Product Name: UL489 Circuit Breaker
Electrical life: 10,000
Trip Type: Thermal-Magnetic
Rated voltage Ue: 120V, 230/400V ~ 240/415V
Insulation voltage Ui: 500V
Keywords: Mini Circuit breaker, UL489 Circuit breaker, mcb, thermal magnetic
The HAROK UL489 Circuit Breaker is a mini circuit breaker that is compact and reliable. It is designed to protect against over-current and short-circuit in low voltage installations and comes with a range of models, including VF001, VF002, VF003, VK007, VA007, VF008, and VK009, all made in China. This circuit breaker is mounted on DIN Rail EN 60715 (35mm) by means of a fast clip device and has a high protection degree of IP20. It has an operating temperature of -5℃ to 40℃ and an insulation voltage of 500V. It also features thermo-magnetic release characteristics of B, C, and D.
| Name | Value |
|---|---|
| Product Name | UL489 Circuit Breaker |
| Protection Type | Overload And Short-Circuit |
| Standards | IEC/EN 60947-2, IEC/EN 60947-2 |
| Rated Voltage Ue | 120V, 230/400V ~ 240/415V |
| Rated Current | 1A, 2A, 3A, 4A, 6A, 10A, 15A, 16A, 20A, 25A, 30A, 32A, 40A, 45A, 50A, 60A, 63A |
| Electrical Life | 10,000 |
| Insulation Voltage Ui | 500V |
| Thermo-magnetic Release Characteristic | B, C, D |
| Storage Temperature | -25℃ To 70℃ |
| Reference Temperature for Setting of Thermal Element | 30℃ |
UL489 Circuit Breaker from HAROK
Model Number: VF001, VF002, VF003, VK007, VA007, VF008, VK009
Place of Origin: CHINA
Mechanical life: 20,000
Frequency Rating: 50/60 Hz
Storage temperature: -25℃ To 70℃
Mounting Type: On DIN Rail EN 60715 (35mm) By Means Of Fast Clip Device
HAROK's UL489 Circuit Breaker is a mini circuit breaker that offers superior protection for your electrical system. It has a mechanical life of 20,000 cycles and a frequency rating of 50/60 Hz. It can be mounted on DIN Rail EN 60715 (35mm) by means of fast clip device and provides optimal protection for your electrical system. It is also capable of withstanding temperatures ranging from -25℃ to 70℃, making it suitable for a wide variety of applications.
The UL489 Circuit Breaker will be securely packaged in a box that is designed to protect the breaker from any damage. The box will be sealed with tape to ensure the product is not tampered with during shipping.
The UL489 Circuit Breaker will be shipped with a reliable courier such as FedEx, UPS or DHL. All shipments will be tracked to ensure the package is delivered on time.
