| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Model Number | VRL02 |
| CSA Certified | Yes | Product Name | GFCI Circuit Breaker |
|---|---|---|---|
| Trip Type | Thermal Magnetic | Indicator Light | Yes |
| Number Of Poles | 1 Pole | Electrical Life | 2000 |
| Amperage Rating | 40A | ||
| High Light | 10kA GFCI Circuit Breaker,10kA single pole gfci breaker,Ground Fault Protection GFCI Circuit Breaker | ||

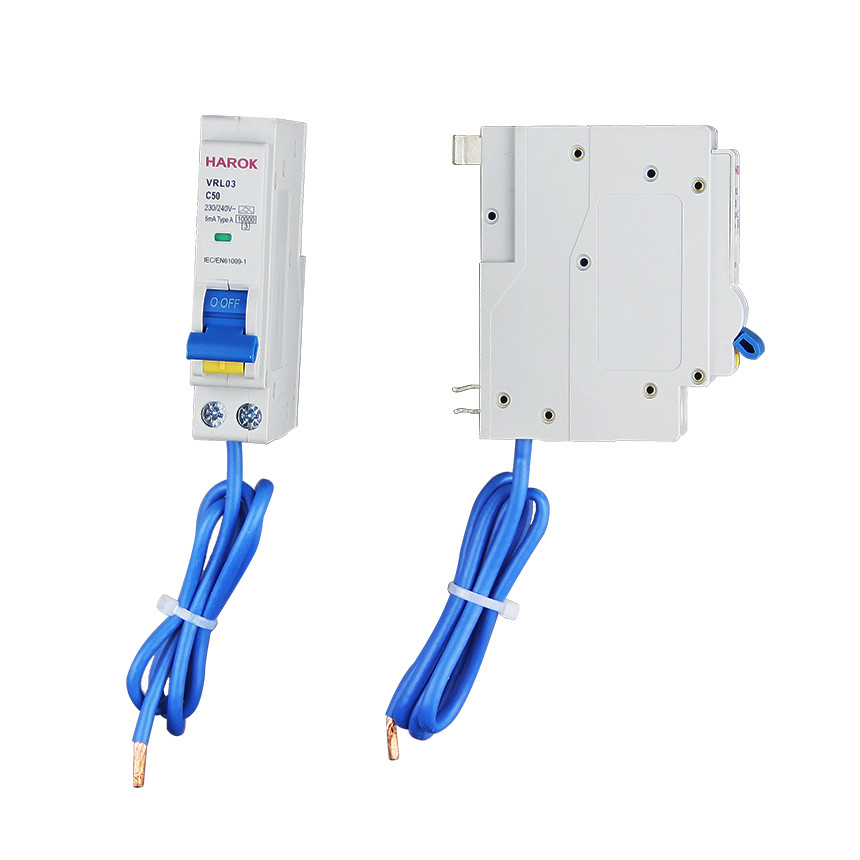

VRL02 GFCI | Ground Fault Circuit Interrupter
1. General
VRL02 residual current operated circuit breakers are suitable for lines with AC 50/60Hz, rated voltage 240V, rated current up to 50A and for purposes of residual current protection, overload and short circuit protection. When any personal electric shock occurs or the circuit leakage current exceeds the predetermined value, the residual current operated circuit breaker can automatically cut off the power supply in a very short period of time, so that the safety of persons and electrical equipment can be operated. The residual current operated circuit breaker can be used for infrequent conversion of lines under normal conditions, and applied under occasions such as industrial, and commercial, high-rise buildings and residential houses.
2. Technical parameters
2.1 The tripping characteristic curves are as shown below.
2.2 Basic parameters
| Standard | IEC/EN 61009-1, AS/NZS 61009.1 | |
| Main Specifications | Model No. | VRL02 |
| Rated current In | 6A, 10A, 16A, 20A, 25A, 32A, 40A, ,45, 50A | |
| Classified by Type of Instantaneous Tripping | Type B: (3 ~ 5) In, Type C: (5 ~ 10) In | |
| Poles | 1P + N | |
| Type (wave form of the earth leakage sensed) | Type AC, Type A | |
| ;Mechanical features | Rated voltage Ue | AC240V |
| Frame size rated current Inm | 50A | |
| Rated residual operating current I△n | 0.01A, 0.03A, 0.1A, 0.3A | |
| Rated residual non-operating current I△no | 0.005A, 0.015A, 0.05A, 0.15A | |
| Rated short-circuit breaking capacity Icn | 230/240V 6000A, 10000A; 120V 15000A | |
Rated residual making and breaking capacity I△m | 500A | |
| Electrical life | 2,000 | |
| Mechanical life | 2,000 | |
| Rated impulse withstand voltage Uimp | 6000V | |
| Connection | From top and bottom, from bottom and top |
2.3 The residual current breaking times
| In (A) | I△n (A) | Breaking time when the residual current assumes the following values (s) | ||||
| I△n | 2I△n | 5I△n | 5A, 10A, 20A, 50A, 100A, 200A, 500A(a) | I△t(b) | ||
| 6~40 | 0.01, 0.03, 0.1, 0.3 | 0.1 | 0.05 | 0.04 | 0.04 | 0.04 |
a. For tests of 5A, 10A, 20A, 50A, 100A, 200A and 500A, the current values beyond the lower limit of over-current instantaneous tripping are not tested. B. Tests are done when I△t is equal to the lower limit current of over-current instantaneous tripping of type B and type C. | ||||||
2.4 The over-current protection characteristics
| No. | Rated current In (A) | Initial state | Test current (A) | Specified time (t) | Expected result | Remarks |
| a | 6 ~ 40 | Cold state | 1.13 In | t ≥ 1h | Non-tripping | |
| b | Immediately after sequence a | 1.45 In | t < 1h | Tripping | Increase to the specified current within 5s after test item a. | |
| c | Cold state | 2.55 In | 1s < t < 60s | Tripping | ||
| d | Cold state | 3 In | t ≥ 0.1s | Non-tripping | Type B | |
| 5 In | t < 0.1s | Tripping | ||||
| 5 In | t ≥ 0.1s | Non-tripping | Type C | |||
| 10 In | t < 0.1s | Tripping |
3. Outline
___________________________________________________________________________________________________________________
_______________________________________________________________________________________
GFCI | Ground Fault Circuit Interrupter
This type A RCBO Ground Fault Circuit Interrupter Breaker (GFCI) combines ground fault protection and short-circuit protection in a single device. It is designed with a 10kA interrupt rating and a thermal magnetic trip type for reliable performance over a wide range of conditions. This GFCI circuit breaker has a plug-in mounting type and is rated for 15A amperage. It is highly reliable and easy to install, making it an ideal choice for a wide range of applications.
The GFCI circuit breaker provides top-tier protection against ground fault and short-circuit events. It is designed with an interrupt rating of 10kA to ensure a fast response time in the event of an overload or short circuit. The thermal magnetic trip type helps to protect the circuit from excessive current levels, while the plug-in mounting type makes installation and maintenance easy. The 15A amperage rating makes it suitable for a variety of applications.
This GFCI circuit breaker provides superior protection against ground fault and short-circuit events. It is rated for a 10kA interrupt rating, a thermal magnetic trip type, a plug-in mounting type, and a 15A amperage rating. This combination of features makes it an ideal choice for a wide range of applications.
Product Name: GFCI Circuit Breaker
Ground Fault Protection: Yes
Indicator Light: Yes
CSA Certified: Yes
Number of Poles: 1 Pole
Interrupt Rating: 10kA
RCBO Type: B
HAROK is the trusted brand when it comes to RCBO circuit breakers and GFCI circuit breakers. With a variety of models to choose from, including the VRL01, VRL02, VRL03, VRL11, VAL003, VKL003, VDL006, and VRL22, HAROK GFCI circuit breakers provide reliable protection against electric shock. Able to handle a maximum amperage rating of 15A, these circuit breakers feature a push-in terminal type for easy installation and an indicator light to warn of potential overloads.
HAROK's GFCI circuit breakers are ideal for both residential and commercial applications. Whether you need a single-pole circuit breaker or a multi-pole circuit breaker, HAROK has the perfect solution for any situation. Their GFCI circuit breakers are designed to provide maximum protection against electric shock, making them perfect for homes, schools, offices, and other public buildings.
Choose HAROK GFCI circuit breakers for your next project and rest assured knowing your property is protected. With their superior protection and easy installation, HAROK GFCI circuit breakers are the perfect choice for any home or business.
| Product Name | Specifications |
|---|---|
| GFCI Circuit Breaker | UL Listed: Yes CSA Certified: Yes Frequency Rating: 50/60 Hz Indicator Light: Yes Terminal Type: Push-in Interrupt Rating: 10kA NEMA Rating: NEMA 1 Ground Fault Protection: Yes Voltage Rating: 120/240VAC |
GFCI Circuit Breaker is designed to provide superior protection against ground faults and over-currents. Our GFCI Circuit Breaker is designed by HAROK with UL listed and interrupt rating up to 10kA. The GFCI Circuit Breaker is available in 1 pole design with wire gauge 14-2 AWG. The GFCI Circuit Breaker also has ground fault protection and is available in model numbers VRL01, VRL02, VRL03, VRL11, VAL003, VKL003, VDL006, VRL22.
Our GFCI Circuit Breaker is perfect for your RCBO circuit breaker and GFCI circuit breaker needs. It is designed to provide superior protection against ground faults, over-currents, and fire hazards. Our GFCI Circuit Breaker is UL listed, and is suitable for use in residential, commercial, and industrial applications.
Our GFCI Circuit Breaker is ideal for homes, offices, or businesses that need reliable and safe protection from ground faults and over-currents. It also provides superior protection against fire hazards.
Choose HAROK GFCI Circuit Breaker for superior protection against ground faults and over-currents. Our GFCI Circuit Breaker is designed with UL listed and interrupt rating up to 10kA, and is available in 1 pole design with wire gauge 14-2 AWG.
GFCI Circuit Breaker should be shipped in its original packaging, which includes the circuit breaker, mounting screws, a wiring diagram, and installation instructions. All items should be carefully inspected for any signs of damage before being shipped. The circuit breaker should be placed in a box or other protective covering to ensure it is not damaged during transit. The box should be securely sealed and clearly labeled with the product's name and destination address.
The shipping carrier should be chosen carefully. The circuit breaker is sensitive to vibrations and shocks, and should be handled with extra care. The carrier should be able to provide tracking information, and provide insurance for the package in case of loss or damage.
