| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Model Number | HRD7 |
| Indicator Light | Yes | Amperage Rating | 15A |
|---|---|---|---|
| UL Listed | Yes | CSA Certified | Yes |
| Product Name | GFCI Circuit Breaker | Ground Fault Protection | Yes |
| Terminal Type | Push-in | Wire Gauge | 14-2 AWG |
| High Light | 2 pole gfci breaker TYPE B,UL Listed 3 pole gfci breaker,UL Listed 30 amp gfci breaker | ||

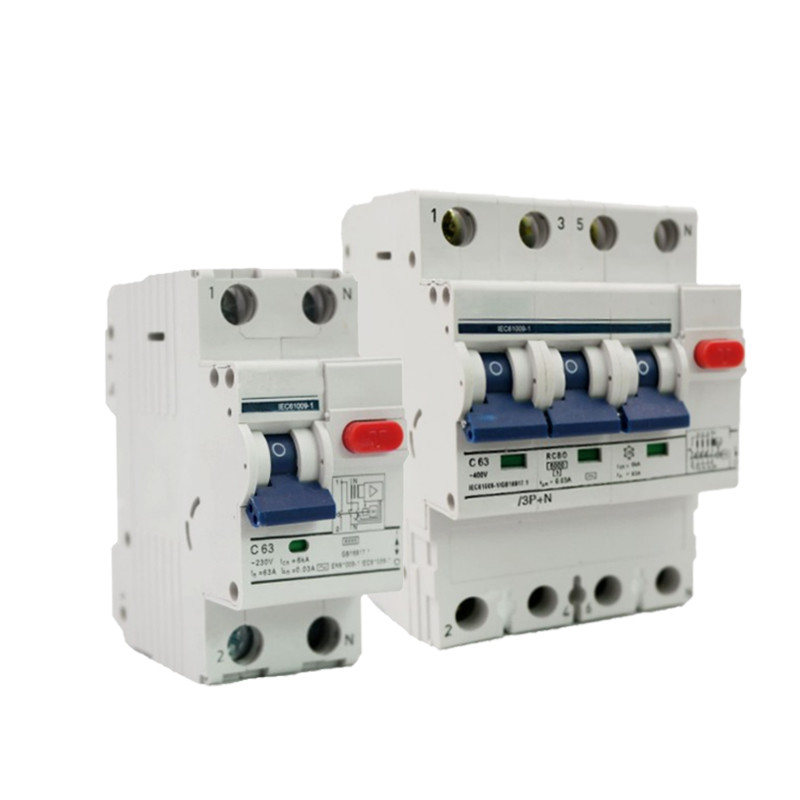

HRD7 GFCI | Ground Fault Circuit Breaker
1. General
HRD7 Ground Fault Circuit Breakers are suitable for lines with AC 50/60Hz, rated voltage 240V/415, rated current up to 32A and for purposes of residual current protection, overload and short circuit protection. When any personal electric shock occurs or the circuit leakage current exceeds the predetermined value, the residual current operated circuit breaker can automatically cut off the power supply in a very short period of time, so that the safety of persons and electrical equipment can be operated. The residual current operated circuit breaker can be used for infrequent conversion of lines under normal conditions, and applied under occasions such as industrial, and commercial, high-rise buildings and residential houses.
2. Technical parameters
Basic parameters
| For protection of general power distribution | Standard | IEC/EN 61009-1 | |
| Model No. | HRD7 | ||
| Poles of number | 1P + N, 3P + N | ||
| Electrical performance | |||
| Rated current In | 6-32A | ||
| Release type | Magnetic type | ||
| Functions | Protection against short circuit, leakage, overload, over voltage, isolation | ||
| Type of residual current | AC and A | ||
| Rated frequency | 50-60Hz | ||
| Rated working voltage Ue | 240/415VAC | ||
| Rated residual current I△n | 10Ma, 30mA, 100mA, 300mA | ||
| Insulation voltage Ui | 500V | ||
| Rated impulse withstand voltage Uimp | 6kV | ||
| Instantaneous tripping type | B/C/D | ||
| Rated short circuit Icn | 6kA | ||
| Service life | Mechanical | 12000 | |
| Electrical | 6000 | ||
| Connection and installation | |||
| Protection degree | IP40 | ||
| Wire | 1-25mm² | ||
| Working temperature daily average ≤35℃ | -5 ~ +40℃ | ||
| Resistance to humidity and heat | Class 2 | ||
| Altitude above sea | ≤2000 | ||
| Relative humidity | + 20℃, ≤90%; +40℃, ≤50% | ||
| Pollution degree | 2 | ||
| Installation environment | Avoid obvious shock and vibration | ||
| Installation class | Class II, Class III | ||
3. Outline and installation dimensions (mm)
This GFCI Circuit Breaker is a RCBO Type B device with a frequency rating of 50/60 Hz. It is designed to protect people from electrical shock due to ground-fault current and has an amperage rating of 15A. This circuit breaker is suitable for use with 14-2 AWG wires and has an indicator light for easy identification. It features a thermal-magnetic trip type for highly reliable protection.
Product Name: GFCI Circuit Breaker
Indicator Light: Yes
UL Listed: Yes
Wire Gauge: 14-2 AWG
Trip Type: Thermal Magnetic
RCBO Type B
RCBO Circuit Breaker
RCBO Type A
HAROK GFCI Circuit Breaker is designed to provide ground fault circuit protection and overload protection for residential and commercial environments. It is available in a variety of models, including VRL01, VRL02, VRL03, VRL11, VAL003, VKL003, VDL006 and VRL22, with NEMA 1 rating, 14-2 AWG wire gauge, 15A amperage rating, 1 pole, and push-in terminal type. It is ideal for use in areas where there is a risk of electrical shock, such as bathrooms, kitchens, gardens, and swimming pools. Its RCBO type A product is also popular for ground fault circuit protection, making it a reliable and safe choice for all your GFCI circuit breaker needs.
| Product Name | GFCI Circuit Breaker |
|---|---|
| UL Listed | Yes |
| Mounting Type | Plug-in |
| Interrupt Rating | 10kA |
| Trip Type | Thermal Magnetic |
| Indicator Light | Yes |
| Frequency Rating | 50/60 Hz |
| Wire Gauge | 14-2 AWG |
| Voltage Rating | 120/240VAC |
| Amperage Rating | 15A |
GFCI Circuit Breaker
Brand Name: HAROK
Model Number: HRD7
Place of Origin: CHINA
Number of Poles: 1 Pole
UL Listed: Yes
Terminal Type: Push-in
Indicator Light: Yes
Mounting Type: Plug-in
Type: RCBO Type A, Ground Fault Circuit Interrupter
The GFCI Circuit Breaker will be packaged in a box made of rigid corrugated cardboard. The box will be sealed with strong adhesive tape. The box will be labeled with the product name, GFCI Circuit Breaker, and the shipping address. Inside the box, the product will be securely wrapped in bubble wrap to protect against damage during shipping.
The GFCI Circuit Breaker will be shipped via standard ground shipping to the customer’s address. The shipping cost will be calculated based on the weight and size of the package, as well as the distance to the shipping address.
GFCI | Ground Fault Circuit Breaker
