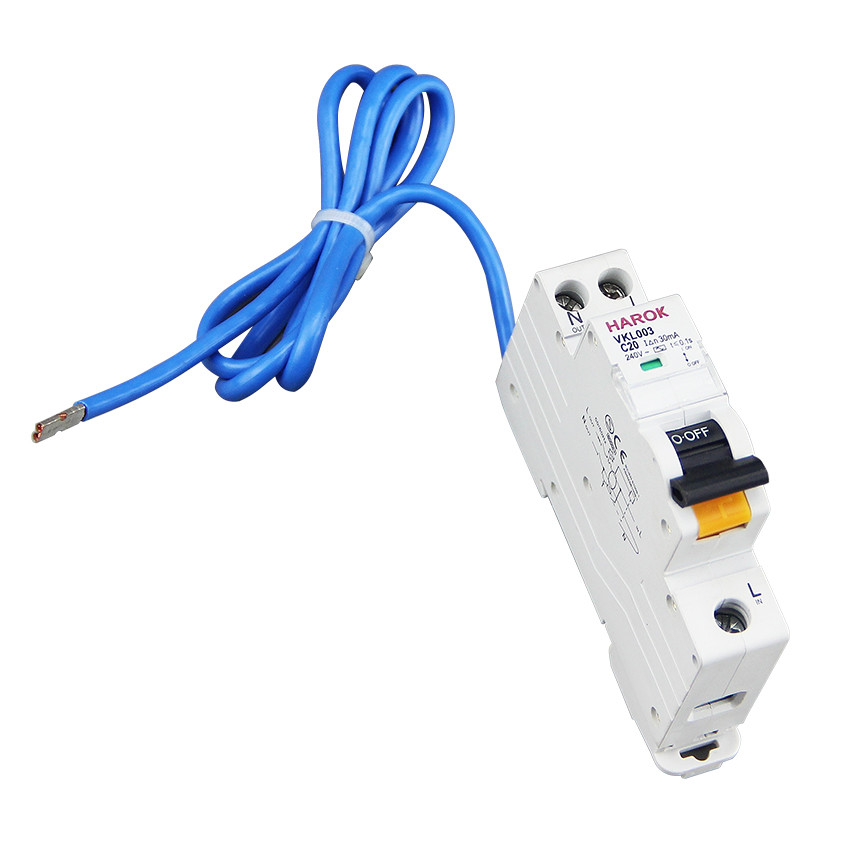

VKL003 GFCI | GROUND FAUL CIRCUIT INTERRUPTER
1. General
VKL003 residual current operated circuit breakers are suitable for lines with AC 50/60Hz, rated voltage 240V, 120V, rated current up to 40A and for purposes of residual current protection, overload and short circuit protection. When any personal electric shock occurs or the circuit leakage current exceeds the predetermined value, the residual current operated circuit breaker can automatically cut off the power supply in a very short period of time, so that the safety of persons and electrical equipment can be operated. The residual current operated circuit breaker can be used for infrequent conversion of lines under normal conditions, and applied under occasions such as industrial, and commercial, high-rise buildings and residential houses.
2. Technical parameters

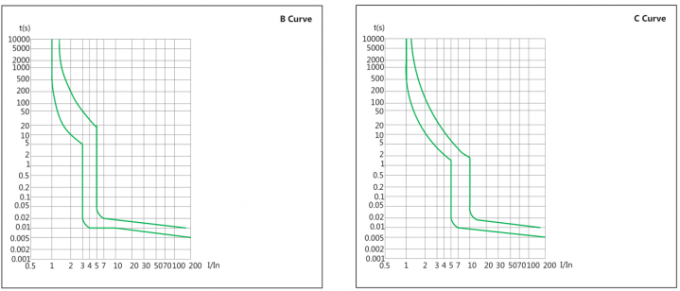

2.1 The tripping characteristic curves are as shown below.
2.2 Basic parameters
| Standard | IEC/EN 61009-1 | |
| Main Specifications | Model No. | VKL003 |
| Rated current In | 5A, 6A, 10A, 13A, 15A, 16A, 20A, 25A, 30A, 32A, 35A, 40A | |
| Classified by Type of Instantaneous Tripping | Type B: (3 ~ 5) In, Type C: (5 ~ 10) In | |
| Poles | 1P + N | |
| Type (wave form of the earth leakage sensed) | Type AC, Type A | |
| Mechanical features | Rated voltage Ue | AC240V, AC120V |
| Frame size rated current In | 40A | |
| Rated residual operating current I△n | 6mA, 10mA, 30mA, 100mA, 300mA | |
| Rated residual non-operating current I△no | 3mA, 5mA, 15mA, 50mA, 150mA | |
| Rated short-circuit breaking capacity Icn | 240V: 4500A, 6000A, 10000A 120V: 15000A | |
Rated residual making and breaking capacity I△m | 500A | |
| Electrical life | 2,000 | |
| Mechanical life | 2,000 | |
| Rated impulse withstand voltage Uimp | 4000V | |
| Connection | From top and bottom, from bottom and top |
2.3 The residual current breaking times
| In (A) | I△n (A) | Breaking time when the residual current assumes the following values (s) | ||||
| I△n | 2I△n | 5I△n | 5A, 10A, 20A, 50A, 100A, 200A, 500A(a) | I△t(b) | ||
| 6~40 | 0.01, 0.03, 0.1, 0.3 | 0.1 | 0.05 | 0.04 | 0.04 | 0.04 |
a. For tests of 5A, 10A, 20A, 50A, 100A, 200A and 500A, the current values beyond the lower limit of over-current instantaneous tripping are not tested. B. Tests are done when I△t is equal to the lower limit current of over-current instantaneous tripping of type B and type C. | ||||||
2.4 The over-current protection characteristics
| No. | Rated current In (A) | Initial state | Test current (A) | Specified time (t) | Expected result | Remarks |
| a | 6 ~ 40 | Cold state | 1.13 In | t ≥ 1h | Non-tripping | |
| b | Immediately after sequence a | 1.45 In | t < 1h | Tripping | Increase to the specified current within 5s after test item a. | |
| c | Cold state | 2.55 In | 1s < t < 60s | Tripping | ||
| d | Cold state | 3 In | t ≥ 0.1s | Non-tripping | Type B | |
| 5 In | t < 0.1s | Tripping | ||||
| 5 In | t ≥ 0.1s | Non-tripping | Type C | |||
| 10 In | t < 0.1s | Tripping |
3. Outline and installation dimensions (mm)
___________________________________________________________________________________________________________________
_______________________________________________________________________________________
GFCI Circuit Breaker is designed to provide protection from ground fault circuit interruption. The RCBO Type B GFCI Circuit Breaker is a ground fault circuit interrupter that is designed for use with push-in terminals and has a frequency rating of 50/60 Hz. It has a voltage rating of 120/240VAC and is capable of handling 14-2 AWG wire. The trip type is thermal magnetic. This GFCI Circuit Breaker is an effective way to protect against ground fault circuit interruption, providing safety for electrical systems.
Product Name: GFCI Circuit Breaker
Mounting Type: Plug-in
CSA Certified: Yes
Indicator Light: Yes
Terminal Type: Push-in
RCBO Type A: Yes
RCBO Type B: Yes
GFCI Circuit Breaker: Yes
HAROK's GFCI Circuit Breakers, model numbers VRL01, VRL02, VRL03, VRL11, VAL003, VKL003, VDL006, and VRL22, are designed to be plug-in circuit breakers with NEMA 1 rating and indicator light. They also have a frequency rating of 50/60 Hz and a wire gauge of 14-2 AWG. These GFCI Circuit Breakers are ideal for use in RCBO Type B and RCBO Circuit Breaker applications. The Residual Current Circuit Breaker (RCCB) feature provides reliable protection from electric shock and other hazards. HAROK's GFCI Circuit Breakers are designed for optimal safety, stability, and longevity.
| Product Name | Specifications |
|---|---|
| GFCI Circuit Breaker | Mounting Type: Plug-in Interrupt Rating: 10kA Indicator Light: Yes CSA Certified: Yes Trip Type: Thermal Magnetic Frequency Rating: 50/60 Hz NEMA Rating: NEMA 1 Voltage Rating: 120/240VAC Number of Poles: 1 Pole RCBO Circuit Breaker: Type A, Type B, Type C, Type D, Type E |
GROUND FAULT CIRCUIT INTERRUPTER CIRCUIT BREAKER
