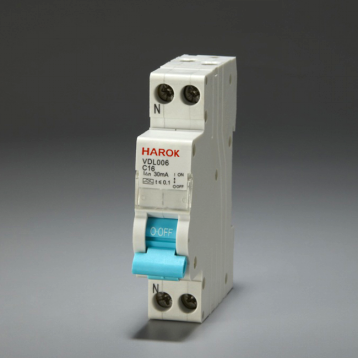

VDL006 GFCI | Ground Fault Circuit Interrupter
1. General
VDL006 residual current operated circuit breakers with overcurrent protection (RCBO) are suitable for lines with AC 50/60Hz, rated voltage 240V/415V, rated current up to 63A and for purposes of residual current protection, overload and short circuit protection. When any personal electric shock occurs or the circuit leakage current exceeds the predetermined value, the residual current operated circuit breaker can automatically cut off the power supply in a very short period of time, so that the safety of persons and electrical equipment can be operated. The residual current operated circuit breaker can be used for infrequent conversion of lines under normal conditions, and applied under occasions such as industrial, and commercial, high-rise buildings and residential houses.
2. Technical parameters

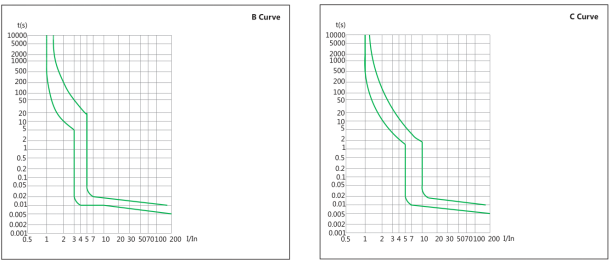

2.1 The tripping characteristic curves are as shown below.
2.2 Basic parameters
Standard | IEC/EN 61009-1 | |
Main Specifications | Model No. | VDL006 |
Rated current In | 6A, 10A, 16A, 20A, 25A, 32A, 40A | |
Classified by Type of Instantaneous Tripping | Type B: (3 ~ 5) In, Type C: (5 ~ 10) In | |
Poles | 1P + N | |
Type (wave form of the earth leakage sensed) | Type AC, Type A | |
Mechanical features | Rated voltage Ue | AC240V |
Frame size rated current In | 40A | |
Rated residual operating current I△n | 10mA, 30mA, 100mA, 300mA | |
Rated residual non-operating current I△no | 5mA, 15mA, 50mA, 150mA | |
Rated short-circuit breaking capacity Icn | 3000A, 4500A, 6000A | |
Rated residual making and breaking capacity I△m | 500A | |
Electrical life | 2,000 | |
Mechanical life | 2,000 | |
Rated impulse withstand voltage Uimp | 4000V | |
Connection | From top and bottom, from bottom and top |
2.3 The residual current breaking times
In (A) | I△n (A) | Breaking time when the residual current assumes the following values (s) | ||||
I△n | 2I△n | 5I△n | 5A, 10A, 20A, 50A, 100A, 200A, 500A(a) | I△t(b) | ||
6~40 | 0.01, 0.03, 0.1, 0.3 | 0.1 | 0.05 | 0.04 | 0.04 | 0.04 |
a. For tests of 5A, 10A, 20A, 50A, 100A, 200A and 500A, the current values beyond the lower limit of over-current instantaneous tripping are not tested. B. Tests are done when I△t is equal to the lower limit current of over-current instantaneous tripping of type B and type C. | ||||||

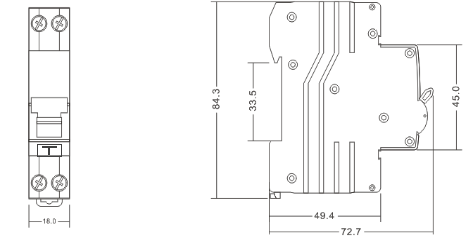

3. Outline and installation dimensions (mm)
