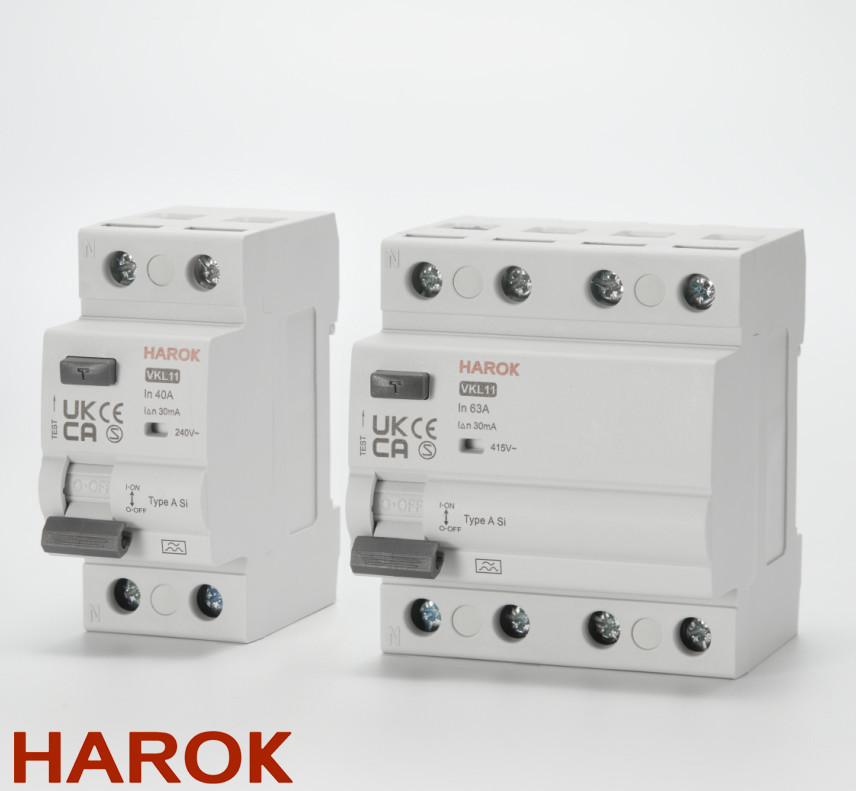

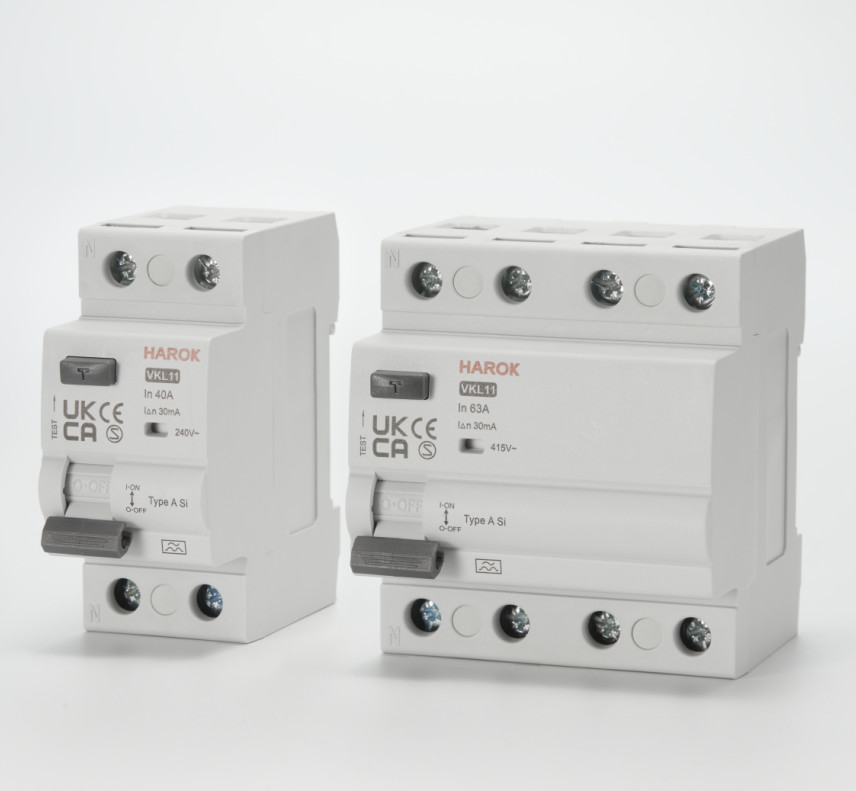

VKL11 Earth Leakage Circuit Breaker(ELCB) NF SEMKO VDE KEMA
1. General
1.1 Function
Control electric circuits.
Protect people against indirect contacts and additional protection against direct contacts.
Protect installations against fire hazard due to insulation faults.
Residual current circuit breakers are used in housing, tertiary sector and industry.
1.2 Selection
Detectable wave form
| ELCB Type | Suitable for electrical networks with | ||
|---|---|---|---|
| Pulsated DC current | Harmonics | Switching surges | |
| AC CLASS | No | No | No |
| A CLASS | Yes | No | No |
| S, ASi CLASS | Yes | Yes | Yes |
A Class ELCB may not work satisfactorily in electrical network distributed by harmonics & switching transients and may give nuisance triping.
AC class
Tripping is ensured for slowly increasing sinusoidal AC residual currents
A class
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly.
ASi Type - Full type A features + Si: Super immused (High immunity to unwanted tripping)
Tripping is ensured not only for sinusoidal AC residual currents but also for pulsed DC residual currents whether applied suddenly or increasing slowly. S, G/SI type with filters against spurious tripping caused by harmonics and transient surges. With the impact of 8/20us surge 3000A, this high immunity RCCB will still be in stable status.
Note: Our ASi type includes G/KV function and Si function.
1.3 Approvals and certificates
We certify that the ELCB has been tested for the following routine tests as per IS: 12640 (Part 1): 2016 and found to be complying
with the requirements.
1. Verification of the operating characteristic as per Seq. - D0 CL9.9
2. Verification of the operation of the test device at the limits of rated voltage as per Seq. - D1 CL9.16
3. High Voltage Test as per D.3 of Annex D
4. Test for standard values of break time and non- actuating time as per CL 5.3.12 (table -1)
Tripping sensitivity
10mA - precision instrument leakage protection and bathroom use.
30mA - additional protection against direct contact.
100mA - co-ordinated with the earth system according to the formula I△n < 50/R, to provide protection against indirect contacts;
300mA/500mA - protection against indirect contacts, as well as fire hazard.
Tripping time
Instantaneous
It ensures instantaneous tripping(without time-delay).
Short time delay Si, G, KV
It ensures any tripping at least 10ms.
Si: Super immunised (High immunity to unwanted tripping).
Selective
It ensures total discrimination with a non selective ELCB(RCCB) placed downstream.
ELCB | Earth Leakage Circuit Breaker
2. Technical parameters
| Standard | IEC/EN 61008-1 AS/NZS61008.1 | |
| Electrical features | Model No. | VKL11 |
| Poles | 2P, 4P | |
| Rated current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A | |
| Rated Sensitivity I△n | 10mA(2P/4P 16A,25A.32A/40A), 30mA, 100mA, 300mA | |
| Rated voltage Ue | 2P: 240V 4P: 415V | |
| Insulation voltage Ui | 415V | |
| Rated frequency | 50/60 Hz | |
| Rated residual making and breaking capacity I△m | 1500A | |
| Short-circuit current Inc=I△c | 6000A, 10000A | |
| Type (wave form of the earth leakage sensed) | A, AC, ASi | |
| break time under I△n | ≤0.1s(Normal type), 10ms~300ms(ASi type). 150ms~500ms(S type) | |
| Rated impulse withstand voltage(1.2/50) Uimp | 4kV | |
| Dielectric test voltage at ind. Freq. for 1 min | 2.5 | |
| Pollution degree | 2 | |
| Mechanical features | Electrical life | ≥2000 |
| Mechanical life | ≥2000 | |
| Fault current indicator | Yes | |
| Terminal protection degree | IP20 | |
Ambient temperature (with daily average≤35℃) | -25℃ to 50℃ | |
| Storage temperate | -30℃ to 70℃ | |
| Installation | Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable | 25-35 mm² | |
| 18-3/18-2 AWG | ||
| Terminal size top/bottom for busbar | 10/16 mm² | |
| 18-8/18-5 AWG | ||
| Tightening torque | 2.5 N·m | |
| 22 In-Ibs. | ||
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device | |
| Connection | From top and bottom |
3. Outline and installation dimensions (mm)
ELCB | Earth Leakage Circuit Breaker
ELCB Earth Leakage Circuit Breaker TYPE A TYPE AC TYPE ASi is an important protection device used to prevent electrical damages caused by leakage current. It features a trip time of ≤0.1s and its weight varies according to the product model. The rated voltage and frequency of this ELCB is 240V/415V and 50/60Hz respectively. It is made of PA66 materials for superior durability and long-lasting performance. This ELCB Earth Leakage Circuit Breaker is suitable for residential, commercial and industrial applications where a reliable and safe power supply is required.
Product Name: ELCB Earth Leakage Circuit Breaker, including ELCB Type A Type AC and Type ASi
Rated Current: 6A-100A
Dimension: According To The Product Model
Insulation Voltage: ≥2KV
Protection Grade: IP20
HAROK VKL11 ELCB Earth Leakage Circuit Breaker is a kind of electrical security products. It is suitable for all kinds of AC 50Hz/60Hz, rated voltage up to 500V, rated current 6A-100A circuit. This ELCB is a protective device that can cut off the fault circuit immediately when it detects leakage current of the circuit, so as to ensure the safety of people and property. It is certified by NF, SEMKO, VDE, KEMA, and the minimum order quantity is 1000. The packaging details are paper carton and the delivery time is 4-6 weeks after payment. FOB NINGBO or SHANGHAI is accepted for payment and the supply ability is 100,000 PCS per month. The weight and dimension of the product are decided by the product model. The insulation voltage of HAROK VKL11 ELCB is greater than 2KV, and the rated sensitivity is 30mA/100mA/300mA.
| Specifications | ELCB TYPE F |
|---|---|
| Rated Voltage | 240V/415V |
| Operating Environment Temperature | -25℃~+50℃ |
| Rated Frequency | 50/60Hz |
| Weight | According To The Product Model |
| Trip Time | ≤0.1s |
| Dimension | According To The Product Model |
| Material | PA66 |
| Installation Method | Cable/Pin-type busbar |
| Rated Sensitivity | 30mA/100mA/300mA |
We offer customized ELCB TYPE EV Earth Leakage Circuit Breaker from HAROK with model number VKL11. Our ELCB UL1053 is certified with NF, SEMKO, VDE, KEMA. The minimum order quantity is 1000, and the package is paper carton. The delivery time is 4-6 weeks after payment. The payment terms are FOB NINGBO or SHANGHAI. We have a supply ability of 100,000 PCS PER MONTH. The insulation voltage is ≥2KV, with a rated frequency of 50/60Hz. The protection grade is IP20, and the material is PA66. The rated current ranges from 6A-100A.
