| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Certification | NF, SEMKO, VDE, KEMA |
| Model Number | VML01 |
| Minimum Order Quantity | 1000 |
| Packaging Details | PAPER CARTON |
| Delivery Time | 4-6 weeks after payment |
| Payment Terms | FOB NINGBO or SHANGHAI |
| Supply Ability | 100,000 PCS PER MONTH |
| Rated Voltage | 240V/415V | Insulation Voltage | ≥2KV |
|---|---|---|---|
| Weight | 0.2KG/DP; 0.4KG/FP | Rated Current | 6A, 10A, 13A, 16A, 20A, 25A, 32A, 40A, 63A, 80A, 100A |
| Material | PA66 | Operating Environment Temperature | -25℃~+50℃ |
| Rated Frequency | 50/60Hz | Dimension | 35.8*75.6*86.6/DP; 71.3*75.6*86.6/FP |
| High Light | 240V Earth Leakage Circuit Breaker,elcb 4 pole 40 amp,Type AC elcb circuit breaker | ||

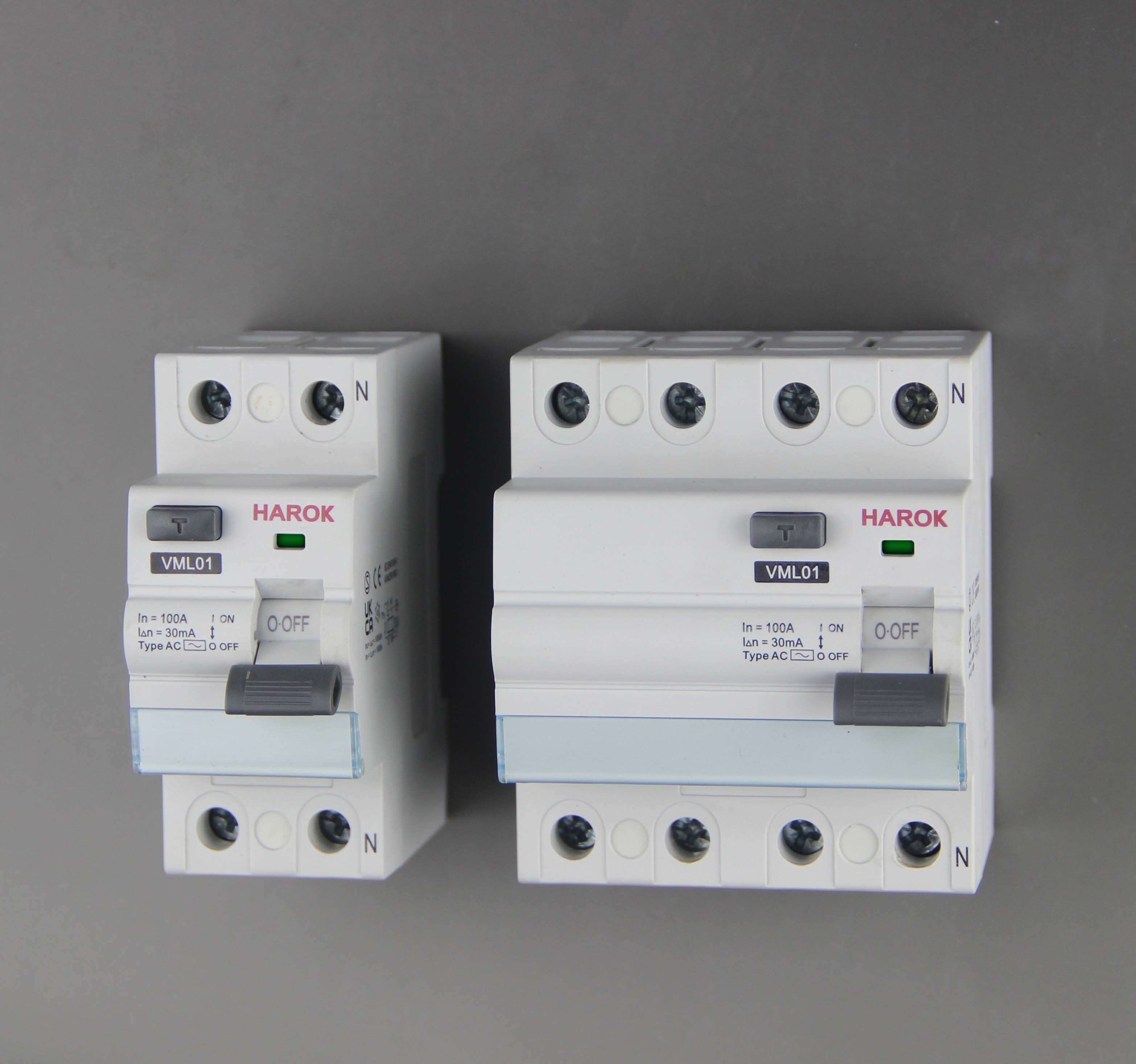

VML01 Earth Leakage Circuit Breaker Type A Type AC Type ASi
1. General
1.1 Function
Control electric circuits.
Protect people against indirect contacts and additional protection against direct contacts.
Protect installations against fire hazard due to insulation faults.
Residual current circuit breakers are used in housing, tertiary sector and industry.
1.2 Selection
Detectable wave form
| ELCB Type | Suitable for electrical networks with | ||
|---|---|---|---|
| Pulsated DC current | Harmonics | Switching surges | |
| AC CLASS | No | No | No |
| A CLASS | Yes | No | No |
| S, ASi CLASS | Yes | Yes | Yes |
A Class ELCB may not work satisfactorily in electrical network distributed by harmonics & switching transients and may give nuisance triping.
AC class
Tripping is ensured for slowly increasing sinusoidal AC residual currents
A class
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly.
ASi Type - Full type A features + Si: Super immused (High immunity to unwanted tripping)
Tripping is ensured not only for sinusoidal AC residual currents but also for pulsed DC residual currents whether applied suddenly or increasing slowly. S, G/SI type with filters against spurious tripping caused by harmonics and transient surges. With the impact of 8/20us surge 3000A, this high immunity RCCB will still be in stable status.
Note: Our ASi type includes G/KV function and Si function.
1.3 Approvals and certificates
We certify that the ELCB has been tested for the following routine tests as per IS: 12640 (Part 1):2016 and found to be complying
with the requirements.
1. Verification of the operating characteristic as per Seq. - D0 CL9.9
2. Verification of the operation of the test device at the limits of rated voltage as per Seq. - D1 CL9.16
3. High Voltage Test as per D.3 of Annex D
4. Test for standard values of break time and non- actuating time as per CL 5.3.12 (table -1)
Tripping sensitivity
10mA - precision instrument leakage protection and bathroom use.
30mA - additional protection against direct contact.
100mA - co-ordinated with the earth system according to the formula I△n < 50/R, to provide protection against indirect contacts;
300mA/500mA - protection against indirect contacts, as well as fire hazard.
Tripping time
Instantaneous
It ensures instantaneous tripping(without time-delay).
Short time delay ASi
(High Immunity/ Avoid nuisance tripping &blinding)
It ensures any tripping at least 10ms.
Selective
It ensures total discrimination with a non selective ELCB(RCCB) placed downstream.
ELCB | Electrical Leakage Circuit Breaker
2. Technical parameters
| Standard | IEC/EN 61008-1 AS/NZS61008.1 | |
| Electrical features | Model No. | VML01 |
| Poles | 2P, 4P | |
| Rated current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A | |
| Rated Sensitivity I△n | 10mA(2P/4P 16A,25A.32A/40A), 30mA, 100mA, 300mA | |
| Rated voltage Ue | 2P: 240V 4P: 415V | |
| Insulation voltage Ui | 415V | |
| Rated frequency | 50/60 Hz | |
| Rated residual making and breaking capacity I△m | 1500A | |
| Short-circuit current Inc=I△c | 6000A, 10000A | |
| Type (wave form of the earth leakage sensed) | AC, A, ASi, S | |
| break time under I△n | ≤0.1s(Normal type), 10ms~300ms(ASi type). 150ms~500ms(S type) | |
| Rated impulse withstand voltage(1.2/50) Uimp | 4kV | |
| Dielectric test voltage at ind. Freq. for 1 min | 2.5 | |
| Pollution degree | 2 | |
| Mechanical features | Electrical life | ≥2000 |
| Mechanical life | ≥2000 | |
| Fault current indicator | Yes | |
| Terminal protection degree | IP20 | |
Ambient temperature (with daily average≤35℃) | -25℃ to 50℃ | |
| Storage temperate | -30℃ to 70℃ | |
| Installation | Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable | 25-35 mm² | |
| 18-3/18-2 AWG | ||
| Terminal size top/bottom for busbar | 10/16 mm² | |
| 18-8/18-5 AWG | ||
| Tightening torque | 2.5 N·m | |
| 22 In-Ibs. | ||
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device | |
| Connection | From top and bottom |
3. Outline and installation dimensions (mm)
ELCB | Electrical Leakage Circuit Breaker
ELCB Earth Leakage Circuit Breaker is a protective device that can detect the leakage of electric current in the circuit and cut off the power supply in time to avoid electric shock, electric fire and other dangerous accidents. It is widely used in power distribution systems.
The ELCB Type A Type AC Type ASi is designed to provide a reliable protection of all kinds of electrical circuits against overload and short circuits. It features a compact design with a dimension according to the product model, and can be installed by fixed or plug-in methods. The rated current range of the ELCB Type F is from 6A to 100A, and the trip time is ≤0.1s, while the rated breaking capacity is 10KA.
a. we guarantee 5 years' warranty;
b. The material of ELCB shell is PA66 instead of bakelite (bakelite shell is easily broken when drop onto ground)
c. Bottom lock material is PA66 instead of iron with spring (iron lock with spring is easily broken and not nice looking)
d. Our quality control standard is very strict. We have perfect test equipment in our factory to tests products during production, all the ELCB will be tested and checked one by one at least 5 times before delivery.
e. VORAX has been certified by the ISO9001 Quality Management System, and all products produced in VORAX are kept in strict accordance with international IEC/EN standards.
f. VORAX products have gained variety of international certifications, including SAA, CB, CE, NF, SEMKO etc.
We are the only Chinese company who have ISI certificate for India.
We are the one of two companies who have NF certificate for France.
So if u buy our ELCB, the good quality of products is 100% guaranteed and you won't get any trouble with certificate issues. The price we quote is worth.
Product Name: ELCB Earth Leakage Circuit Breaker
Weight: According To The Product Model
Rated Current: 6A-100A
Operating Environment Temperature: -25℃~+50℃
Insulation Voltage: ≥2KV
Trip Time: ≤0.1s
HAROK ELCB Earth Leakage Circuit Breaker combines superior performance with modern design and has been certified by NF, SEMKO, VDE, and KEMA. It can be used for both fixed installation and plug-in installation and operates in a temperature range from -25℃ to +50℃. The rated sensitivity of HAROK ELCB Earth Leakage Circuit Breaker is 30mA/100mA/300mA, and its material is PA66. HAROK ELCB Earth Leakage Circuit Breaker provides reliable safety for household and commercial applications. The dimension of HAROK ELCB Earth Leakage Circuit Breaker varies according to the product model. The minimum order quantity is 1000 pieces and they can be packed in paper carton. Delivery time is 4-6 weeks after payment, and the supply ability is 100,000 pieces per month.
Brand Name: HAROK
Model Number: VML01
Place of Origin: CHINA
Certification: NF, SEMKO, VDE, KEMA
Minimum Order Quantity: 1000
Packaging Details: PAPER CARTON
Delivery Time: 4-6 weeks after payment
Payment Terms: FOB NINGBO or SHANGHAI
Supply Ability: 100,000 PCS PER MONTH
Operating Environment Humidity: ≤95%RH
Operating Environment Temperature: -5℃~+40℃
Material: ABS/PC/PBT
Rated Sensitivity: 30mA/100mA/300mA/500mA
Rated Current: 6A-100A
