| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Certification | NF, SEMKO, VDE, KEMA |
| Model Number | VKL11 |
| Minimum Order Quantity | 1000 |
| Packaging Details | PAPER CARTON |
| Delivery Time | 4-6 weeks after payment |
| Payment Terms | FOB NINGBO or SHANGHAI |
| Supply Ability | 100,000 PCS PER MONTH |
| Installation Method | Cable/Pin-type Busbar | Trip Time | ≤0.1s |
|---|---|---|---|
| Rated Voltage | 240V/415V | Weight | According To The Product Model |
| Protection Grade | IP20 | Insulation Voltage | ≥2KV |
| Rated Sensitivity | 30mA/100mA/300mA | Material | PA66 |
| High Light | ISI Mark ELCB circuit breaker,10KA Earth Leakage Circuit Breaker,ISI Mark Earth Leakage Circuit Breaker | ||

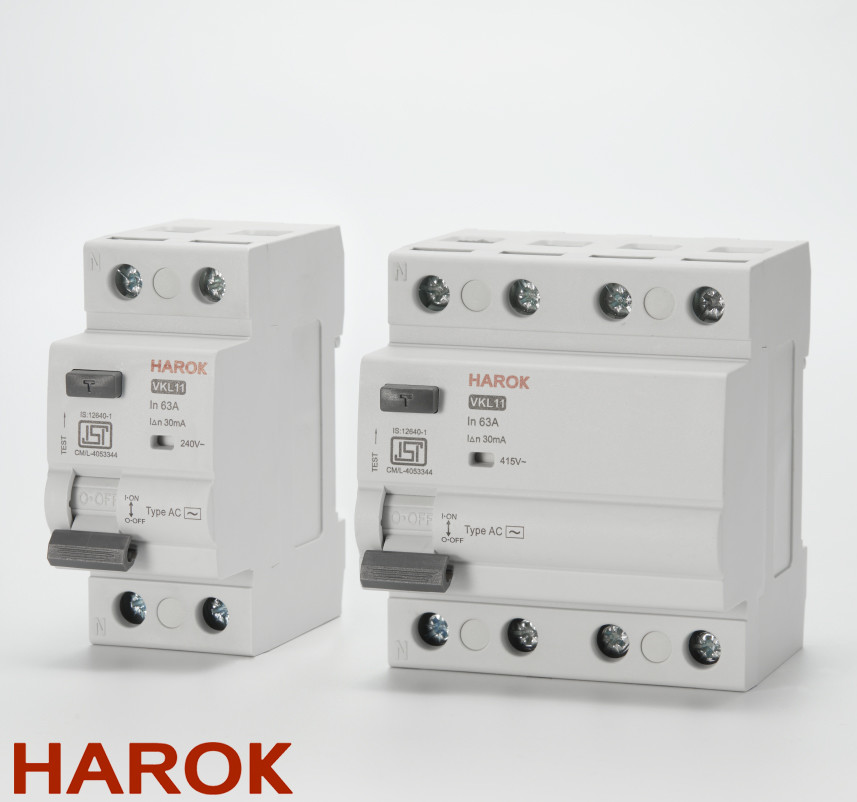

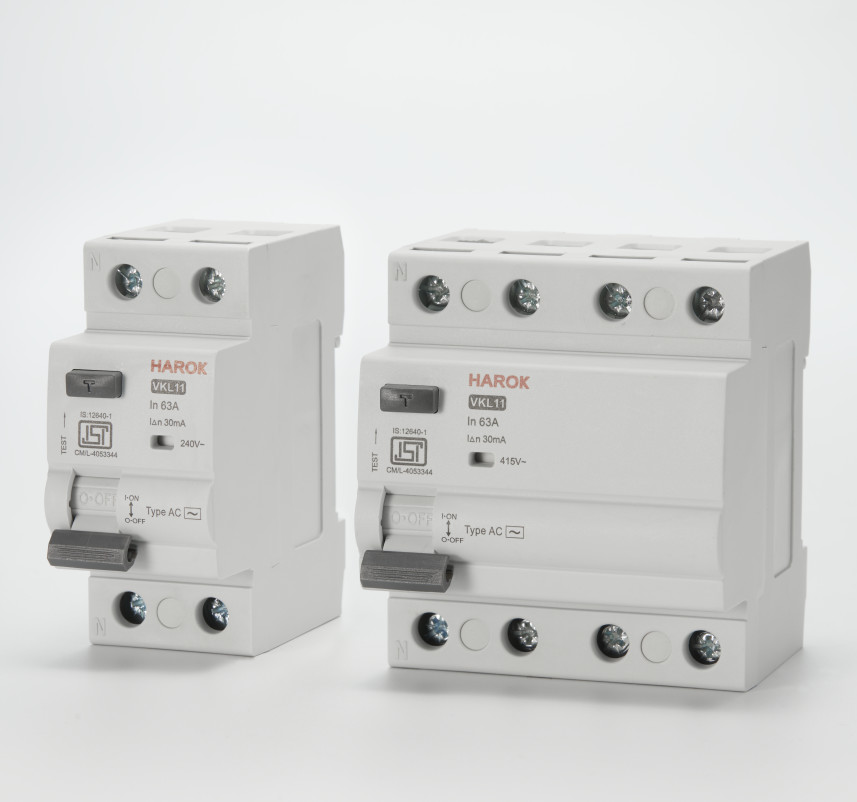

VKL11 Earth Leakage Circuit Breaker(ELCB) ISI mark
1. General
1.1 Function
Control electric circuits.
Protect people against indirect contacts and additional protection against direct contacts.
Protect installations against fire hazard due to insulation faults.
Residual current circuit breakers are used in housing, tertiary sector and industry.
1.2 Selection
Detectable wave form
| ELCB Type | Suitable for electrical networks with | ||
|---|---|---|---|
| Pulsated DC current | Harmonics | Switching surges | |
| AC CLASS | No | No | No |
| A CLASS | Yes | No | No |
| S, ASi CLASS | Yes | Yes | Yes |
A Class ELCB may not work satisfactorily in electrical network distributed by harmonics & switching transients and may give nuisance triping.
AC class
Tripping is ensured for slowly increasing sinusoidal AC residual currents
A class
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly.
ASi Type - Full type A features + Si: Super immused (High immunity to unwanted tripping)
Tripping is ensured not only for sinusoidal AC residual currents but also for pulsed DC residual currents whether applied suddenly or increasing slowly. S, G/SI type with filters against spurious tripping caused by harmonics and transient surges. With the impact of 8/20us surge 3000A, this high immunity RCCB will still be in stable status.
Note: Our ASi type includes G/KV function and Si function.
1.3 Approvals and certificates
We certify that the ELCB has been tested for the following routine tests as per IS: 12640 (Part 1):2016 and found to be complying
with the requirements.
1. Verification of the operating characteristic as per Seq. - D0 CL9.9
2. Verification of the operation of the test device at the limits of rated voltage as per Seq. - D1 CL9.16
3. High Voltage Test as per D.3 of Annex D
4. Test for standard values of break time and non- actuating time as per CL 5.3.12 (table -1)
Tripping sensitivity
10mA - precision instrument leakage protection and bathroom use.
30mA - additional protection against direct contact.
100mA - co-ordinated with the earth system according to the formula I△n < 50/R, to provide protection against indirect contacts;
300mA/500mA - protection against indirect contacts, as well as fire hazard.
Tripping time
Instantaneous
It ensures instantaneous tripping(without time-delay).
Short time delay Si, G, KV
It ensures any tripping at least 10ms.
Si: Super immunised (High immunity to unwanted tripping).
Selective
It ensures total discrimination with a non selective ELCB(RCCB) placed downstream.
ELCB | Earth Leakage Circuit Breaker
2. Technical parameters
| Standard | IEC/EN 61008-1 AS/NZS61008.1 | |
| Electrical features | Model No. | VKL11 |
| Poles | 2P, 4P | |
| Rated current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A | |
| Rated Sensitivity I△n | 10mA(2P/4P 16A,25A.32A/40A), 30mA, 100mA, 300mA | |
| Rated voltage Ue | 2P: 240V 4P: 415V | |
| Insulation voltage Ui | 415V | |
| Rated frequency | 50/60 Hz | |
| Rated residual making and breaking capacity I△m | 1500A | |
| Short-circuit current Inc=I△c | 6000A, 10000A | |
| Type (wave form of the earth leakage sensed) | AC, A, ASi, S | |
| break time under I△n | ≤0.1s(Normal type), 10ms~300ms(ASi type). 150ms~500ms(S type) | |
| Rated impulse withstand voltage(1.2/50) Uimp | 4kV | |
| Dielectric test voltage at ind. Freq. for 1 min | 2.5 | |
| Pollution degree | 2 | |
| Mechanical features | Electrical life | ≥2000 |
| Mechanical life | ≥2000 | |
| Fault current indicator | Yes | |
| Terminal protection degree | IP20 | |
Ambient temperature (with daily average≤35℃) | -25℃ to 50℃ | |
| Storage temperate | -30℃ to 70℃ | |
| Installation | Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable | 25-35 mm² | |
| 18-3/18-2 AWG | ||
| Terminal size top/bottom for busbar | 10/16 mm² | |
| 18-8/18-5 AWG | ||
| Tightening torque | 2.5 N·m | |
| 22 In-Ibs. | ||
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device | |
| Connection | From top and bottom |
3. Outline and installation dimensions (mm)
ELCB | Earth Leakage Circuit Breaker
ELCB (Earth Leakage Circuit Breaker) is an electrical safety device used to protect people and property from electrical shock. it is designed to detect small currents in the ground and quickly interrupt the circuit when a fault is detected. VORAX ELCB is UL-certified, and it has passed rigorous tests to meet the requirements of NF, SEMKO, VDE, and KEMA safety standards, ensuring maximum safety for users. It is suitable for operating environment temperature from -25℃~+50℃. The weight of the product varies according to the model, and it can be installed both through Cable and Pin-type busbar.
Product Name: ELCB Earth Leakage Circuit Breaker
Type: TYPE AC, TYPE A, TYPE ASi
Installation Method: Cable and Pin-type busbar
Insulation Voltage: ≥2KV
Weight: According To The Product Model
Rated Frequency: 50/60Hz
Operating Environment Temperature: -25℃~+50℃
HAROK VKL11 Earth Leakage Circuit Breaker is a reliable and advanced electrical protection device. It meets NF, SEMKO, VDE and KEMA safety standards. It is made of high-grade materials and components, and features high safety, reliability, and stability. Its rated current is 6A-100A, rated voltage is 220V/380V, and rated sensitivity is 30mA/100mA/300mA/500mA. It can be used in Type F, Type A, Type AC, and Type ASi environments. It can be installed by fixed or plug-in methods. One package contains 1000 pieces, and it is usually packaged in paper cartons. The delivery time is usually 4-6 weeks after payment. FOB NINGBO or SHANGHAI payment terms are accepted. The monthly supply ability of this product is 100,000 PCS, and its weight is according to the product model.
| Attribute | ELCB |
|---|---|
| Type | Type A Type AC Type ASi |
| Rated Sensitivity | 30mA/100mA/300mA |
| Rated Breaking Capacity | 10KA |
| Installation Method | Cable and Pin-type busbar |
| Protection Grade | IP20 |
| Rated Voltage | 240V/415V |
| Material | PA66 |
| Certificate | NF, SEMKO, VDE, KEMA |
| Rated Current | 6A-100A |
| Weight | According To The Product Model |
| Insulation Voltage | ≥2KV |
Brand Name: HAROK
Model Number: VKL11
Place of Origin: CHINA
Certification: NF, SEMKO, VDE, KEMA
Minimum Order Quantity: 1000
Packaging Details: PAPER CARTON
Delivery Time: 4-6 weeks after payment
Payment Terms: FOB NINGBO or SHANGHAI
Supply Ability: 100,000 PCS PER MONTH
Protection Grade: IP20
Rated Current: 6A-100A
Certificate: NF, SEMKO, VDE, KEMA
Insulation Voltage: ≥2KV
Types: ELCB Type A Type AC Type ASi, Earth Leakage Circuit Breaker
ELCB Earth Leakage Circuit Breaker should be packed in a strong, sturdy box with plenty of cushioning material. This box should be sealed and labeled with the product name and weight.
The box should then be placed inside a larger box with cushioning material around it. The larger box should also be sealed and labeled with the product name and weight.
Shipping should be done via a reputable carrier such as UPS or FedEx. All packages should be tracked and insured for the full value of the product.
