| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Certification | CE, CB, NF, ISI, SEMKO |
| Model Number | VKL11 |
| Minimum Order Quantity | 5000 |
| Packaging Details | PAPER CARTON |
| Delivery Time | 4-6 weeks after payment |
| Payment Terms | FOB NINGBO or SHANGHAI |
| Supply Ability | 100,000 PCS PER MONTH |
| Rated Residual Operating Time | 0.03s | Protection Degree | IP20 |
|---|---|---|---|
| Rated Current | 30mA | Rated Conditional Short-circuit Current Inc | 10kA |
| Rated Impulse Withstand Voltage | 4kV | Rated Voltage | 2P: 230/240V AC; 4P: 400/415V AC |
| Operating Temperature | -25℃~+55℃ | Rated Frequency | 50Hz/60Hz |
| High Light | 30mA residual current device type b,SEMKO rcd type b 30ma,IP20 rcd b type | ||

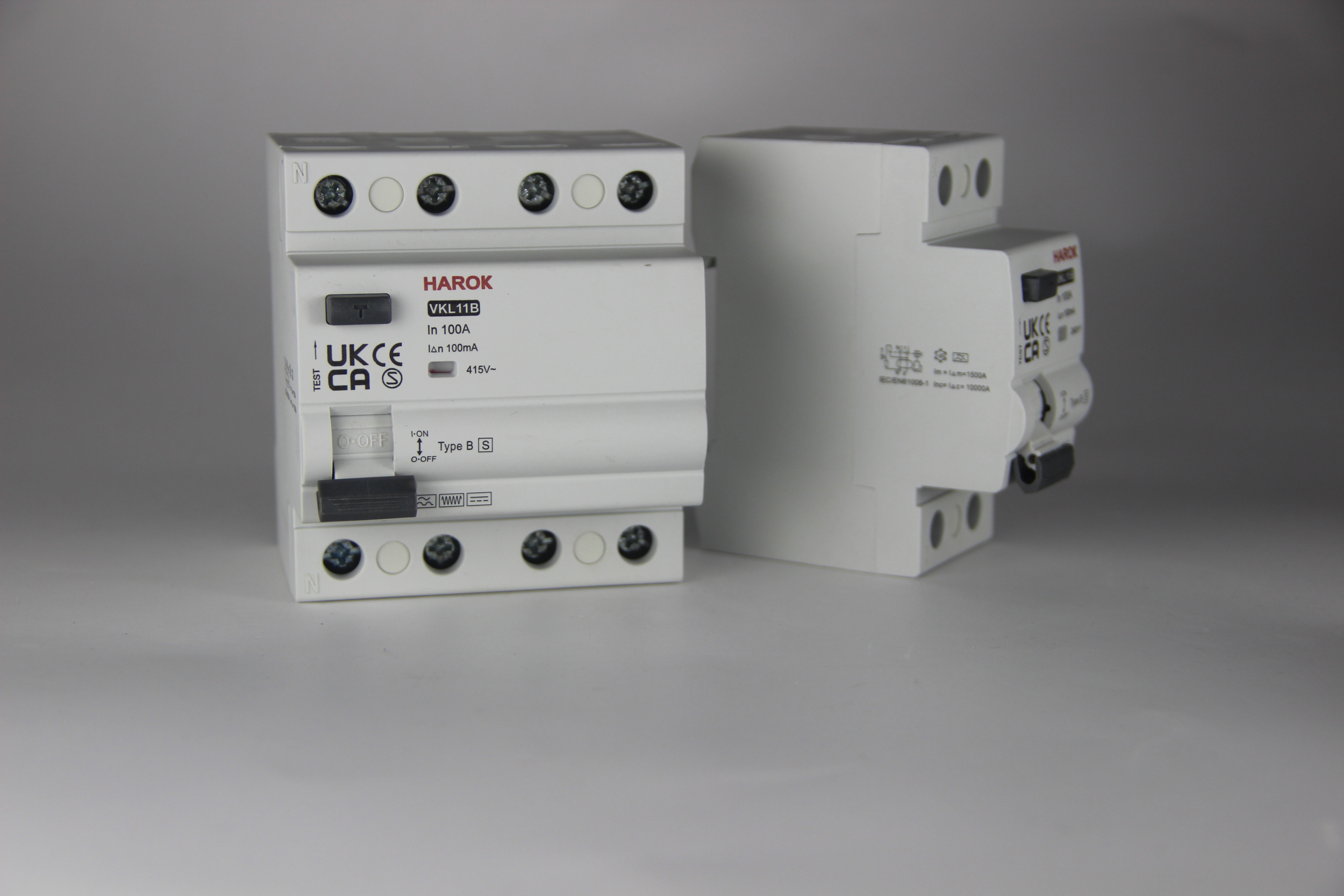

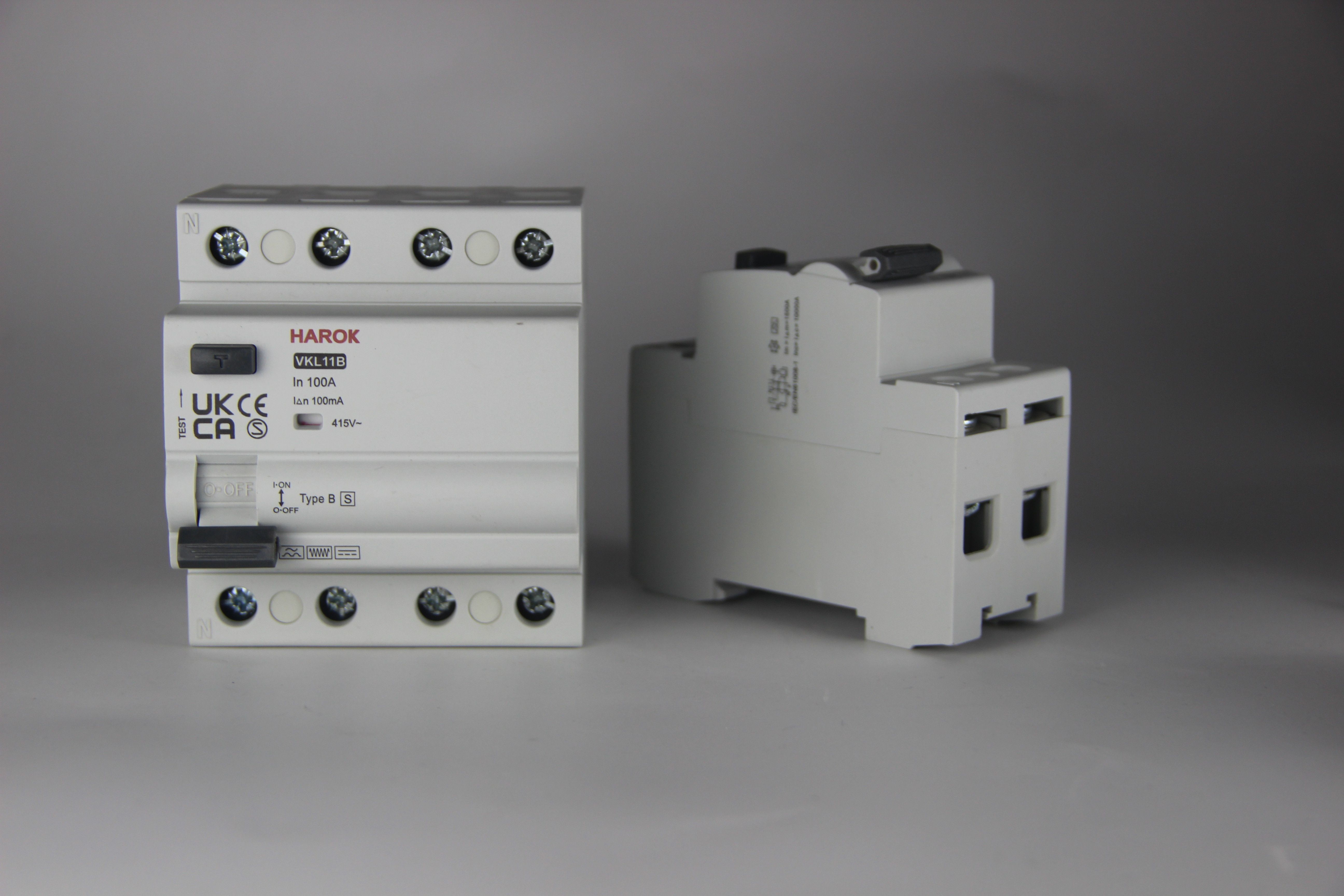

VKL11 Residual Current Device(RCD) TYPE B
General
1.1 Function
VKL11B RCD and VKL11B+ RCD is appearance design, compact structure, good reliability, and high safety. They are universal residual current circuit breaker.
Residual current circuit breaker type B are suitable for domestic as well as industrial applications, where are used frequency inverters, PV plant, EV chargers and similar elements. B type provides a sensitivity to residual AC, pulsating and smooth DC current, together with high frequencies up to 1 kHz.
Residual current circuit breaker type B+ meet full type B feature , with additional tripping values are defined up to 20KHZ and they are below 420mA.
They are based on electronic technology, which brings advantages of more accurate measuring of residual current and, as a consequence, reduction of unwanted tripping. These devices also do not suffer with magnetization of the tripping unit.
1.2 Selection
Detectable wave form
Type B
Tripping is ensured for sinusoidal AC residual currents pulsed DC residual currents, alternating residual sinusoidal currents up to 1000Hz, pulsating direct residual currents and for smooth direct residual currents, whether applied suddenly or increasing slowly.
Type B+
Meet full type B feature , with additional tripping values are defined up to 20KHZ and they are below 420mA
Tripping sensitivity
30mA - additional protection against direct contact.
100mA - co-ordinated with the earth system according to the formula IΔn＜50/R, to provide
protection against indirect contacts;
300mA - protection against indirect contacts, as well as fire hazard.
Tripping time
Instantaneous It ensures instantaneous tripping(without time-delay).
Short time delay
Selective (time delay)
1.3 Approvals and certificates
Technical parameters
| Type | B | B+ | ||
| Electrical | ||||
| Design according to | IEC/EN 62423, IEC/EN 61008-1, OVE E8601 | |||
| VDE 0664-400 | ||||
| Current test marks as printed onto the device | ||||
| Rated voltage Un | 2P: 230/240V AC 4P: 400/415V AC | |||
| Rated frequency fn | 50/60Hz | |||
| Mode of operation | "A type functionality: voltage independent B and B+ type functionality: voltage dependent" | |||
| Operation voltage electronic | 50 – 264V AC | |||
| Voltage range test circuit | 2P: 184 – 264V AC 4P: 184 – 440V AC | |||
| Rated current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A | |||
Rated residual operating current I△n | Instantaneous | 30mA, 100mA, 300mA, 500mA | 30mA, 100mA, 300mA | |
| K-short time delayed (G, ASi) | 30mA, 100mA, 300mA, 500mA | 30mA, 100mA, 300mA | ||
| S- selective | 100mA, 300mA, 500mA | 100mA, 300mA | ||
| Sensitivity | Alternating, pulsed and smooth direct currents | |||
| High frequency up to 1 kHZ | High frequency up to 20kHZ | |||
| Rated insulation voltage Ui | 500 V | |||
| Rated impulse withstand voltage Uimp | 4 kV (1.2/50μs) | |||
| Rated conditional short-circuit current Inc | 10 kA | |||
| Rated making and breaking capacity Im | 1500 A | |||
| Peak withstand current | 3 kA (8/20 μs) surge current proof 5 kA (8/20 μs) surge current proof for type S | |||
| Electrical isolation | > 4 mm contact space | |||
Maximum back-up fuse In = 16-100A | Short circuit and overload protection 100 A gG/gL | |||
Endurance (operating cycles) | electrical components | ≥ 2000 | ||
| mechanical components | ≥ 4000 | |||
| Mechanical | ||||
| Degree of protection | IP20 | |||
| Upper and lower terminals | open mounted / lift terminals | |||
| Terminal capacity | 1 - 25 mm2 | |||
| Terminal torque | 2 - 2.5 Nm | |||
| Busbar thickness | 0.8 - 2 mm | |||
| Operating temperature | -25°C ... +55°C | |||
| Storage- and transport temperature | -40°C ... +70°C | |||
| Resistance to climatic conditions | IEC/EN 61008 | |||
| Contact position indicator | mechanical red / green | |||
| Supply possibility | top or bottom | |||
| Mounting position | any | |||
Special features regarding the use of SIQUENCE universal current-sensitive residual current circuit breaker (Type B and Type B+)
Applications
3.1 Typical applications that are vulnerable to smooth DC residual currents:
- Frequency converters with a three-phase connection
- Medical equipment such as X-ray equipment or CT machines
- Photovoltaic or UPS systems
- Connection points (wall boxes, charging stations) for electric vehicles
- Elevator controllers
- Pipeline trace heating
- Test setups in laboratories
- Construction sites in accordance with BGI 608 information leaflet (Electronic equipment
on construction sites)
- Charging stations for battery-powered forklift trucks
- Cranes of all kinds
- Mixing plants if relevant loads are connected
- Variable-speed machine tools, such as milling and grinding machines or lathes
Wiring diagrams
Tripping characteristics
.B type
Dimensions (mm)
The Residual Current Device (RCD) Type B is designed to provide reliable protection against electric shock and fire hazards. It has a rated insulation voltage of 500V, a rated conditional short-circuit current of 10kA, and a rated storage temperature of -40℃~+70℃. This RCD is available in a range of rated currents, including 16A, 25A, 32A, 40A, 63A, 80A, and 100A. It also has a protection degree of IP20.
The RCD Type B is an essential safety device for electrical systems. It monitors the flow of electricity in the circuit, and trips when an imbalance is detected. This helps to reduce the risk of electric shock and fire caused by faults, and ensures a secure and reliable electrical system.
The RCD Type B is a reliable and cost-effective solution for protecting against electric shock and fire hazards. Its high rated insulation voltage and short-circuit current, wide range of rated currents and excellent storage temperature make it an ideal choice for any application.
Product Name: RCD TYPE B
Rated Residual Operating Current: 30mA
Operating Temperature: -25℃~+55℃
Rated Impulse Withstand Voltage: 4kV
Rated Frequency: 50Hz/60Hz
Rated Residual Operating Currents: 30mA, 100mA, 300mA, 500mA
HAROK VKL11 Residual Current Device (RCD) Type B is designed for safety protection against electric shock and fire, to detect leakage currents and to disconnect the circuit in case of a fault. It can be used in both domestic and commercial applications. It has a rated frequency of 50Hz/60Hz, operating temperature of -25℃~+55℃, protection degree of IP20, rated current of 30mA, and rated residual non-operating time of 0.3s. Certified by CE, CB, NF, ISI, and SEMKO, it is available with a minimum order quantity of 5000 and packaged in paper carton. Delivery time is 4-6 weeks after payment and FOB NINGBO or SHANGHAI is accepted. The supply ability is up to 100,000 PCS per month.
| Parameters | Values |
|---|---|
| Product Name | Residual Current Device TYPE B |
| Rated current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A |
| Rated Residual Operating Current I△n | 30mA, 100mA, 300mA, 500mA |
| Rated Residual Operating Time | 0.03s |
| Rated Residual Non-Operating Time | 0.3s |
| Rated Frequency | 50Hz/60Hz |
| Rated conditional short-circuit current Inc | 10kA |
| Rated Impulse Withstand Voltage | 4kV |
| Rated Storage Temperature | -40℃~+70℃ |
| Operating Temperature | -25℃~+55℃ |
