| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Certification | CE, CB, NF, ISI, SEMKO |
| Model Number | VKL11 |
| Minimum Order Quantity | 5000 |
| Packaging Details | PAPER CARTON |
| Delivery Time | 4-6 weeks after payment |
| Payment Terms | FOB NINGBO or SHANGHAI |
| Supply Ability | 100,000 PCS PER MONTH |
| Rated Current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A | Rated Residual Operating Current | 30mA |
|---|---|---|---|
| Product Name | Residual Current DeviceTYPE B | Rated Residual Operating Current I△n | 30mA, 100mA, 300mA, 500mA |
| Rated Impulse Withstand Voltage | 4kV | Rated Residual Non-Operating Time | 0.3s |
| Rated Current | 30mA | Rated Frequency | 50Hz/60Hz |
| High Light | Residual Current Device Type B+,16A RCD Type B+,rcd 30ma type b | ||

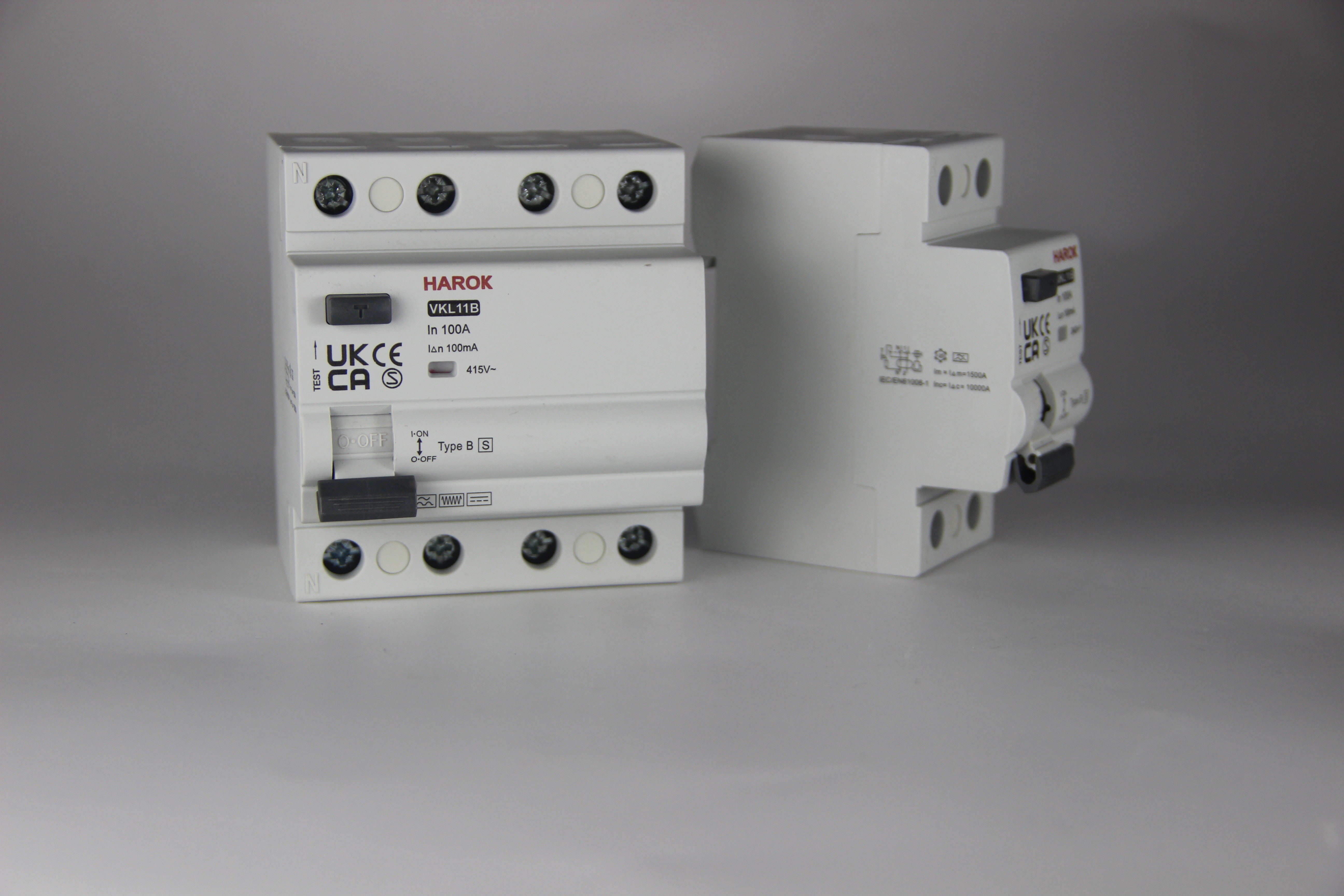

VKL11 Residual Current Device(RCD) Type B+
1. General
1.1 Function
VKL11B RCD and VKL11B+ RCD is appearance design, compact structure, good reliability, and high safety. They are universal residual current circuit breaker.
Residual current circuit breaker type B are suitable for domestic as well as industrial applications, where are used frequency inverters, PV plant, EV chargers and similar elements. B type provides a sensitivity to residual AC, pulsating and smooth DC current, together with high frequencies up to 1 kHz.
Residual current circuit breaker type B+ meet full type B feature , with additional tripping values are defined up to 20KHZ and they are below 420mA.
They are based on electronic technology, which brings advantages of more accurate measuring of residual current and, as a consequence, reduction of unwanted tripping. These devices also do not suffer with magnetization of the tripping unit.
1.2 Selection
Detectable wave form
Type B
Tripping is ensured for sinusoidal AC residual currents pulsed DC residual currents, alternating residual sinusoidal currents up to 1000Hz, pulsating direct residual currents and for smooth direct residual currents, whether applied suddenly or increasing slowly.
Type B+
Meet full type B feature , with additional tripping values are defined up to 20KHZ and they are below 420mA
Tripping sensitivity
30mA - additional protection against direct contact.
100mA - co-ordinated with the earth system according to the formula IΔn＜50/R, to provide protection against indirect contacts;
300mA - protection against indirect contacts, as well as fire hazard.
Tripping time
Instantaneous It ensures instantaneous tripping(without time-delay).
Short time delay
Selective (time delay)
1.3 Approvals and certificates
RCD | Residual Current Device
2. Technical parameters
| Type | B | B+ | ||
| Electrical | ||||
| Design according to | IEC/EN 62423, IEC/EN 61008-1, OVE E8601 | |||
| VDE 0664-400 | ||||
| Current test marks as printed onto the device | ||||
| Rated voltage Un | 2P: 230/240V AC 4P: 400/415V AC | |||
| Rated frequency fn | 50/60Hz | |||
| Mode of operation | "A type functionality: voltage independent B and B+ type functionality: voltage dependent" | |||
| Operation voltage electronic | 50 – 264V AC | |||
| Voltage range test circuit | 2P: 184 – 264V AC 4P: 184 – 440V AC | |||
| Rated current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A | |||
Rated residual operating current I△n | Instantaneous | 30mA, 100mA, 300mA, 500mA | 30mA, 100mA, 300mA | |
| K-short time delayed (G, ASi) | 30mA, 100mA, 300mA, 500mA | 30mA, 100mA, 300mA | ||
| S- selective | 100mA, 300mA, 500mA | 100mA, 300mA | ||
| Sensitivity | Alternating, pulsed and smooth direct currents | |||
| High frequency up to 1 kHZ | High frequency up to 20kHZ | |||
| Rated insulation voltage Ui | 500 V | |||
| Rated impulse withstand voltage Uimp | 4 kV (1.2/50μs) | |||
| Rated conditional short-circuit current Inc | 10 kA | |||
| Rated making and breaking capacity Im | 1500 A | |||
| Peak withstand current | 3 kA (8/20 μs) surge current proof 5 kA (8/20 μs) surge current proof for type S | |||
| Electrical isolation | > 4 mm contact space | |||
Maximum back-up fuse In = 16-100A | Short circuit and overload protection 100 A gG/gL | |||
Endurance (operating cycles) | electrical components | ≥ 2000 | ||
| mechanical components | ≥ 4000 | |||
| Mechanical | ||||
| Degree of protection | IP20 | |||
| Upper and lower terminals | open mounted / lift terminals | |||
| Terminal capacity | 1 - 25 mm2 | |||
| Terminal torque | 2 - 2.5 Nm | |||
| Busbar thickness | 0.8 - 2 mm | |||
| Operating temperature | -25°C ... +55°C | |||
| Storage- and transport temperature | -40°C ... +70°C | |||
| Resistance to climatic conditions | IEC/EN 61008 | |||
| Contact position indicator | mechanical red / green | |||
| Supply possibility | top or bottom | |||
| Mounting position | any | |||
3. Special features regarding the use of SIQUENCE universal current-sensitive residual current circuit breaker (Type B and Type B+)
3.1 Applications
Typical applications that are vulnerable to smooth DC residual currents:
- Frequency converters with a three-phase connection
- Medical equipment such as X-ray equipment or CT machines
- Photovoltaic or UPS systems
- Connection points (wall boxes, charging stations) for electric vehicles
- Elevator controllers
- Pipeline trace heating
- Test setups in laboratories
- Construction sites in accordance with BGI 608 information leaflet (Electronic equipment on construction sites)
- Charging stations for battery-powered forklift trucks
- Cranes of all kinds
- Mixing plants if relevant loads are connected
- Variable-speed machine tools, such as milling and grinding machines or lathes
4. Wiring diagrams
5. Tripping characteristics
B type
6. Dimensions (mm)
The Super immunised Residual Current Device (RCD) Type B+ is designed to protect people from electrical shock by disconnecting the power supply when it detects a fault current. It is rated for a maximum conditional short-circuit current of 10kA, and is available in rated currents of 16A, 25A, 32A, 40A, 63A, 80A, and 100A, with a rated insulation voltage of 500V. The device also has a protection degree of IP20 and a rated impulse withstand voltage of 4kV, making it an ideal safety solution for a wide range of applications.
Product Name: RCD TYPE B+
Protection Degree: IP20
Rated Residual Operating Time: 0.03s
Operating Temperature: -25℃~+55℃
Rated Storage Temperature: -40℃~+70℃
Rated Frequency: 50Hz/60Hz
High immunity RCD
RCD TYPE B+, also known as Super immunised Residual Current Device, is a reliable RESIDUAL CURRENT DEVICE manufactured by HAROK. It is equipped with superior properties like a minimum order quantity of 5000, with a packaging of paper carton, and a delivery time of 4-6 weeks after payment. Moreover, it offers different payment terms such as FOB NINGBO or SHANGHAI, and has a remarkable supply ability of 100,000 PCS PER MONTH. It is certified by CE, CB, NF, ISI, SEMKO, and has a rated conditional short-circuit current Inc of 10kA, and a rated residual operating time of 0.03s. Along with a rated current In of 16A, 25A, 32A, 40A, 63A, 80A, 100A, it also offers an operating temperature of -25℃~+55℃ and a rated insulation voltage of 500V. RCD TYPE B by HAROK is a perfect choice for any safety application as it provides superior resistance against the current leakage.
| Parameter | Value |
|---|---|
| Product Name | RESIDUAL CURRENT DEVICE, Super immunised Residual Current Device, RCD TYPE B+ |
| Rated Residual Operating Current I△n | 30mA, 100mA, 300mA, 500mA |
| Rated Voltage (2P) | 230/240V AC |
| Rated Voltage (4P) | 400/415V AC |
| Rated Current | 16A, 25A, 32A, 40A, 63A, 80A, 100A |
| Rated Storage Temperature | -40℃~+70℃ |
| Rated Current | 30mA |
| Operating Temperature | -25℃~+55℃ |
| Rated Residual Operating Time | 0.03s |
| Rated Conditional Short-circuit Current Inc | 10kA |
| Protection Degree | IP20 |
| Rated Residual Non-Operating Time | 0.3s |
