Brand Name | HAROK |
Minimum Order Quantity | 3000 |
PRODUCT DETAILS
High Light | 2Pcs red and green led indicator lights , red and green led indicator lights 110V , 220v led indicator light IP65 |
PRODUCT DESCRIPTION

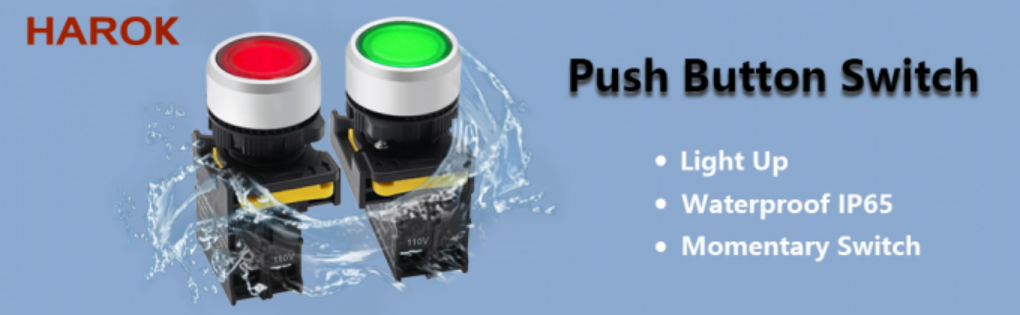

harok 2Pcs Red Green LED Light Voltage 110V-220V 22mm 1NO 1NC Waterproof IP65 SPST Momentary Push Button Switch 10A 60
Operation Mode | Automatic,Push Button |
Current Rating | 10 Amps |
Operating Voltage | 600 Volts |
Contact Type | Spst |
Brand | harok |
Switch Type | Push Button |
Terminal | Spst |
· This Push Button Switch Warranty 3 years . If there are quality problems within 3 years, you can send us email. We will send you new ones.
· Special attention: Light connect to 110V -220V,Can light up ；Ith : 10A; Ui : 600V; Material : Plastic and Metal; Terminal Quantity : 4; Contact Type :1NO, 1NC; Action Type : Momentary.
· Waterproof grade :IP65;LED Button Color : Red, Green.Mount Hole Diameter : 22mm / 0.87"(7/8"); Fit Panel Thickness: Max 0.5cm / 0.2".
· Button Diameter :24mm / 0.94" ; Total Size(Approx) : 4.1 x 3 x 6.3cm/ 1.6" x 1.2" x2.5"(L*W*H);Net Weight : 50g
· Package Content : 1 Pcs x Red Push Button Switch + 1 Pcs x Green Push Button Switch
The contact has self-cleaning function, reduces dust and oxide layer, and ensures the electrifying performance. |
Choose imported high-quality pc materials, flame retardant and heat resistant; The interior adopts waterproof collar design and special explosion-proof components. |
Internal Copper The copper inside the button is passivated and the contact point is silver nickel alloy. |
Light Up This push-button switch has a lighting function and only needs 110v to light up. |
