Brand Name | HAROK |
Certification | UL, CE |
Model Number | HD16-22 |
Minimum Order Quantity | 3000 |
PRODUCT DETAILS
COLOR | Green, White, Red, Yellow, Blue | Working Temperature | -20℃~+50℃ |
Product Name | Pilot Indicator Light | Warranty | 2 Years |
Application | Indoor & Outdoor | Life Span | 50000h |
High Light | 360 Beam Angle Pilot Indicator Light , Red 110 volt led indicator lights , Red 110v Pilot Indicator Light | ||
PRODUCT DESCRIPTION
Pilot Light HD16-22 LED Pilot Indicator Light with 360° Beam Angle and Working Temperature from -20℃ to +50℃
· Mount Hole: 21.2mm / 0.83"
· Light Color: Green, Red, Yellow; Voltage: 110V AC
· Pin Number: 2 screw
· Size: 29 x 50 mm/ 1.1" x 2"(D*H)
· Green (White, red, yellow, blue are also optional) LED Indicator Pilot Lights each 1 PCS
Brand | HAROK |
Manufacturer | Yueqing Vorax Electric Co.,Ltd |
Product Name | Pilot lamp (Normal type) |
Item Weight | 0.637 ounces |
Package Dimensions | 3.8 x 2.4 x 1.1 inches |
Item Model Number | HD16-22D/S |
Mounting Diameter | 0.87 In (22mm) |
Shape of Signaling Unit Head | Round |
Color | Green (White, red, yellow, blue are also optional ) |
Bulb Base | Integral LED |
Voltage | 110 Volts, 50/60Hz |
Third Party Certification | UL/CE |
Special Features | Instant On |
Batteries Included? | No |
Batteries Required? | No |
Light Source | LED |
Wattage | 22 watts |
Wattage | 60 Watts |

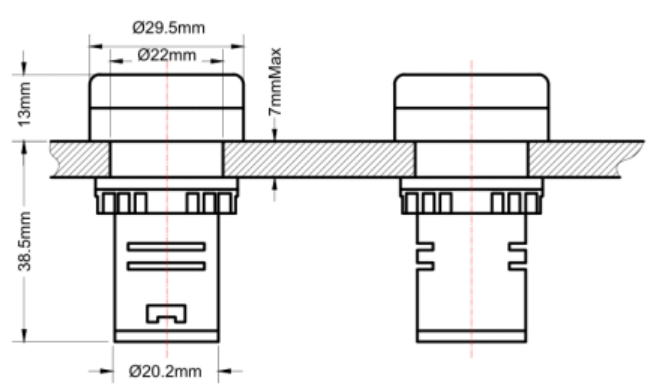

Dimension

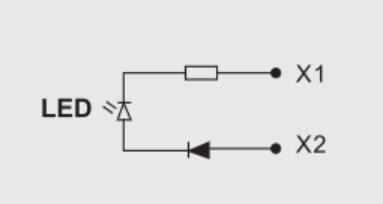

Pilot Light Internal Schematic
Our Pilot Indication Lamp is a perfect signaling device for a variety of applications. It is an ideal choice for your pilot illumination needs, providing you with a reliable and energy-efficient lighting solution. With its DC12V power, 100 lumens of luminous flux, 50*50mm size, 360° beam angle, and 50000 hours of life span, this Pilot Signaling Light is designed to provide years of reliable and safe service. It is a cost-effective, durable, and long-lasting lighting solution, perfect for any pilot illumination application.
· Product Name: Pilot Indicator Light
· Light Source: LED
· IP Rating: IP65
· Color Temperature: 6000K
· Life Span: 50000h
· Working Temperature: -20℃~+50℃
Applications:
The HAROK pilot indication lamp is an ideal alert lighting device for both indoor and outdoor applications. It is equipped with a powerful 6000K LED that runs on DC12V power, and is rated IP65 for dust and water protection. With a life span of 50000 hours, this pilot indication lamp is a reliable illumination device for any environment.
Technical Parameters:
Property | Value |
Product Name | Pilot Indicator Light |
Life Span | 50000h |
Weight | 50g |
Application | Indoor & Outdoor |
Size | 50*50mm |
IP Rating | IP65 |
Luminous Flux | 100LM |
Light Source | LED |
Color Temperature | 6000K |
Power | DC12V |
HAROK 360° Pilot Indicator Light
This is a HAROK Pilot Indicator Light with a 360° beam angle and 100LM luminous flux. This high quality product has an IP65 rating and is made of Aluminum.
This Pilot Indicator Light is perfect for alert lighting, signaling and indicating. It can be used in a variety of applications and environments.
For maximum performance, durability and quality, trust HAROK Pilot Indicator Light!
