| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Model Number | VKL003 |
| Minimum Order Quantity | 3000PCS |
| Payment Terms | L/C, T/T |
| Poles Number | 1P+N | Type | Type B |
|---|---|---|---|
| Rated Current | Up To 40A | Product Name | Mini Rcbo |
| Rated Voltage | 240V, 120V | Mechanical Life | 2000 |
| High Light | RCBO Residual Current Operated Circuit Breaker,Mini Residual Current Operated Circuit Breaker,AC240V Mini RCBO | ||
MINI RCBO | Residual Current Operated Circuit Breaker with over-current protection

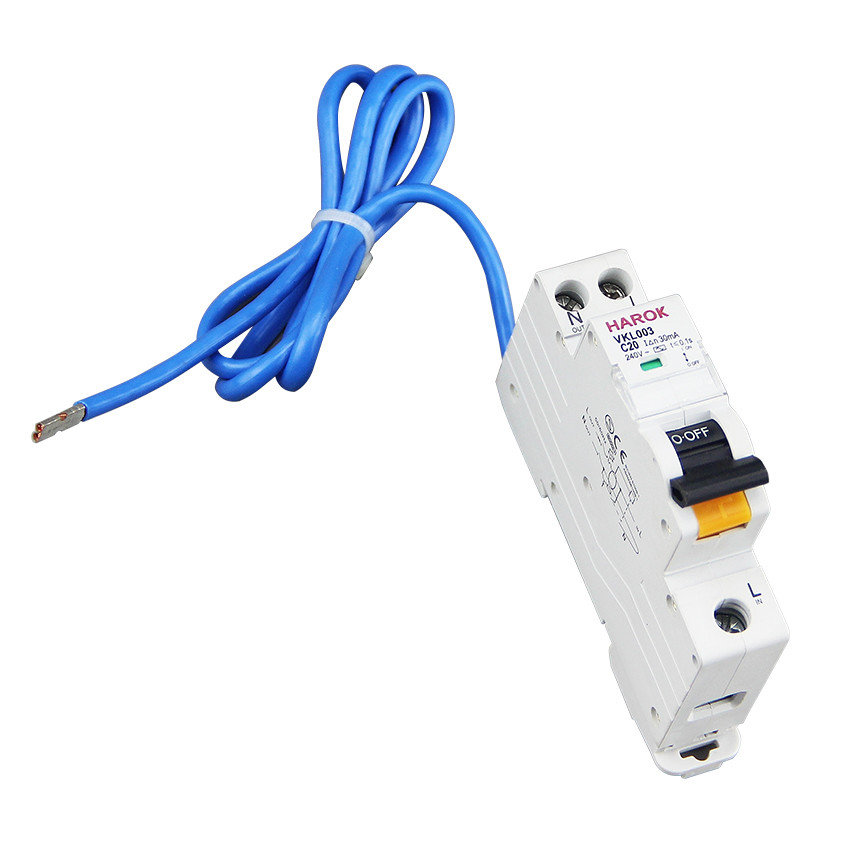

VKL003 Residual Current Operated Circuit Breaker with over-current protection
(MCB sized 1 module with switched neutral)
1. General
VKL003 residual current operated circuit breakers are suitable for lines with AC 50/60Hz, rated voltage 240V, 120V, rated current up to 40A and for purposes of residual current protection, overload and short circuit protection. When any personal electric shock occurs or the circuit leakage current exceeds the predetermined value, the residual current operated circuit breaker can automatically cut off the power supply in a very short period of time, so that the safety of persons and electrical equipment can be operated. The residual current operated circuit breaker can be used for infrequent conversion of lines under normal conditions, and applied under occasions such as industrial, and commercial, high-rise buildings and residential houses.
2. Technical parameters
2.1 The tripping characteristic curves are as shown below.
2.2 Basic parameters
| Standard | IEC/EN 61009-1 | |
| Main Specifications | Model No. | VKL003 |
| Rated current In | 5A, 6A, 10A, 13A, 15A, 16A, 20A, 25A, 30A, 32A, 35A, 40A | |
| Classified by Type of Instantaneous Tripping | Type B: (3 ~ 5) In, Type C: (5 ~ 10) In | |
| Poles | 1P + N | |
| Type (wave form of the earth leakage sensed) | Type AC, Type A | |
| Mechanical features | Rated voltage Ue | AC240V, AC120V |
| Frame size rated current In | 40A | |
| Rated residual operating current I△n | 6mA, 10mA, 30mA, 100mA, 300mA | |
| Rated residual non-operating current I△no | 3mA, 5mA, 15mA, 50mA, 150mA | |
| Rated short-circuit breaking capacity Icn | 240V: 4500A, 6000A, 10000A 120V: 15000A | |
Rated residual making and breaking capacity I△m | 500A | |
| Electrical life | 2,000 | |
| Mechanical life | 2,000 | |
| Rated impulse withstand voltage Uimp | 4000V | |
| Connection | From top and bottom, from bottom and top |
2.3 The residual current breaking times
| In (A) | I△n (A) | Breaking time when the residual current assumes the following values (s) | ||||
| I△n | 2I△n | 5I△n | 5A, 10A, 20A, 50A, 100A, 200A, 500A(a) | I△t(b) | ||
| 6~40 | 0.01, 0.03, 0.1, 0.3 | 0.1 | 0.05 | 0.04 | 0.04 | 0.04 |
a. For tests of 5A, 10A, 20A, 50A, 100A, 200A and 500A, the current values beyond the lower limit of over-current instantaneous tripping are not tested. B. Tests are done when I△t is equal to the lower limit current of over-current instantaneous tripping of type B and type C. | ||||||
2.4 The over-current protection characteristics
| No. | Rated current In (A) | Initial state | Test current (A) | Specified time (t) | Expected result | Remarks |
| a | 6 ~ 40 | Cold state | 1.13 In | t ≥ 1h | Non-tripping | |
| b | Immediately after sequence a | 1.45 In | t < 1h | Tripping | Increase to the specified current within 5s after test item a. | |
| c | Cold state | 2.55 In | 1s < t < 60s | Tripping | ||
| d | Cold state | 3 In | t ≥ 0.1s | Non-tripping | Type B | |
| 5 In | t < 0.1s | Tripping | ||||
| 5 In | t ≥ 0.1s | Non-tripping | Type C | |||
| 10 In | t < 0.1s | Tripping |

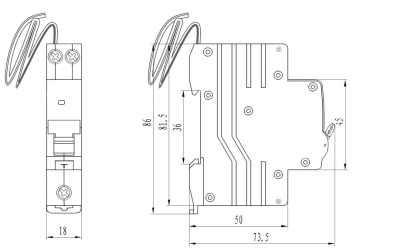

3. Outline and installation dimensions (mm)
RCBO Type B is a Residual Current Operated Circuit Breaker which is designed to provide protection against electric shock and fire caused by overload, short circuit and earth leakage. It provides superior protection and safety for both residential and commercial applications. This product is compliant with the IEC/EN 61009-1 and AS/NZS 61009.1 standards, and offers an impressive 2000 Mechanical Life. It is available in 1P+N poles, and has a wide range of rated current options (6A 10A 16A 20A 25A 32A 40A 50A Inm). RCBO Type B is the ideal choice for reliable and safe electrical circuit protection.
Product Name: RCBO Type B
Residual Current Operated Circuit Breaker
Rated Residual Operating Current: 0.01A, 0.03A, 0.1A, 0.3A
Rated impulse withstand voltage Uimp: 6000V
Frame size rated current Inm: 50A
Poles: 1P+N
Classified by Type of Instantaneous Tripping: Type B: (3 ~ 5) In, Type C: (5 ~ 10) In
RCBO Type B, manufactured by HAROK with model number VKL003, is a 1P+N circuit breaker and is made in CHINA. It is rated at AC240V with a rated residual non-operating current of 0.005A, 0.015A, 0.05A, 0.15A and a rated residual making and breaking capacity of I△m 500A. This RCBO Circuit Breaker offers superior electrical life of 2000.
RCBO Type B is suitable for various applications, especially for the protection of sensitive appliances that require a very low residual current. It is also suitable for circuit protection in places with frequent on-off operations, such as kitchen, bathroom, and laundry. RCBO Type B can be used to protect circuits in places such as office buildings, factories, and warehouses.
RCBO Type B is also suitable for residential and commercial applications, such as in residential buildings, apartments, and condominiums. It is also ideal for commercial applications, such as in shops, restaurants, and retail stores. In addition, it can be used to protect electrical circuits in hotels, hospitals, and other public places.
Furthermore, RCBO Type B is suitable for the protection of lighting circuits, air conditioning systems, and other electrical circuits that are subject to frequent on-off operations. It is also suitable for the protection of motors, pumps, and other electrical equipment in industrial applications.
| Property | Description |
|---|---|
| Standard | IEC/EN 61009-1, AS/NZS 61009.1 |
| Connection | From Top And Bottom, From Bottom And Top |
| Type of Instantaneous Tripping | Type B: (3 ~ 5) In, Type C: (5 ~ 10) In |
| Rated Residual Operating Current | 0.01A, 0.03A, 0.1A, 0.3A |
| Electrical Life | 2000 |
| Mechanical Life | 2000 |
| Product Name | Mini RCBO Type B |
| Frame size rated current Inm | 50A |
| Rated residual making and breaking capacity I△m | 500A |
| Rated Current | 6A 10A 16A 20A 25A 32A 40A 50A |
Brand Name: HAROK
Model Number: VKL003
Place of Origin: CHINA
Mechanical Life: 2000
Rated Voltage: AC240V
Standard: IEC/EN 61009-1, AS/NZS 61009.1
Type: Type B
Classified by Type of Instantaneous Tripping: Type B: (3 ~ 5) In, Type C: (5 ~ 10) In
HAROK VKL003 RCBO Type B is a type of Residual Current Operated Circuit Breaker which can provide a reliable and effective protection against electric shock. It has a rated voltage of AC240V and a mechanical life of 2000. It is certified by IEC/EN 61009-1, AS/NZS 61009.1 and classified by Type of Instantaneous Tripping as Type B: (3 ~ 5) In, Type C: (5 ~ 10) In.
Packaging and Shipping:
RCBO Type B products are packed in 5-ply cardboard boxes, foam lined, with a corrugated wrap. Each box contains 10 pieces. The boxes are shrink-wrapped and then placed on a pallet. The pallet is then stretch-wrapped for shipping.
