| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Model Number | VDL006 |
| Minimum Order Quantity | 3000PCS |
| Payment Terms | L/C, T/T |
| Poles Number | 1P+N | Rated Voltage | AC240V |
|---|---|---|---|
| Mechanical Life | 2000 | Standard | IEC/EN 61009-1 |
| Rated Frequency | 50/60Hz | Rated Current | 6A, 10A, 16A, 20A, 25A, 32A, 40A |
| Electrical Life | 2000 | ||
| High Light | AC240V rcbo b type,TYPE B RCBO for EV Charger,40a type b rcbo | ||
MINI RCBO | Residual Current Operated Circuit Breaker with over-current protection

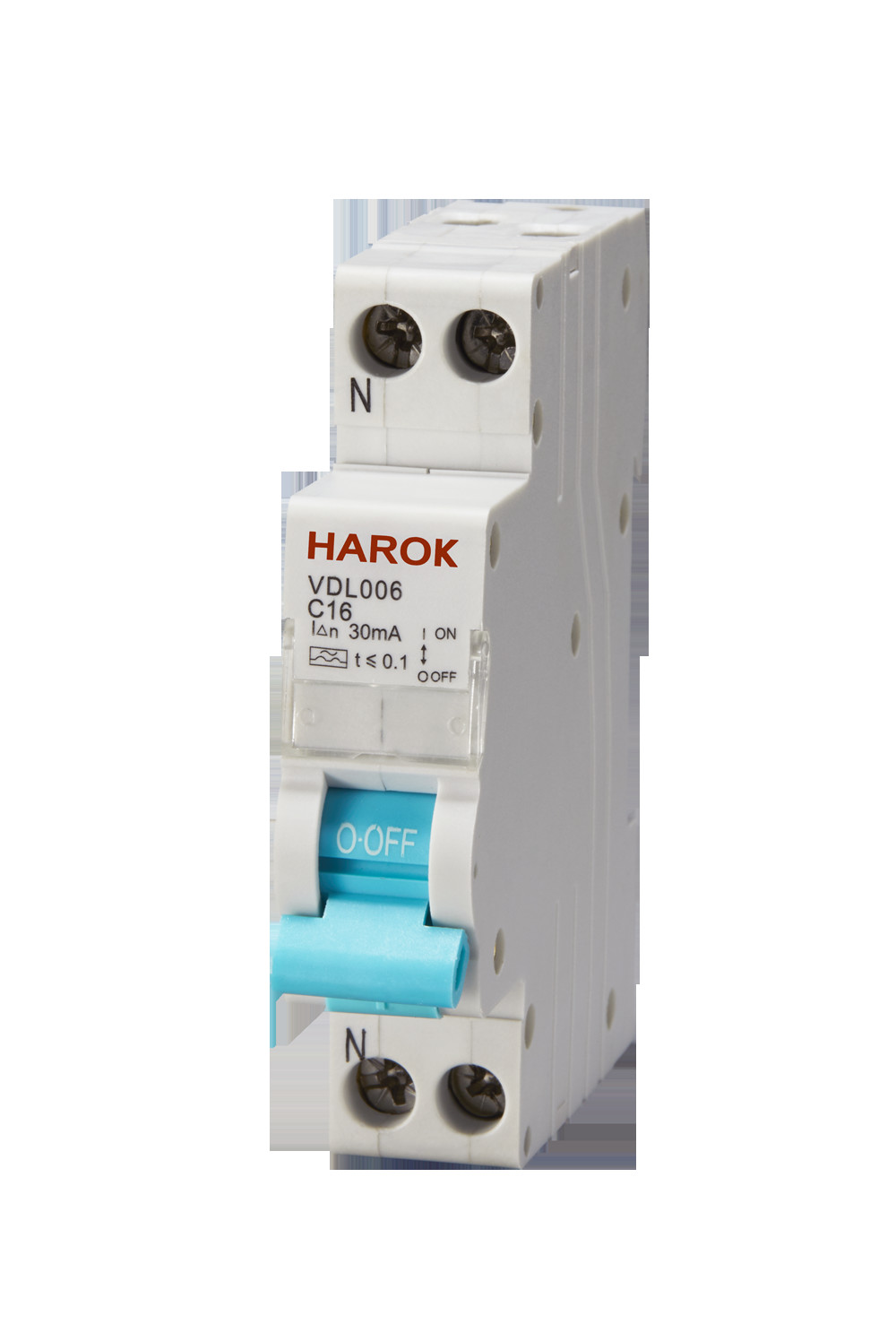

VDL006 Residual Current Operated Circuit Breaker with over-current protection (MINI RCBO)
(MCB sized 1 module with switched neutral)
1. General
VDL006 residual current operated circuit breakers are suitable for lines with AC 50/60Hz, rated voltage 240V, 120V, rated current up to 40A and for purposes of residual current protection, overload and short circuit protection. When any personal electric shock occurs or the circuit leakage current exceeds the predetermined value, the residual current operated circuit breaker can automatically cut off the power supply in a very short period of time, so that the safety of persons and electrical equipment can be operated. The residual current operated circuit breaker can be used for infrequent conversion of lines under normal conditions, and applied under occasions such as industrial, and commercial, high-rise buildings and residential houses.
2. Technical parameters
2.1 The tripping characteristic curves are as shown below.
2.2 Basic parameters
| Standard | IEC/EN 61009-1 | |
| Main Specifications | Model No. | VDL006 |
| Rated current In | 6A, 10A, 16A, 20A, 25A, 32A, 40A | |
| Classified by Type of Instantaneous Tripping | Type B: (3 ~ 5) In, Type C: (5 ~ 10) In | |
| Poles | 1P + N | |
| Type (wave form of the earth leakage sensed) | Type AC, Type A | |
| Mechanical features | Rated voltage Ue | AC240V |
| Frame size rated current In | 40A | |
| Rated residual operating current I△n | 10mA, 30mA, 100mA, 300mA | |
| Rated residual non-operating current I△no | 5mA, 15mA, 50mA, 150mA | |
| Rated short-circuit breaking capacity Icn | 3000A, 4500A, 6000A | |
Rated residual making and breaking capacity I△m | 500A | |
| Electrical life | 2,000 | |
| Mechanical life | 2,000 | |
| Rated impulse withstand voltage Uimp | 4000V | |
| Connection | From top and bottom, from bottom and top |
2.3 The residual current breaking times
| In (A) | I△n (A) | Breaking time when the residual current assumes the following values (s) | ||||
| I△n | 2I△n | 5I△n | 5A, 10A, 20A, 50A, 100A, 200A, 500A(a) | I△t(b) | ||
| 6~40 | 0.01, 0.03, 0.1, 0.3 | 0.1 | 0.05 | 0.04 | 0.04 | 0.04 |
a. For tests of 5A, 10A, 20A, 50A, 100A, 200A and 500A, the current values beyond the lower limit of over-current instantaneous tripping are not tested. B. Tests are done when I△t is equal to the lower limit current of over-current instantaneous tripping of type B and type C. | ||||||
2.4 The over-current protection characteristics
| No. | Rated current In (A) | Initial state | Test current (A) | Specified time (t) | Expected result | Remarks |
| a | 6 ~ 40 | Cold state | 1.13 In | t ≥ 1h | Non-tripping | |
| b | Immediately after sequence a | 1.45 In | t < 1h | Tripping | Increase to the specified current within 5s after test item a. | |
| c | Cold state | 2.55 In | 1s < t < 60s | Tripping | ||
| d | Cold state | 3 In | t ≥ 0.1s | Non-tripping | Type B | |
| 5 In | t < 0.1s | Tripping | ||||
| 5 In | t ≥ 0.1s | Non-tripping | Type C | |||
| 10 In | t < 0.1s | Tripping |
3. Outline and installation dimensions (mm)
RCBO Type B is a residual current circuit breaker with over-current protection, used to protect people against electric shock caused by indirect contact with live parts. It is also used to protect wiring and equipment from overload and short-circuit. The rated residual non-operating current is 0.005A, 0.015A, 0.05A, 0.15A, with an electrical life of 2000. This product has a connection from top and bottom or from bottom and top, and is compliant with IEC/EN 61009-1 and AS/NZS 61009.1 standards. It is rated for AC240V voltage. This product is a reliable and safe solution for your residential or commercial electrical system.
Product Name: RCBO Type B
Rated Voltage: AC240V
Classified by Type of Instantaneous Tripping: Type B: (3 ~ 5) In, Type C: (5 ~ 10) In
Type: Type B
Frame size rated current Inm: 50A
Electrical Life: 2000
HAROK's RCBO Type B circut breaker is a reliable solution for safety purpose. It is suitable for both residential and commercial use. This product is designed to provide protection against electric shock, fire and other hazards. It has a mechanical life of 2000 and is available in a variety of models such as VRL22 2P,4P VRL11 VAL003 VKL003 VDL006 VRL01 VRL02 VRL03 VK007LE 1P-4P. The connection of the breaker is from top and bottom or from bottom and top. It has a rated impulse withstand voltage of 6000V and a residual operating current of 0.01A, 0.03A, 0.1A, 0.3A. This RCBO circuit breaker is capable of accurately detecting leakage current and providing over-current protection. It is certified by international standards and is made from high-quality materials. It is a cost-effective solution and helps to ensure the safety of users.
| Parameter | Value |
|---|---|
| Product Name | RCBO Type B |
| Connection | From Top And Bottom, From Bottom And Top |
| Rated residual making and breaking capacity I△m | 500A |
| Poles | 1P+N |
| Mechanical Life | 2000 |
| Electrical Life | 2000 |
| Rated Current | 6A 10A 16A 20A 25A 32A 40A 50A |
| Rated impulse withstand voltage Uimp | 6000V |
| Frame size rated current Inm | 50A |
| Rated Voltage | AC240V |
Brand Name: HAROK
Model Number: VRL22 2P,4P VRL11 VAL003 VKL003 VDL006 VRL01 VRL02 VRL03 VK007LE 1P-4P
Place of Origin: CHINA
Poles: 1P+N
Rated impulse withstand voltage Uimp: 6000V
Rated Voltage: AC240V
Connection: From Top And Bottom, From Bottom And Top
Standard: IEC/EN 61009-1, AS/NZS 61009.1
The HAROK RCBO Type B is a residual current operated circuit breaker designed to provide protection against electric shock and fire hazards. This device is designed with 1P+N poles and rated impulse withstand voltage Uimp of 6000V. It is rated for AC240V and has connection from top and bottom, from bottom and top. It meets the standards of IEC/EN 61009-1, AS/NZS 61009.1.
At ABC Inc., our RCBO Type B products come with comprehensive technical support and services to ensure your satisfaction. We provide professional support and services to help you get the most out of your product. Our technical support and services include:
24/7 telephone and online technical support
Customized product solutions
On-site installation and maintenance
Online product tutorials and training
Regular product updates
Warranty and repair services
We are committed to providing the best technical support and services for our RCBO Type B products. If you have any questions or need assistance, please contact us and we will be happy to help.
RCBO Type B is shipped in a box that is designed to protect the product during shipping and handling. The box is made of corrugated cardboard and is sealed with tape. Inside the box, RCBO Type B is securely packaged in foam padding to prevent damage during transit.
The box is then placed into a larger shipping box, along with any other items that are being shipped. This shipping box is then sealed with tape and labeled with the appropriate shipping information. The package is then ready for shipping.
Q: What is the Brand Name of the RCBO Type B?
A: The Brand Name of the RCBO Type B is HAROK.
Q: What are the Model Numbers of the RCBO Type B?
A: The Model Numbers of the RCBO Type B are VRL22 2P,4P VRL11 VAL003 VKL003 VDL006 VRL01 VRL02 VRL03 VK007LE 1P-4P.
Q: Where is the RCBO Type B manufactured?
A: The RCBO Type B is manufactured in China.
Q: What type of circuit protection does the RCBO Type B provide?
A: The RCBO Type B provides overload, short-circuit, and earth leakage circuit protection.
Q: What types of loads is the RCBO Type B suitable for?
A: The RCBO Type B is suitable for residential, commercial, and industrial lighting and power loads.
