| Place of Origin | CHINA |
|---|---|
| Brand Name | HAROK |
| Model Number | VRL11 |
| Minimum Order Quantity | 3000PCS |
| Payment Terms | L/C, T/T |
| Poles Number | 1P+N | Rated Voltage | 2P: 230/240V AC 4P: 400/415V AC |
|---|---|---|---|
| Mechanical Life | 2000 | Standard | IEC/EN 62423, IEC/EN 61009-1, OVE E8601 |
| Rated Frequency | 50/60Hz | Rated Current | 6A,10A,13A,16A, 20A,25A, 32A, 40A, 63A |
| Electrical Life | 2000 | CURVE | TYPE B |
| High Light | 2P b curve rcbo,2P Residual Current Operated Circuit Breaker,63A RCBO Type B | ||
TYPE B RCBO | Residual Current Operated Circuit Breaker with over-current protection

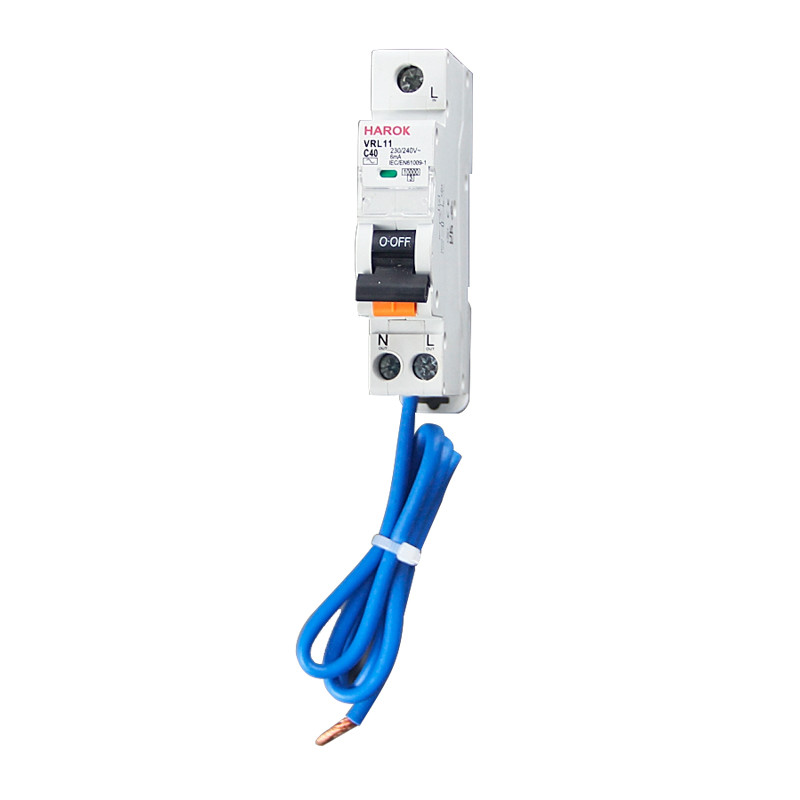

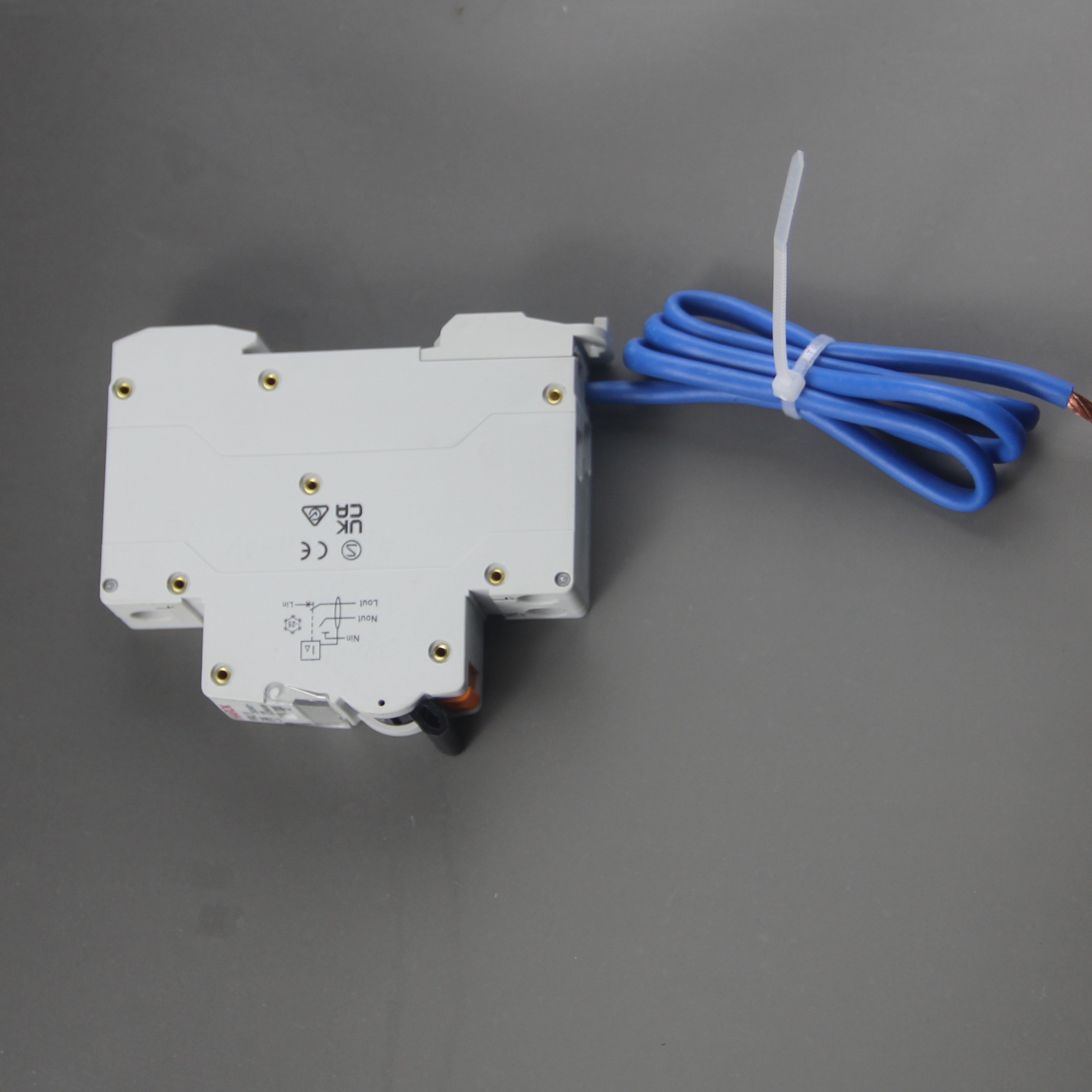

VRL11 Residual Current Operated Circuit Breaker with over-current protection TYPE B and TYPE B+
(MCB sized 1 module with switched neutral)
1. General
VRL11B RCBO type B and VRL11B+ RCBO type B+ are appearance design, compact structure, good reliability, and high safety. They are universal residual current circuit breaker with Overcurrent protection(RCBO).
Rated current up to 63A and for purposes of residual current protection, overcurrent (overload) and short circuit protection. When any personal electric shock occurs or the circuit leakage current exceeds the predetermined value, the RCBO can automatically cut off the power supply in a very short period of time, so that the safety of persons and electrical equipment can be operated.
Residual current circuit breaker with Overcurrent protection(RCBO) type B are suitable for domestic as well as industrial applications, where are used frequency inverters, PV plant, EV chargers and similar elements. B type provides a sensitivity to residual AC, pulsating and smooth DC current, together with high frequencies up to 1 kHz.
Residual current circuit breaker with Overcurrent protection(RCBO) type B+ meet full type B feature , with additional tripping values are defined up to 20KHZ and they are below 420mA.
They are based on electronic technology, which brings advantages of more accurate measuring of residual current and, as a consequence, reduction of unwanted tripping. These devices also do not suffer with magnetization of the tripping unit.
1.2 Selection
Detectable wave form
Type B
Tripping is ensured for sinusoidal AC residual currents pulsed DC residual currents, alternating residual sinusoidal currents up to 1000Hz, pulsating direct residual currents and for smooth direct residual currents, whether applied suddenly or increasing slowly.
Type B+
Meet full type B feature , with additional tripping values are defined up to 20KHZ and they are below 420mA
Tripping sensitivity
30mA - additional protection against direct contact.
100mA - co-ordinated with the earth system according to the formula IΔn＜50/R, to provide
protection against indirect contacts;
300mA - protection against indirect contacts, as well as fire hazard.
Tripping time
Instantaneous It ensures instantaneous tripping(without time-delay).
Short time delay
Selective (time delay)
Tripping Curve B & C
1.3 Approvals and certificates
CE
Technical parameters
2.1 Basic parameters
| Type | B | B+ | ||
| Electrical | ||||
| Design according to | IEC/EN 62423, IEC/EN 61009-1, OVE E8601 | |||
| VDE 0664-400 | ||||
| Current test marks as printed onto the device | ||||
| Rated voltage Un | 2P: 230/240V AC 4P: 400/415V AC | |||
| Rated frequency fn | 50/60Hz | |||
| Mode of operation | "A type functionality: voltage independent B and B+ type functionality: voltage dependent" | |||
| Operation voltage electronic | 50 – 264V AC | |||
| Voltage range test circuit | 2P: 184 – 264V AC 4P: 184 – 440V AC | |||
| Rated current In | 6A,10A,13A,16A, 20A,25A, 32A, 40A, 63A | |||
Rated residual operating current I△n | Instantaneous | 30mA, 100mA, 300mA, 500mA | 30mA, 100mA, 300mA | |
| K-short time delayed (G, ASi) | 30mA, 100mA, 300mA, 500mA | 30mA, 100mA, 300mA | ||
| S- selective | 100mA, 300mA, 500mA | 100mA, 300mA | ||
| Sensitivity | Alternating, pulsed and smooth direct currents | |||
| High frequency up to 1 kHZ | High frequency up to 20kHZ | |||
| Tripping Curve | B: (3-5)In, C: (5-10)In | |||
| Rated insulation voltage Ui | 500 V | |||
| Rated impulse withstand voltage Uimp | 4 kV (1.2/50μs) | |||
| Rated conditional short-circuit current Inc | 6KA,10 kA | |||
| Rated making and breaking capacity Im | 3000 A | |||
| Peak withstand current | 3 kA (8/20 μs) surge current proof 5 kA (8/20 μs) surge current proof for type S | |||
| Electrical isolation | > 4 mm contact space | |||
Endurance (operating cycles) | electrical components | ≥ 2000 | ||
| mechanical components | ≥ 4000 | |||
| Mechanical | ||||
| Degree of protection | IP20 | |||
| Upper and lower terminals | open mounted / lift terminals | |||
| Terminal capacity | 1 - 25 mm2 | |||
| Terminal torque | 2 - 2.5 Nm | |||
| Busbar thickness | 0.8 - 2 mm | |||
| Operating temperature | -25°C ... +55°C | |||
| Storage- and transport temperature | -40°C ... +70°C | |||
| Resistance to climatic conditions | IEC/EN 61009 | |||
| Contact position indicator | mechanical red / green | |||
| Supply possibility | top or bottom | |||
| Mounting position | any | |||
2.2 The residual current breaking times
| In (A) | I△n (A) | Breaking time when the residual current assumes the following values (s) | ||||
| I△n | 2I△n | 5I△n | 5A, 10A, 20A, 50A, 100A, 200A, 500A(a) | I△t(b) | ||
| 6~63 | 0.01, 0.03, 0.1, 0.3, 0.5 | 0.1 | 0.05 | 0.04 | 0.04 | 0.04 |
a. For tests of 5A, 10A, 20A, 50A, 100A, 200A and 500A, the current values beyond the lower limit of over-current instantaneous tripping are not tested. B. Tests are done when I△t is equal to the lower limit current of over-current instantaneous tripping of type B and type C. | ||||||
2.3 The over-current protection characteristics
| No. | Rated current In (A) | Initial state | Test current (A) | Specified time (t) | Expected result | Remarks |
| a | 6 ~ 63 | Cold state | 1.13 In | t ≥ 1h | Non-tripping | |
| b | Immediately after sequence a | 1.45 In | t < 1h | Tripping | Increase to the specified current within 5s after test item a. | |
| c | Cold state | 2.55 In | 1s < t < 60s | Tripping | ||
| d | Cold state | 3 In | t ≥ 0.1s | Non-tripping | Curve B | |
| 5 In | t < 0.1s | Tripping | ||||
| 5 In | t ≥ 0.1s | Non-tripping | Curve C | |||
| 10 In | t < 0.1s | Tripping |
3. Outline and installation dimensions (mm)
RCBO Type B is a high-performance product that offers superior mechanical and electrical life of 2000. It has a frame size rated current of Inm 50A, and meets the rigorous standards of IEC/EN 61009-1, AS/NZS 61009.1. It also has a rated impulse withstand voltage of Uimp 6000V, ensuring maximum safety and reliability. RCBO Type B is the perfect choice for high-end applications that demand maximum performance and reliability.
Product Name: RCBO Type B
Frame size rated current Inm: 50A
Rated impulse withstand voltage Uimp: 6000V
Rated Residual Non-Operating Current: 0.005A, 0.015A, 0.05A, 0.15A
Type of Instantaneous Tripping: Type B: (3 ~ 5) In, Type C: (5 ~ 10) In
Residual Current Operated Circuit Breaker (RCBO)
Circuit Breaker with Overcurrent Protection
HAROK's RCBO Type B provides reliable protection for industrial and commercial applications. Its rated residual non-operating current of 0.005A, 0.015A, 0.05A, 0.15A and Rated residual making and breaking capacity I△m of 500A provides a safe and optimal operating environment. This product is available in 1P+N poles and classified by Type of Instantaneous Tripping. Type B: (3 ~ 5) In and Type C: (5 ~ 10) In. The model numbers are VRL22 2P,4P VRL11 VAL003 VKL003 VDL006 VRL01 VRL02 VRL03 VK007LE 1P-4P. It is manufactured in China and is highly reliable for protection against electrical shock and fire.
| Parameter | Value |
|---|---|
| Standard | IEC/EN 61009-1, AS/NZS 61009.1 |
| Rated Voltage | AC240V |
| Rated residual making and breaking capacity I△m | 500A |
| Rated impulse withstand voltage Uimp | 6000V |
| Classified by Type of Instantaneous Tripping | Type B: (3 ~ 5) In, Type C: (5 ~ 10) In |
| Frame size rated current Inm | 50A |
| Rated Residual Operating Current | 0.01A, 0.03A, 0.1A, 0.3A |
| Connection | From Top And Bottom, From Bottom And Top |
| Product Name | RCBO Type B |
| Type | Type B |
Brand Name: HAROK
Model Number: VRL22 2P,4P VRL11 VAL003 VKL003 VDL006 VRL01 VRL02 VRL03 VK007LE 1P-4P
Place of Origin: CHINA
Frame size rated current Inm: 50A
Rated Current: 6A 10A 16A 20A 25A 32A 40A 50A
Classified by Type of Instantaneous Tripping: Type B: (3 ~ 5) In, Type C: (5 ~ 10) In
Rated Residual Operating Current: 0.01A, 0.03A, 0.1A, 0.3A
Rated residual making and breaking capacity I△m: 500A
RCBO circuit breaker is a protective device that combines the functions of a residual current device and a circuit breaker. It is used as over-current protection in residential and commercial applications. HAROK's RCBO Type B is designed with a quick trip time for protecting against electrical shocks. It offers 6A, 10A, 16A, 20A, 25A, 32A, 40A, and 50A rated current, and is able to withstand 500A of rated residual making and breaking capacity.
Technical support and service for RCBO Type B products include:
Guidance on product selection and installation
Product inquiries, troubleshooting and repairs
Software and firmware updates
Technical documentation and resources
Product maintenance and service plans
Product recalls and safety notices
Packaging and Shipping of RCBO Type B
The RCBO Type B is packaged in a cardboard box. The box is made of corrugated cardboard and is suitable for shipping. The size of the box is 40cm x 30cm x 20cm. Inside the box, the RCBO Type B is securely packaged with bubble wrap and foam. It is then sealed with tape. The box is then labeled with the product name, item number, and shipping address.
Q: What is RCBO Type B?
A: RCBO Type B is a residual current circuit breaker with over-current protection (RCBO) produced by HAROK. It has a model number of VRL22 2P,4P VRL11 VAL003 VKL003 VDL006 VRL01 VRL02 VRL03 VK007LE 1P-4P and is made in China.
Q: What are the benefits of using HAROK RCBO Type B?
A: HAROK RCBO Type B provides protection from overloads and short circuits, as well as residual current protection for the electrical circuit, enhancing safety and reliability.
Q: What types of applications is RCBO Type B suitable for?
A: HAROK RCBO Type B is suitable for different types of residential, commercial and industrial applications.
Q: What is the operating temperature range of the HAROK RCBO Type B?
A: The operating temperature range of HAROK RCBO Type B is -25°C to 40°C.
Q: What is the maximum breaking capacity of the HAROK RCBO Type B?
A: The maximum breaking capacity of HAROK RCBO Type B is 10kA.
