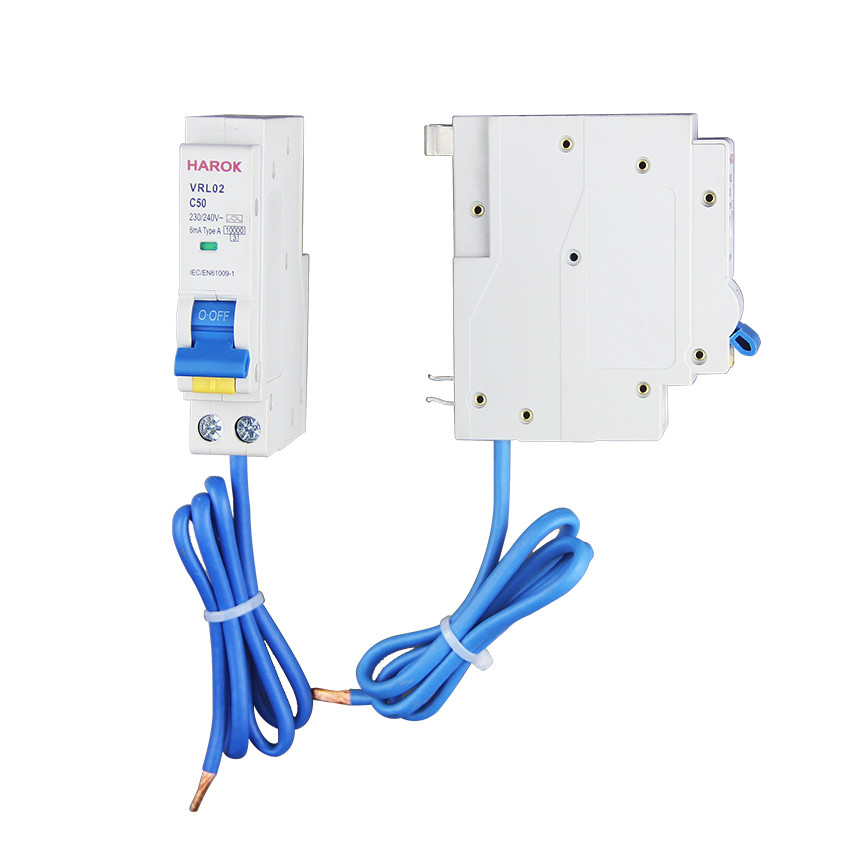

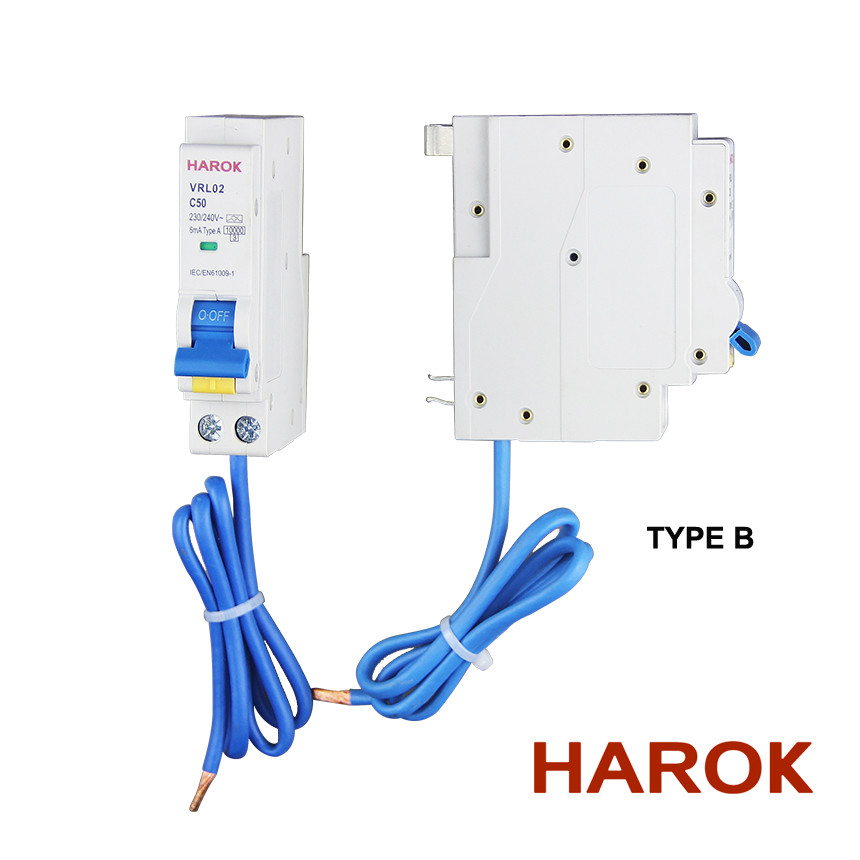

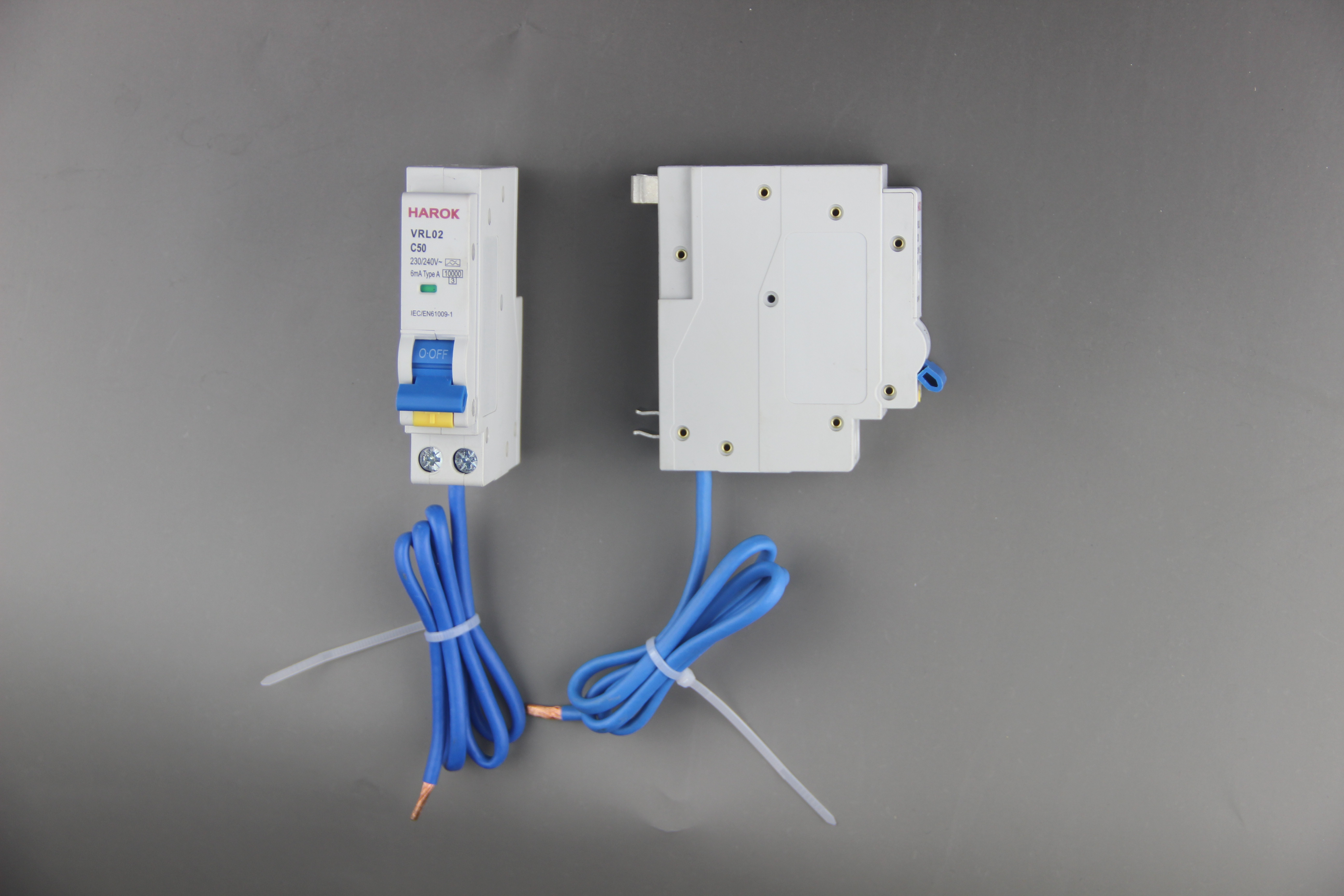

mini RCBO | Residual Current Operated Circuit Breaker with over-current protection
VRL02 Mini RCBO
(MCB sized 1 module with switched neutral)
1. General
1.1 Function
VRL02B RCBO type B and VRL02B+ RCBO type B+ are appearance design, compact structure, good reliability, and high safety. They are universal residual current circuit breaker with Overcurrent protection(RCBO).
Rated current up to 63A and for purposes of residual current protection, overcurrent (overload) and short circuit protection. When any personal electric shock occurs or the circuit leakage current exceeds the predetermined value, the RCBO can automatically cut off the power supply in a very short period of time, so that the safety of persons and electrical equipment can be operated.
Residual current circuit breaker with Overcurrent protection(RCBO) type B are suitable for domestic as well as industrial applications, where are used frequency inverters, PV plant, EV chargers and similar elements. B type provides a sensitivity to residual AC, pulsating and smooth DC current, together with high frequencies up to 1 kHz.
Residual current circuit breaker with Overcurrent protection(RCBO) type B+ meet full type B feature , with additional tripping values are defined up to 20KHZ and they are below 420mA.
They are based on electronic technology, which brings advantages of more accurate measuring of residual current and, as a consequence, reduction of unwanted tripping. These devices also do not suffer with magnetization of the tripping unit.
2. Technical parameters
2.1 The tripping characteristic curves are as shown below.
2.2 Basic parameters
| Standard | IEC/EN 61009-1, AS/NZS 61009.1 | |
| Main Specifications | Model No. | VRL02 |
| Rated current In | 6A, 10A, 16A, 20A, 25A, 32A, 40A, ,45A, 50A | |
| Classified by Type of Instantaneous Tripping | Type B: (3 ~ 5) In, Type C: (5 ~ 10) In | |
| Poles | 1P + N | |
| Type (wave form of the earth leakage sensed) | Type B | |
| ;Mechanical features | Rated voltage Ue | AC240V |
| Frame size rated current Inm | 50A | |
| Rated residual operating current I△n | 0.01A, 0.03A, 0.1A, 0.3A | |
| Rated residual non-operating current I△no | 0.005A, 0.015A, 0.05A, 0.15A | |
| Rated short-circuit breaking capacity Icn | 230/240V 6000A, 10000A; 120V 15000A | |
Rated residual making and breaking capacity I△m | 500A | |
| Electrical life | 2,000 | |
| Mechanical life | 2,000 | |
| Rated impulse withstand voltage Uimp | 6000V | |
| Connection | From top and bottom, from bottom and top |
2.3 The residual current breaking times
| In (A) | I△n (A) | Breaking time when the residual current assumes the following values (s) | ||||
| I△n | 2I△n | 5I△n | 5A, 10A, 20A, 50A, 100A, 200A, 500A(a) | I△t(b) | ||
| 5~40 | 0.006, 0.01, 0.03, 0.1, 0.3 | 0.1 | 0.05 | 0.04 | 0.04 | 0.04 |
a. For tests of 5A, 10A, 20A, 50A, 100A, 200A and 500A, the current values beyond the lower limit of over-current instantaneous tripping are not tested. B. Tests are done when I△t is equal to the lower limit current of over-current instantaneous tripping of type B and type C. | ||||||
2.4 The over-current protection characteristics
| No. | Rated current In (A) | Initial state | Test current (A) | Specified time (t) | Expected result | Remarks |
| a | 6 ~ 40 | Cold state | 1.13 In | t ≥ 1h | Non-tripping | |
| b | Immediately after sequence a | 1.45 In | t < 1h | Tripping | Increase to the specified current within 5s after test item a. | |
| c | Cold state | 2.55 In | 1s < t < 60s | Tripping | ||
| d | Cold state | 3 In | t ≥ 0.1s | Non-tripping | Type B | |
| 5 In | t < 0.1s | Tripping | ||||
| 5 In | t ≥ 0.1s | Non-tripping | Type C | |||
| 10 In | t < 0.1s | Tripping |
3. Outline and installation dimensions (mm)
RCBO Type B is a type of circuit breaker designed to protect people and property from electric shocks and fires. It is classified by type of instantaneous tripping as Type B (3~5 In) and Type C (5~10 In). This product has a remarkable electrical life of 2000 and is available in 1P+N poles configuration. RCBO Type B offers superior protection against overload, short-circuit, and earth leakage. It is an ideal choice for both commercial and industrial applications due to its efficient performance and reliable safety features. This product is designed to meet the highest safety standards and provides an essential layer of protection for people and property.
Product Name: RCBO Type B
Rated impulse withstand voltage Uimp: 6000V
Rated Residual Operating Current: 0.01A, 0.03A, 0.1A, 0.3A
Rated Residual Non-Operating Current: 0.005A, 0.015A, 0.05A, 0.15A
Rated residual making and breaking capacity I△m: 500A
Classified by Type of Instantaneous Tripping: Type B: (3 ~ 5) In, Type C: (5 ~ 10) In
Residual Current Operated Circuit Breaker (RCBO)
HAROK VRL22 2P,4P VRL11 VAL003 VKL003 VDL006 VRL01 VRL02 VRL03 VK007LE 1P-4P is the RCBO Type B which has the rated residual non-operating current 0.005A, 0.015A, 0.05A, 0.15A, poles 1P+N, frame size rated current Inm 50A, rated impulse withstand voltage Uimp 6000V and connection from top and bottom, from bottom and top. This product is made in China and it is widely used in many places for its safety protection functions. This RCBO Type B is especially applicable for household and commercial buildings to protect against the risks associated with electric shock. It also provides protection against over-currents, over-voltages, short-circuits and other electrical hazards. It is especially suitable for industrial and outdoor applications, providing reliable protection against electrical faults. This product is also suitable for medical equipment, electric motors, power supplies and other sensitive electrical systems, as well as for general applications. With its superior performance and reliable protection, HAROK VRL22 2P,4P VRL11 VAL003 VKL003 VDL006 VRL01 VRL02 VRL03 VK007LE 1P-4P is the perfect choice for all your safety protection needs.
| Product Name | RCBO Type B |
|---|---|
| Type | Type B |
| Standard | IEC/EN 61009-1, AS/NZS 61009.1 |
| Frame size rated current Inm | 50A |
| Poles | 1P+N |
| Connection | From Top And Bottom, From Bottom And Top |
| Rated Residual Operating Current | 0.01A, 0.03A, 0.1A, 0.3A |
| Rated Residual Non-Operating Current | 0.005A, 0.015A, 0.05A, 0.15A |
| Mechanical Life | 2000 |
| Electrical Life | 2000 |
