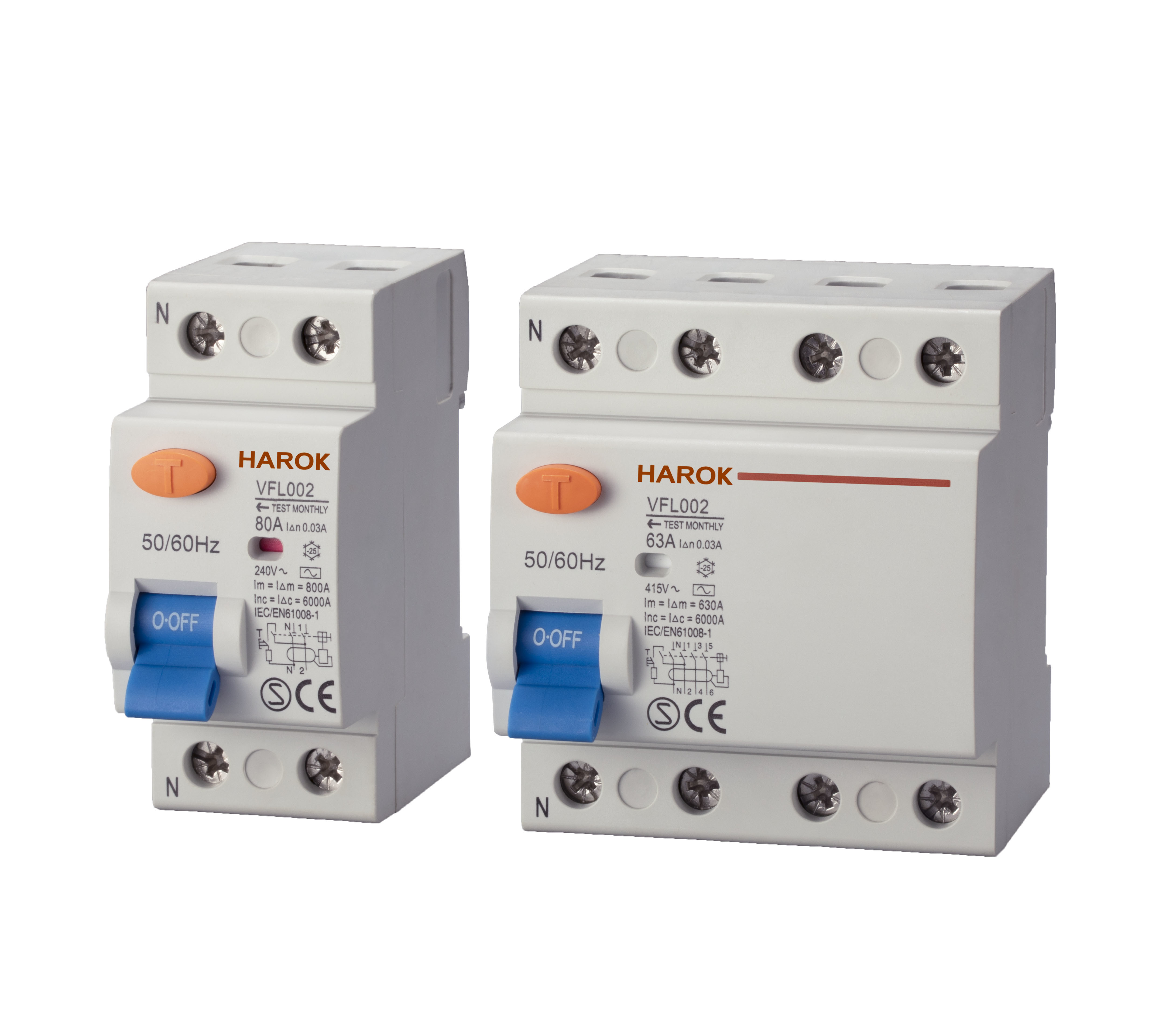

VFL001 Rated 6kA Service Short-Circuit Breaking Capacity Residual Current Circuit Breaker (RCCB)
VFL001 Residual Current Circuit Breaker(RCCB) Type A Type AC Type ASi
1. General
1.1 Function
Control electric circuits.
Protect people against indirect contacts and additional protection against direct contacts.
Protect installations against fire hazard due to insulation faults.
Residual current circuit breakers are used in housing, tertiary sector and industry.
1.2 Selection
Detectable wave form
AC class
Tripping is ensured for slowly increasing sinusoidal AC residual currents
A class
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly.
ASi Type - Full type A features + Si: Super immused (High immunity to unwanted tripping)
Tripping is ensured not only for sinusoidal AC residual currents but also for pulsed DC residual currents whether applied suddenly or increasing slowly. S, G/SI type with filters against spurious tripping caused by harmonics and transient surges. With the impact of 8/20us surge 3000A, this high immunity RCCB will still be in stable status.
Note: Our ASi type includes G/KV function and Si function.
1.3 Approvals and certificates
We certify that the RCCB has been tested for the following routine tests as per IS: 12640 (Part 1):2016 and found to be complying
with the requirements.
1. Verification of the operating characteristic as per Seq. - D0 CL9.9
2. Verification of the operation of the test device at the limits of rated voltage as per Seq. - D1 CL9.16
3. High Voltage Test as per D.3 of Annex D
4. Test for standard values of break time and non- actuating time as per CL 5.3.12 (table -1)
Tripping sensitivity
10mA - precision instrument leakage protection and bathroom use.
30mA - additional protection against direct contact.
100mA - co-ordinated with the earth system according to the formula I△n < 50/R, to provide protection against indirect contacts;
300mA/500mA - protection against indirect contacts, as well as fire hazard.
Tripping time
Instantaneous
It ensures instantaneous tripping(without time-delay).
Short time delay ASi
(High Immunity/ Avoid nuisance tripping &blinding)
It ensures any tripping at least 10ms.
Selective
It ensures total discrimination with a non selective RCD placed downstream.
RCCB | Residual Current Circuit Breaker
2. Technical parameters
| Standard | IEC/EN 61008-1 AS/NZS61008.1 | |
| Electrical features | Model No. | VFL001 |
| Poles | 2P, 4P | |
| Rated current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A | |
| Rated Sensitivity I△n | 10mA(2P/4P 16A,25A.32A/40A), 30mA, 100mA, 300mA | |
| Rated voltage Ue | 2P: 240V 4P: 415V | |
| Insulation voltage Ui | 415V | |
| Rated frequency | 50/60 Hz | |
| Rated residual making and breaking capacity I△m | 1500A | |
| Short-circuit current Inc=I△c | 6000A, 10000A | |
| Type (wave form of the earth leakage sensed) | AC, A, ASi, S | |
| break time under I△n | ≤0.1s(Normal type), 10ms~300ms(ASi type). 150ms~500ms(S type) | |
| Rated impulse withstand voltage(1.2/50) Uimp | 4kV | |
| Dielectric test voltage at ind. Freq. for 1 min | 2.5 | |
| Pollution degree | 2 | |
| Mechanical features | Electrical life | ≥2000 |
| Mechanical life | ≥2000 | |
| Fault current indicator | Yes | |
| Terminal protection degree | IP20 | |
Ambient temperature (with daily average≤35℃) | -25℃ to 50℃ | |
| Storage temperate | -30℃ to 70℃ | |
| Installation | Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable | 25-35 mm² | |
| 18-3/18-2 AWG | ||
| Terminal size top/bottom for busbar | 10/16 mm² | |
| 18-8/18-5 AWG | ||
| Tightening torque | 2.5 N·m | |
| 22 In-Ibs. | ||
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device | |
| Connection | From top and bottom |
3. Outline and installation dimensions (mm)
Residual Current Circuit Breaker type A, type AC, type ASi is a reliable and safe product with a wide range of applications. It is designed to provide protection against electric shock due to leakage currents, as well as to detect short circuits and overloads. The RCCB has a rated voltage of 230V AC, and a rated current of 30mA-100mA. It is certified to meet the highest safety standards, including CE, ISI, NF, SEMKO, VDE, and KEMA. The RCCB with ISI mark has been tested and approved by the Indian Standard Institute, and the Residual Current Circuit Breaker Inmetro is certified by the Brazilian National Institute of Metrology, Quality, and Technology. The Residual Current Circuit Breaker with CE mark is compliant with the European Union's safety regulations. It has a rated operating duration of ≤1s and a rated operating frequency of 50/60Hz, providing superior protection against electric shock.
Product Name: Residual Current Circuit Breaker RCCB
Certifications: NF SEMKO VDE KEMA, Residual Current Circuit Breaker with ISI mark
Rated Residual Operating Current: 10mA-300mA
Rated Service Impulse Withstand Voltage: 6kV
Rated Service Short-Circuit Breaking Capacity: 10kA
Rated Residual Current Off-Time: ≤0.1s
Rated Current: 16A-100A
HAROK VFL001 Residual Current Circuit Breaker RCCB with Inmetro certification is an ideal device for protecting people from electric shock and fire risks, as it can detect and isolate the fault current immediately with its rated current 30mA-100mA and insulation voltage 500V. It is certified by NF, SEMKO, VDE, KEMA, ISI, CE and has a rated service impulse withstand voltage of 6kV, rated short-circuit breaking capacity of 10kA, which makes it suitable for different applications. With a minimum order quantity of 5000 pieces, the product can be delivered in 4-6 weeks after payment, and the paper carton packaging ensures the safety of the products. With the ability to produce 100,000 pieces per month, HAROK VFL001 Residual Current Circuit Breaker RCCB is the perfect choice for any residential, commercial and industrial applications.
