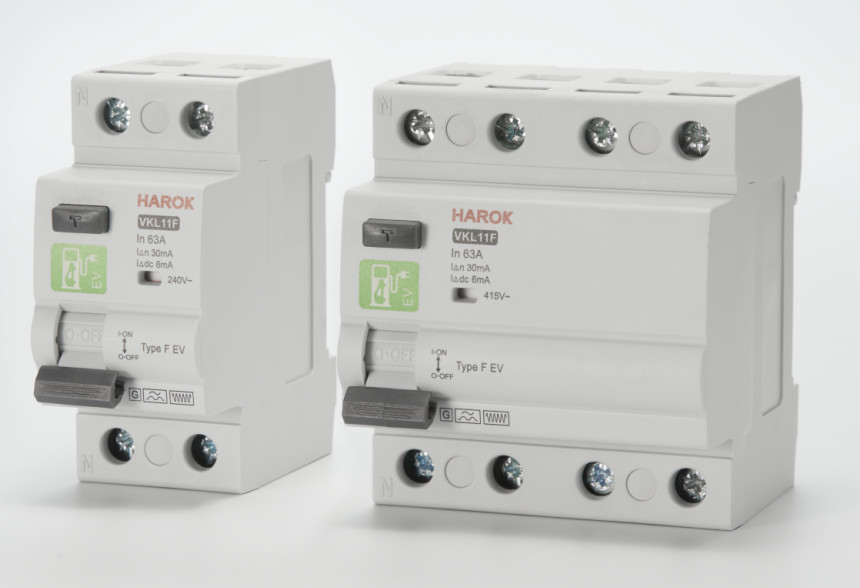

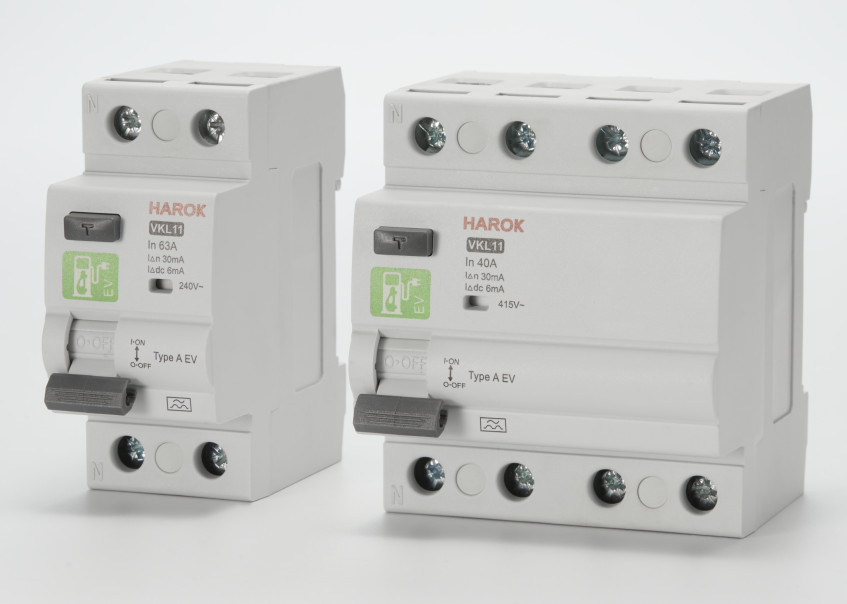

Type F EV
Residual Current Circuit Breaker VKL11F TYPE F EV (RCCB TYPE F EV) is the Type EV RCCB which has been developed specifically for EV charging systems and can detect AC and DC residual currents in accordance with the requirements of EN61008-1 and EN62423(function for detecting smooth DC residual current and a tripping threshold of 6mA )
The VKL11F RCCB TYPE F EV also detects residual currents with mixed frequencies which is different from 50Hz. Electronic wiring and power electronics are required in electric vehicles for charging purposes. In the event of a fault, these can give rise to smooth DC residual currents and residual currents with mixed frequencies.The VKL11F RCCB TYPE F EV is also short-time delayed and has increased surge current strength. This significantly reduces the risk of faulty tripping.
Detectable wave form
AC class
Tripping is ensured for slowly increasing sinusoidal AC
residual currents
A class
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly.
Smooth DC 6mA
smooth DC residual currents (switch-off at max 6 mA)
1.3 Approvals and certificates :UKCA,CE
Tripping sensitivity
30mA - 50Hz sinusoidal AC ; Pulsating DC
Smooth DC ≥ 6 mA (RDC-PD)
Tripping time
short time delayed (G )
2. Outline and installation dimensions (mm)
3. Technical parameters
| Standard | IEC/EN 61008-1 & EN62423 | |
| Electrical features | Model No. | VKL11F F EV |
| Poles | 2P, 4P | |
| Rated current In | 16A, 25A, 32A, 40A, 63A, 80A, 100A | |
| Rated Sensitivity I△n | 30mA | |
| DC tripping threshold | 6mA | |
| Rated voltage Ue | 2P: 240V 4P: 415V | |
| Insulation voltage Ui | 500V | |
| Rated frequency | 50/60 Hz | |
Rated residual making and breaking capacity I△m | 500A (In=16A, 25A, 32A, 40A) | |
| 630A(In=63A), 800A(In=80A), 1000A(In=100A) | ||
| Short-circuit current Inc=I△c | 6000A, 10000A,1500 A | |
Rated making and breaking capacity Im Peak withstand current | 3 kA (8/20 μs) surge current proof | |
| Type (wave form of the earth leakage sensed) | AC, A Smooth DC 6mA | |
| Tripping time | Short time delayed | |
| break time under I△n | 10ms~300ms (G,type) | |
| Rated impulse withstand voltage(1.2/50) Uimp | 6kV | |
| Dielectric test voltage at ind. Freq. for 1 min | 2.5 | |
| Pollution degree | 2 | |
| Mechanical features | Electrical life | ≥2000 |
| Mechanical life | ≥2000 | |
| Fault current indicator | Yes | |
| Terminal protection degree | IP20 | |
Ambient temperature (with daily average≤35℃) | -25℃ to 55℃ | |
| Storage temperature | -40℃ to 70℃ | |
| Installation | Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable | 25-35 mm² | |
| 18-3/18-2 AWG | ||
| Terminal size top/bottom for busbar | 10/16 mm² | |
| 18-8/18-5 AWG | ||
| Tightening torque | 2.5 N·m | |
| 22 In-Ibs. | ||
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device | |
| Connection | From top and bottom | |
| Standard | EN61008-1 ,EN62423,OVE E8601 |
